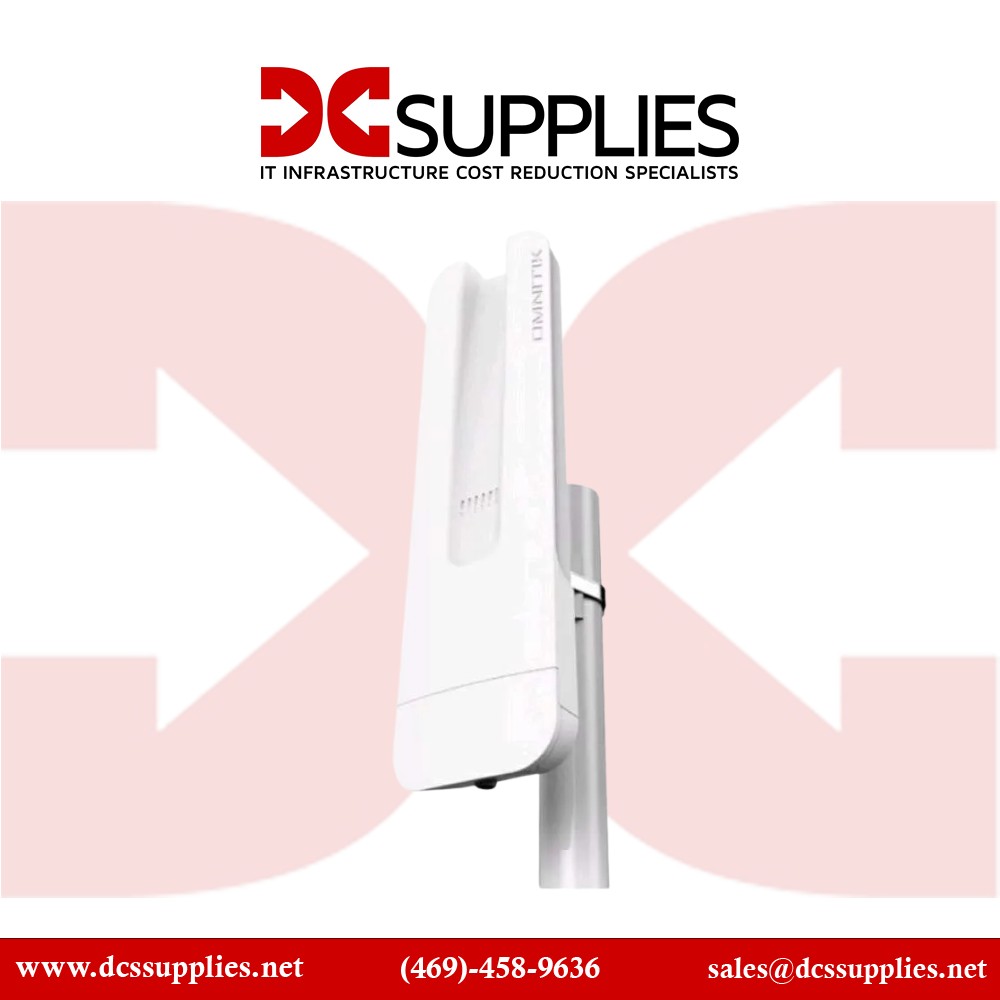

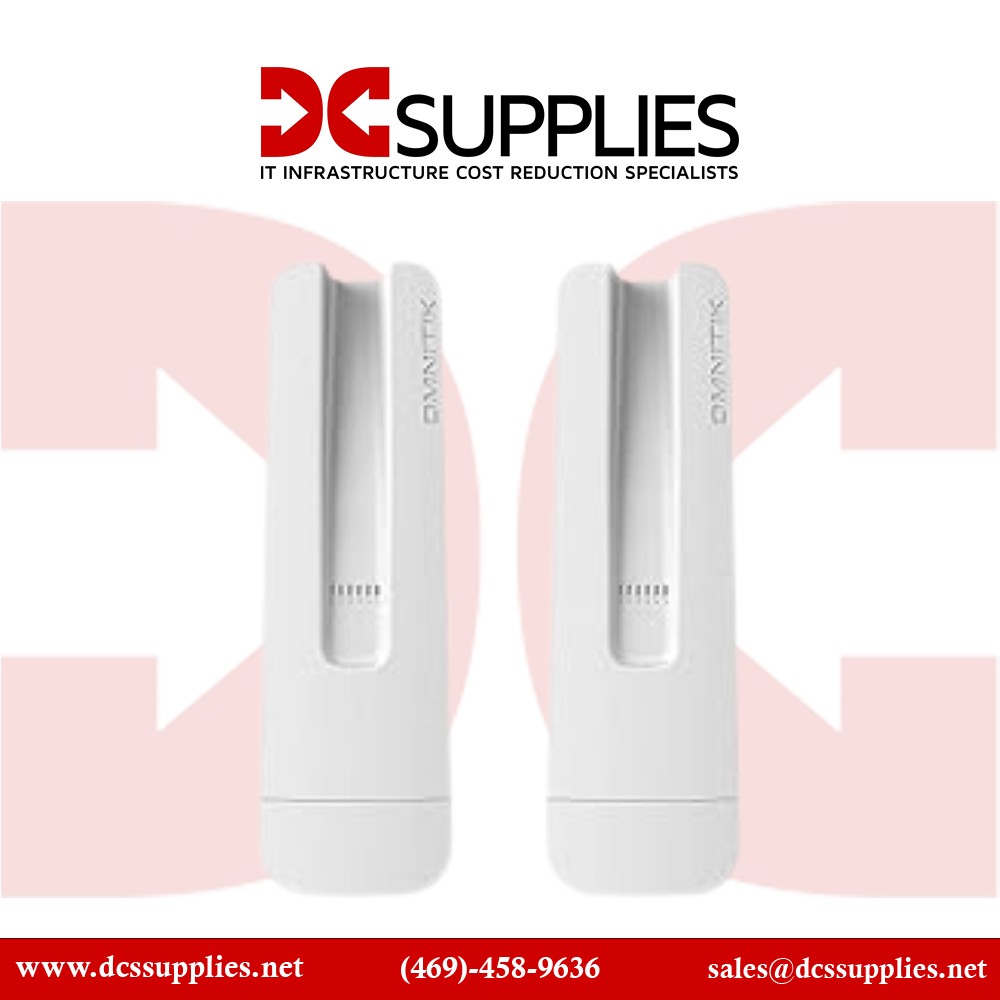

Mikrotik RBOmniTikG-5HacD-US

OmniTik 5 ac Outdoor 5GHz Access Point with 7.5 dBi Antennas &

The MikroTik RBOmniTikG-5HacD-US (OmniTik 5 ac US) is a powerful outdoor wireless access point featuring 5GHz 802.11ac Wi-Fi, five Gigabit Ethernet ports, and built-in 7.5 dBi omni antennas. Ideal for WISPs, building coverage, or rural hotspot deployments, it combines robust connectivity with an all-weather design.

Features

Built for high-performance wireless in open-air environments, the OmniTik 5 ac delivers dual-chain MIMO Wi-Fi on the 5GHz band, supporting 802.11a/n/ac standards. Its five Gigabit Ethernet ports enable both LAN distribution and uplink options, while PoE out on port 5 can power another MikroTik device.

Advanced Options

With a 720 MHz CPU, 128 MB of RAM, and RouterOS Level 4, it's equipped for complex network roles×ranging from wireless access point to CPE base station. The device is housed in a rugged, IP-rated enclosure with pole mounting hardware for hassle-free outdoor installation.

Product Key Features

• • 5GHz dual-chain 802.11ac wireless with integrated 7.5 dBi omni antennas

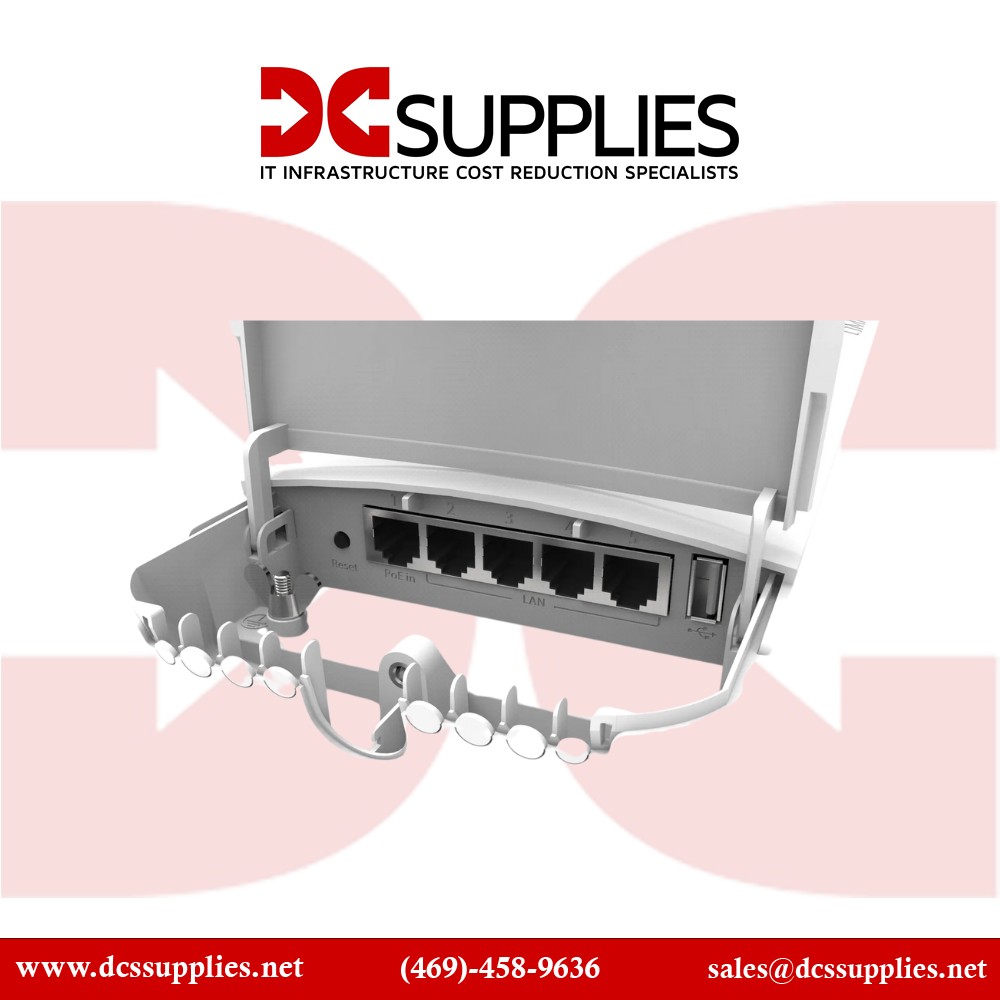

  • 5 × Gigabit Ethernet ports for high-speed wired connections

  • Powered by RouterOS Level 4 for advanced routing, bridging, and VPN

  • Outdoor weatherproof enclosure designed for tower and pole mounts

  • Supports passive PoE input and PoE output on select ports

  • US-licensed version, compliant with FCC regulations

Reliability & Performance

Designed to withstand outdoor conditions, the OmniTik 5 ac features a UV-resistant case, integrated antenna design, and reliable passive PoE support. It delivers strong omnidirectional coverage, making it ideal for point-to-multipoint networks or campus-wide deployments. RouterOS provides full control with firewall, QoS, bridging, and VPN support.

Key Features :

• • 5GHz 802.11a/n/ac dual-chain wireless radio

  • Integrated 7.5 dBi omni antennas

  • 5 × Gigabit Ethernet ports

  • Passive PoE input and PoE output on port 5

  • 720 MHz CPU with 128 MB RAM

  • RouterOS Level 4 license

  • Weatherproof outdoor enclosure

  • Ideal for WISPs and point-to-multipoint setups

Specification	Details
Model Number	RBOmniTikG-5HacD-US
Product Type	Outdoor Wireless Access Point
Wireless Frequency	5GHz only
Wireless Standards	802.11a/n/ac (dual-chain MIMO)
Antenna Gain	7.5 dBi integrated omni antennas
Ethernet Ports	5 × 10/100/1000 Mbps RJ-45
PoE Input	Passive PoE (11-30 V on port 1)
PoE Output	Passive PoE (on port 5)
CPU	QCA9557, 720 MHz
RAM	128 MB DDR2
Storage	16 MB Flash
Operating System	RouterOS, License Level 4
Enclosure	Outdoor, weatherproof, UV-resistant
Mounting	Pole-mount kit included
Dimensions	368 × 125 × 55 mm
Weight	~520 g
