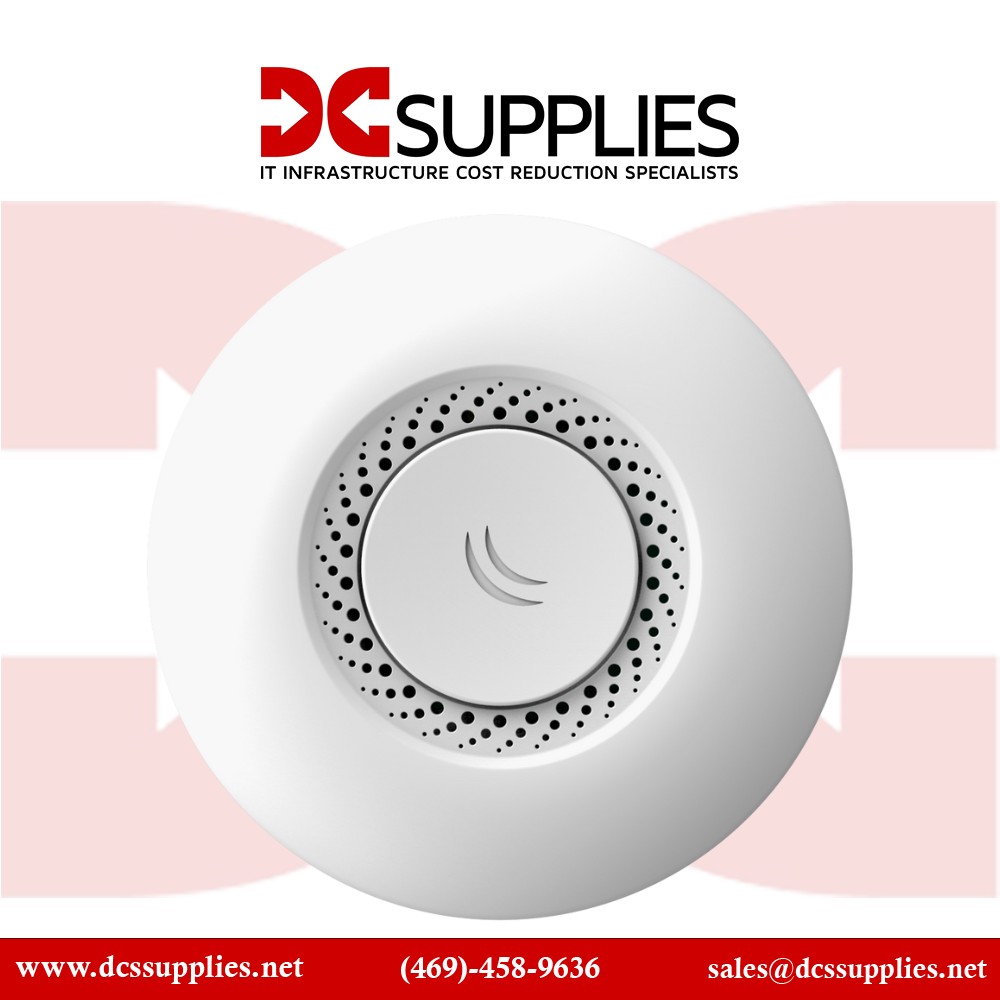

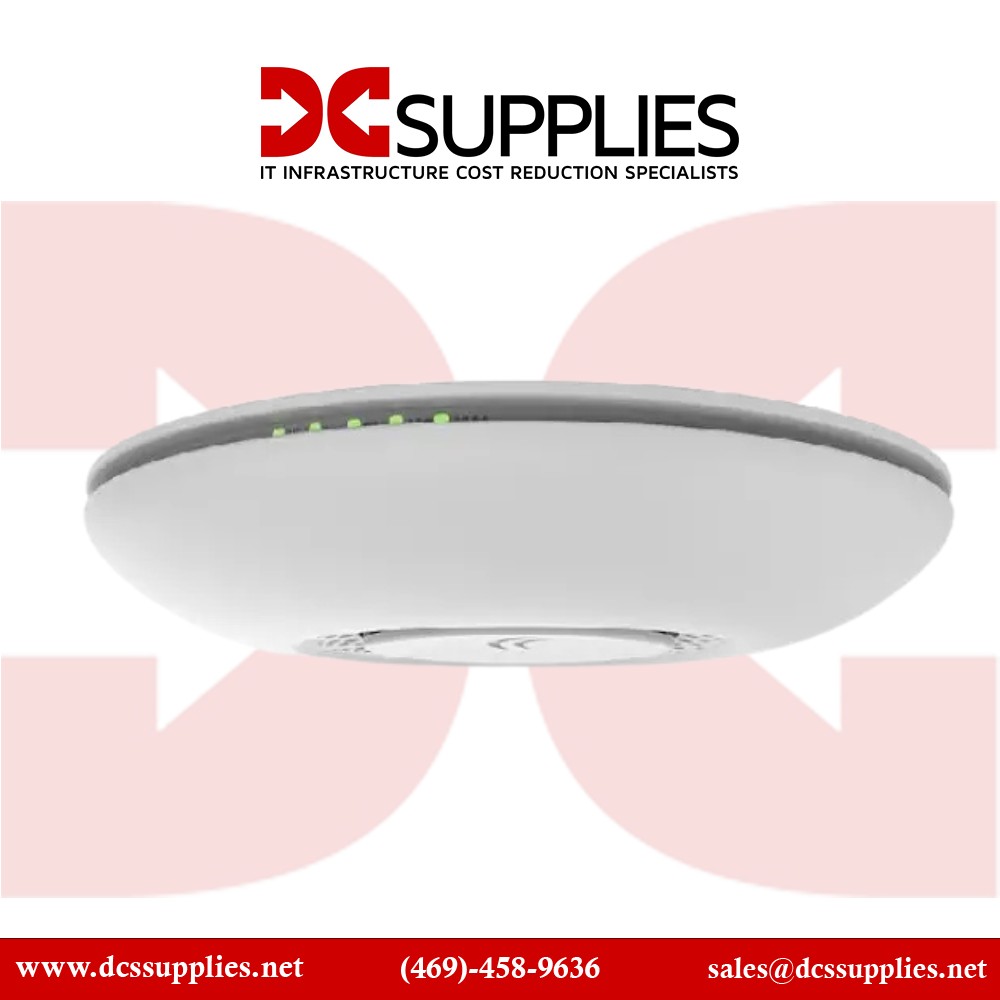

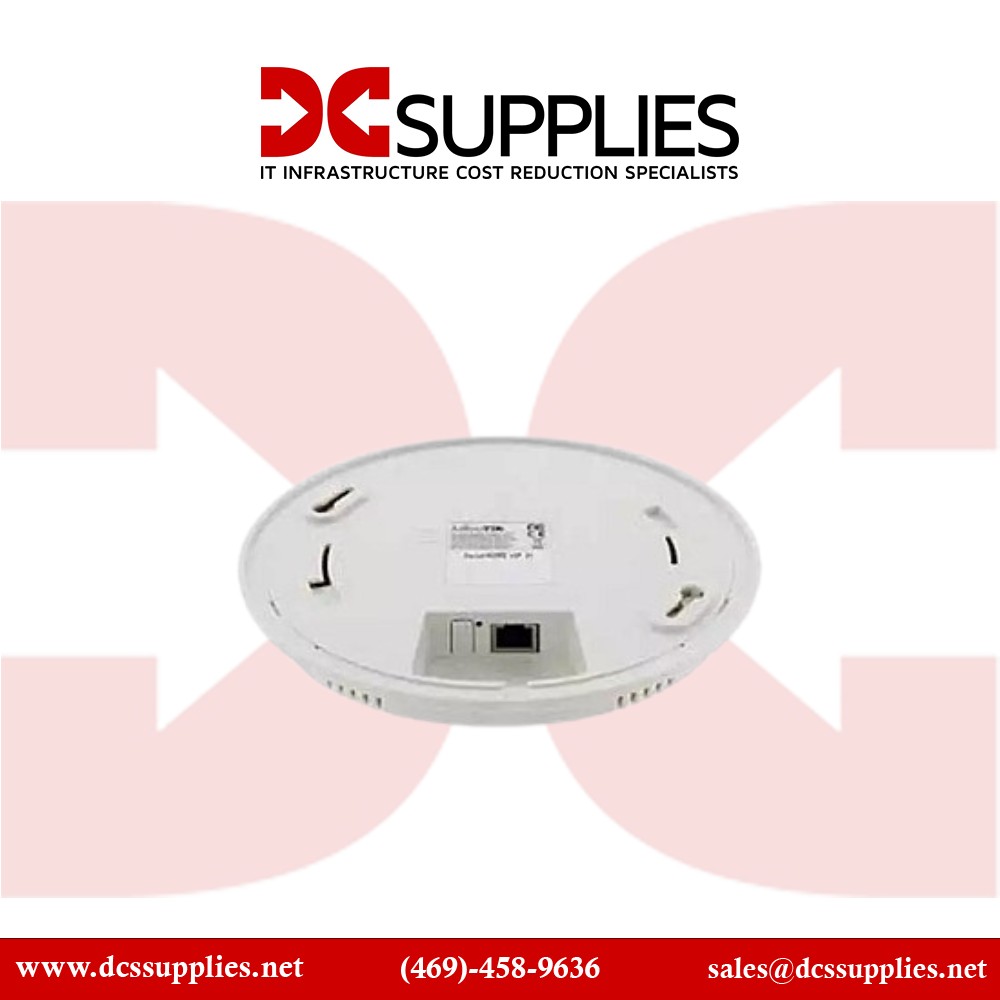

MikroTik RBcAPL-2nD

cAP Lite 2.4GHz Ceiling Access Point with RouterOS L4 (Indoor Model)

The MikroTik RBcAPL-2nD cAP Lite is a compact and cost-effective indoor access point designed for ceiling or wall mounting. It provides reliable 2.4GHz wireless performance and comes preinstalled with RouterOS Level 4, making it an excellent solution for small-scale Wi-Fi deployments in commercial and residential spaces.

Features

Despite its small size, the cAP Lite delivers solid wireless coverage and versatility. It supports 802.11b/g/n standards, powered by a 650 MHz Qualcomm Atheros CPU, and provides passive PoE input for simple and clean installations. With its minimalistic design, the device blends easily into any interior×ideal for hospitality, retail, or small business settings.

Advanced Options

Running RouterOS Level 4, the RBcAPL-2nD offers more than basic wireless functionality. It can perform as a wireless AP, basic router, or part of a managed MikroTik CAPsMAN deployment for centralized Wi-Fi control. The unit's affordability, reliability, and flexible form factor make it a go-to solution for scalable indoor wireless access.

Product Key Features

• • 2.4GHz single-band wireless for reliable indoor coverage

  • Ultra-compact ceiling or wall-mountable indoor enclosure

  • Supports passive PoE input for simplified, cable-free power

  • Includes 1× 10/100 Ethernet port for wired uplink

  • Preinstalled with RouterOS Level 4 for routing, hotspot, and firewall features

  • Ideal for hotels, retail spaces, small offices, and home environments

Reliability & Performance

Built with simplicity and reliability in mind, the RBcAPL-2nD features fanless passive cooling, durable plastic housing, and proven RouterBOARD engineering. Its single-chain 2.4GHz radio supports most common devices, while the passive PoE support helps minimize power cable clutter. Ideal for extending Wi-Fi coverage in dense deployments without visual disruption.

Key Features :

• • 2.4GHz single-chain wireless radio

  • 802.11b/g/n Wi-Fi standards

  • 1 × 10/100 Ethernet port

  • Passive PoE input (9-30V)

  • RouterOS Level 4 license included

  • Ceiling or wall mountable

  • Compact indoor plastic case

  • Fanless passive cooling design

Specification	Details
Model Number	RBcAPL-2nD (cAP Lite)
Product Type	Ceiling-Mount Wireless Access Point
Wireless Frequency	2.4 GHz
Wireless Standards	802.11b/g/n
Wireless Chains	1 (single-chain MIMO)
Ethernet Port	1 × 10/100 Mbps RJ-45
PoE Input	Yes (Passive PoE, 9-30V)
CPU	QCA9533, 650 MHz
RAM	64 MB
Storage	16 MB Flash
Operating System	RouterOS, License Level 4
Mounting	Ceiling or wall
Dimensions	88 × 88 × 21 mm
Weight	~69 g
