Detailed Specifications

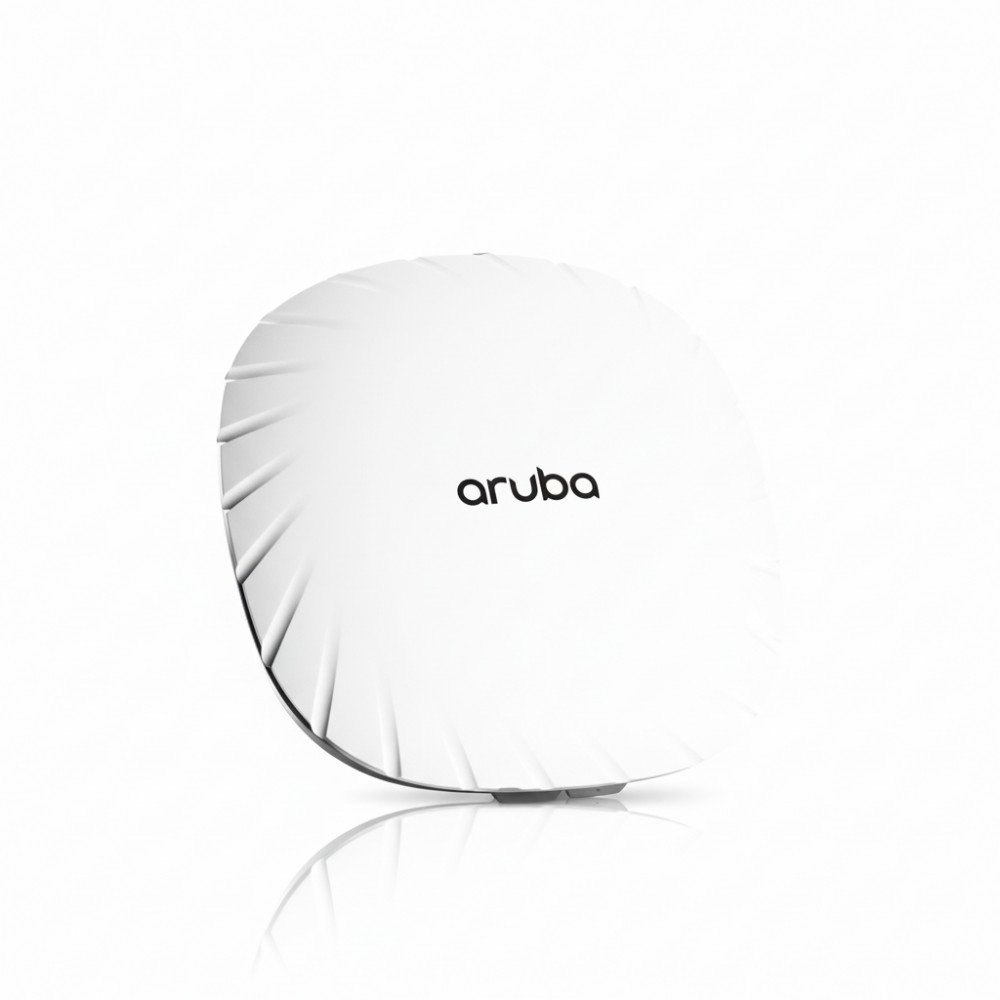

Aruba R2H29A AP-505 US Campus Access Point - Dual-Radio Wi-Fi 6 (802.11ax, 2×2:2 Internal Antennas)
The Aruba AP-505 (R2H29A) is a Wi-Fi 6 indoor access point crafted for medium-density environments×like offices, classrooms, and retail locations. Combining robust performance, intelligent RF features, and IoT readiness, it delivers reliable and secure wireless connectivity suitable for modern enterprise needs.
Features
Utilizing 2×2 MIMO radios on both 2.4 GHz and 5 GHz bands, the AP-505 delivers up to 574 Mbps on 2.4 GHz and 1.2 Gbps on 5 GHz, totaling approximately 1.775 Gbps real-world throughput.
Advanced Options
Its internal downtilt antennas simplify ceiling installations while providing consistent coverage with ~4.9 dBi and ~5.7 dBi gains It includes Bluetooth 5 and Zigbee, making it ideal for indoor IoT use.
Product Key Features
Dual-radio Wi-Fi 6 (2×2 MIMO) delivering up to 1.775 Gbps aggregate
Integrated downtilt internal antennas (4.9 dBi @2.4 GHz, 5.7 dBi @5 GHz)
Supports OFDMA, MU-MIMO, TWT, ClientMatch®, AirSlice®, AirMatch®
Enterprise security: WPA3, Enhanced Open, Dynamic Segmentation, onboard TPM
Bluetooth 5 and Zigbee radios for IoT use cases
Plenum-rated, ceiling/wall mountable, compact form factor
Reliability & Performance
The AP-505 supports plenum-rated deployments and operates reliably within 0-50 °C, drawing as little as 4.3 W (DC) or 6.2 W (PoE) in idle and peaking at 14.2 W under load. With intelligent RF enhancements (ClientMatch, AirSlice, AirMatch), it optimizes performance dynamically in high-density areas.
Key Features :
Wi-Fi 6 (802.11ax) dual-radio, 2×2:2 MIMO
Aggregate bandwidth ~1.49-1.775 Gbps
Integrated downtilt antennas (2.4 GHz & 5 GHz)
Bluetooth 5 & Zigbee for IoT/analytics
Support for OFDMA, MU-MIMO, TWT
Enterprise-grade security: WPA3, Enhanced Open, Dynamic Segmentation, TPM
Plenum rating, ceiling and wall mountable with included bracket
Energy-efficient power draw (4.3 W idle, 14.2 W peak)
| Specification | Details |
|---|
| Model Number | R2H29A (AP-505 US Campus) |
| Product Type | Indoor Dual-Radio Wi-Fi 6 Access Point |
| Wireless Standard | IEEE 802.11ax (Wi-Fi 6) |
| Radios | 2×2 MIMO on 2.4 GHz & 5 GHz |
| Max Throughput | ~1.775 Gbps total (574 Mbps + 1.2 Gbps) |
| Antennas | Internal downtilt; 4.9 dBi (2.4 GHz), 5.7 dBi (5 GHz) |
| Bluetooth/Zigbee | BT 5.0, 802.15.4 |
| Ethernet Port | 1× 1 GbE, PoE+ capable |
| USB | 1× USB-A for IoT expansion |
| Power Consumption | 4.3 W (DC idle), 6.2 W (PoE idle), 14.2 W peak |
| Mounting Options | Ceiling tile, wall, plenum rated |
| Operating Temp/Humidity | 0-50 °C / 5-93% non-condensing |
| Plenum Rating | Yes (UL2043) |
| Security | WPA3, Enhanced Open, Dynamic Segmentation, TPM |
| Certifications | Wi-Fi CERTIFIED 6, FCC, CE, IC, Ethernet Alliance PoE |
| Dimensions (W×D×H) | 160 × 161 × 37 mm |
| Weight | ~500 g |
