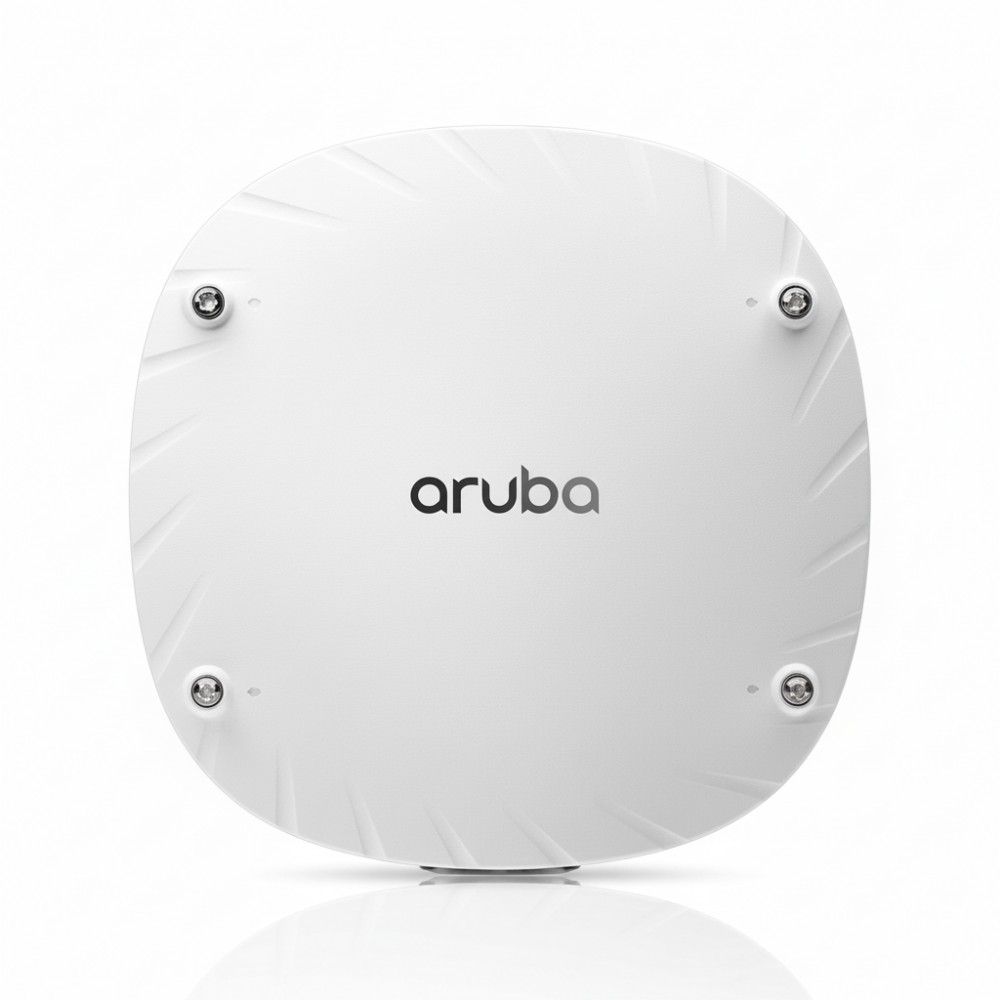

HPE JZ337A

Aruba AP-535 US Campus Wireless Access Point - Dual-Radio Wi-Fi 6 (802.11ax) 4×4:4

The HPE Aruba AP-535 (JZ337A) is a powerful Wi-Fi 6 access point designed for high-density campuses, enterprises, and IoT-rich environments. With dual radios and advanced RF management, it delivers fast, secure, and reliable wireless connectivity ideal for classrooms, offices, medical facilities, and retail spaces.

Features

Featuring dual 4×4 MIMO radios across 2.4 GHz and 5 GHz bands, the AP-535 achieves aggregate throughput of up to 3.55 Gbps, supporting simultaneous high-speed connections The unit includes Bluetooth 5 and Zigbee radios to enable indoor location services, analytics, and IoT deployments. Dual 5 GbE Smart Rate ports support power (PoE-PD) and data redundancy or link aggregation, suited to next-gen backbone speeds .

Advanced Options

Aruba's intelligent RF suite×ClientMatch, AirMatch, ACC×coupled with OFDMA and MU-MIMO for Wi-Fi 6, dynamically optimizes performance in dense user environments .

Product Key Features

• • Dual-radio Wi-Fi 6 (4×4 in 5 GHz + 4×4 in 2.4 GHz) delivering up to 3.55 Gbps aggregate

  • Built-in Bluetooth 5 and Zigbee for robust IoT integrations

  • Dual 5 GbE Smart Rate ports (1/2.5/5 GbE) with PoE-PD support

  • Intelligent Aruba RF: OFDMA, MU-MIMO, ClientMatch®, AirMatch®, Advanced Cellular Coexistence

  • Enterprise-level security: WPA3, Enhanced Open, onboard TPM, Dynamic Segmentation

  • Ceiling, wall, or rail-mountable×sleek, low-profile design

Reliability & Performance

Built for mission-critical deployments, the AP-535 includes onboard TPM for secure credential storage, support for Dynamic Segmentation, and secure credentials under ArubaOS. Intelligent Power Monitoring allows operation even with limited PoE budgets by disabling non-critical features. With support for up to 1,024 clients per radio and robust security protocols (WPA3, Enhanced Open), it's pragmatic for large venues and sensitive environments

Key Features :

• Dual-radio 802.11ax (4×4:4) Wi-Fi 6

• Aggregate bandwidth up to 3.55 Gbps

• Integrated Bluetooth 5 and Zigbee radios

• Two 5 GbE Smart Rate uplinks with PoE-PD

• Aruba RF suite: OFDMA, MU-MIMO, ClientMatch, AirMatch, ACC

• Enterprise security: WPA3, Enhanced Open, TPM, Dynamic Segmentation

• Mountable on ceiling, wall, or rail brackets

Specification	Details
Model Number	JZ337A (AP-535 US Campus AP)
Product Type	Indoor Dual-Radio Wi-Fi 6 Access Point
Wireless Standard	IEEE 802.11ax (Wi-Fi 6)
Radios	2×2.4 GHz + 2×5 GHz (4×4:4 MIMO)
Max Aggregate Throughput	3.55 Gbps (2.4 GHz: 1.15 Gbps, 5 GHz: 2.4 Gbps)
Bluetooth/Zigbee	Bluetooth 5, 802.15.4 (Zigbee)
Ethernet Ports	2× 5 GbE Smart Rate (1/2.5/5 GbE), PoE-PD
USB Port	1× USB 2.0 Type-A host
Console Port	1× micro-USB for debugging
Security	WPA3, Enhanced Open, TPM, Dynamic Segmentation
IoT Expansion	Built-in Bluetooth & Zigbee radios
Mount Options	Ceiling, wall, rail - bracket included
Dimensions (W×D×H)	~9.4″ × 9.4″ × 2.2″ (239 × 239 × 56 mm)
Weight	~2.8 lb (1.27 kg)
Clients Supported	Up to 1,024 per radio
OFDMA Resource Units	37 units per radio
Power Options	PoE-PD (802.3bt/at), DC power (optional)
Regulatory Domain	US-specific
Warranty	Manufacturer or reseller provided
