Detailed Specifications

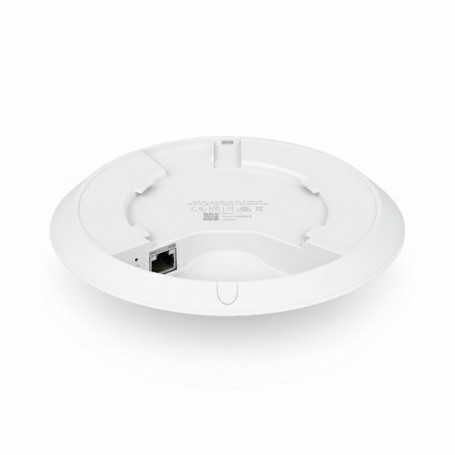

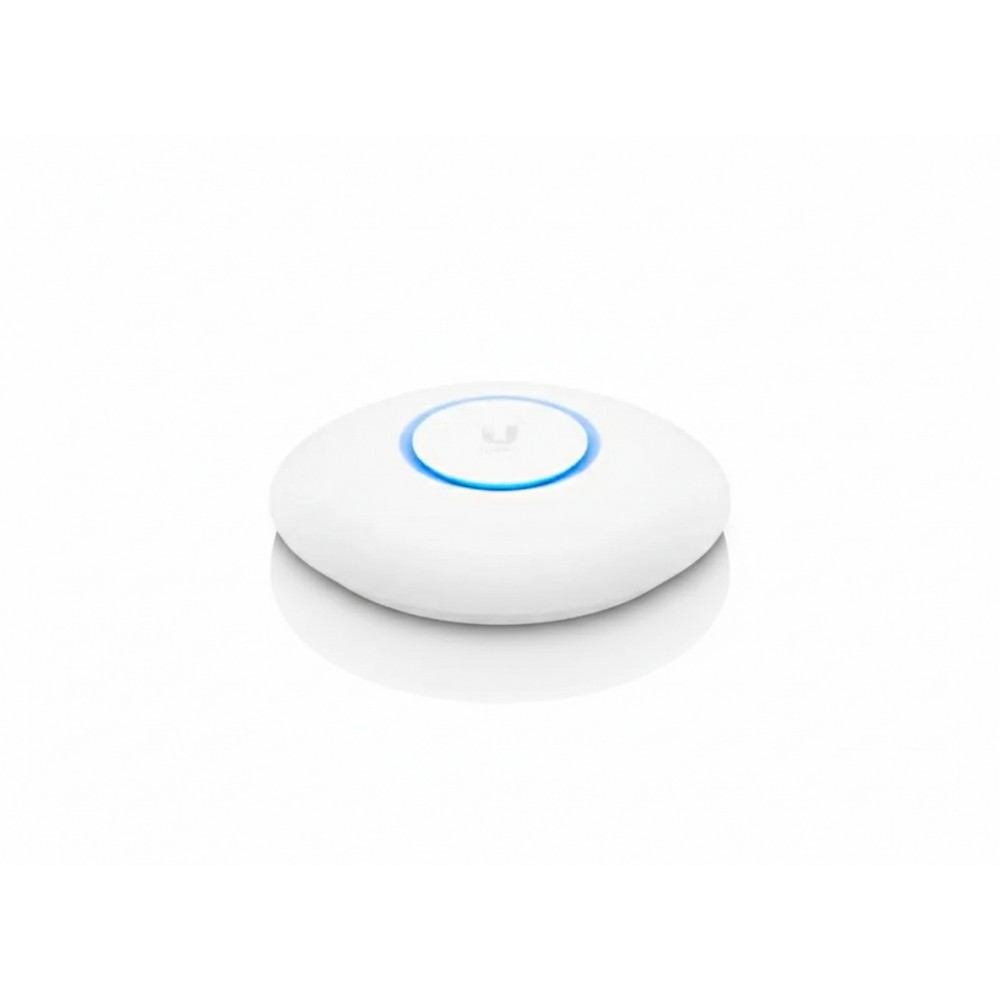

Ubiquiti U6+-US Dual-Band Wi-Fi 6 Access Point
Overview
The Ubiquiti U6-PLUS-US is a compact dual-band Wi-Fi 6 access point designed to provide wireless coverage for small to medium-sized businesses and dense client environments. It supports 802.11ax technology with 2×2 MU-MIMO spatial streams, delivering combined throughput up to ~2975 Mb/s across 2.4 GHz and 5 GHz. The unit includes a single Gigabit Ethernet port with PoE power and mounts to walls or ceilings for flexible deployment. It operates under the UniFi Network platform for centralized provisioning, monitoring, and management.
Key Features
• Dual-band 802.11ax Wi-Fi 6 support
• 2×2 MU-MIMO, 4 spatial streams
• Up to ~2975 Mb/s total throughput
• PoE powered with wall/ceiling mount
Technical Specifications
| Specification | Details |
|---|
| Brand | Ubiquiti |
| Part Number | U6+-US |
| Product Type | Dual-Band Wi-Fi 6 Access Point |
| Wireless Standard | IEEE 802.11a/b/g/n/ac/ax |
| Frequency Bands | 2.4 GHz & 5 GHz |
| Maximum Throughput | ~2975 Mb/s total |
| MIMO | 2×2 on both bands |
| Ethernet Ports | (1) 1 GbE RJ45 (PoE) |
| Power | PoE 44-57 V DC |
| Power Consumption | ≤ 9 W |
| Antenna Gain | 3 dBi (2.4 GHz), 5.4 dBi (5 GHz) |
| Max Transmit Power | 23 dBm per band |
| Supported Clients | 300+ |
| Mounting | Wall or ceiling kit included |
| Dimensions | Ø160 × 33 mm |
| Weight | ~338 g (without mount) |
