Detailed Specifications

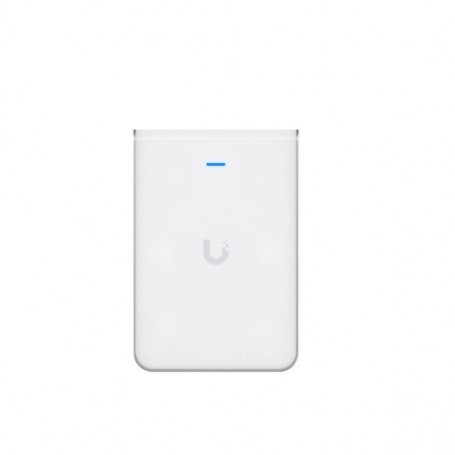

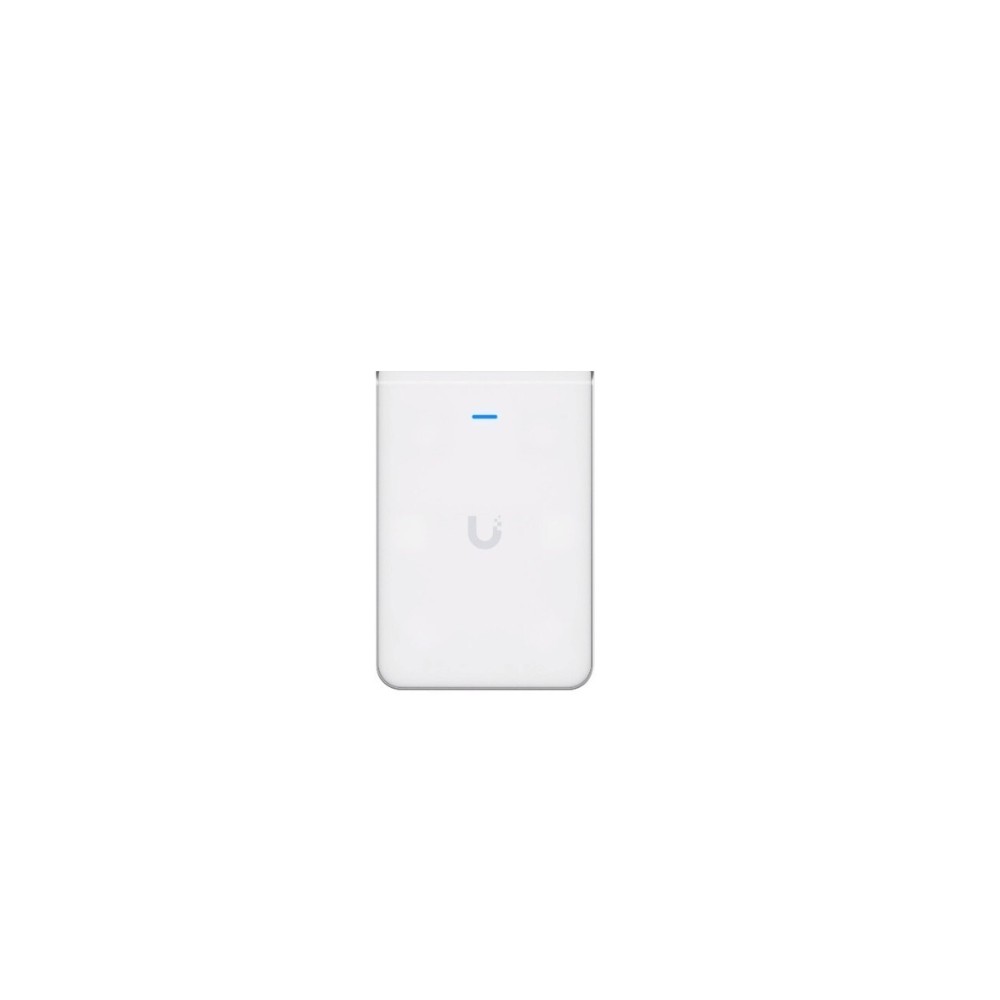

Ubiquiti U7-PRO-WALL-US Tri-Band Wi-Fi 7 Wall AP
Overview
The Ubiquiti U7-PRO-WALL-US is a wall-mount tri-band Wi-Fi 7 access point designed to deliver high-capacity wireless coverage in indoor environments such as enterprise office spaces, hospitality corridors, and campus buildings. It supports 2.4 GHz, 5 GHz, and 6 GHz bands using 2×2 MU-MIMO and OFDMA to maximize aggregate throughput over a single 2.5 GbE PoE+ uplink. The AP integrates with UniFi Network controller for SSID, client, and RF management while remaining compact and low profile on walls. It's suited for deployments that require robust Wi-Fi 7 performance in hallways and interior office areas without ceiling infrastructure.
Key Features
• Tri-band Wi-Fi 7 access
• 2.5 GbE PoE+ uplink
• 2×2 MU-MIMO radios
• Wall-mount form factor
Technical Specifications
| Specification | Details |
|---|
| Brand | Ubiquiti |
| Part Number | U7-PRO-WALL-US |
| Product Type | Wi-Fi 7 Wall-Mount Access Point |
| Wireless Standard | IEEE 802.11be (Wi-Fi 7), 802.11ax/ac/n |
| Frequency Bands | 2.4 GHz / 5 GHz / 6 GHz |
| MU-MIMO | 2×2 DL/UL |
| Max Aggregate Throughput | ~9.3 Gbps |

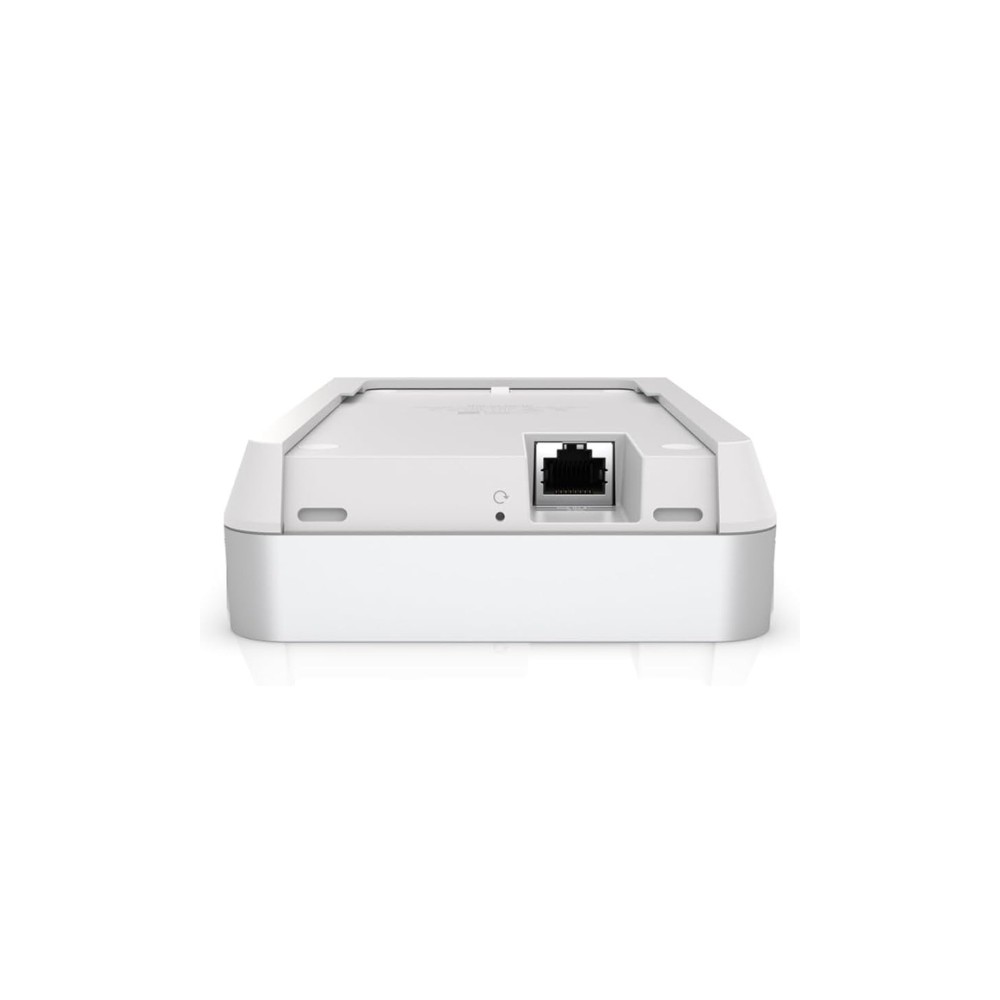

| Ethernet Port | (1) 1/2.5 GbE RJ45 PoE+ |
| Power Method | PoE+ (802.3at), 30 W |
| Antennas | Internal wall-optimized |
| SSIDs Supported | Up to 24 |
| Max Clients Supported | ~300 |
| Management | UniFi Network controller |
| Mount Type | Wall mount |
| Dimensions | ~206 × 106 × 40 mm |
