Detailed Specifications

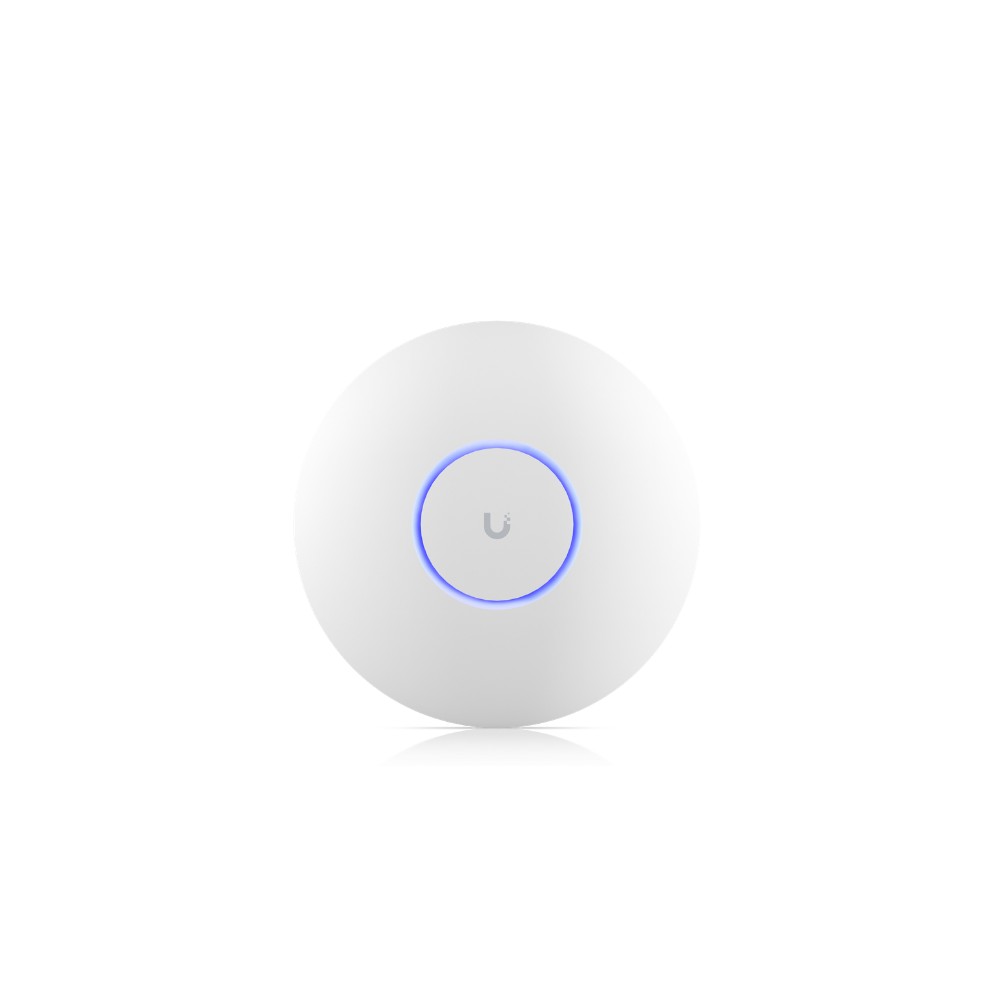

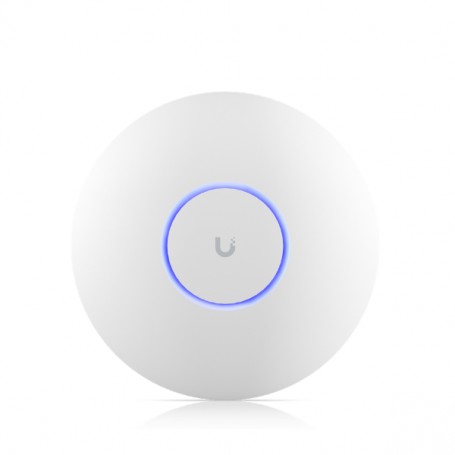

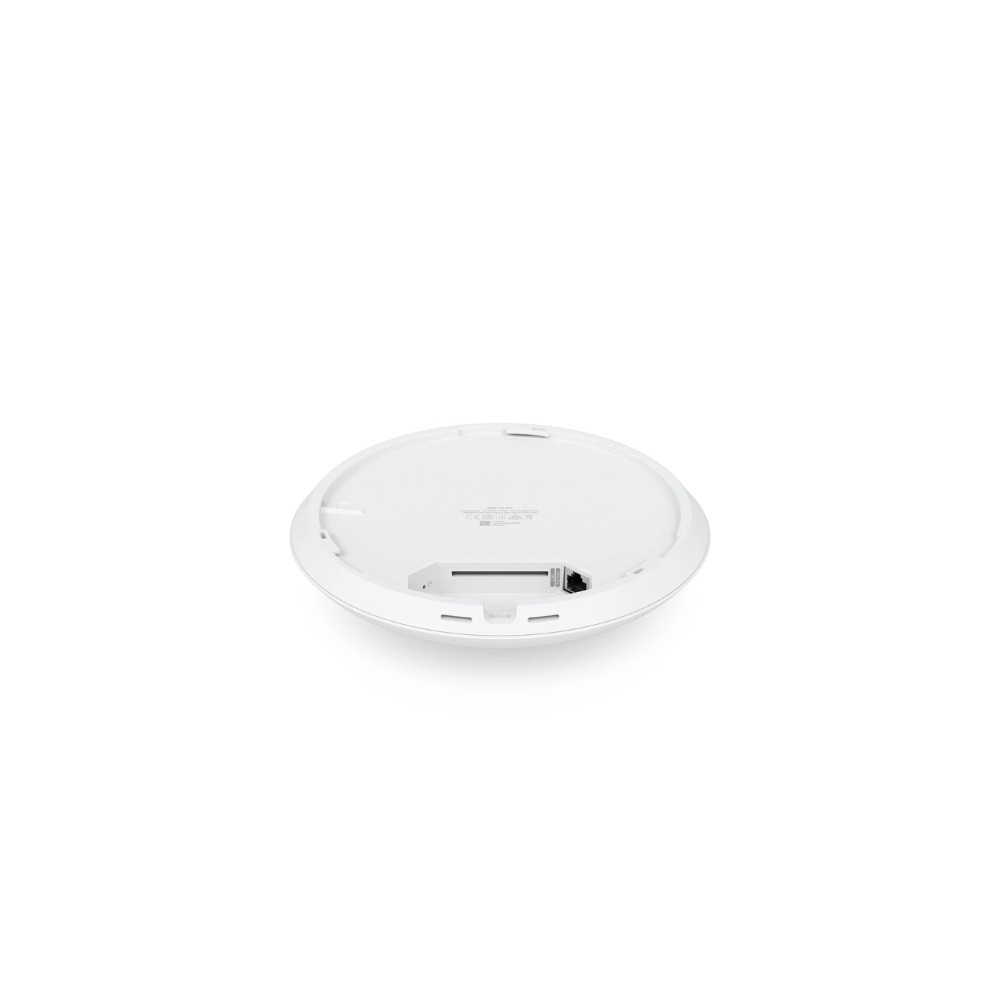

Ubiquiti U7-PRO-5-US Tri-Band Wi-Fi 7 AP
Overview
The Ubiquiti U7-PRO-5-US is a tri-band Wi-Fi 7 access point designed to deliver high-capacity wireless connectivity for dense enterprise, campus, and managed environments. It supports 2.4 GHz, 5 GHz, and 6 GHz bands with 2×2 MU-MIMO and total aggregate throughput near 9.3 Gbps, and uses a single 2.5 GbE PoE+ uplink for network and power. Wall or ceiling mounts are supported, and the AP integrates with UniFi Network controller for VLANs, SSID management, and traffic policies. It can serve 300+ clients and fits medium-scale indoor deployments requiring next-generation Wi-Fi performance.
Key Features
• Tri-band Wi-Fi 7 with 2×2 MU-MIMO
• Single 2.5 GbE PoE+ uplink
• 9.3 Gbps aggregated throughput
• Supports 300+ clients
Technical Specifications
| Specification | Details |
|---|
| Brand | Ubiquiti |
| Part Number | U7-PRO-5-US |
| Product Type | Tri-Band Wi-Fi 7 Access Point |
| Wireless Standard | IEEE 802.11be (Wi-Fi 7) / 802.11ax/ac/n/g/b/a |
| Frequency Bands | 2.4 GHz / 5 GHz / 6 GHz |
| MU-MIMO | 2×2 DL/UL |
| Max Theoretical Throughput | ~9335 Mb/s aggregate |
| Ethernet Port | (1) 1/2.5 GbE RJ45 PoE+ |
| Power Method | PoE+ (802.3at), 30 W |
| SSIDs Supported | Up to 24 |
| Max Clients Supported | ~300 |
| Security | WPA, WPA2, WPA3 variants |
| Management | UniFi Network controller |
| Mount Options | Wall, ceiling |
| Dimensions | ~206 × 206 × 46 mm |
| Weight | ~680 g |
