Detailed Specifications

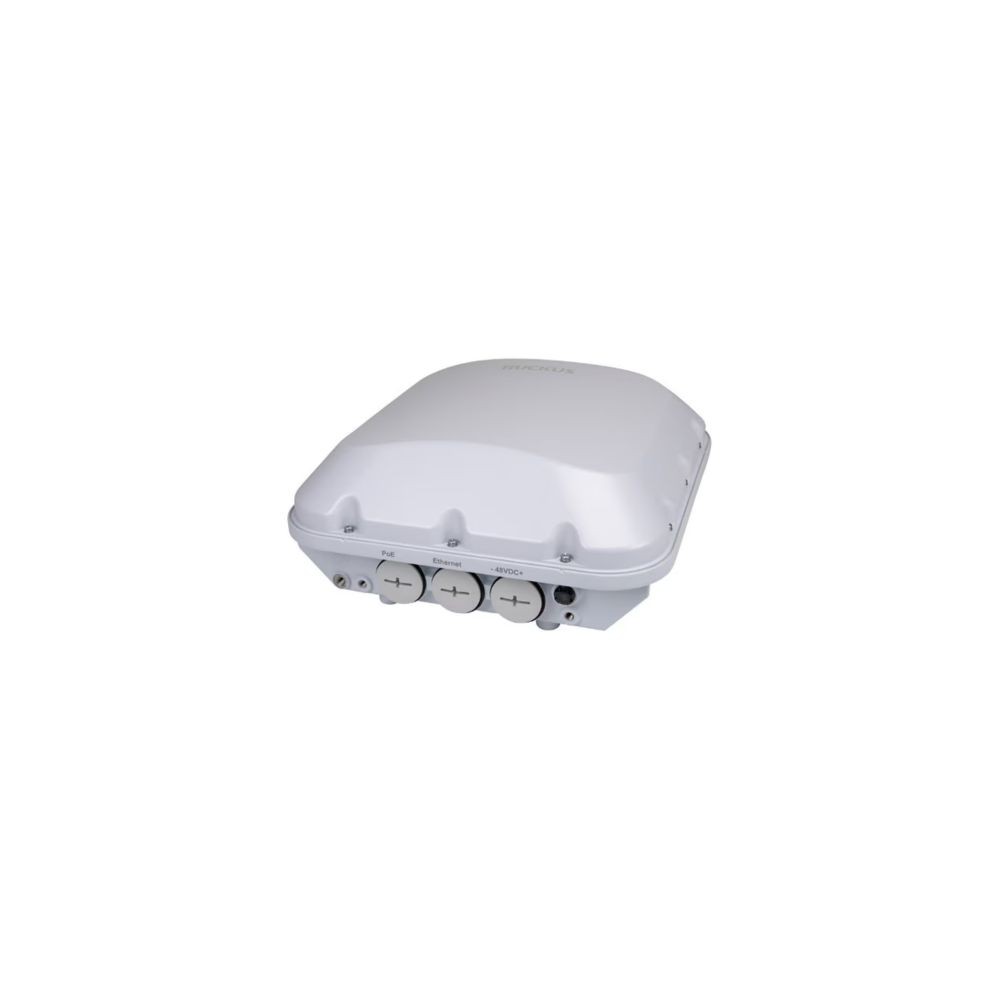

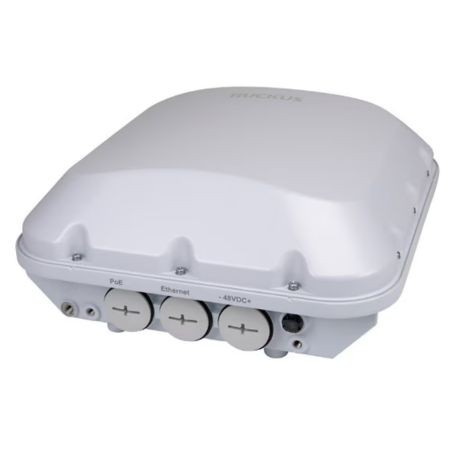

Ruckus 901-T670-US51 - Wi-Fi 7 Tri-Band Outdoor Access Point
Overview :
The Ruckus 901-T670-US51 is a high-performance Wi-Fi 7 (802.11be) tri-band outdoor access point designed for demanding environments such as stadiums, smart cities, and large public venues. It delivers a combined maximum data rate of 9.34 Gbps across 2.4 GHz, 5 GHz, and 6 GHz bands, utilizing 6 spatial streams (2x2:2 per band). The access point features BeamFlex+ adaptive antenna technology, enhancing signal quality and reducing interference. It supports up to 768 concurrent users and is equipped with one 5/2.5/1-Gigabit Ethernet port and one 1-Gigabit Ethernet port for flexible deployment options. The T670 is built to withstand harsh outdoor conditions with an IP-67 rated enclosure, operating in temperatures ranging from -40°C to 65°C. It is compatible with Ruckus One', SmartZone, and Unleashed' controllers, offering versatile management options for various deployment scenarios.
Key Features :
Tri-Band Wi-Fi 7: 9.34 Gbps combined data rate across 2.4, 5, and 6 GHz bands.
6 Spatial Streams: 2x2:2 configuration per band for enhanced throughput.
BeamFlex+ Technology: Adaptive antenna system for improved signal quality.
High Client Density: Supports up to 768 concurrent users.
Rugged Outdoor Design: IP-67 rated enclosure for extreme environments.
Specifications
| Specification | Details |
|---|
| Brand | Ruckus |
| Part Number | 901-T670-US51 |
| Product Type | Outdoor Access Point |
| Wi-Fi Standard | IEEE 802.11a/b/g/n/ac/ax/be (Wi-Fi 7) |
| Frequency Bands | 2.4 GHz, 5 GHz, 6 GHz (Tri-Band) |
| Max Data Rate | 9.34 Gbps |
| Spatial Streams | 6 (2x2:2 per band) |
| Ethernet Ports | 1 x 5/2.5/1-Gigabit, 1 x 1-Gigabit |
| PoE Support | 802.3bt (PoE++) |
| BeamFlex+ Technology | Yes |
| Concurrent Users Supported | Up to 768 |
| Operating Temperature | -40°C to 65°C |
| Enclosure Rating | IP-67 |
| Mounting Options | Ceiling, Wall, Pole |
| Management Platforms | Ruckus One', SmartZone, Unleashed' |
