Detailed Specifications
Outdoor Wireless Access Point

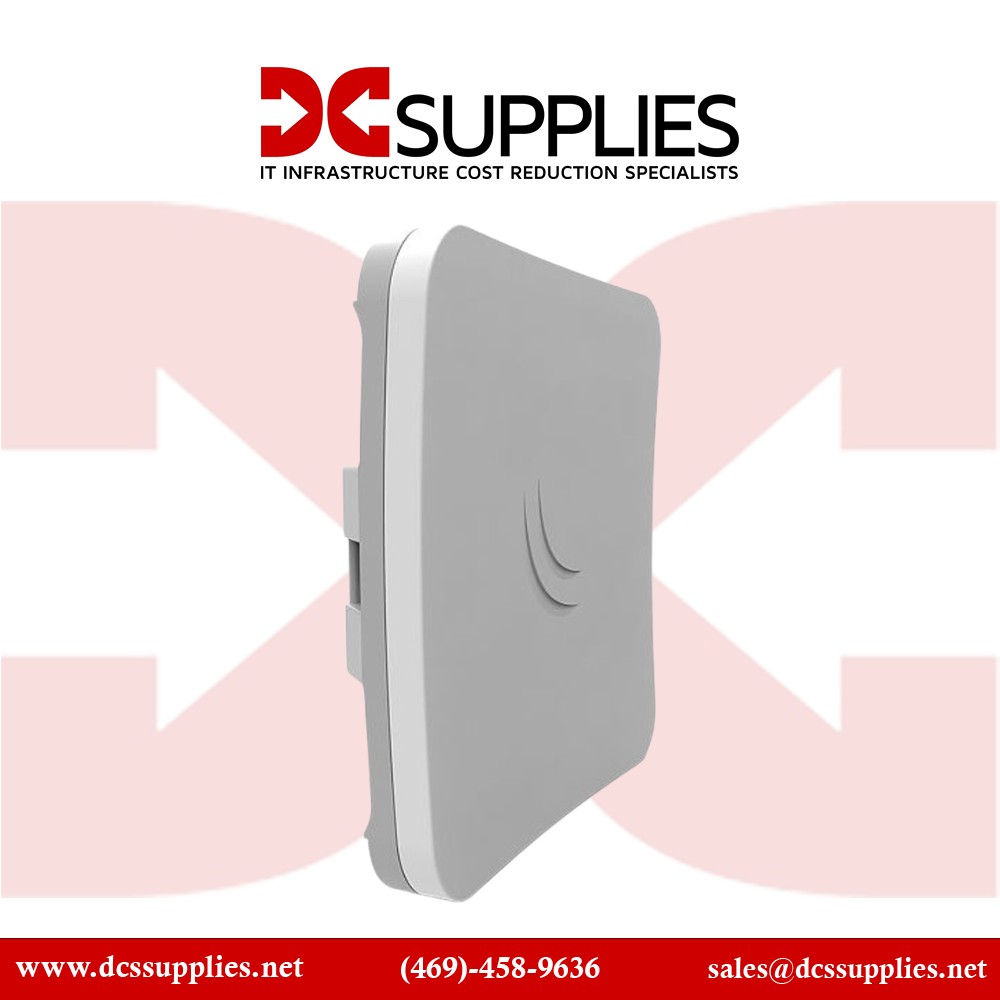

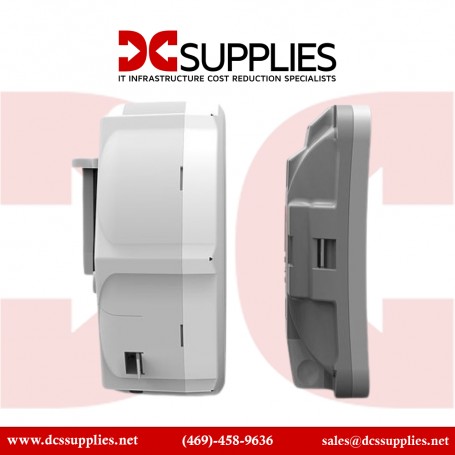

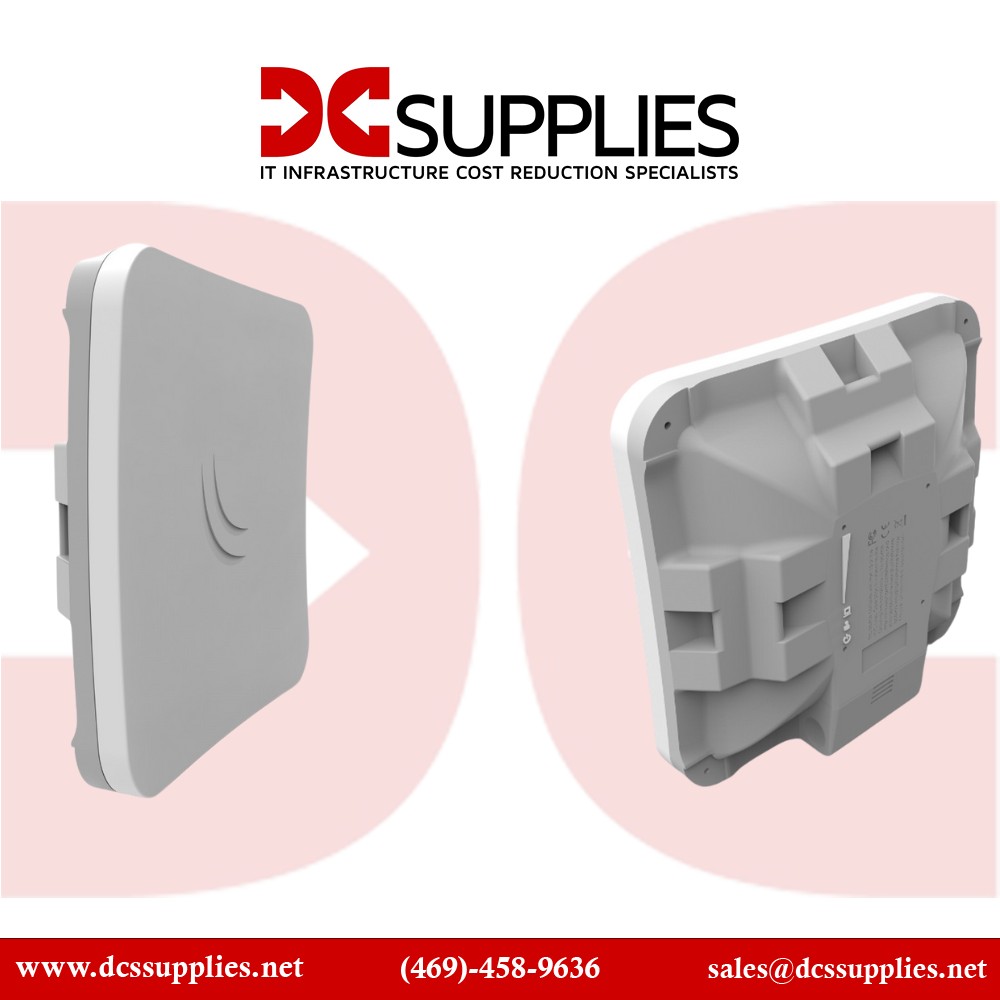

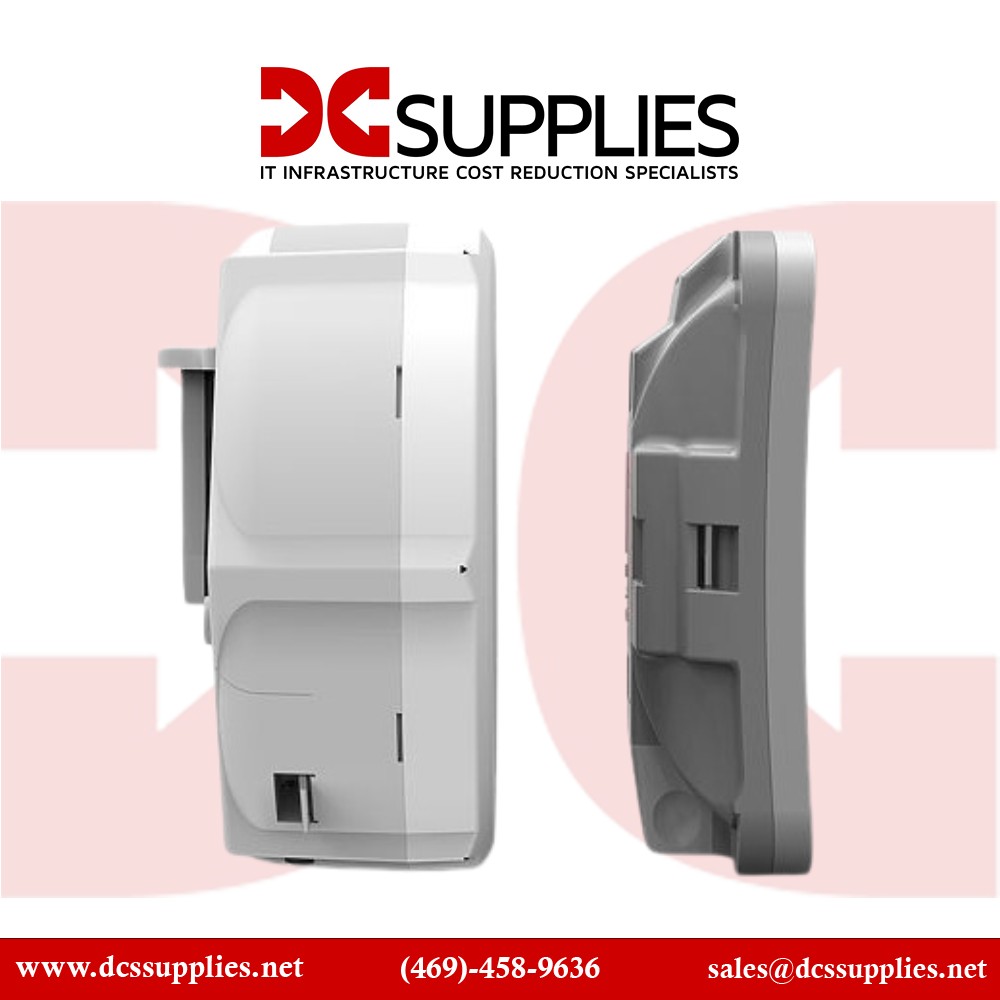

The MikroTik RBSXTsqG-5acD-US is a high-performance outdoor wireless access point designed for point-to-point links or as a customer premises equipment (CPE) unit. Ideal for ISPs, businesses, and remote site connectivity, it delivers robust, secure, and fast wireless networking in a compact, weatherproof enclosure.
Features :
Engineered for outdoor deployments, the SXTsq 5 ac features a powerful 16 dBi integrated antenna and supports the 802.11ac standard, enabling high-speed wireless connections up to 867 Mbps. Its compact and lightweight design makes installation easy, even in space-constrained environments, while the weatherproof enclosure ensures reliable operation in harsh conditions.
Advanced Options :
The device is powered by a quad-core ARM CPU and 256 MB of RAM, running MikroTik's RouterOS with a Level 3 license for advanced routing, firewall, and management features. The single Gigabit Ethernet port supports passive PoE, simplifying installation and reducing cable clutter. With a factory-locked frequency range for US compliance, the SXTsq 5 ac is ideal for secure, interference-resistant wireless links. The device includes a grounding connection for lightning protection and can be mounted in multiple positions for optimal alignment.
Product Key Features
- Integrated 16 dBi directional antenna
- 802.11ac Wi-Fi 5, up to 867 Mbps
- Weatherproof, compact, and lightweight design
- 1 x Gigabit Ethernet port with passive PoE
- -40°C to 70°C operating temperature
- IPsec hardware acceleration for secure links
Reliability & Performance :
Built for durability, the MikroTik SXTsq 5 ac operates in extreme temperatures from -40°C to 70°C and features passive cooling for silent, maintenance-free performance. Its robust enclosure and grounding connection protect against environmental hazards, while IPsec hardware acceleration ensures secure, efficient data transmission.
Key Features :
- 16 dBi integrated directional antenna
- 802.11ac Wi-Fi 5, up to 867 Mbps
- 1 x Gigabit Ethernet port (passive PoE)
- Quad-core ARM CPU, 256 MB RAM
- Weatherproof, compact design
- -40°C to 70°C operating range
- IPsec hardware acceleration
Specifications :
| Specification | Details |
|---|
| Model Number | RBSXTsqG-5acD-US |
| Type | Outdoor Wireless Access Point (CPE) |
| Wireless Standard | 802.11a/n/ac (Wi-Fi 5) |
| Max Data Rate | 867 Mbps |
| Frequency Range | 5170-5250 MHz, 5725-5835 MHz (US locked) |
| Antenna Gain | 16 dBi |
| Antenna Beam Width | 23° |
| CPU | IPQ-4018, Quad-core, 488-896 MHz (auto) |
| RAM | 256 MB |
| Storage | 16 MB Flash |
| Ethernet Ports | 1 x 10/100/1000 Mbps |
| Power Input | Passive PoE, 10-28 V |
| Max Power Consumption | 7 W |
| Dimensions | 129 x 129 x 34 mm |
| Weight | 295 g |
| Operating Temp Range | -40°C to 70°C |
| MTBF | ~100,000 hours at 25°C |
| OS | RouterOS Level 3 |
| IPsec Acceleration | Yes |
| Certifications | CE, FCC, IC, EAC, ROHS |
