Detailed Specifications

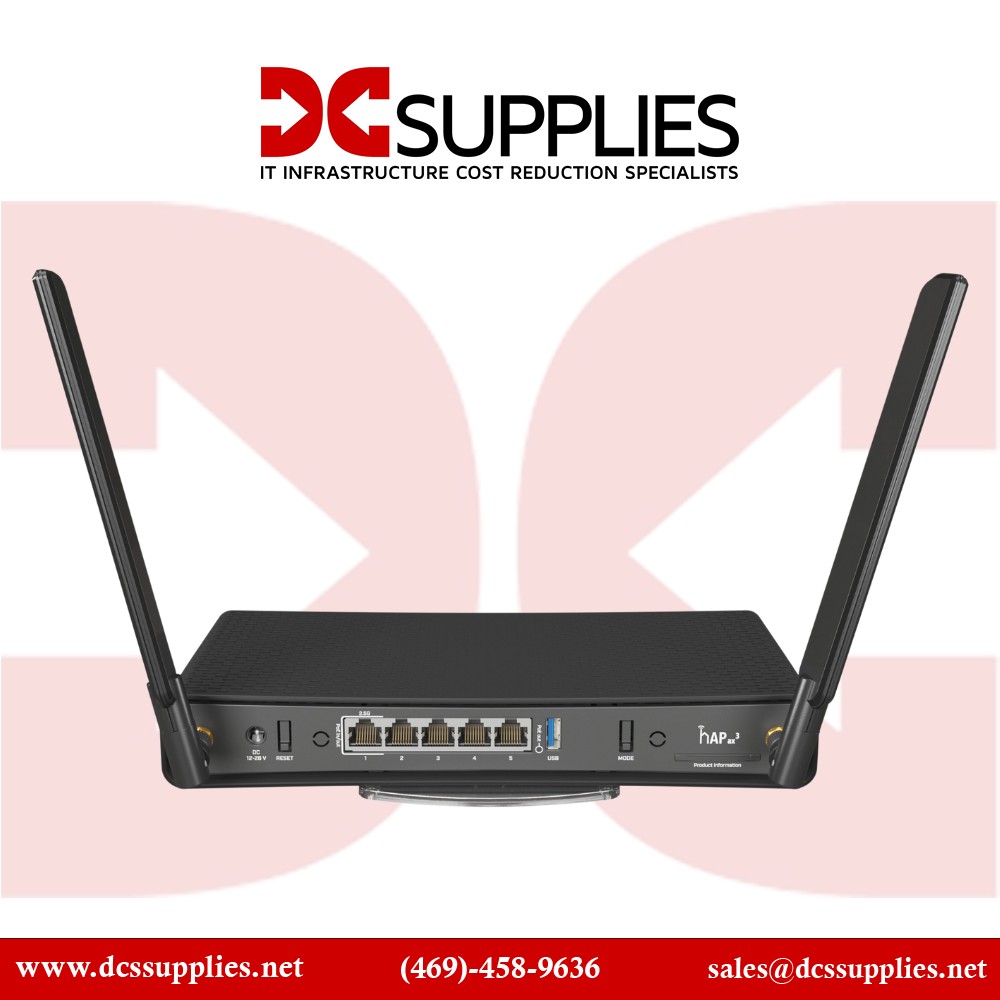

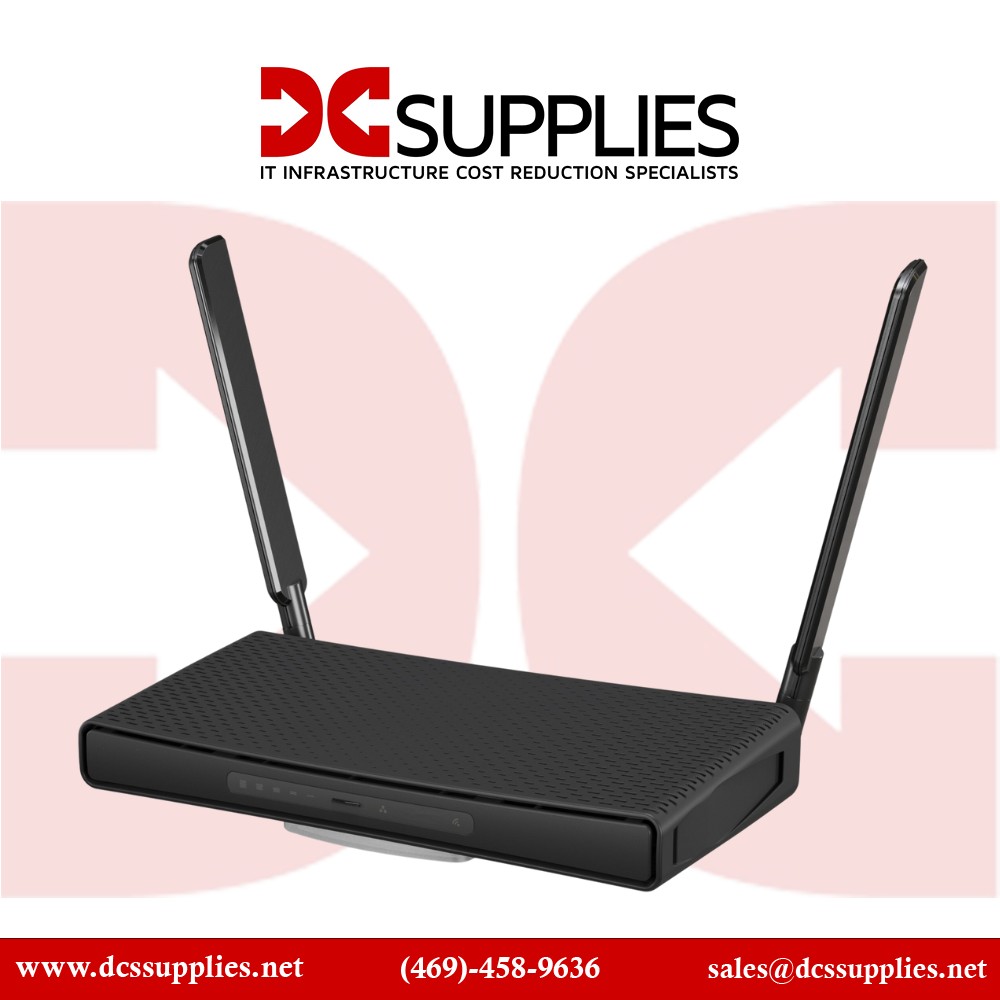

hAP Dual-Band Wi-Fi 6 Access Point
The MikroTik hAP ax" C53UiG+5HPaxD2HPaxD-US is a top-tier dual-band Wi-Fi 6 access point designed for users who demand robust wireless performance and advanced networking features. Ideal for homes, offices, and small businesses, it delivers fast, secure, and reliable connectivity for streaming, gaming, remote work, and more.
Features :
The hAP ax" leverages the latest Wi-Fi 6 (802.11ax) technology to provide high-speed wireless coverage across both 2.4 GHz and 5 GHz bands. With a quad-core ARM CPU running at 1.8 GHz and 1GB of RAM, it easily handles complex firewall rules, VPN tunnels, and advanced routing protocols without compromising performance.
Advanced Options :
Its five Ethernet ports×four Gigabit and one 2.5G×ensure flexible wired connectivity for high-bandwidth devices, while the USB 3.0 port allows for storage expansion or LTE modem integration. The device supports advanced security protocols, including WPA3, IPsec hardware encryption, and WireGuard, making it suitable for environments where data protection is critical.
Product Key Features
- Quad-core ARM CPU at 1.8 GHz with 1GB RAM
- Dual-band Wi-Fi 6 (AX1800) for fast, reliable coverage

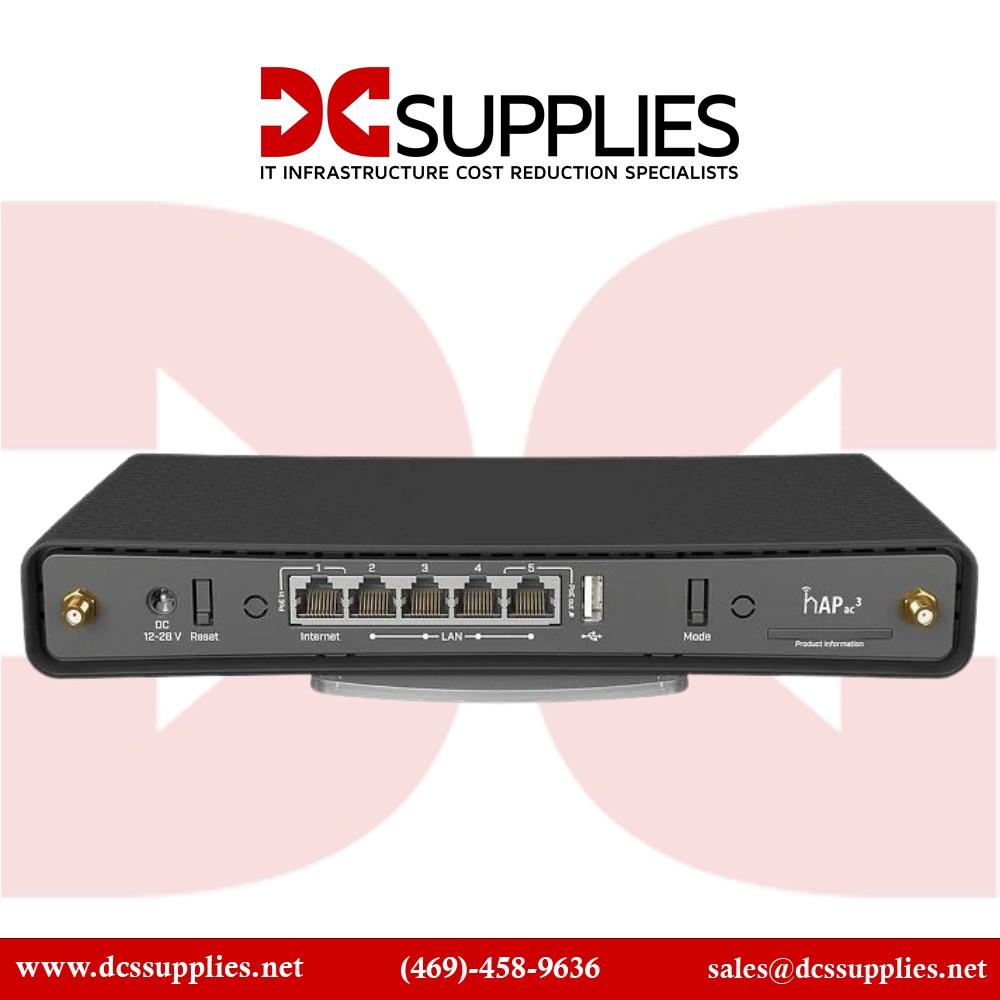

- 2.5G Ethernet port plus 4 Gigabit LAN ports
- Advanced security: WPA3, IPsec, WireGuard, BGP
- USB 3.0 port for storage or LTE modem
- Passive cooling for silent operation
Reliability & Performance :
Built for durability and efficiency, the MikroTik hAP ax" features passive cooling for silent, maintenance-free operation and a robust chassis designed for long-term use. Its advanced hardware ensures compatibility with a wide range of devices and applications, while efficient power management and hot-swappable USB support add to its versatility. The device's high MTBF and broad operating temperature range guarantee reliable performance in diverse environments.
Key Features :
- Quad-core ARM CPU at 1.8 GHz
- 1GB RAM, 128 MB NAND storage
- Dual-band Wi-Fi 6 (AX1800)
- 2.5G Ethernet + 4 Gigabit LAN ports
- USB 3.0 port for storage/LTE
- WPA3, IPsec, WireGuard, BGP support
- Passive cooling, silent operation
Specifications :
| Specification | Details |
|---|
| Model Number | C53UiG+5HPaxD2HPaxD-US |
| Type | Dual-Band Wi-Fi 6 Access Point |
| CPU | Quad-core ARM IPQ-6010, 1.8 GHz |
| RAM | 1 GB |
| Storage | 128 MB NAND |
| Wireless Standard | 802.11a/b/g/n/ac/ax (Wi-Fi 6) |
| Max Wireless Speed | AX1800 (574 Mbps @2.4GHz, 1200 Mbps @5GHz) |
| Ethernet Ports | 1 x 2.5G, 4 x 1G (Gigabit) |
| USB Port | 1 x USB 3.0 Type-A |
| Power Input | 12-28V DC jack, 18-28V PoE-in |
| PoE Output | Passive PoE on Ether1, up to 15W |
| Max Power Consumption | 15W (no attachments), 38W (with attachments) |
| Antenna Gain | 3.3 dBi (2.4GHz), 5.5 dBi (5GHz) |
| Dimensions | 251 x 130 x 39 mm (9.88" x 5.11" x 1.53") |
| Weight | ~1.1 kg (2.3 lb) |
| Operating Temp Range | -40°C to 70°C |
