Fortinet FAP-234F-N FortiAP 234F - Wi-Fi 6 ZigBee Wireless Access Point View larger
Previous Next

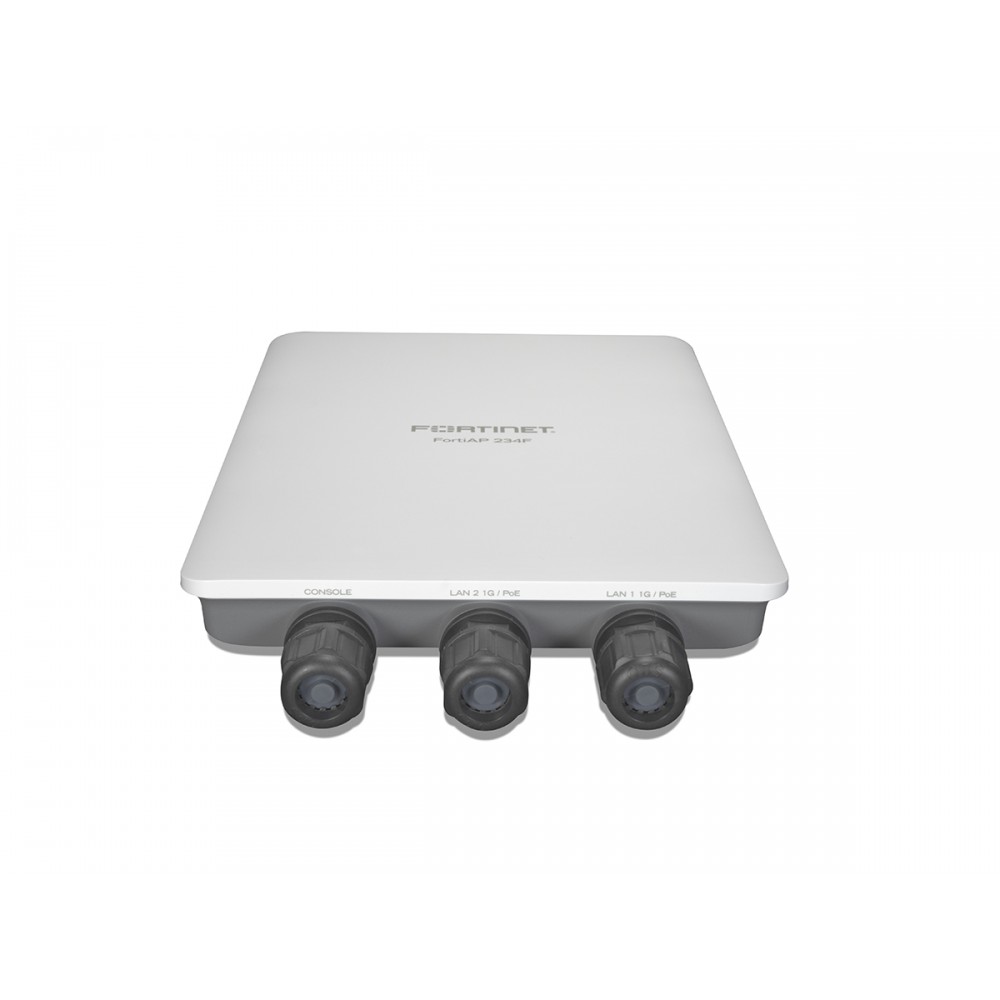

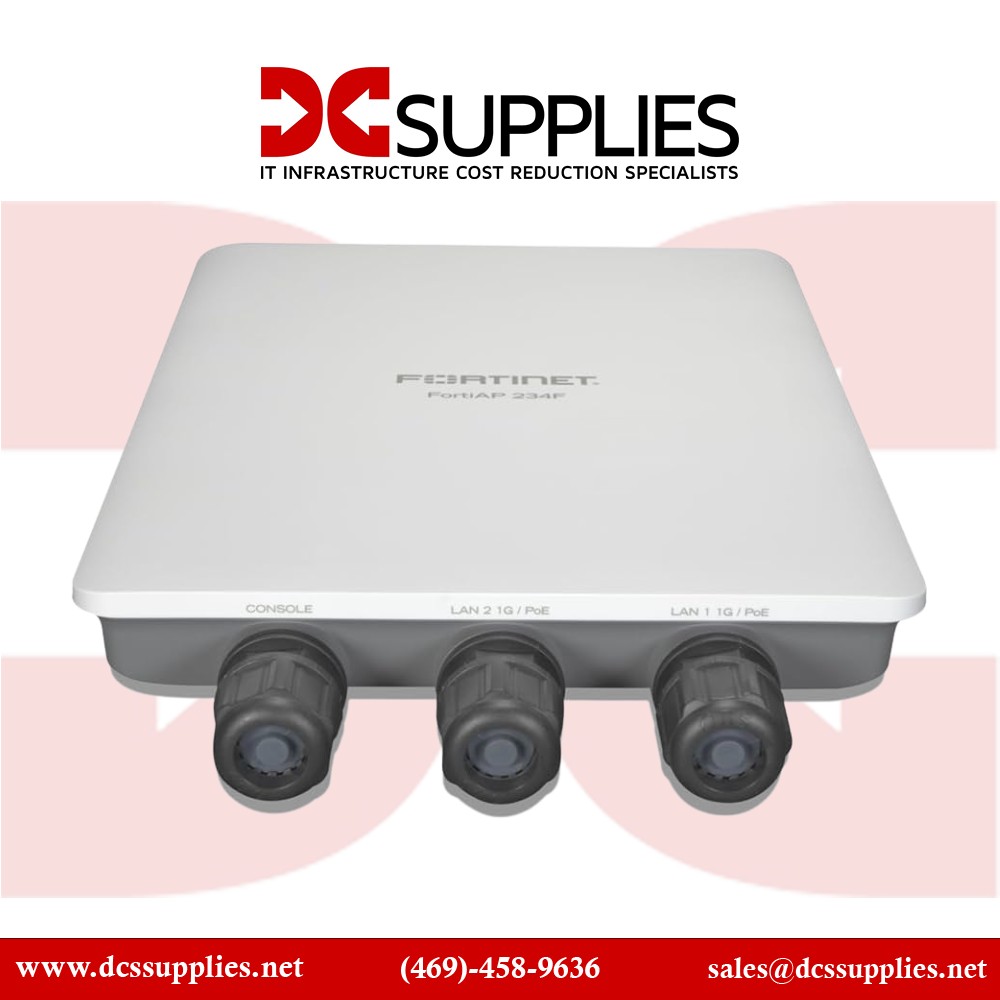

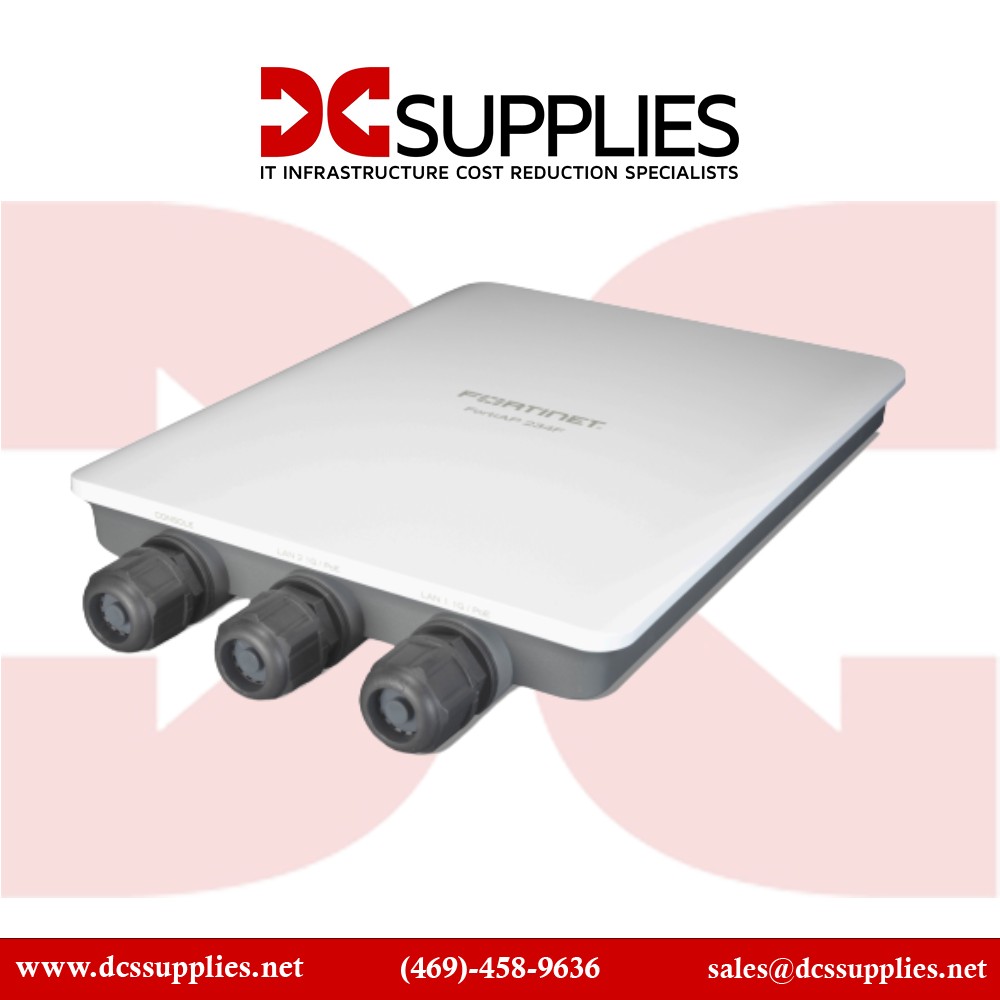

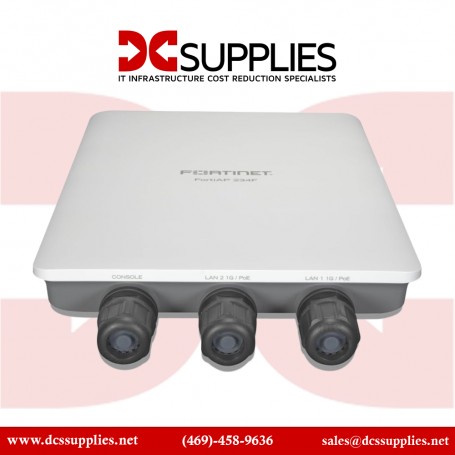

Fortinet FAP-234F-N FortiAP 234F - Wi-Fi 6 ZigBee Wireless Access Point

New

Tri-radio Wi-Fi 6 access point with Bluetooth and ZigBee.
×




  • New

Detailed Specifications

Fortinet FAP-234F-N

FortiAP 234F Wi‑Fi 6, Bluetooth 5.0 & ZigBee Tri‑Radio Wireless Access Point

The Fortinet FAP‑234F‑N is a high‑performance tri‑radio access point combining Wi‑Fi 6, Bluetooth 5.0, and ZigBee technology. Ideal for enterprise and IoT environments, it delivers fast, secure connectivity along with seamless device communication for smart infrastructure.

Features :

With dual‑band Wi‑Fi 6 for high‑speed networking, Bluetooth 5.0 for enhanced location services, and ZigBee for low‑power IoT device connections, the FAP‑234F‑N supports diverse wireless needs in a single, efficient platform. Its advanced OFDMA and MU‑MIMO capabilities improve multi‑user performance and reduce latency in high‑density deployments.

Advanced Options :

Integration with the Fortinet Security Fabric enables centralized control, unified security policy management, and real‑time monitoring. Powered via PoE (802.3af/at), the FAP‑234F‑N supports flexible installation and simple cabling. WPA3 security ensures robust protection, while internal antennas maintain sleek installation aesthetics.

Product Key Features

  • Tri‑radio wireless: Wi‑Fi 6, Bluetooth 5.0, ZigBee
  • Dual‑band 2.4 GHz and 5 GHz operation
  • OFDMA and MU‑MIMO for optimized multi‑user efficiency
  • Fortinet Security Fabric integration
  • Ideal for IoT and high‑density enterprise deployments

Reliability & Performance :

Built with enterprise‑grade hardware and advanced thermal management, the FAP‑234F‑N ensures continuous, reliable performance. Regular firmware updates via FortiCare enhance security resilience, while support for the latest wireless standards maximizes long‑term network efficiency.

Key Features :

  • Tri‑radio access point: Wi‑Fi 6, Bluetooth 5.0, ZigBee
  • Dual‑band wireless operation (2.4 GHz & 5 GHz)
  • OFDMA and MU‑MIMO for multi‑user performance
  • Fortinet Security Fabric centralized management
  • PoE‑powered for easier deployment

Specifications :

SpecificationDetails
Model Number FAP-234F-N
Product Type Wi‑Fi 6 Bluetooth ZigBee Access Point
Wireless Standards IEEE 802.11ax (Wi‑Fi 6), Bluetooth 5.0, ZigBee
Frequency Bands 2.4 GHz and 5 GHz
Max Data Rate Up to 3.5 Gbps combined
Antennas Internal antennas
Security Protocols WPA3, WPA2, 802.1X
Power Supply 802.3af/at PoE
Management FortiAP Controller, FortiCloud
Dimensions (H x W x D) Approx. 1.5” x 7.1” x 7.1”
Weight Approx. 0.6 lbs (0.27 kg)
