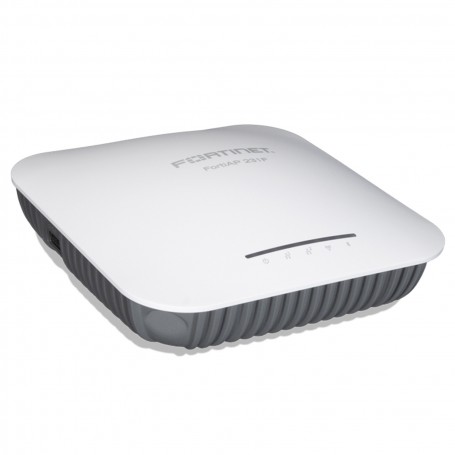

Fortinet FAP-231F-E FortiAP 231F Wi-Fi 6 Wireless Access Point

New

Dual-band Wi-Fi 6 access point for high-speed wireless.
×




  • New

Detailed Specifications

Fortinet FAP-231F-E

FortiAP 231F Wi‑Fi 6 Dual‑Band Wireless Access Point – Enterprise Performance

The Fortinet FAP‑231F‑E is a high‑performance Wi‑Fi 6 access point that delivers fast, reliable dual‑band wireless connectivity. Designed for enterprise environments, it supports increased client density, improved throughput, and seamless network security integration, making it ideal for high‑demand deployments.

Features :

Built on the latest IEEE 802.11ax standard, the FAP‑231F‑E supports OFDMA and MU‑MIMO technologies to serve multiple users simultaneously with maximum efficiency. Operating on 2.4 GHz and 5 GHz bands with combined throughput up to 1.77 Gbps, it provides robust coverage for modern offices, schools, and public spaces.

Advanced Options :

Integration with the Fortinet Security Fabric allows centralized management, unified policy enforcement, and complete visibility across the network. Powered via PoE (802.3af/at), the FAP‑231F‑E enables flexible installation and simplified cabling. Its enterprise‑grade security includes WPA3 support, ensuring strong protection in any deployment scenario.

Product Key Features

  • Supports Wi‑Fi 6 (802.11ax) dual‑band operation
  • Up to 1.77 Gbps combined wireless throughput
  • OFDMA and MU‑MIMO for efficient multi‑user service
  • Integration with Fortinet Security Fabric
  • PoE‑powered with easy centralized management

Reliability & Performance :

Engineered for high‑density environments, the FAP‑231F‑E maintains consistent performance through advanced wireless optimization and enterprise‑grade hardware. Its efficient thermal design supports continuous operation, while FortiCare services deliver regular firmware updates for ongoing security and feature enhancements.

Key Features :

Specifications :

SpecificationDetails
Model Number FAP-231F-E
Product Type Wi‑Fi 6 Wireless Access Point
Wireless Standards IEEE 802.11ax (Wi‑Fi 6), 802.11a/b/g/n/ac
Frequency Bands 2.4 GHz and 5 GHz
Max Data Rate Up to 1.77 Gbps combined
Antennas Internal antennas
Security Protocols WPA3, WPA2, 802.1X
Power Supply 802.3af/at PoE
Management FortiAP Controller, FortiCloud
Dimensions (H x W x D) Approx. 1.5” x 7.1” x 7.1”
