HPEJW157

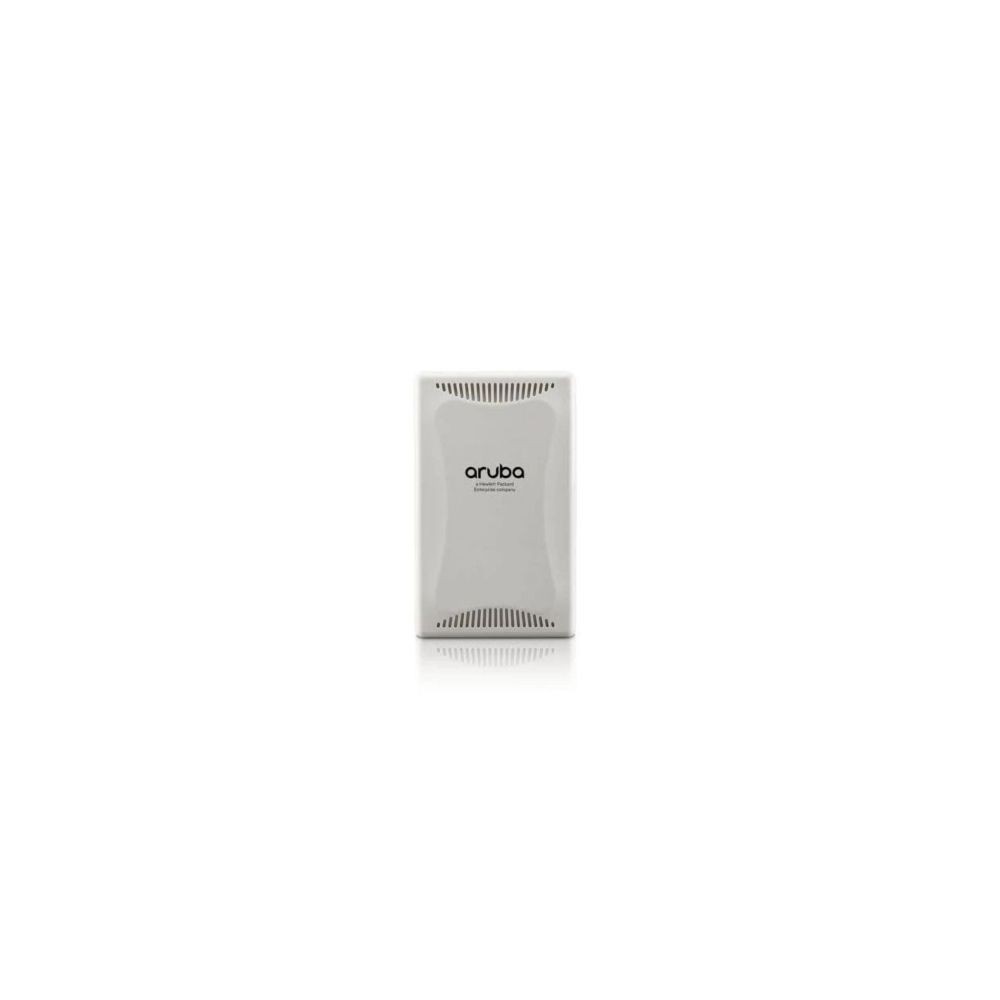

Aruba(AP-103H) 802.11n Dual-Radio Wireless Access Point

The HPEArubaJW157 (AP-103H) is a dual-band 802.11n access point featuring integrated omni-directional antennas and support for up to 300 Mbps on both the 2.4 GHz and 5 GHz bands. Ideal for hospitality, education, and branch-office deployments, this compact wall-mounted unit includes client steering (ClientMatch'), cellular coexistence (ACC), and PoE support. With two secure downstream Fast-Ethernet ports and a pass-through RJ-45 connector, it offers both wireless and wired connectivity options. Mountable on single-gang electrical or data wall boxes, the AP-103H delivers managed Wi-Fi coverage without complexity.

Features

The integrated design installs neatly into standard wall boxes and houses two radios operating simultaneously with 2×2:2 MIMO. It delivers up to 300 Mbps per band while supporting essential RF features like ARM', DFS, STBC, LDPC, and short guard intervals to ensure stable performance in moderately dense environments. Wired support includes one PoE-powered Gigabit uplink port (802.3af), two secure downstream 10/100 Mbps ports (for in-room devices), and a passive pass-through port for legacy cabling setups. Power can also be supplied via optional 12-V DC adapter if PoE is unavailable

Advanced Options

Designed to optimize mobile client experience, the AP 103H leverages features such as DDM-guided ClientMatch steering and ACC to reduce LTE/3G interference and maintain high throughput across both bands. With robust hardware tuned for up to 32 clients per radio, it provides sufficient density for dormitory or hospitality settings. Thermal- and power-efficient design draws under ~9.4 W via PoE (idle ~3.5 W), with minimal latency and stable upward of 600+ combined Mbps throughput under typical load

Product Key Features

• Dual-band 802.11n 2×2:2 radios (2.4 GHz & 5 GHz), up to 300 Mbps per band


• ClientMatch' roaming and Advanced Cellular Coexistence (ACC)


• Integrated dual-band omni-antennas, up to 32 clients per radio


• 1× PoE-powered Gigabit uplink port + 2× secure Fast-Ethernet downstream ports


• Passive passthrough RJ-45, wall-mount form factor, optional 12-V DC power option

---

Reliability & Performance

Ideal for controller-managed deployments, the AP is backwards compatible with legacy cabling and supports easy firmware management via ArubaMobility Controllers.

Key Features :

• • Dual-band 802.11n (2×2:2) providing 300 Mbps per radio

  • ClientMatch automatic roaming and ACC interference mitigation

  • 1 × Gigabit PoE uplink + 2 × secure Fast-Ethernet ports

  • Passive RJ-45 pass-through port included

  • Wall-mountable design for single-gang installation

  • Optional AC/DC adapter support

Specification	Details
Model Number	JW157 (AP-103H)
Product Type	Dual-Band 802.11n Hospitality/Wall-Mount Wireless Access Point
Wireless Data Rate	Up to 300 Mbps per radio (2.4 GHz & 5 GHz)
MIMO Configuration	2×2:2 (two spatial streams per radio)
Frequency Bands	2.4 GHz & 5 GHz
Wireless Clients Supported	Up to ~32 per radio
Ports	1 × 10/100/1000Base-T uplink (PoE PD); 2 × 10/100 Mbps downstream secured
Pass-Through Port	Yes, passive RJ-45
Power Options	802.3af PoE or optional 12 V DC adapter
Integrated Antennas	Dual-band omni-directional internal antennas (3.3-3.6 dBi)
Operating Modes	Controller-managed, RAP, Air Monitor, Spectrum Analyzer, Mesh
Power Consumption (Idle/Max)	~3.5 W / ~9.4 W (PoE)
Mounting	Wall mount, single-gang or dual-gang box
Operating Temp	0 °C to 40 °C
Warranty	90-Day (refurbished) or OEM warranty (new)
