HPE Aruba AP-103H Network Wireless Access Point refurbished View larger
Previous Next

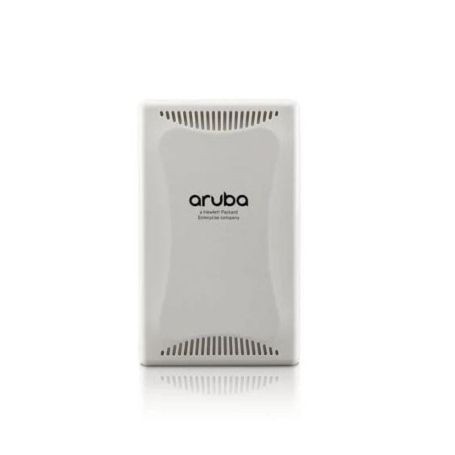

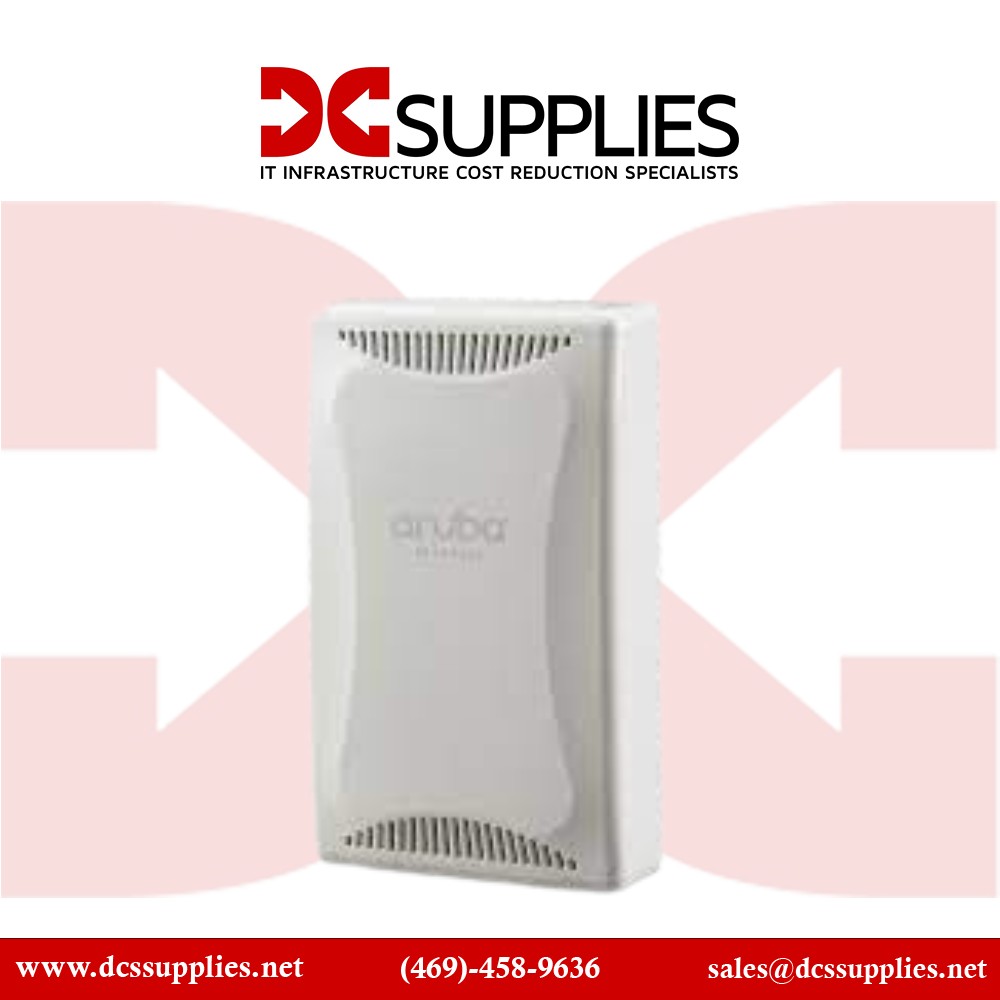

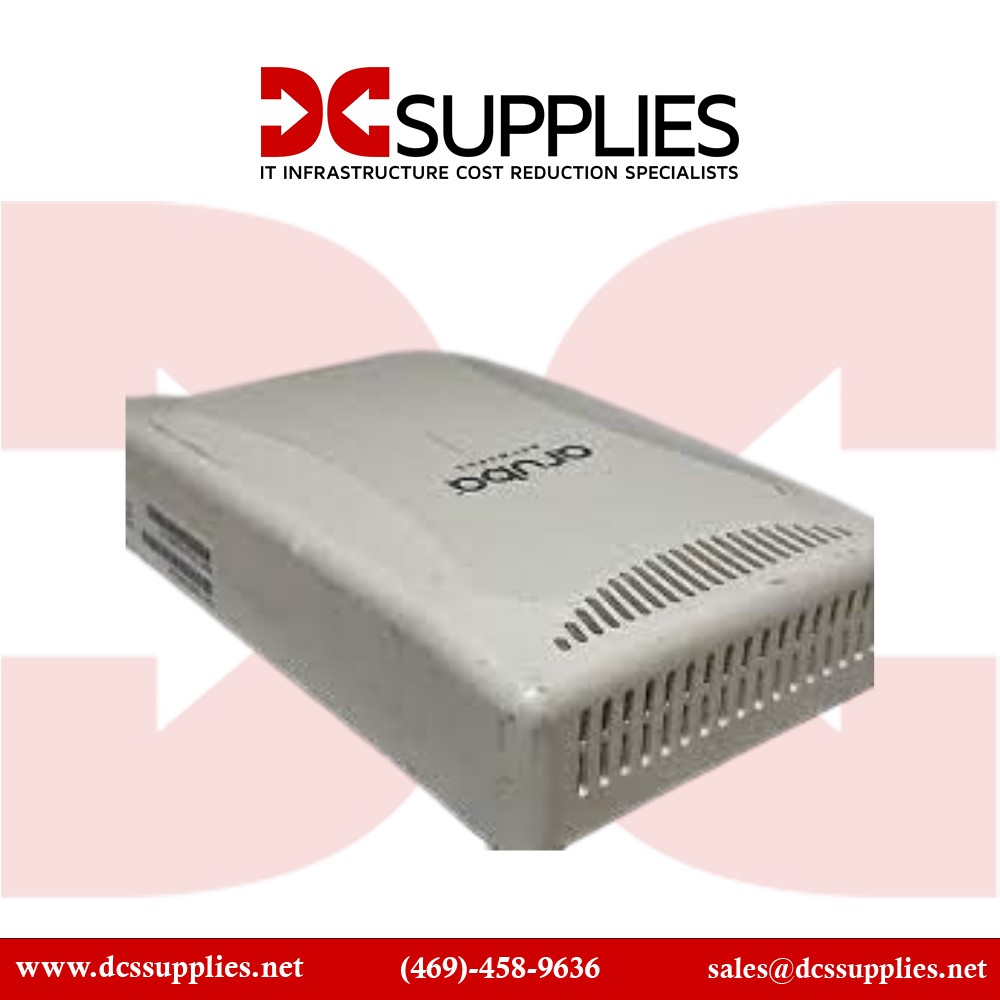

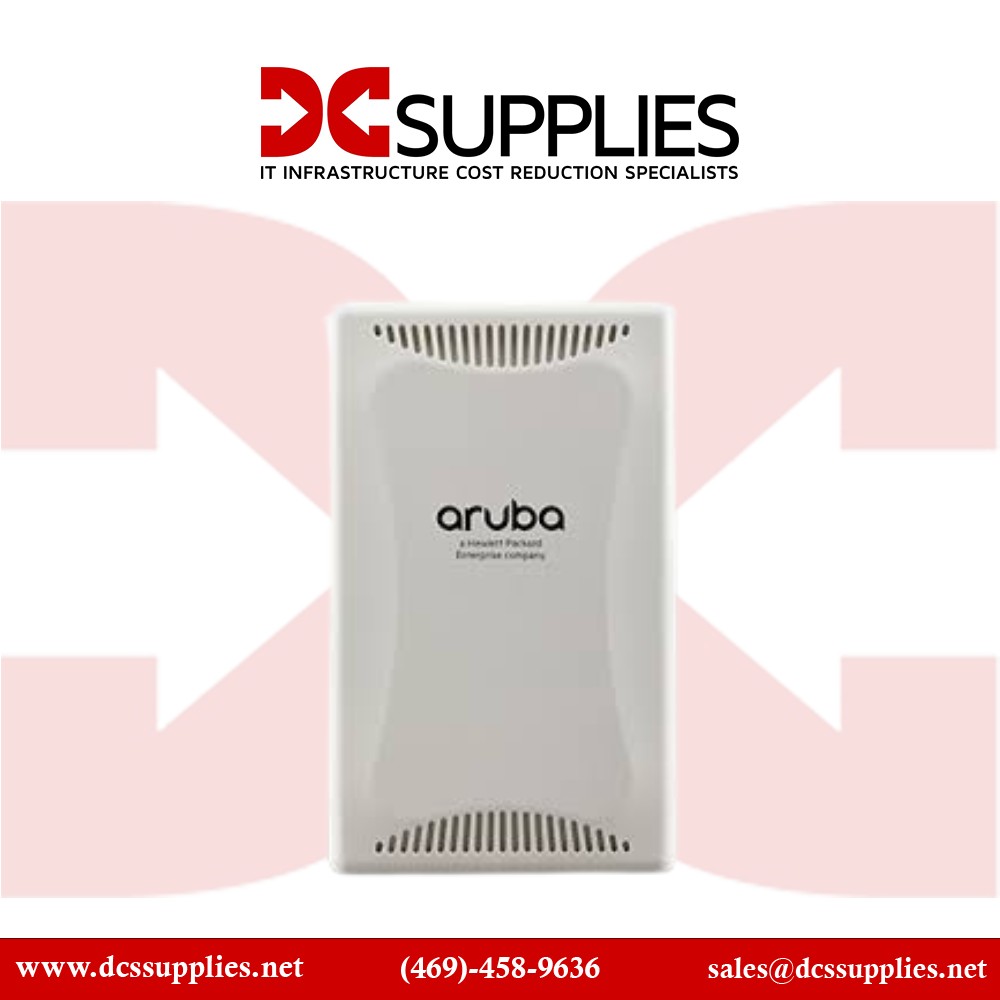

HPE AP-103H Aruba AP‑103H Network Wireless Access Point (Refurbished)

AP-103H

New

Dual‑band 802.11n wall‑mount AP with...

×




Detailed Specifications

HPE AP-103H

Aruba AP‑103H Network Wireless Access Point (Refurbished)

The HPE Aruba AP‑103H is a cost-effective, dual-band access point purpose-built for hospitality and moderate density environments. Delivered refurbished and fully tested, it offers 2×2:2 MIMO wireless throughput up to 300 Mbps per radio on both 2.4 GHz and 5 GHz bands. Integrated with one uplink Gigabit port and two secure downstream ports, it's ideal for dorms, clinics, hotels, and multi-tenant settings requiring wall-mounted coverage using existing Cat5e infrastructure. With built-in Aruba features like ClientMatch and Advanced Cellular Coexistence, the AP‑103H ensures reliable wireless performance and seamless roaming without the complexity of fiber or advanced power cabling.

Features

Designed for controller-managed deployments, this compact AP installs easily onto standard single-gang electrical/data wall boxes. It supports Aruba Mobility Controller-managed mode, remote branch (RAP), air monitor, spectrum analyzer, mesh and enterprise VPN modes . Using integrated dual-band omni‑directional antennas, it simultaneously serves devices on both 2.4 GHz and 5 GHz channels with features like STBC, LDPC, MRC, HT‑20/40, and packet aggregation for optimized performance

Advanced Options

Even refurbished, the AP‑103H delivers enterprise-grade performance with a documented MTBF exceeding 500,000 hours (~57 years) at 25 °C It consumes under 10 W (typically 8–9 W) and supports Power‑over‑Ethernet (802.3af) or optional 12 V DC input. The integrated switch functionality adds resilience and flexibility,

Product Key Features

  • Dual-radio 2×2:2 802.11n design delivering up to 300 Mbps per band

  •  Integrated Gigabit uplink and two secure downstream Fast‑Ethernet ports

  •  ClientMatch technology for seamless roaming across APs

  •  Advanced Cellular Coexistence to minimize LTE/3G interference

  •  Multi‑mode support: controller, RAP, air monitor, mesh analyzer

  •  Compact wall‑mount form factor with passive pass‑through port

Reliability & Performance

enabling in-room wired drops for devices without requiring a separate switch. Thermal‑efficient and wall‑mounted steadily, it offers reliable service in hospitality or campus environments. Refurbished units are typically backed by a 90‑day warranty and reuse vetted components to meet stringent operational standards

Key Features :

    • Dual‑band (2.4 GHz & 5 GHz) 802.11n, 2×2:2 MIMO

    • Up to 300 Mbps per band

    • 1 × Gigabit uplink + 2 × Fast‑Ethernet downstream ports

    • ClientMatch roaming and ACC interference mitigation

    • Flexible operating modes: controller, RAP, mesh, air monitor

    • Wall‑mountable design with passive passthrough port

SpecificationDetails
Model Number AP‑103H
Product Type Dual‑band hospitality Wireless Access Point (refurb)
Wireless Standard 802.11a/b/g/n (2×2:2 MIMO)
Max Wireless Data Rate 300 Mbps per band
Frequency Bands 2.4 GHz and 5 GHz
Uplink Port 1 × 10/100/1000 Mbps RJ‑45
Downstream Ports 2 × 10/100 Mbps RJ‑45 secure ports
Power Options PoE (802.3af) or 12 V DC
Integrated Antennas Omni‑directional, wall‑mounted
Client Density Supports up to ~32 clients per radio
Operating Temp 0 °C – 40 °C
Power Consumption Idle ~3.5 W; Max ~9.4 W
Form Factor Wall‑mount, gang‑box compatible
Warranty 90‑day refurb warranty
