HPE J9656A MSM466 Dual Radio wireless access point View larger
Previous Next

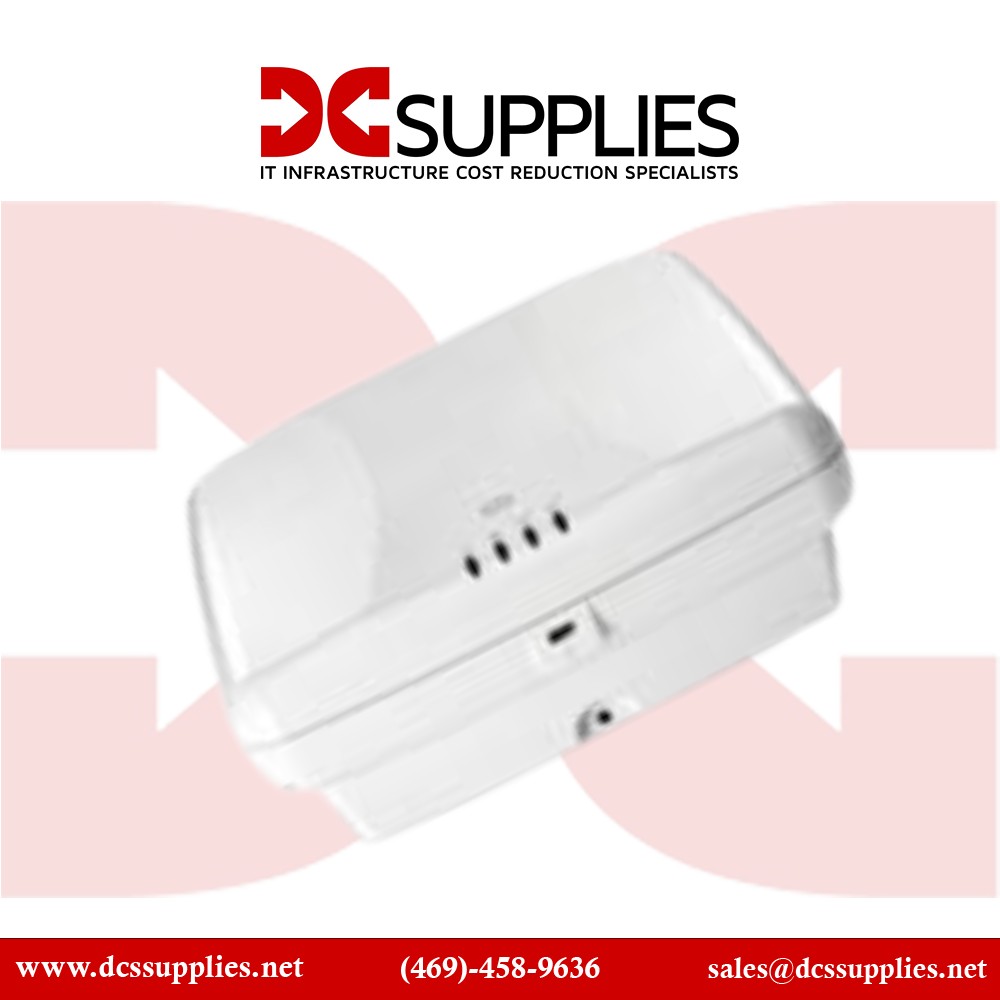

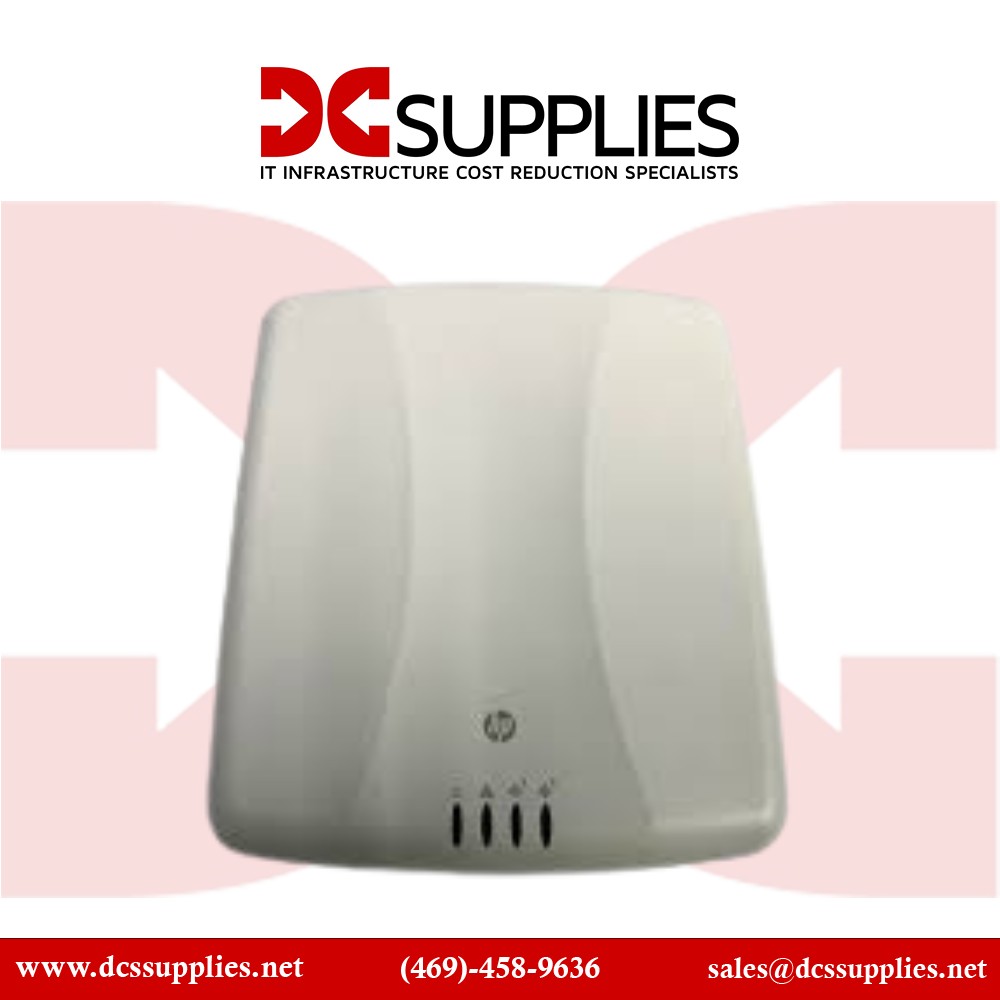

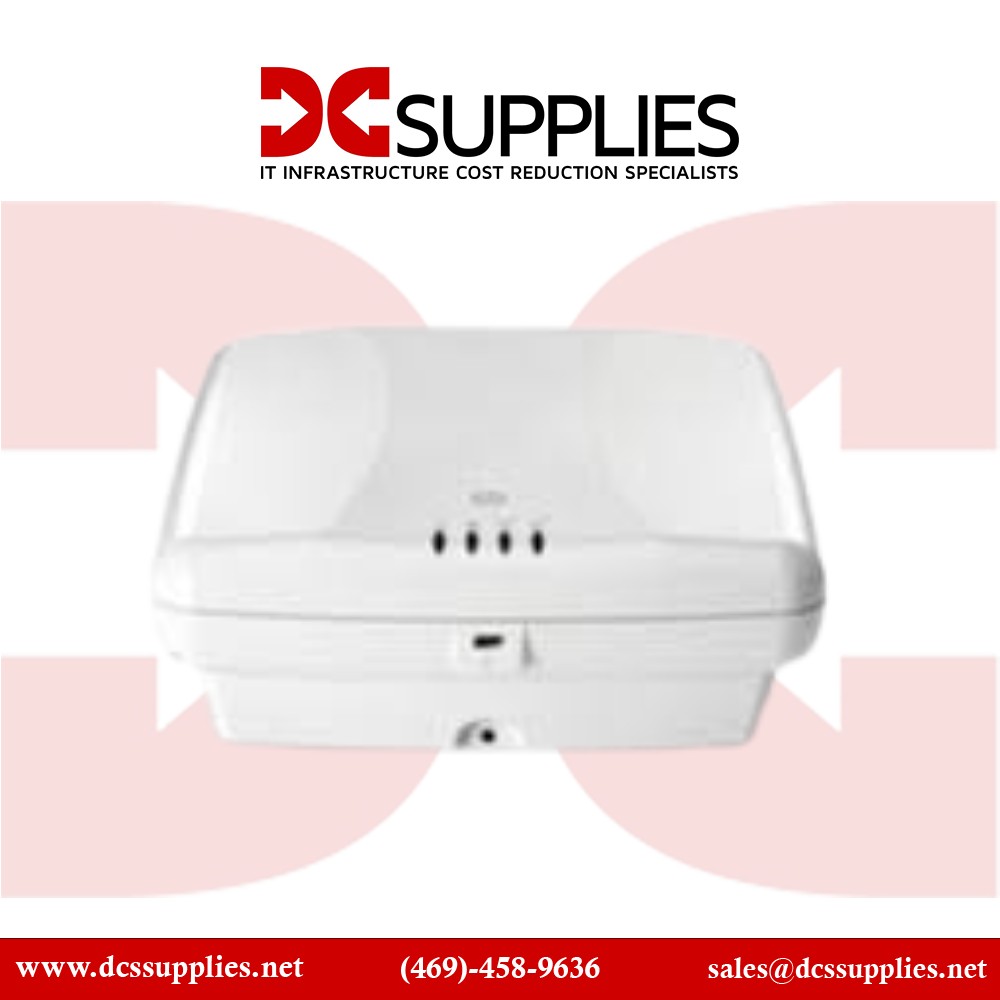

HPE J9656A MSM466 Dual Radio wireless access point

New

Outdoor‑ready dual‑radio 802.11n AP...

×




  • New

Detailed Specifications

HPE J9656A

MSM466 Dual‑Radio 802.11n Wireless Access Point (External Antenna Model) Refurbished

The HPE J9656A (MSM466) Dual‑Radio Wireless Access Point is a refurbished enterprise-grade 802.11n indoor/outdoor AP featuring external Antenna connectors for versatile deployments. Supporting up to 450 Mbps per radio (2.4 GHz and 5 GHz), three-stream (3×3:3) MIMO, and PoE power, it’s ideal for environments requiring flexible Antenna placement and robust RF performance—like atriums, warehouses, or industrial zones. The external RP‑SMA connectors accommodate high-gain Antenna , making this model more adaptable than its internal-Antenna counterparts. Professionally tested and certified, this AP delivers reliable, controlled-mode or autonomous Wi‑Fi access for legacy Aruba/MSM infrastructures.

Features

Designed for deployments requiring customized coverage, the MSM466 supports six external RP‑SMA connectors—three per radio—for attaching directional or omni Antenna (indoor connectors) . Each radio delivers up to 450 Mbps using 3‑stream MIMO at 40 MHz channel width, with adaptive channel and power control features like beamforming, band steering, ARM, and ACC to optimize performance in dense RF environments Compatible with Aruba/MSM controllers, it offers enterprise-class security (IDS/IPS), captive portal, VLANs, and up to 16 SSIDs per unit. Powered via PoE, it supports both indoor and sheltered outdoor mounting when paired with compatible Antenna .

Advanced Options

Equipped for rugged or flexible deployments, this AP features external Antenna connectivity, allowing more precise RF coverage via external high-gain Antenna —especially useful indoors or in semi-outdoor spaces

Product Key Features

  • Dual‑radio 802.11n (2.4 GHz + 5 GHz) with 3×3:3 MIMO

  • Up to 450 Mbps per radio (when using 40 MHz channel)

  • Six external RP‑SMA Antenna connectors (3 per band)

  • Adaptive RF: ARM, ACC, beamforming, band steering

  • IDS/IPS, spectrum analysis, captive portal, up to 16 SSIDs

  • Single Gigabit Ethernet port with PoE support

Reliability & Performance

Its radios support full dual-band performance even on PoE power. With mobile-client steering and interference-management features like ACC, ARM, and beamforming, it maintains stable throughput. The dual-core 800 MHz CPU, 256 MB RAM, and 128 MB flash enable efficient packet processing and real-time RF monitoring. Refurbished units are professionally validated and warrantied, making them a reliable, cost-effective solution for legacy Aruba MSM deployments.

Key Features :

  • Dual‑radio 802.11n (3×3:3) supporting 450 Mbps per band

  • External RP‑SMA Antennaconnections (external Antenna design)

  • Advanced RF control: ARM, ACC, beamforming, band steering

  • Supports IDS/IPS, spectrum scan, QoS, captive portal

  • PoE-powered; single RJ‑45 Gigabit Ethernet port

  • Compatible with Aruba/MSM controllers in controlled/autonomous mode

SpecificationDetails
Model Number J9656A (MSM466 with external Antenna RP‑SMA connectors)
Product Type Dual‑Radio 802.11n Wireless Access Point (External Antenna )
Frequency Bands 2.4 GHz + 5 GHz simultaneous
MIMO & Streams 3×3:3 (Dual‑stream, triple‑spatial)
Max Data Rate Up to 450 Mbps per radio
Antenna Connector 6 × RP‑SMA (external Antenna )
RF Features ARM, ACC, beamforming, band steering
Ethernet Port 1 × Gigabit RJ‑45 with PoE support
Management & Security IDS/IPS, spectrum analysis, captive portal, 16 SSIDs
Onboard Resources 800 MHz CPU, 256 MB RAM, 128 MB flash
Operating Modes Autonomous or controlled (MSM/Aruba controller)
Mounting Options Ceiling tiles, wall, or with external Antenna
Operating Temp / Humidity 0 °C to 50 °C; up to 95 % non‑condensing
Power IEEE 802.3af PoE, ~12 W typical
Weight / Dimensions ~1.0 kg; ~20.3 × 17.2 × 6.65 cm
