HPEJ9845A

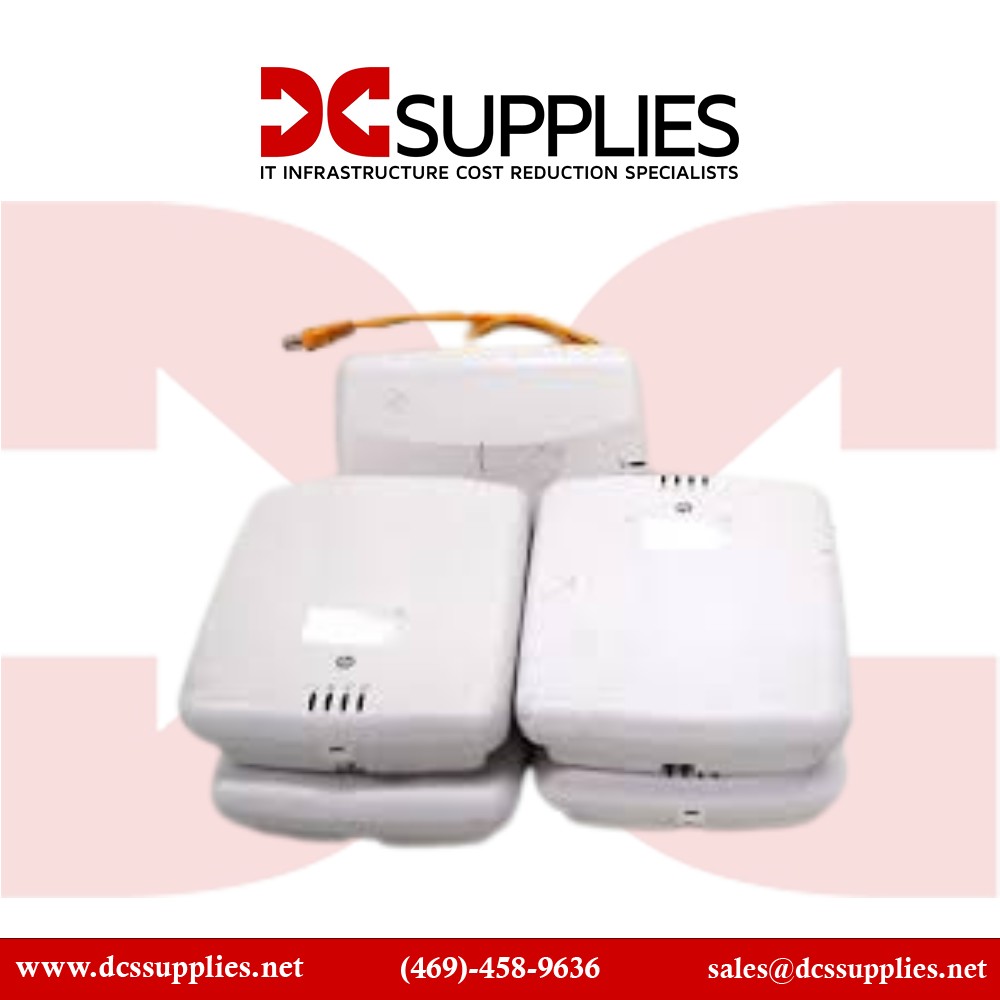

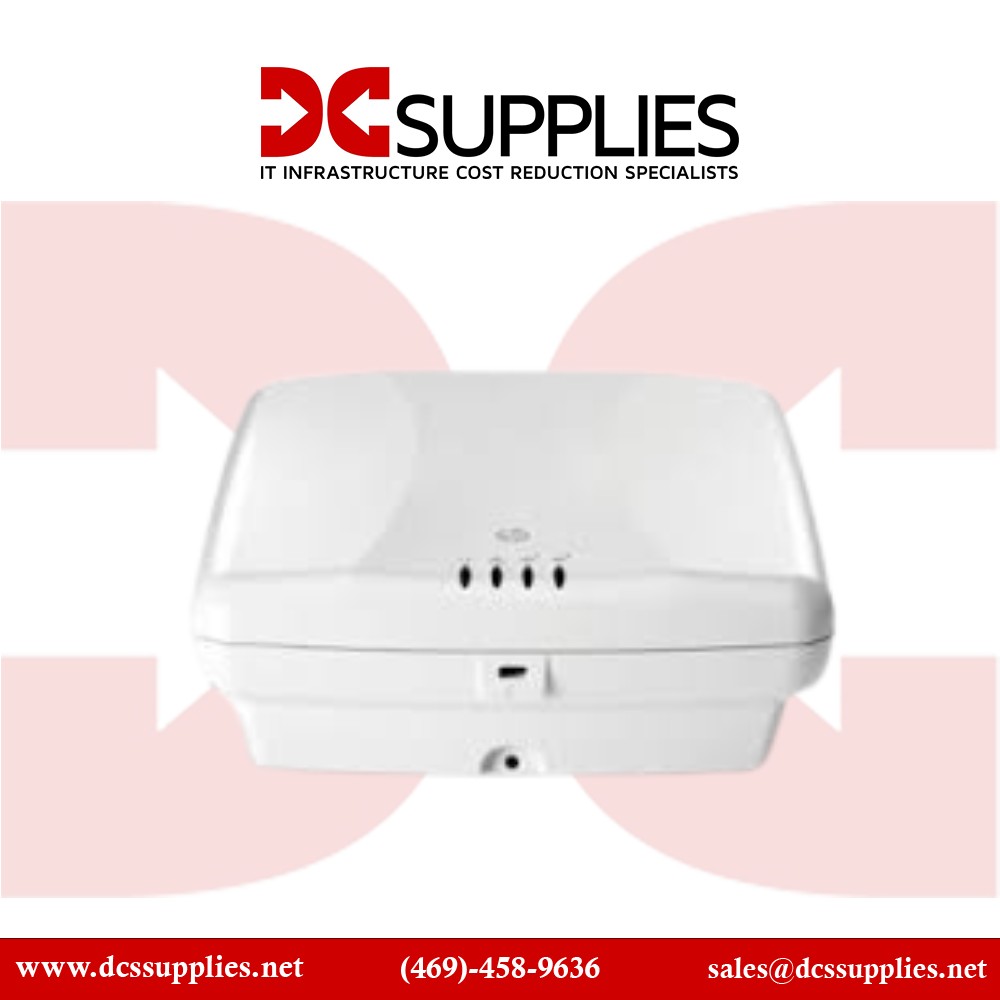

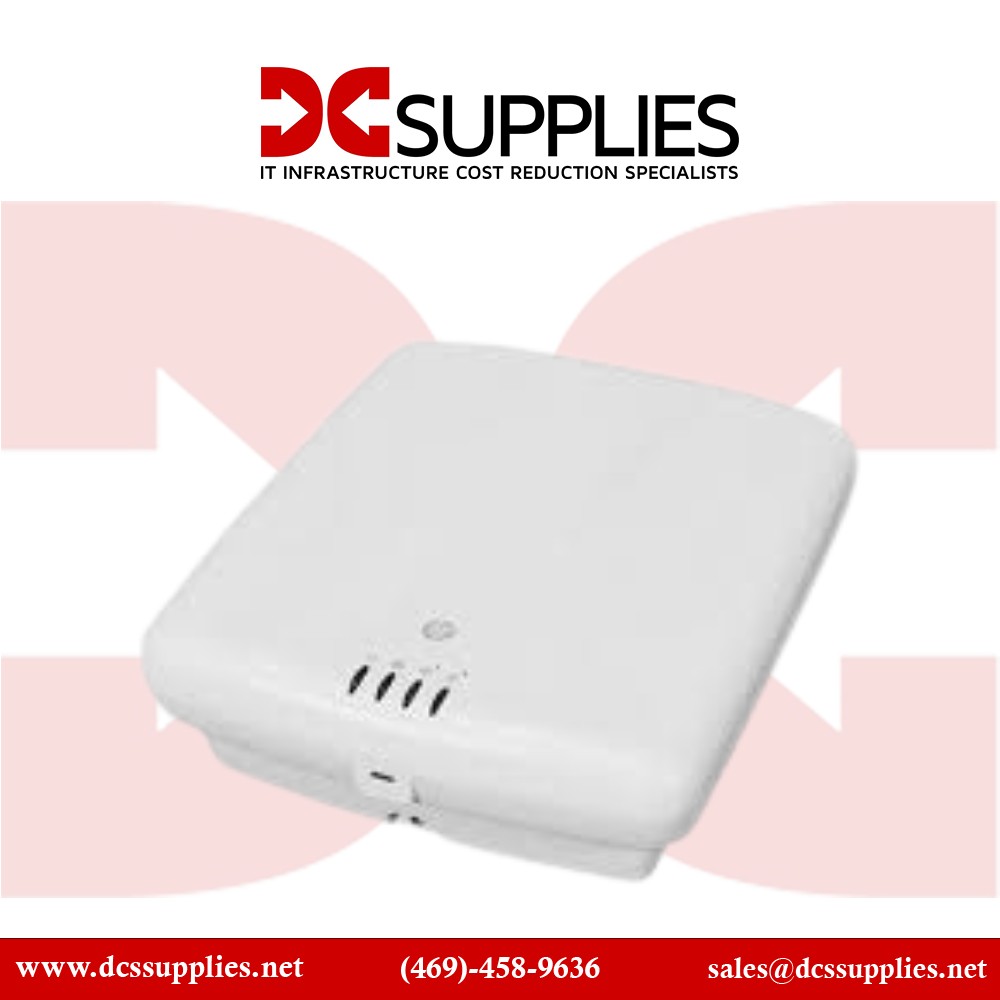

560 Dual-Radio Wireless Access Point - Refurbished

The HPEJ9845A 560 Dual-Radio Wireless Access Point is a refurbished WLAN device offering robust dual-band 802.11ac connectivity with up to 1.3 Gbps throughput. Equipped with two radios operating at 2.4 GHz and 5 GHz simultaneously, and powered via PoE+, the AP is ideal for high-density indoor environments like offices, classrooms, or retail spaces. With integrated Wi-Fi IDS/IPS, spectral analysis, and up to 16 SSIDs support, it brings enterprise-grade features in a cost-effective form factor. Fully certified and professionally refurbished, this AP delivers reliable performance for existing Aruba/HPEwireless deployments.

Features

This dual-radio access point supports both legacy (802.11a/b/g/n) and modern (802.11ac) Wi-Fi standards, enabling coexistence of older and newer client devices. Operating in managed or autonomous mode, it integrates seamlessly with Aruba and HP wireless controllers. Advanced RF monitoring features such as spectral analysis enable interference avoidance, while built-in IDS/IPS enhances security. It supports up to 16 SSIDs and 12 simultaneous VoIP sessions, fitting well in environments requiring guest access, segmented wireless traffic, or voice applications.

Advanced Options

Designed for continuous operation in mission-critical deployments, this AP uses a reliable 800 MHz CPU paired with 256 MB RAM and 128 MB flash memory. Its integrated antenna system (6×) ensures strong coverage and spatial stream performance.

Product Key Features

• • Dual-band 802.11ac delivering up to 1.3 Gbps total throughput

  • Built-in spectral analysis and IDS/IPS for RF security

  • Support for up to 16 SSIDs and 12 VoIP sessions

  • Single Gigabit Ethernet port with PoE/PoE+ support

  • Managed or autonomous operation compatible with Aruba controllers

  • Internal antenna array (6× MIMO) for broad indoor coverage

---

Reliability & Performance

PoE+ support simplifies deployment without need for external power. Environmental specs include operating temperatures up to 50 °C and humidity tolerance from 5 % to 95 % (non-condensing), ideal for varied indoor installations. Refurbished units are tested to meet performance standards and come with a replacement warranty for peace of mind.

Key Features :

• • Dual-radio 802.11ac (AM) with 2.4 GHz and 5 GHz support

  • Up to 1.3 Gbps Wi-Fi data rate

  • Internal 6-antenna MIMO design

  • PoE/PoE+ powered via single Gigabit Ethernet port

  • Up to 16 SSIDs and 12 VoIP sessions supported

  • Integrated spectral analysis, IDS/IPS, QoS, VLANs

Specification	Details
Model Number	J9845A (HP 560 Dual-Radio Access Point)
Product Type	Dual-Radio 802.11ac Wireless Access Point (Refurbished)
Wi-Fi Standards	IEEE 802.11a/b/g/n/ac
Radios	2 (2.4 GHz and 5 GHz concurrently)
Maximum Throughput	Up to 1.3 Gbps
Antennas	6 internal omni-directional antennas
RAM / Flash	256 MB RAM, 128 MB flash
Ethernet Port	1 × Gigabit RJ-45 (PoE / PoE+)
SSID Support	Up to 16
VoIP Support	Up to 12 simultaneous sessions
Security Features	WPA/WPA2, 802.1X, IDS/IPS, rogue AP detection
Management Protocols	SNMP v2c/v3, HTTPS
Power	PoE / PoE+ (≈14 W operational)
Operating Temperature	0 °C to 50 °C
Operating Humidity	5 % to 95 % non-condensing
Dimensions (W×D×H)	~20.3 cm × 17.2 cm × 6.65 cm
Weight	~1.02 kg
Compliance Standards	IEEE 802.3af/802.3at, FCC, UL/CUL, EN, ICES, ARIB, etc.
