Ubiquiti Networks U6-LR-US U6-LR UniFi 6 AX3000 Long-Range Access Point

New

Wi-Fi 6 access point for long-range high-density coverage

×




  • New

Detailed Specifications

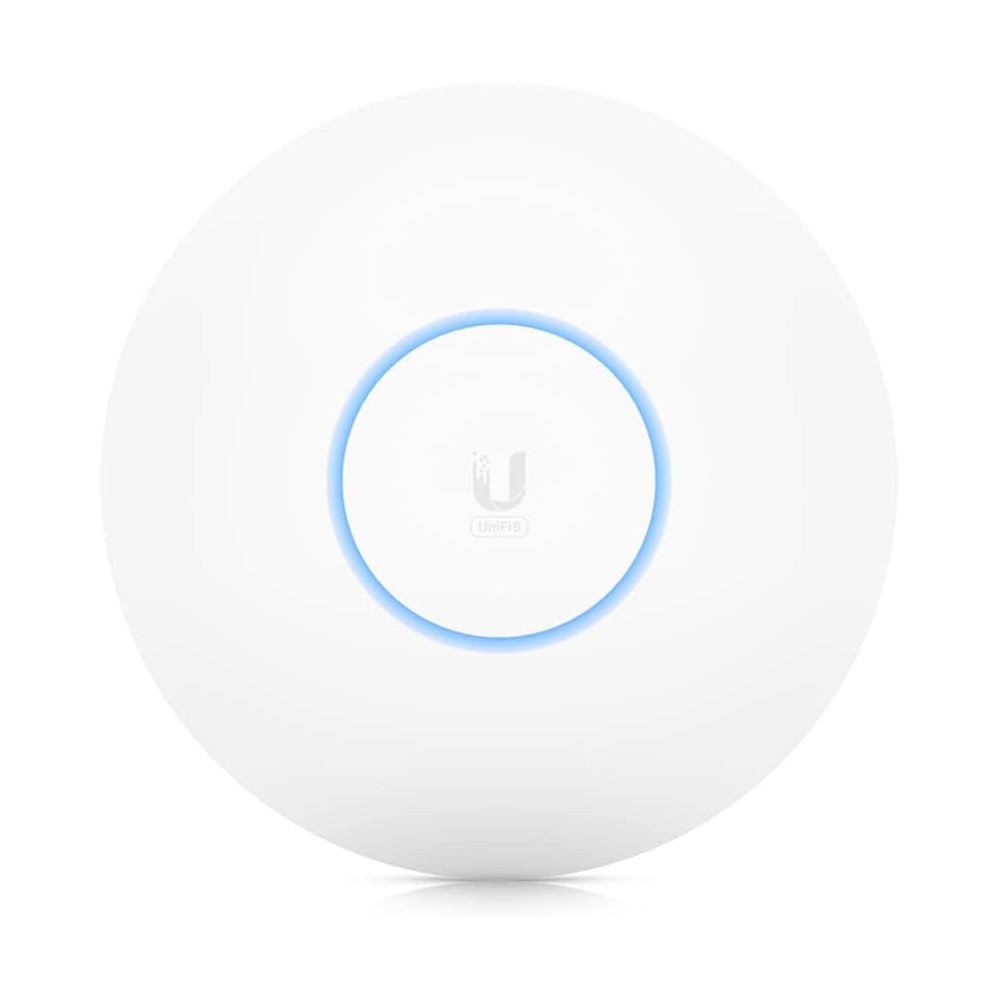

Ubiquiti Networks U6-LR-US

UniFi 6 AX3000 Long-Range Access Point - Powerful Wi-Fi 6 for Expansive Coverage

The Ubiquiti U6-LR-US UniFi 6 Long-Range Access Point is engineered for modern enterprise environments demanding strong, reliable wireless connectivity. Leveraging the power of Wi-Fi 6 (802.11ax), this high-performance access point delivers a combined throughput of up to 2.93 Gbps over 2.4 GHz and 5 GHz bands, while supporting more than 300 simultaneous clients using advanced 4x4 MU-MIMO and OFDMA technologies.

Features :

This dual-band Wi-Fiaccess point offers 2.93 Gbps total throughput with 4x4 MU-MIMO and OFDMA technology for over 300 devices. Its indoor/semi-outdoor IP54-rated design makes it suitable for various environments, from office spaces to covered patios. The access point can be easily mounted on walls or ceilings with included kits, and is powered via 802.3at PoE (PoE+ switch or adapter), simplifying installation. The sleek, minimal design allows it to blend into various architectural styles while delivering robust coverage.

Advanced Options :

With its long-range capabilities and efficient wireless performance, the U6-LR is ideal for open office plans, educational campuses, warehouses, and hospitality environments. Integration with the UniFi Network Controller enables centralized configuration, real-time monitoring, and seamless firmware updates across all UniFi devices. The access point features Bluetooth 5 support for simplified setup and advanced security with WPA, WPA2, WPA3, WPA-PSK, and WPA-ENT encryption standards. Its low-profile design includes passive cooling for silent operation and optimal energy efficiency, making it perfect for noise-sensitive environments.

Product Key Features

  • Dual-band Wi-Fi 6 with 2.93 Gbps total throughput
  • 4x4 MU-MIMO and OFDMA for over 300 devices
  • Indoor/semi-outdoor IP54-rated design
  • Wall and ceiling mount kits included
  • Powered via 802.3at PoE (PoE+ switch or adapter)
  • Centralized UniFi Network Controller management

Reliability & Performance :

The U6-LR-US delivers exceptional reliability and performance in high-density environments. Its dual-band connectivity provides up to 2.4 Gbps on 5 GHz and 600 Mbps on 2.4 GHz, ensuring fast downloads, seamless video conferencing, and responsive cloud access across a wide area. The IP54 rating ensures protection against dust and water splashes, making it suitable for semi-outdoor installations. With passive cooling for silent operation and optimal energy efficiency, this access point maintains consistent performance even under heavy loads. Whether deployed in corporate settings, educational institutions, or hospitality venues, the U6-LR provides the robust coverage and reliability needed for demanding wireless applications.

Key Features :

  • Dual-band Wi-Fi 6 (802.11ax) access point
  • 4x4 MU-MIMO and OFDMA for high client density
  • Up to 2.93 Gbps wireless transmission rate
  • IP54 rated for indoor/semi-outdoor use
  • 1 x Gigabit Ethernet port with 802.3at PoE input
  • Wall and ceiling mount hardware included
  • Secure with WPA, WPA2, WPA3, WPA-PSK, WPA-ENT
  • Bluetooth 5 support for simplified setup

Specifications :

SpecificationDetails
Model Number U6-LR-US
Type Dual-Band Long-Range Wi-Fi 6 Access Point
Wireless Standard 802.11ax (Wi-Fi 6)
Bands 2.4 GHz / 5 GHz
Max Wireless Speed 2.93 Gbps total (2.4 Gbps + 600 Mbps)
MIMO Configuration 4x4 MU-MIMO with OFDMA
PoE Input 802.3at PoE (PoE+), Adapter Sold Separately
Ports 1 x Gigabit Ethernet (RJ-45)
Mounting Options Wall Mountable / Ceiling Mountable
IP Rating IP54 (semi-outdoor capable)
Power Consumption 16.5W Max
Bluetooth Bluetooth 5
Security WPA, WPA2, WPA3, WPA-PSK, WPA-ENT
Diameter 8.7 inches
Depth 1.9 inches
Form Factor Circular, Low Profile
Management Platform UniFi Network Controller
