Detailed Specifications

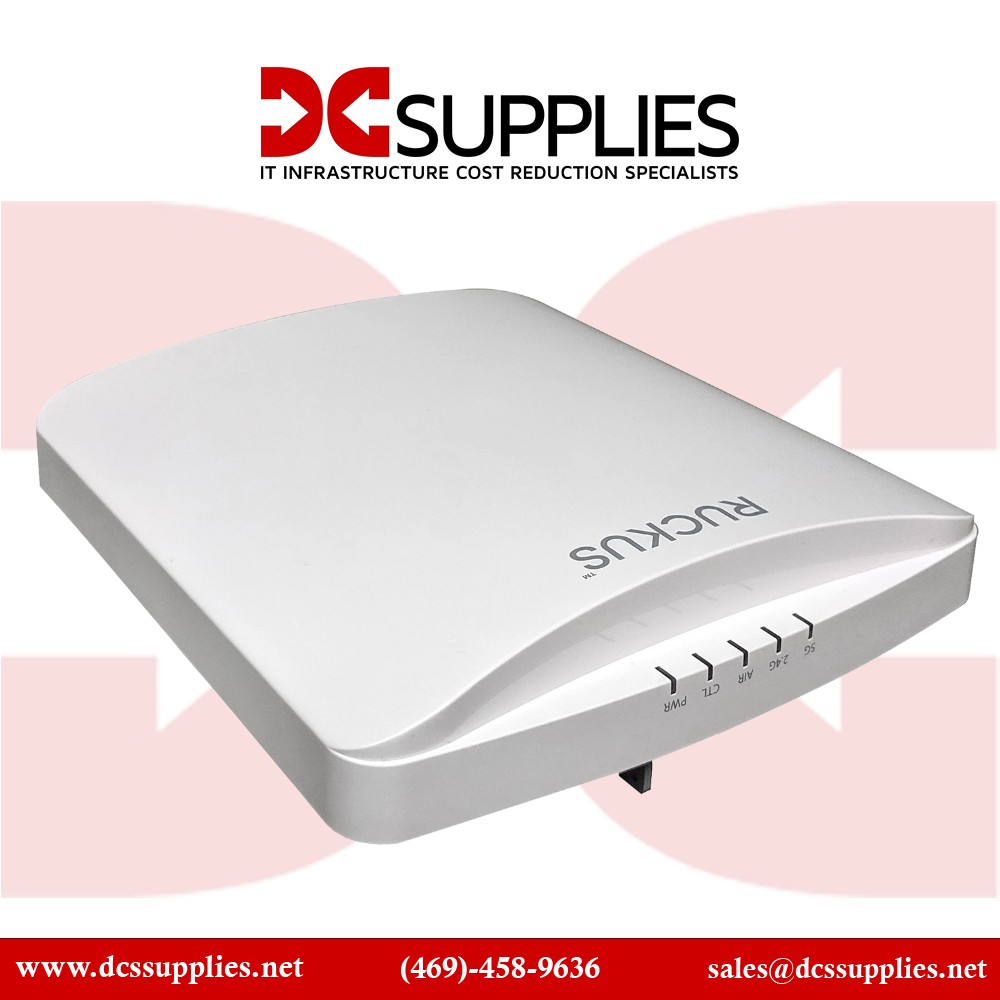

Ruckus 901-R750-US00 R750 Indoor Wi-Fi 6 wireless Access Point
Overview
The Ruckus 901-R750-US00 is a high-performance indoor Wi-Fi 6 (802.11ax) access point designed for dense enterprise and campus networks. Delivering exceptional wireless capacity and coverage, it supports 4x4:4 streams on both 2.4 GHz and 5 GHz bands for a combined data rate exceeding 3.5 Gbps. Equipped with advanced BeamFlex+ adaptive antennas, the R750 dynamically optimizes signal patterns to improve throughput and reduce interference. Its multi-gigabit 2.5 GbE uplink ensures reliable wired backhaul performance, while integrated IoT radios (BLE & Zigbee) make it ideal for unified wireless and IoT deployments. Engineered for scalability, security, and easy management, the R750 is the preferred choice for enterprises, schools, hospitals, and high-density environments demanding fast and dependable wireless connectivity.
Key Features
Wi-Fi 6 Performance: Dual-band 4x4:4 MU-MIMO design delivers multi-gigabit throughput.
Adaptive BeamFlex+ Antennas: Enhances signal gain, coverage, and interference mitigation.

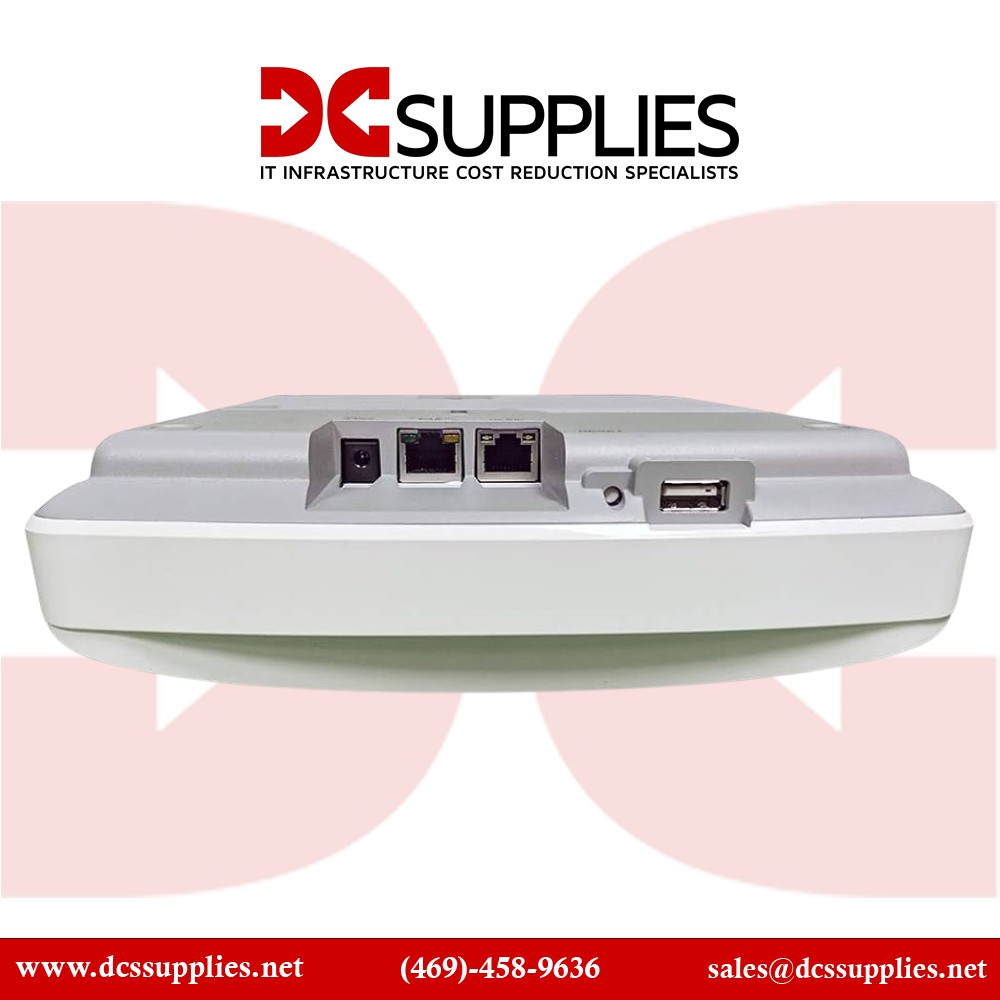

Multi-Gigabit Ethernet Port: Includes 2.5 GbE and 1 GbE ports for flexible backhaul.
IoT-Ready Design: Integrated Bluetooth Low Energy (BLE) and Zigbee radios.
High Client Density: Supports up to 1,024 concurrent users for demanding environments.
Specifications
| Specification | Details |
|---|
| Brand | Ruckus |
| Part Number | 901-R750-US00 |
| Product Type | Indoor Wi-Fi 6 Access Point |
| Wi-Fi Standard | IEEE 802.11a/b/g/n/ac/ax |
| Radio Configuration | Dual-radio, 4x4:4 MU-MIMO |
| Maximum Data Rate | Up to 3.5 Gbps |
| Ethernet Ports | 1x 2.5 GbE, 1x 1 GbE |
| Antenna Type | BeamFlex+ Adaptive Antennas |
| Integrated Radios | BLE & Zigbee |
| Maximum Clients Supported | Up to 1,024 |
| Mounting Options | Wall, Ceiling (T-bar, acoustic), Desktop |
| Dimensions (H x W x D) | 9.3 in × 8.1 in × 2.4 in |
| Weight | 2.23 lbs |
| Operating Temperature | 0°C to 50°C (32°F to 122°F) |
| Security Standards | WPA3, WPA2, 802.1X, Secure Boot |
| Warranty | Limited Lifetime Warranty |
