Detailed Specifications

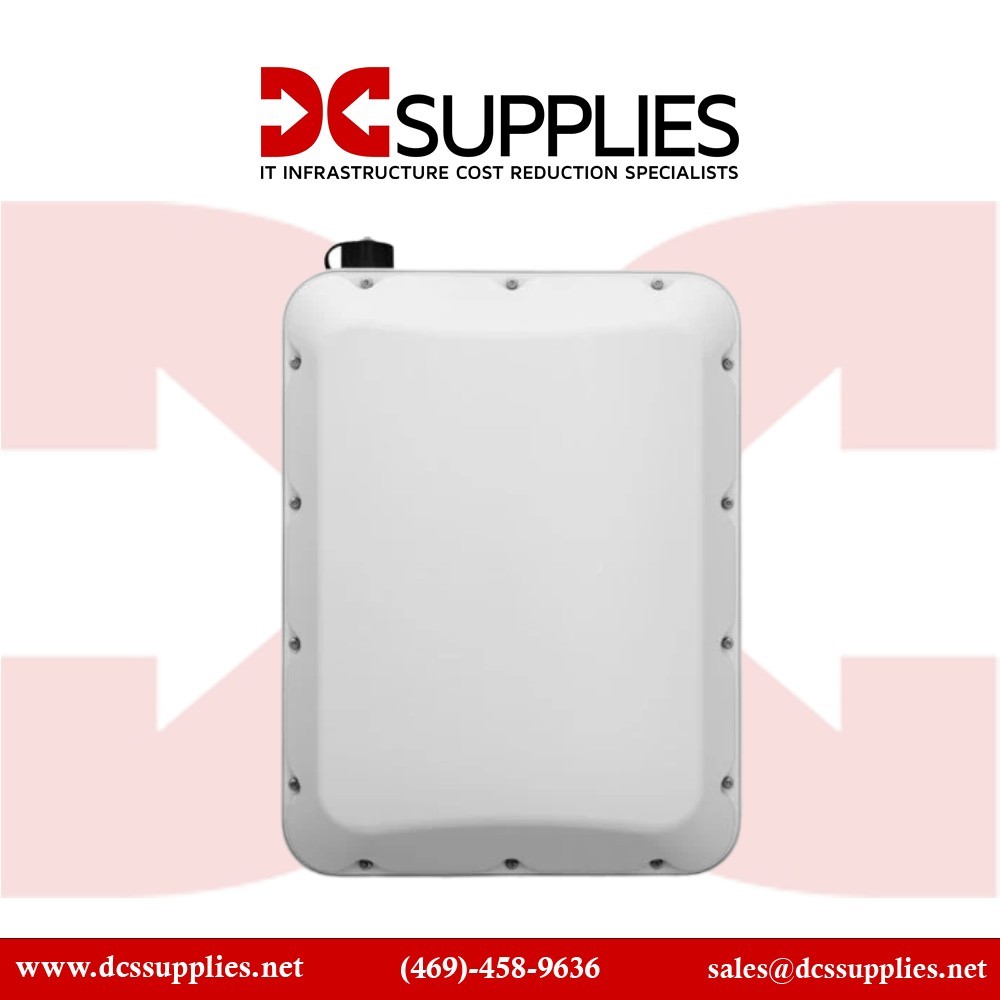

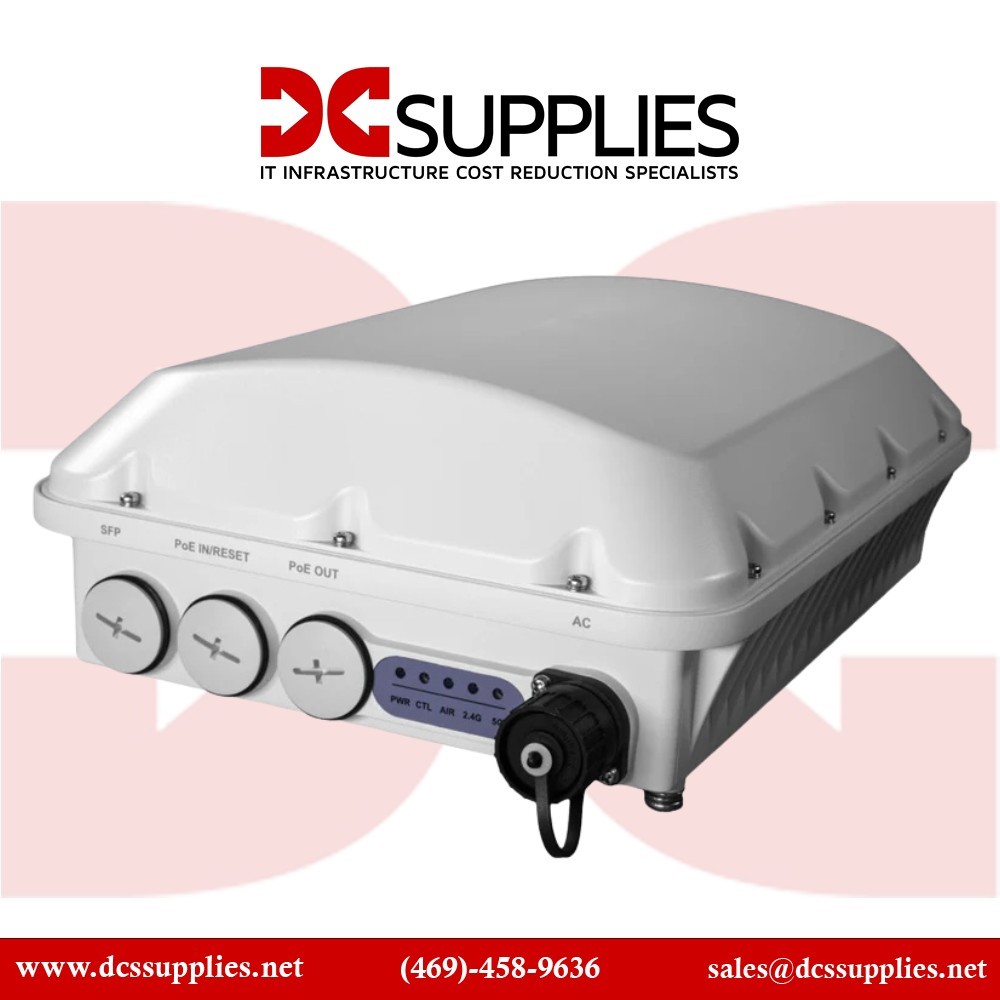

Ruckus 9U1-T350-US20 – Outdoor Wi-Fi 6 Access Point
Overview :
The Ruckus 9U1-T350-US20 is a high-performance outdoor Wi-Fi 6 access point designed for high-density environments such as urban plazas, convention centers, and smart cities. It features a dual-radio 2×2:2 MIMO configuration, delivering up to 1.8 Gbps aggregate throughput. The device utilizes Ruckus' patented BeamFlex+ adaptive antenna technology, which dynamically adjusts antenna patterns to optimize coverage and minimize interference. This ensures a reliable and high-quality wireless experience for users. Built with an IP-67 rated enclosure, the T350c is engineered to withstand harsh outdoor conditions, including extreme temperatures ranging from -40°C to 65°C. It supports Power over Ethernet (PoE) input via an RJ45 port, simplifying installation by reducing the need for additional power cables. The access point is compatible with various Ruckus controllers, including Ruckus Cloud™, SmartZone, Unleashed™, and ZoneDirector, offering flexible deployment options. Ideal for venues requiring robust outdoor wireless coverage, the T350c provides seamless connectivity for applications such as public Wi-Fi, IoT deployments, and digital signage. Its compact design and advanced features make it a reliable choice for enhancing outdoor network infrastructures.
Key Features :
Wi-Fi 6 Technology: Supports IEEE 802.11ax for improved efficiency and throughput.
BeamFlex+ Antenna Technology: Adaptive antenna patterns for optimal coverage.
Dual-Band Operation: Simultaneous 2.4 GHz and 5 GHz radios.
IP-67 Enclosure: Weather-resistant design for outdoor deployments.
PoE Input: Simplifies installation with Power over Ethernet support.
Specifications
| Specification | Details |
|---|
| Brand | Ruckus |
| Part Number | 9U1-T350-US20 |
| Product Type | Outdoor Wi-Fi 6 Access Point |
| Wi-Fi Standard | IEEE 802.11a/b/g/n/ac/ax |
| Radio Configuration | Dual-Radio 2×2:2 MIMO |
| Max Throughput | 1.8 Gbps Aggregate |
| BeamFlex+ | Yes |
| ChannelFly | Yes |
| Ethernet Ports | 1 x 1 GbE (RJ45 PoE In - 802.3at Class 4) |
| USB Port | USB 2.0 Type A |
| Operating Temp | -40°C to 65°C |
| Enclosure Rating | IP-67 |
| Mounting Options | Wall, Pole, Ceiling |
| Dimensions (H x W x D) | 2.8 x 8.4 x 6.4 inches |
| Weight | 2.36 lbs |
