Detailed Specifications
Ruckus 901-H350-US00 Wi-Fi 6 Indoor Wall Plate Wireless Access Point
Overview
The Ruckus 901-H350-US00 is a dual-band Wi-Fi 6 (802.11ax) wall-plate access point designed for in-room or multi-dwelling unit (MDU) deployments where space is at a premium—hotels, student residences, apartments, dormitories, and retail store-in-shop environments.It combines wireless and wired connectivity in a compact form-factor: the unit features a 2×2:2 radio architecture supporting up to 1.8 Gbps aggregate PHY rate (574 Mbps @ 2.4 GHz + 1,200 Mbps @ 5 GHz) per the datasheet. Two Gigabit Ethernet ports allow the AP to double as a wired switch for in-room devices such as set-top boxes, IP phones, or IoT hubs, reducing cabling complexity. The H350 also includes onboard IoT radio support (BLE/Zigbee) and integrates Ruckus technologies such as BeamFlex+ adaptive antennas and ChannelFly to optimise wireless performance in dense RF environments. It may be powered via standard 802.3af Class 3 PoE or a 30 W AC/DC adapter (sold separately) and is managed via Ruckus Cloud, SmartZone, ZoneDirector or in-controller-less Unleashed mode.In summary — if you’re deploying Wi-Fi 6 in a hospitality or MDU scenario and want an access point that installs nearly like a wall plate (while offering full enterprise wireless, wired ports, IoT gateway and management flexibility), the H350 hits that role precisely.
Key Features
Compact 2×2:2 Wi-Fi 6 radio supporting up to 1.8 Gbps PHY (574 Mbps @ 2.4 GHz + 1.2 Gbps @ 5 GHz).
Two Gigabit Ethernet ports to support in-room wired devices alongside wireless service.
Integrated IoT radio (BLE & Zigbee) enabling unified wireless + IoT deployment from one device.
Ruckus BeamFlex+ adaptive antennas + ChannelFly dynamic channel optimisation for improved coverage and capacity in dense environments.
Controller-based or cloud-based management (Cloud, SmartZone, ZoneDirector), or controller-less Unleashed mode for flexible deployment.
Specifications
| Specification | Detail |
|---|
| Brand | Ruckus |
| Part Number | 901-H350-US00 |
| Product Type | Indoor Wall-Plate Wi-Fi 6 Access Point |
| Wi-Fi Standard | IEEE 802.11a/b/g/n/ac/ax |
| Radio Configuration | 2×2:2 (dual-band 2.4 GHz + 5 GHz) |
| Maximum PHY Rate | Up to ~1.8 Gbps (574 Mbps @2.4 GHz + 1,200 Mbps @5 GHz) |

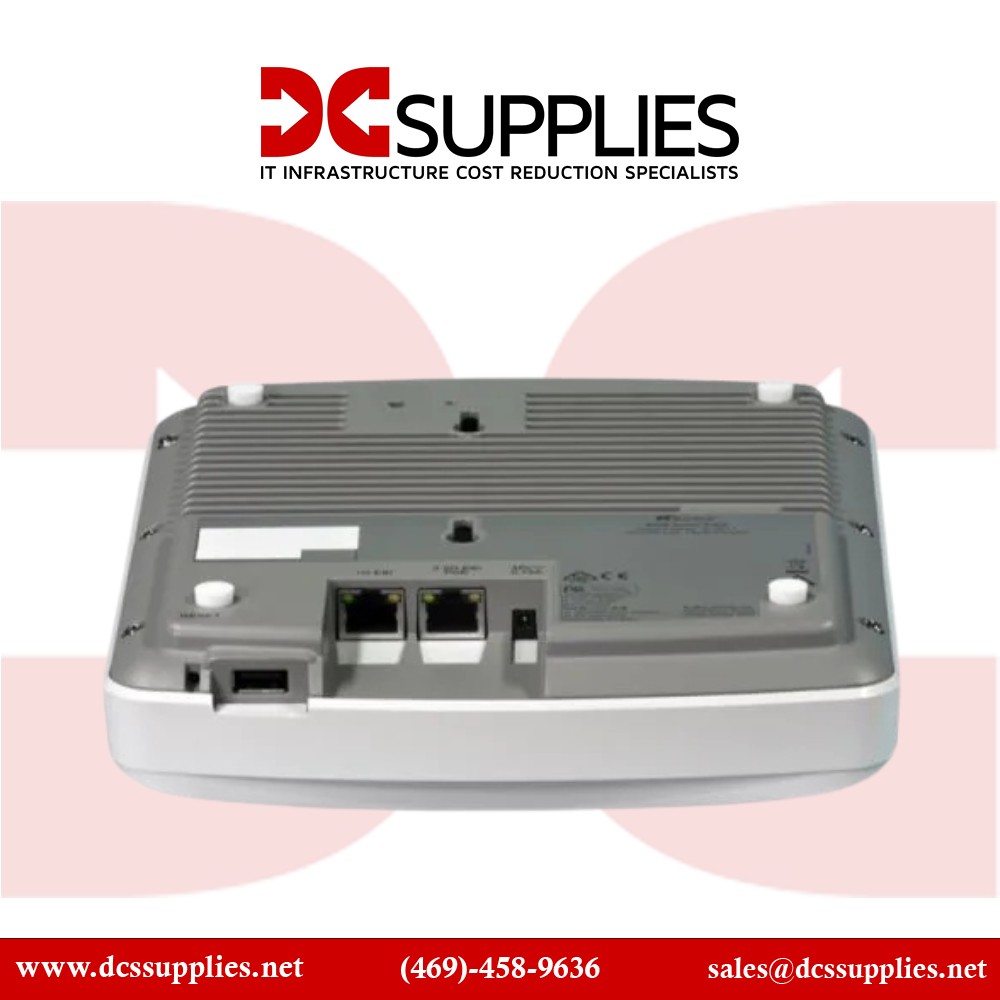

| Ethernet Ports | 2× 1 GbE port |
| IoT Radio | BLE + Zigbee |
| Power Options | 802.3af PoE Class 3 or 30 W AC/DC adapter (option |
| Operating Temperature | 0 °C to 40 °C |
