Detailed Specifications

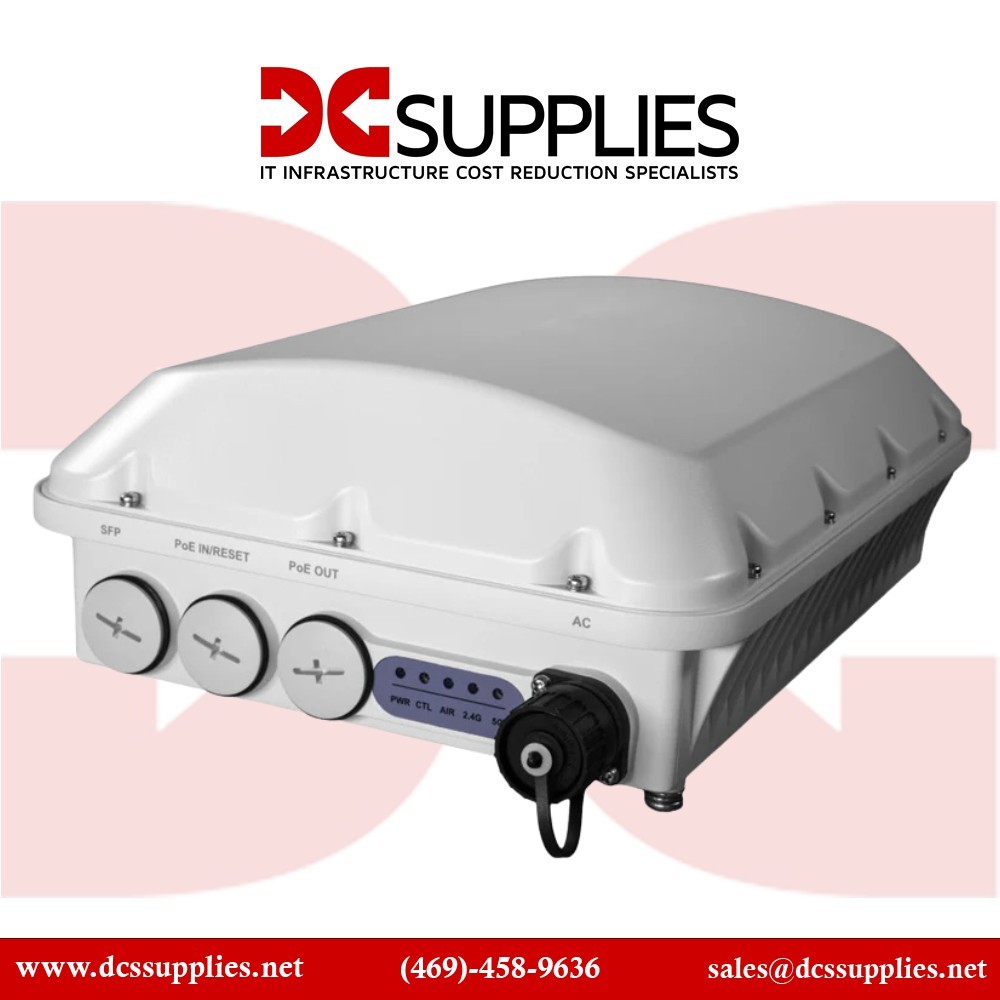

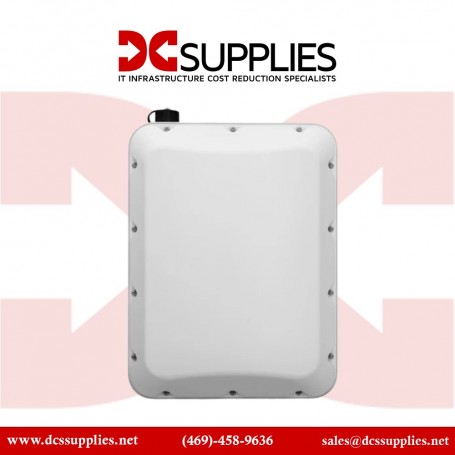

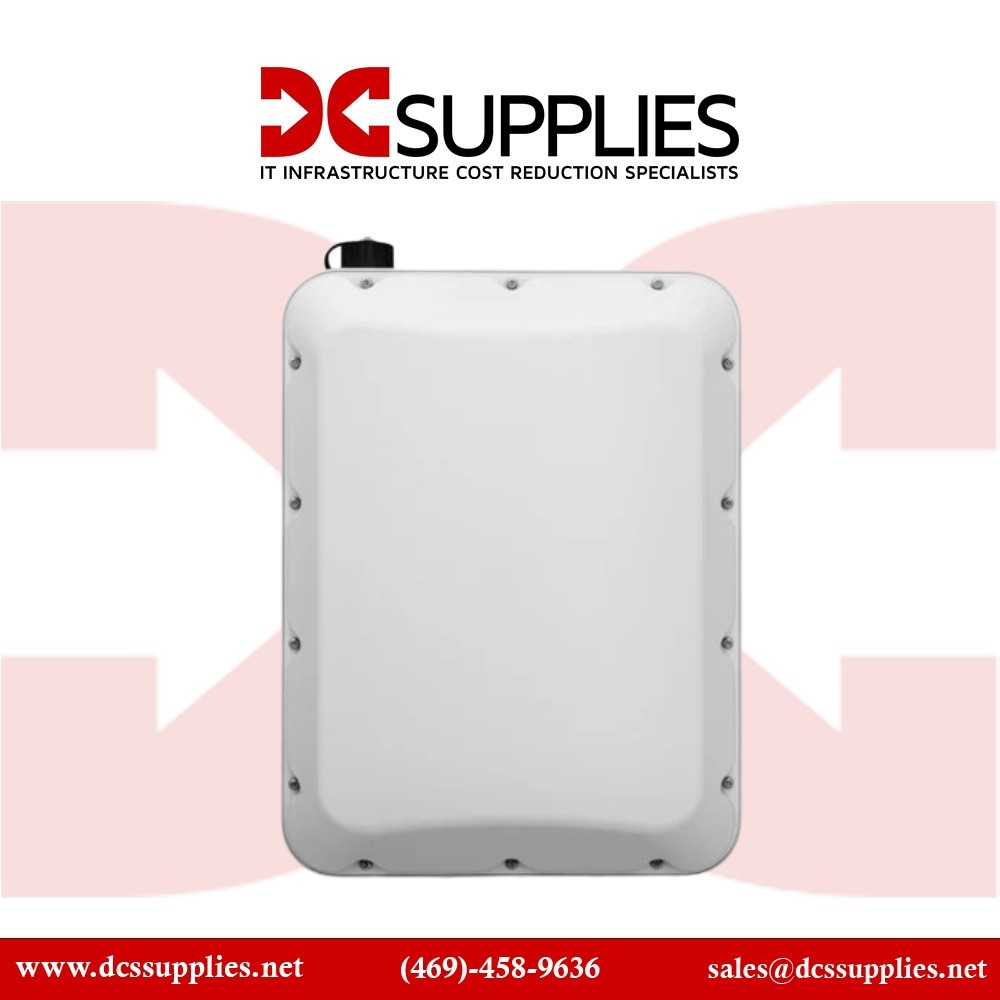

RUCKUS 9U1-T750-US51 – Outdoor Wi-Fi 6 Access Point / Multi-Gigabit Uplink
Overview :
The RUCKUS 9U1-T750-US51 is a Wi-Fi 6 (802.11ax) outdoor access point engineered for challenging, high-density environments such as stadiums, transit hubs and large outdoor public venues. It features dual-band concurrent operation at 2.4 GHz and 5 GHz with eight spatial streams (4×4:4 each band) and supports up to 1,024 client devices simultaneously. With a multi-gigabit 2.5 GbE uplink plus SFP fiber backhaul, the unit ensures that wireless capacity is not limited by the wired network link. Built into an IP-67 weather-rated enclosure and designed for -40 °C to +65 °C operation, it is suitable for harsh outdoor deployments. The AP includes BeamFlex+ adaptive antennas, on-board BLE/Zigbee IoT radios, and a PoE output port to power downstream devices such as cameras or other APs.
Key Features :
Multi-gigabit uplink via 2.5 GbE plus fiber SFP
Eight spatial streams (4×4:4 at 2.4 GHz and 5 GHz)
IP-67 rated outdoor enclosure for rugged deployments
On-board BLE and Zigbee IoT radios for sensor integration
PoE output port to power external devices like cameras
Specifications
| Specification | Details |
|---|
| Brand | RUCKUS |
| Part Number | 9U1-T750-US51 |
| Product Type | Outdoor Wi-Fi 6 Access Point |
| Maximum PHY Rate (2.4 GHz) | 1,148 Mbps |
| Maximum PHY Rate (5 GHz) | 2,400 Mbps |
| Combined Max PHY Rate | 3,548 Mbps |
| Radio Chains & Streams | 4×4:4 per band |
| Uplink Ports | 1×2.5 GbE + Fiber SFP |
| Concurrent Client Support | Up to 1,024 clients |
| Operating Temperature | −40 °C to +65 °C (−40 °F to +149 °F) |
| Antenna Gain (typical) | 2.4 GHz: ~1.6 dBi, 5 GHz: ~3.4 dBi |
| BeamFlex+ Adaptive Antennas | Yes |
| IoT Support | On-board BLE + Zigbee radios |
| Enclosure Rating | IP-67 (weather-proof) |
| Dimensions (L×W×H) | 13.64 in × 9.47 in × 4.00 in |
| Weight | 6.27 lbs |
