Detailed Specifications

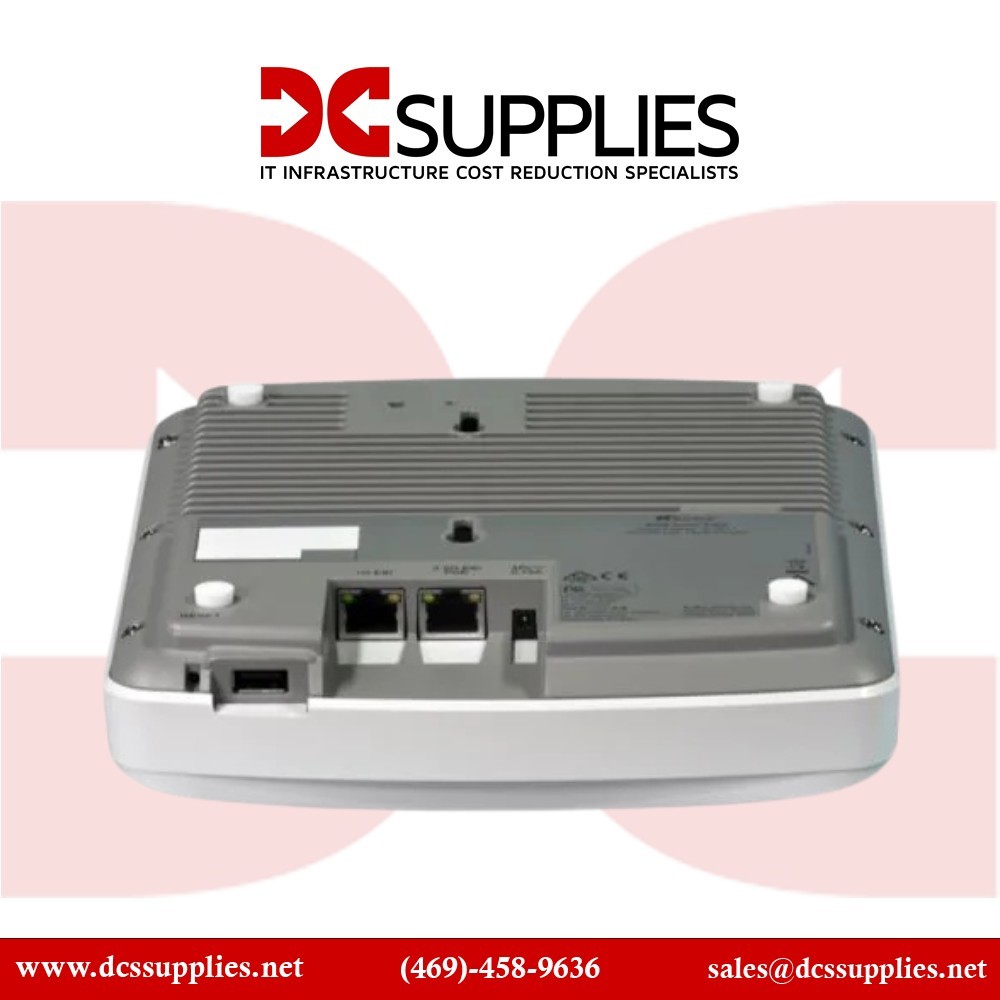

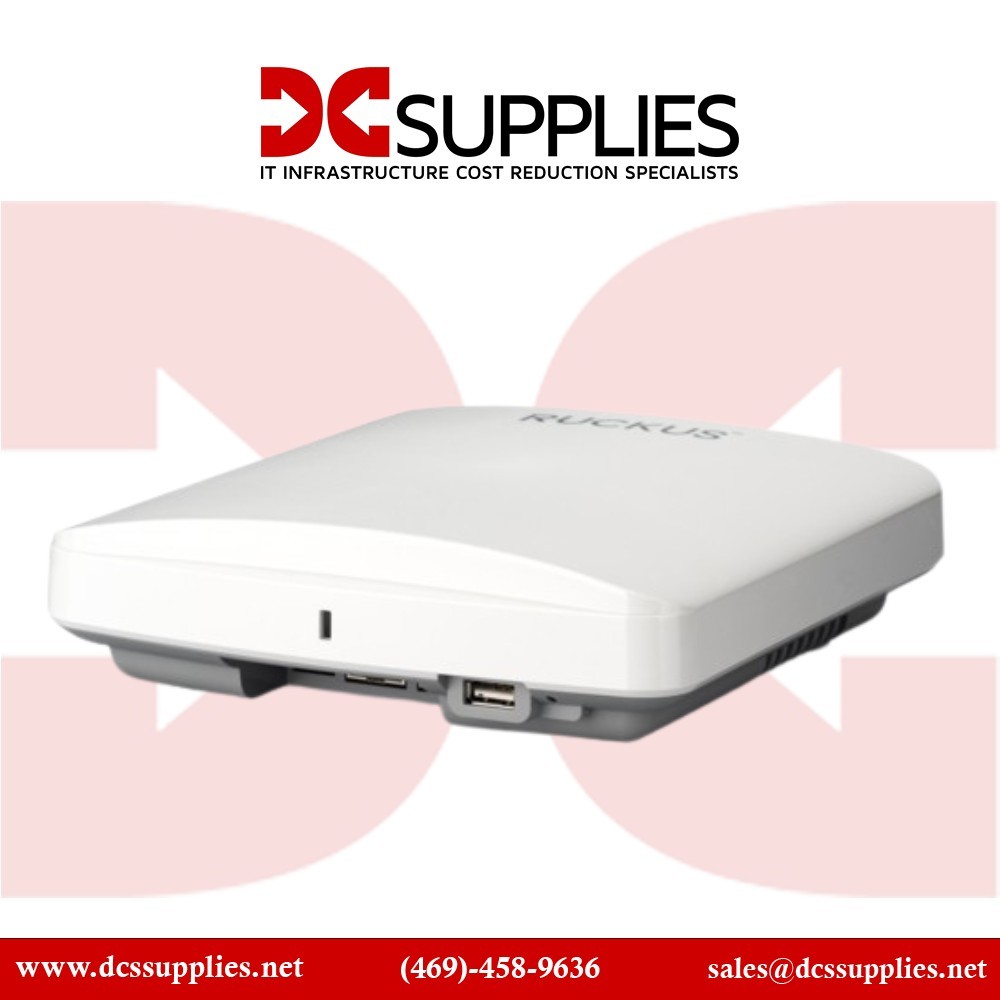

Ruckus 9U1-R650-US00 – Wi-Fi 6 Dual-Band Indoor Access Point
Overview :
The Ruckus 9U1-R650-US00 indoor access point is designed for enterprise and campus environments requiring high-density Wi-Fi 6 connectivity. It supports dual-concurrent radios (2.4 GHz and 5 GHz) and six spatial streams (4×4:4 in 5 GHz and 2×2:2 in 2.4 GHz) to serve up to 512 clients, delivering peak PHY rates up to approximately 2.97 Gbps. The unit features a 2.5 GbE backhaul port alongside a 1 GbE port, ensuring the wired side does not throttle wireless capacity. It includes adaptive BeamFlex+ antennas for optimized coverage and can integrate IoT technologies with onboard BLE and Zigbee support. Suitable for offices, classrooms and retail venues, this access point can be managed via cloud, on-premises controller or in standalone mode, providing deployment flexibility across medium-density enterprise spaces.
Key Features :
Six spatial streams enable up to ~2.97 Gbps throughput
2.5 GbE backhaul plus 1 GbE port for high-capacity uplink
BeamFlex+ adaptive antennas for optimized RF coverage
On-board BLE and Zigbee for integrated IoT support
Supports cloud, controller or standalone management modes
Specifications :
| Specification | Details |
|---|
| Brand | Ruckus |
| Part Number | 9U1-R650-US00 |
| Product Type | Indoor Wi-Fi 6 Dual-Band Access Point |
| Wi-Fi Standard | IEEE 802.11a/b/g/n/ac/ax |
| Radio Chains / Streams | 5 GHz: 4×4:4 · 2.4 GHz: 2×2:2 |
| Maximum PHY Rate | Up to ~2.97 Gbps |
| Supported Clients | Up to 512 clients |
| Ethernet Ports | 1×2.5 GbE + 1×1 GbE |
| Antenna Gain | Up to 3 dBi |
| Mounting Kit | Included acoustic drop-ceiling bracket |
| Power over Ethernet | 802.3af/at PoE |
| Dimensions (L × W × H) | 8.8 in × 7.6 in × 1.9 in |
| Weight | 1.88 lbs |
| IoT Radios | BLE and Zigbee onboard |
