Detailed Specifications

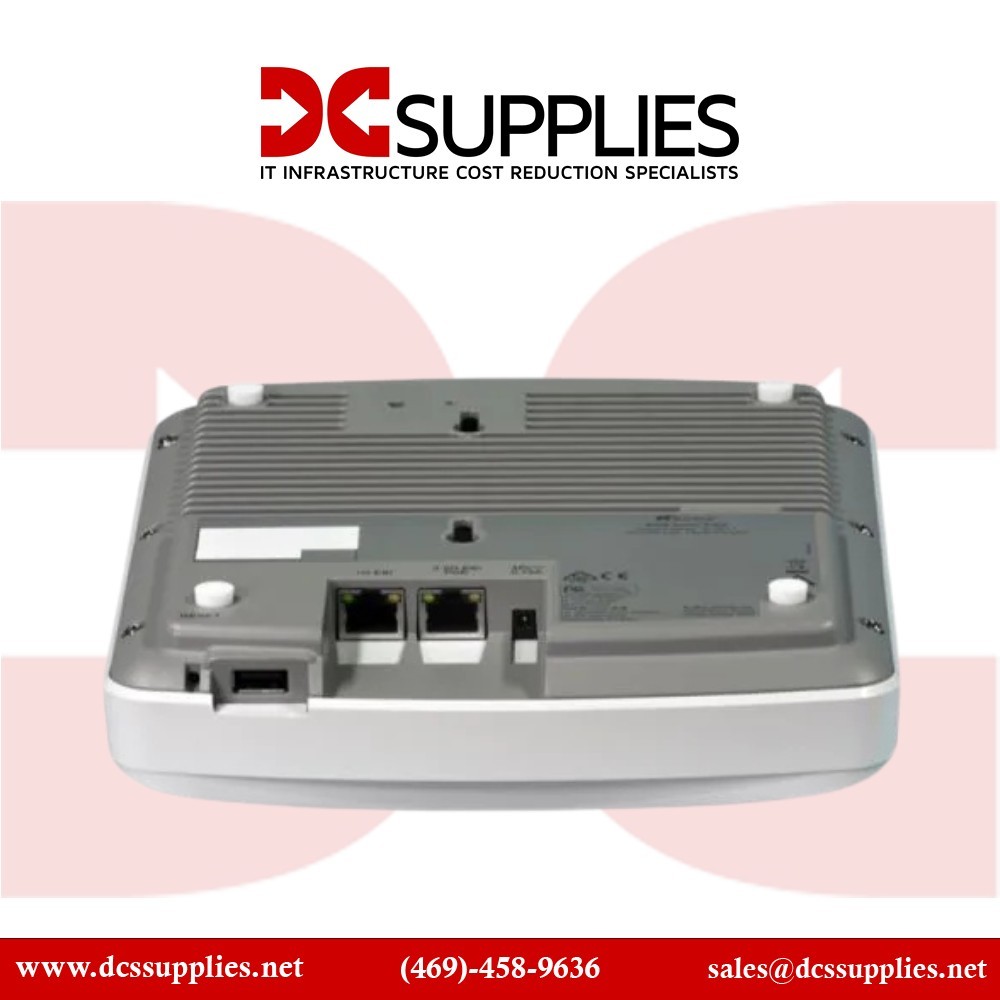

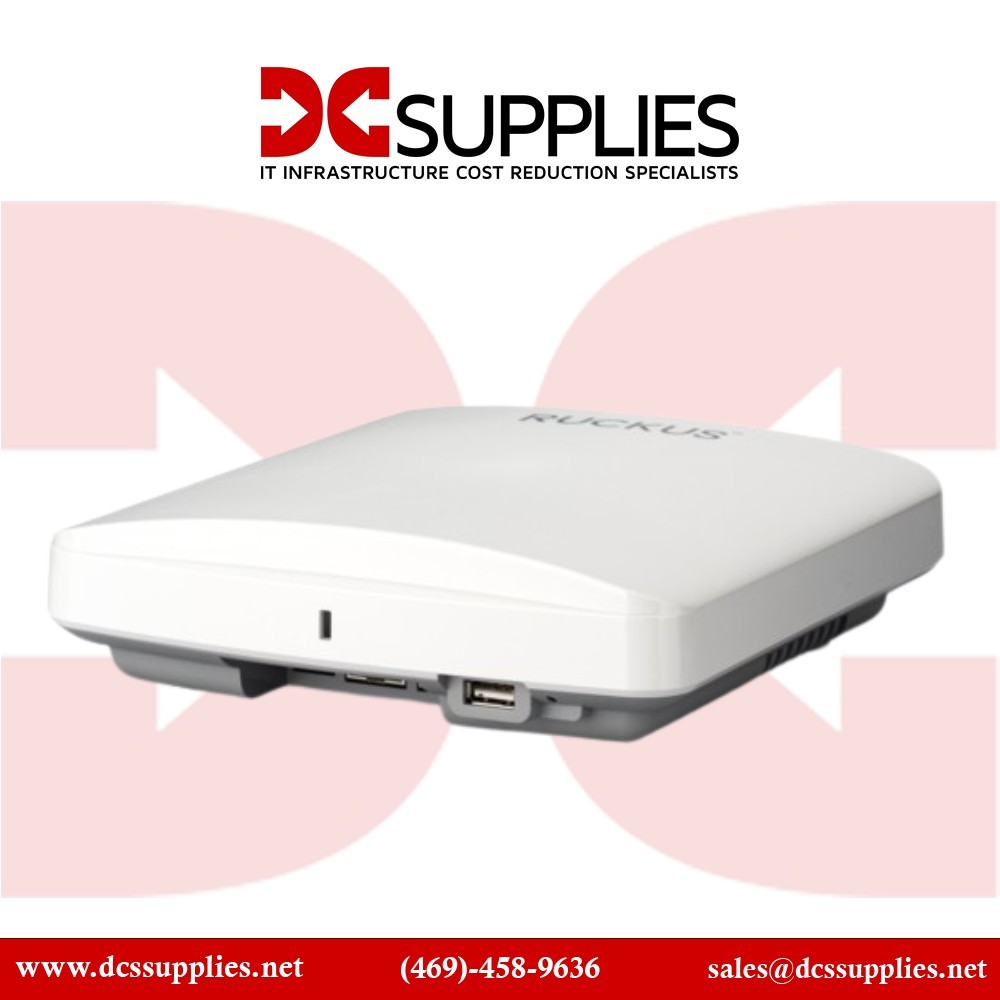

Ruckus 901-R850-US00 – Wi-Fi 6 Indoor Access Point
Overview :
The Ruckus 901-R850-US00 is a high-performance indoor access point designed to meet the demands of ultra-high-density environments. Featuring Wi-Fi 6 (802.11ax) technology, it supports 12 spatial streams—8x8:8 in the 5 GHz band and 4x4:4 in the 2.4 GHz band—enabling efficient data transmission and improved capacity. This access point is capable of handling up to 1,024 concurrent client connections, making it ideal for venues such as stadiums, convention centers, and large enterprises. Equipped with a 5 Gbps multi-gigabit Ethernet port and a 1 Gbps port, it ensures high-speed backhaul connectivity. Additionally, the R850 supports advanced features like MU-MIMO, OFDMA, WPA3 security, and SmartMesh for seamless wireless networking. Its BeamFlex+ adaptive antenna technology optimizes signal coverage and performance, while Bluetooth Low Energy (BLE) and Zigbee capabilities facilitate IoT integration. The R850 is compatible with various management platforms, including RUCKUS Cloud, SmartZone, ZoneDirector, and standalone deployments.
Key Features :
12 Spatial Streams: 8x8:8 (5 GHz), 4x4:4 (2.4 GHz)
Supports Up to 1,024 Concurrent Clients
5 Gbps Multi-Gigabit Ethernet Port
Advanced Security with WPA3 and SmartMesh
IoT-Ready with BLE and Zigbee Support
Specifications :
| Specification | Details |
|---|
| Brand | Ruckus Networks |
| Part Number | 901-R850-US00 |
| Product Type | Indoor Wi-Fi 6 Access Point |
| Wi-Fi Standard | IEEE 802.11a/b/g/n/ac/ax |
| Spatial Streams | 12 (8x8:8 in 5 GHz, 4x4:4 in 2.4 GHz) |
| Maximum Data Rate | 5.9 Gbps (combined) |
| Ethernet Ports | 1 x 5 Gbps, 1 x 1 Gbps |
| USB Port | 1 x USB 2.0 Type A |
| Antenna Technology | BeamFlex+ Adaptive Antennas |
| Client Capacity | Up to 1,024 clients |
| Power Input | 802.3at PoE |
| Bluetooth Support | BLE |
| Zigbee Support | Yes |
| Mounting Options | Wall or Ceiling Mountable |
| Regulatory Domain | US |
| Dimensions (H x W x D) | 9.5 x 9.5 x 2.3 inches |
| Weight | 2.5 lbs |
