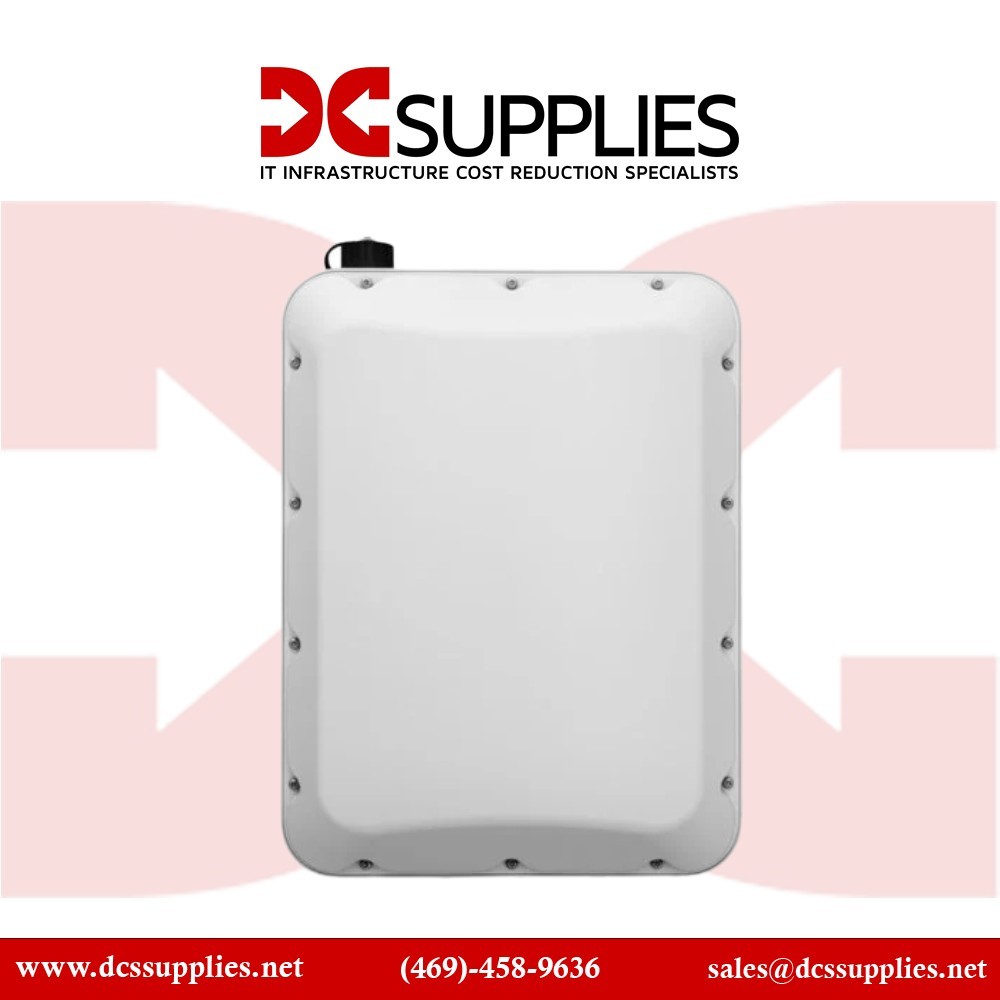

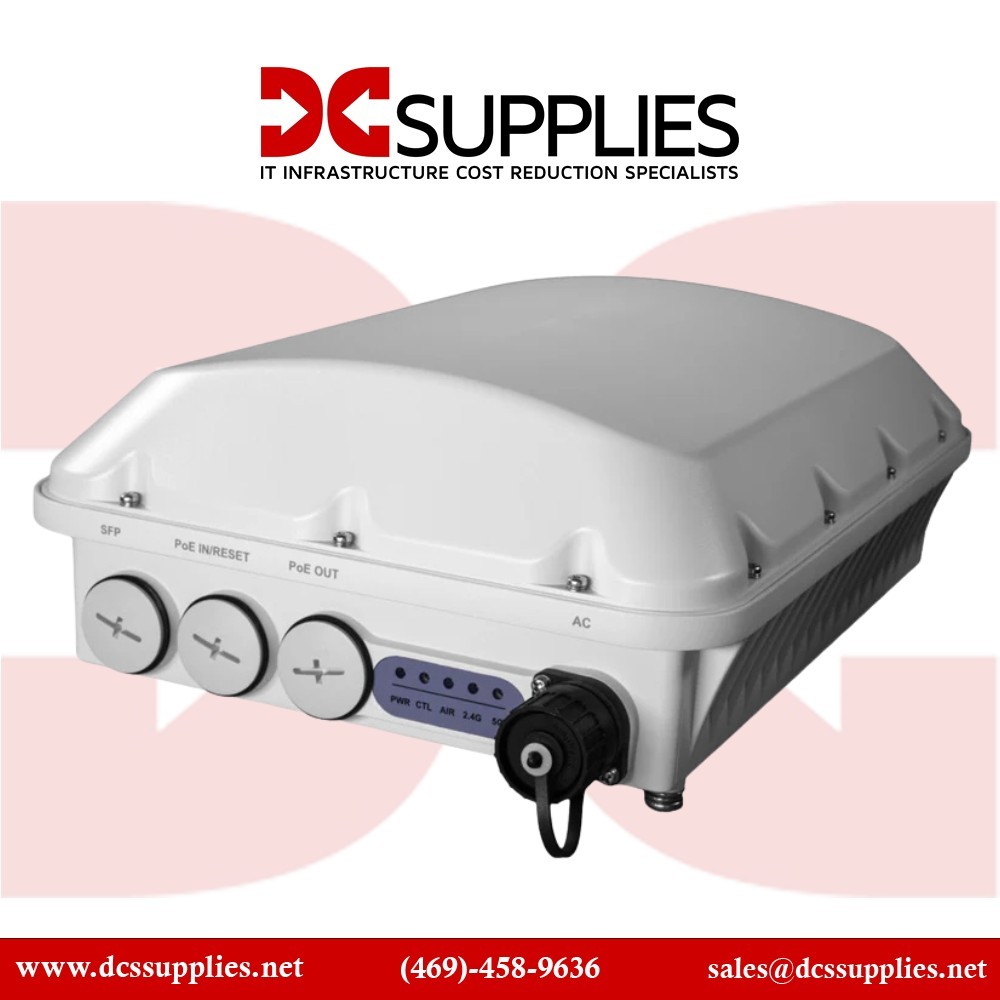

Ruckus 901-T750-WW51 802.11AX Outdoor Wireless Access Point

New

Outdoor Wi-Fi 6 4×4:4 Access Point
×




  • New

Detailed Specifications

Ruckus 901-T750-WW51 – Outdoor Wi-Fi 6 4×4:4 Access Point

Overview :

The Ruckus 901-T750-WW51 is a ruggedised outdoor dual-band access point designed for high-density venues such as stadiums, transit hubs and large public spaces. It supports Wi-Fi 6 (IEEE 802.11ax) with four spatial streams on both the 2.4 GHz and 5 GHz bands (4×4:4), enabling combined PHY rates up to 3.548 Gbps and client capacity up to 1,024 devices. It features a 2.5 GbE backhaul port plus 1 GbE, SFP/SFP+ fibre options and an IP-67 rated enclosure for outdoor exposure. The unit is suitable for deployments on poles, walls or flat surfaces, and integrates IoT radios (BLE/Zigbee), GPS and daisy-chain PSE output for powering downstream devices. Management is supported via controller-based, virtual or cloud modes, making it appropriate for enterprise, service provider or municipal outdoor Wi-Fi installations.

Key Features :

  • 4×4:4 spatial streams on both 2.4 GHz & 5 GHz bands

  • 2.5 GbE backhaul plus 1 GbE and SFP/SFP+ fibre interface

  • IP-67 outdoor enclosure for extreme weather conditions

  • Built-in IoT radios (BLE/Zigbee) and GPS module

  • Supports daisy-chain PSE output to power other network devices

Specifications

SpecificationDetail
Brand Ruckus
Part Number 901-T750-WW51
Product Type Outdoor Wi-Fi 6 Access Point
Wi-Fi Standard IEEE 802.11a/b/g/n/ac/ax
Radio Chains & Streams 4×4:4
Maximum PHY Rate 2.4 GHz: 1,148 Mb/s; 5 GHz: 2,400 Mb/s; Combined: 3,548 Mb/s
Ethernet Ports 1×2.5 GbE + 1×1 GbE RJ-45
Fibre Interface SFP/SFP+
Outdoor Rating IP-67
Operating Temperature -40 °C to +65 °C (-40 °F to +149 °F)
Dimensions (L×W×H) 13.64 in × 9.47 in × 4.00 in
Weight 6.27 lbs
IoT Radios Built-in BLE and Zigbee
Client Capacity Up to 1,024 clients
Antenna Technology BeamFlex+ adaptive antennas
