Detailed Specifications

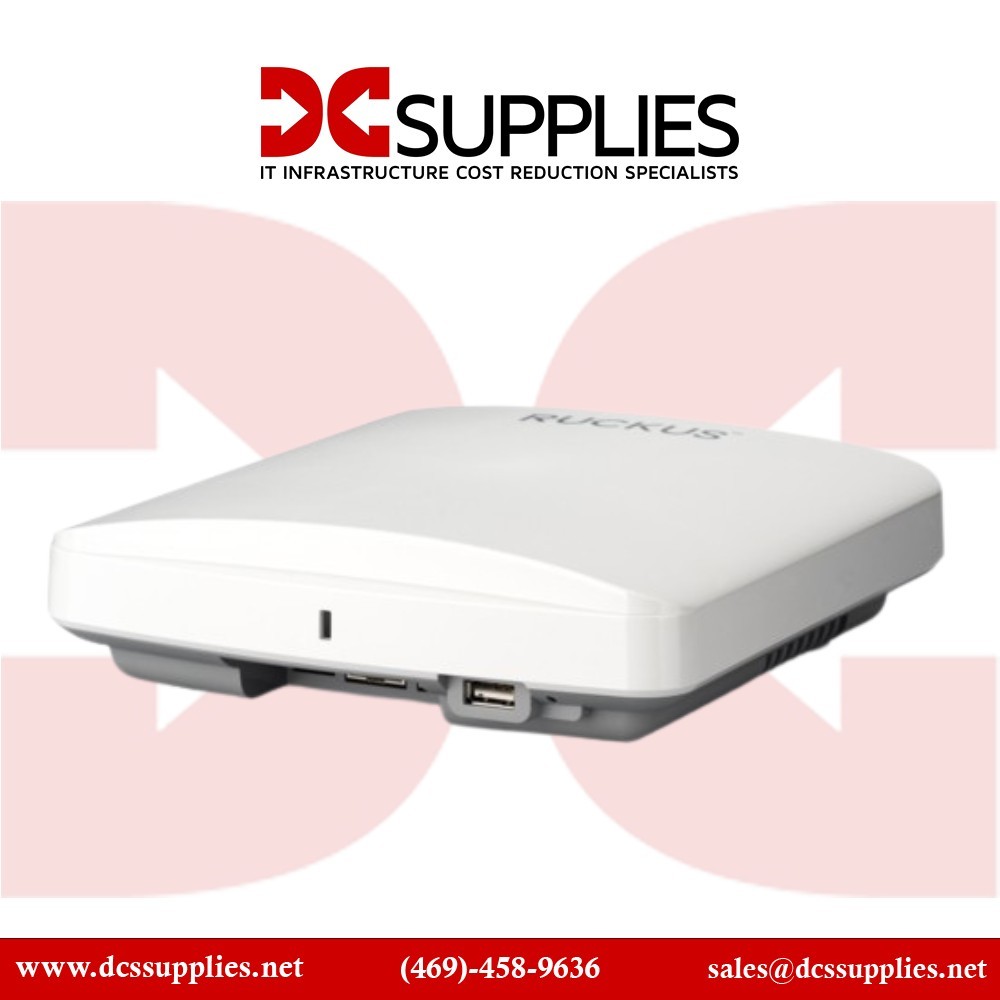

RUCKUS 901-R550-WW00 – Indoor Wi-Fi 6 Access Point
Overview :
The RUCKUS 901-R550-WW00 is a dual-band indoor access point designed for enterprise and branch networks that require Wi-Fi 6 (802.11ax) connectivity and IoT device integration. It supports concurrent 2.4 GHz and 5 GHz radios with a 2×2:2 spatial-stream configuration, delivering up to approximately 1.77 Gbps combined PHY rate and handling up to 512 clients simultaneously. It includes two Gigabit Ethernet ports capable of powering via IEEE 802.3af/at PoE+, as well as onboard Bluetooth Low Energy (BLE) and Zigbee radios for converged Wi-Fi and IoT deployments. Suitable for medium-density venues such as classrooms, hospitality common areas, and branch offices, it supports controller-based and controllerless management through cloud, virtual or physical platforms. Deployment can be ceiling or wall mounted in indoor environments where advanced antenna patterns and channel optimization are required to extend coverage and manage interference.
Key Features :
Up to 1.77 Gbps combined PHY rate on dual-band Wi-Fi 6
Built-in BLE and Zigbee radios for IoT integration
Dual Gigabit Ethernet ports with 802.3af/at PoE support
BeamFlex + adaptive antenna with up to 64 patterns
Supports up to 512 clients with SmartMesh and ChannelFly
Specification :
| Specification | Detail |
|---|
| Brand | RUCKUS |
| Part Number | 901-R550-WW00 |
| Product Type | Indoor dual-band Wi-Fi 6 access point |
| Wi-Fi Standard | IEEE 802.11ax (Wi-Fi 6) |
| Radio Configuration | 2×2:2 (2.4 GHz) + 2×2:2 (5 GHz) |
| Peak PHY Rate | 574 Mb/s (2.4 GHz) / 1200 Mb/s (5 GHz) |
| Maximum Concurrent Clients | Up to 512 devices |
| Antenna Gain | Up to 3 dBi |

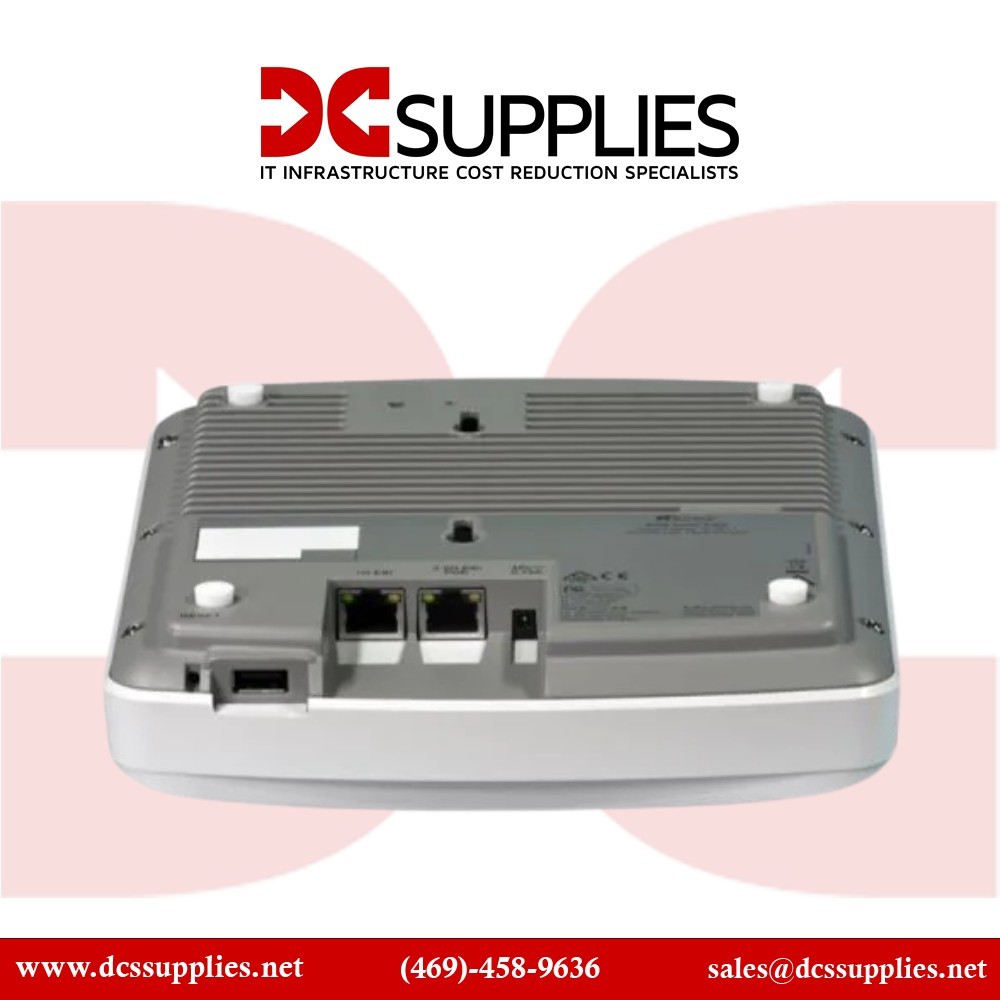

| Ethernet Interface | 2 × 1 GbE RJ-45 ports |
| PoE Support | 802.3at PoE+ |
| Dimensions (L×W×H) | 6.93 in × 7.49 in × 1.88 in |
| Weight | 1.24 lbs |
| Operating Temperature | 0 °C to +50 °C (32 °F to 122 °F) |
| Onboard IoT Radios | BLE + Zigbee embedded |
| Antenna Patterns | 64 possible BeamFlex+ antenna patterns |
