Detailed Specifications

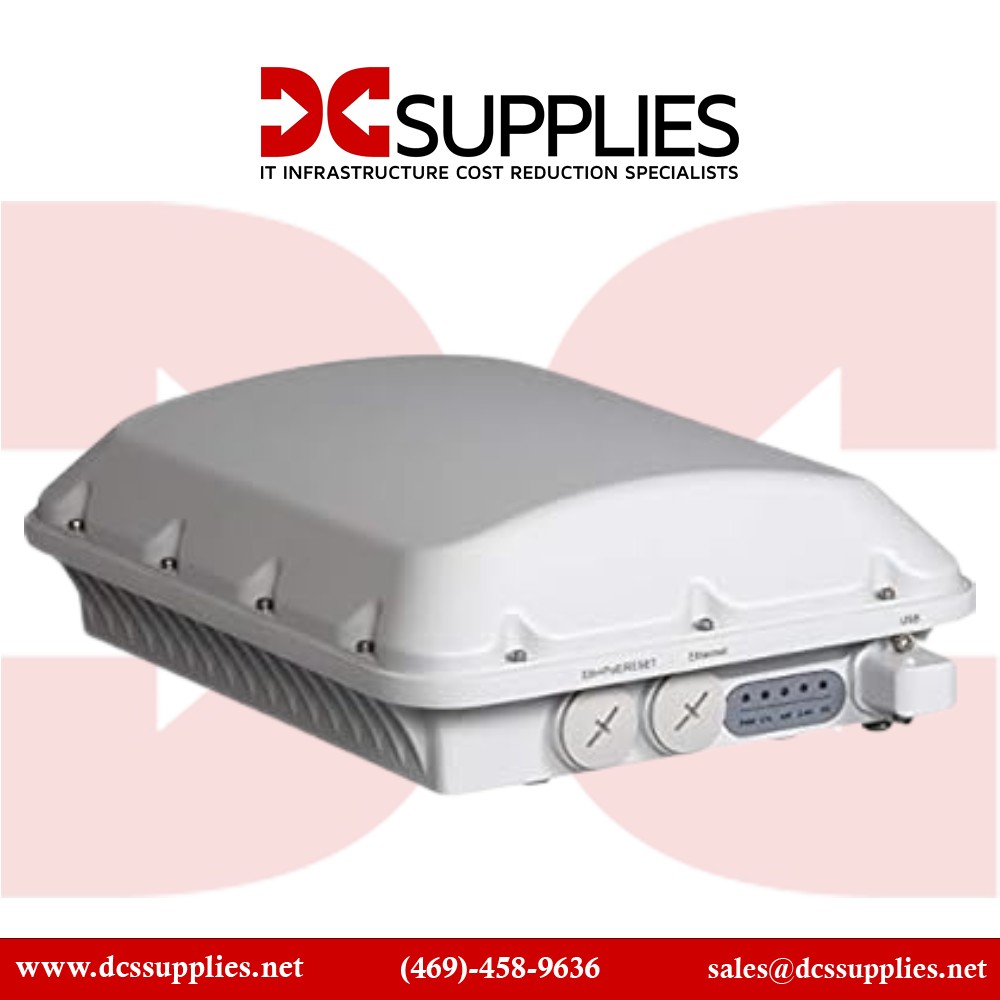

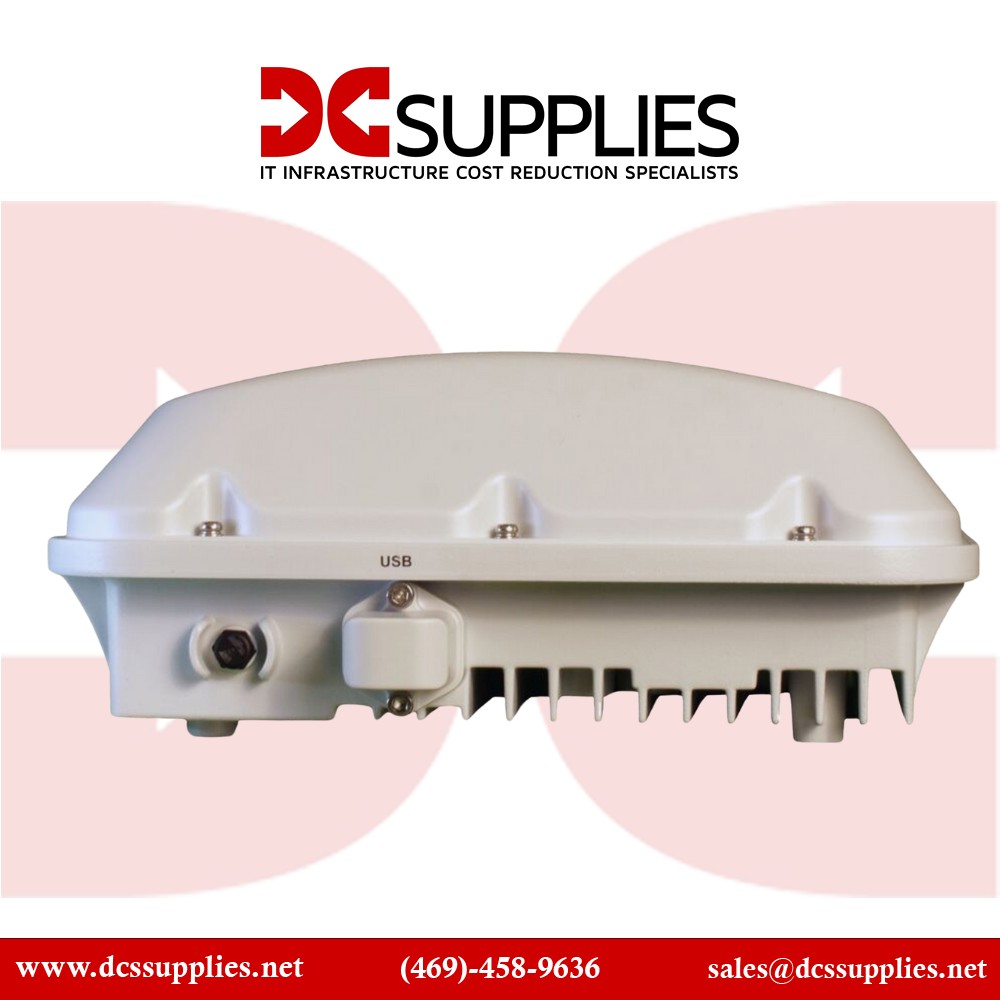

RUCKUS 9F1-T750-US51 – Outdoor Wi-Fi 6 Access Point / Multi-Gig Backhaul
Overview :
The RUCKUS 9F1-T750-US51 is an outdoor-rated Wi-Fi 6 access point built for high-density venues such as stadiums, transit hubs and public spaces. It supports dual-band (2.4 GHz / 5 GHz) operation with 4×4:4 MIMO in each band, delivering aggregate PHY throughput of up to ~3.55 Gbps. The device includes a 2.5 GbE Ethernet port plus conventional 1 GbE port (and SFP option) enabling multi-gig backhaul and fiber uplink flexibility. Its IP-67 outdoor enclosure allows operation in harsh weather and temperature extremes (-40 °C to +65 °C), and onboard IoT radios (BLE/Zigbee) support converged wireless deployments. Management options include cloud, virtual and on-premises controllers, making it suitable for distributed outdoor network deployments requiring resilient connectivity, high client density support (up to 1,024 devices), and multi-gig backhaul capability.
Key Features :
Outdoor IP-67 sealed enclosure for harsh conditions
Multi-gig 2.5 GbE port plus SFP fiber backhaul option
Dual-band Wi-Fi 6 (802.11ax) with 4×4:4 MIMO per band
Built-in BLE and Zigbee IoT radios for converged deployments
Supports up to 1,024 concurrent client devices in dense environments
Specifications :
| Specification | Details |
|---|
| Brand | RUCKUS |
| Part Number | 9F1-T750-US51 |
| Product Type | Outdoor Wi-Fi 6 Access Point |
| Wi-Fi Standards | IEEE 802.11a/b/g/n/ac/ax |
| Spatial Streams | 4×4:4 per band (2.4 GHz & 5 GHz) |
| Maximum PHY Rate | 2.4 GHz: 1,148 Mb/s; 5 GHz: 2,400 Mb/s; Combined: 3,548 Mb/s |
| Ethernet Ports | 1×2.5 GbE + 1×10/100/1000 Mbps |
| Uplink Interface | SFP/SFP+ fiber option |
| Outdoor Rating | IP-67 enclosure for outdoor deployment |
| Operating Temperature | -40 °C to +65 °C (-40 °F to +149 °F) |
| Weight | 6.27 lbs |
| Dimensions | 13.64 in × 9.47 in × 4.0 in (L × W × H) |
| Client Capacity | Up to 1,024 concurrent client devices |
| Antenna Technology | BeamFlex+ adaptive antennas with 4,000+ antenna patterns |
| IoT Radios | Built-in BLE and Zigbee |
