Detailed Specifications

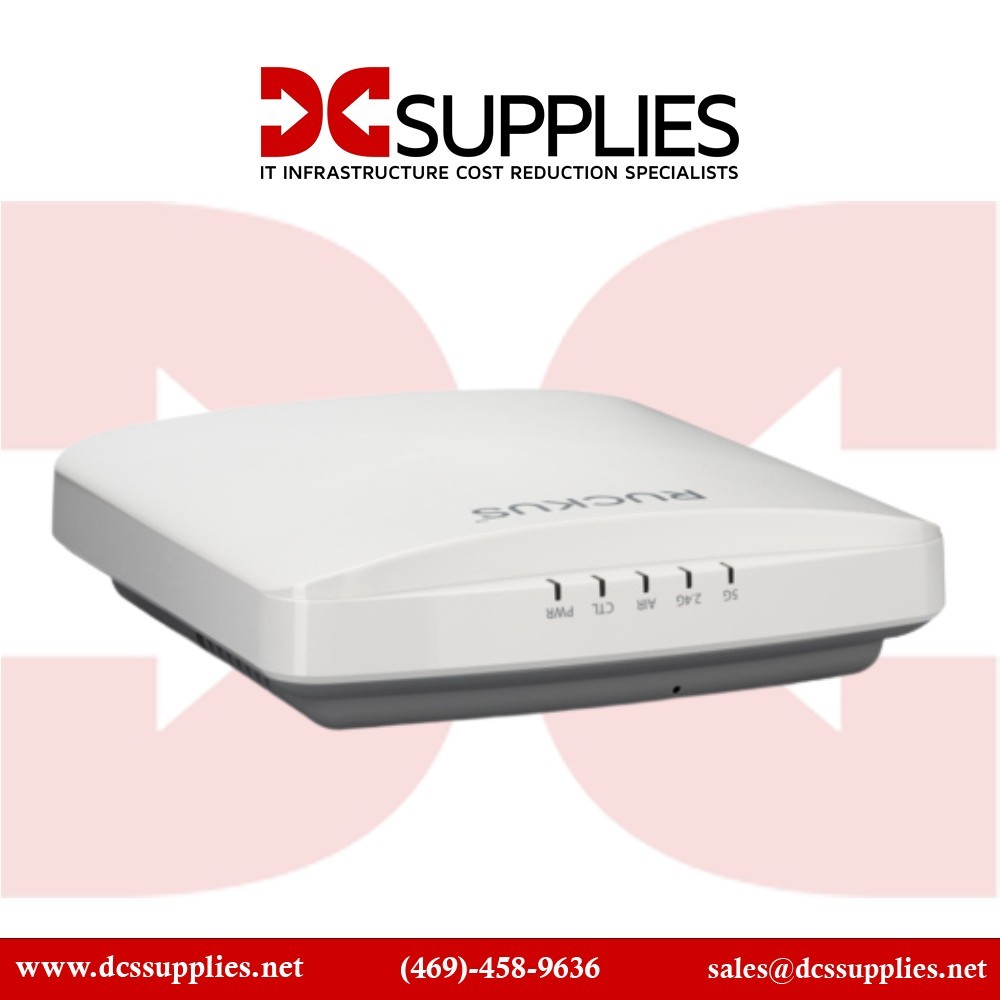

Ruckus 9U1-R850-US00 – Wi-Fi 6 Indoor Access Point
Overview :
The Ruckus 9U1-R850-US00 is a high-capacity Wi-Fi 6 (802.11ax) indoor access point designed for ultra-high-density environments such as stadiums, auditoriums, and large enterprise campuses. It supports 12 spatial streams—8x8:8 in the 5 GHz band and 4x4:4 in the 2.4 GHz band—enabling a combined maximum PHY rate of 5.9 Gbps. The device utilizes advanced technologies like Orthogonal Frequency Division Multiple Access (OFDMA), Multi-User Multiple Input Multiple Output (MU-MIMO), and Target Wake Time (TWT) to efficiently manage up to 1,024 concurrent client connections. The R850 features a multi-gigabit Ethernet port (1/2.5/5 Gbps) and a 1 Gbps port, ensuring robust backhaul capacity. It supports various controller options, including RUCKUS Cloud™, SmartZone, ZoneDirector, and standalone mode, offering flexibility in deployment and management. Additionally, the access point is IoT-ready, facilitating seamless integration with smart devices and applications.
Key Features :
12 Spatial Streams: 8x8:8 in 5 GHz and 4x4:4 in 2.4 GHz
Combined Max PHY Rate: 5.9 Gbps
Multi-Gigabit Ethernet Ports: 1x 1/2.5/5 Gbps and 1x 1 Gbps
Advanced Technologies: OFDMA, MU-MIMO, and TWT
Controller Support: RUCKUS Cloud™, SmartZone, ZoneDirector, Standalone
Specifications :
| Specification | Details |
|---|
| Brand | Ruckus |
| Part Number | 9U1-R850-US00 |
| Product Type | Wi-Fi 6 Indoor Access Point |
| Radio Chains and Streams | 8x8:8 (5 GHz), 4x4:4 (2.4 GHz) |
| Combined Max PHY Rate | 5.9 Gbps |
| Ethernet Ports | 1x 1/2.5/5 Gbps, 1x 1 Gbps |
| Concurrent Users | Up to 1,024 |
| Controller Options | Cloud, SmartZone, ZoneDirector, Standalone |
| OFDMA Support | Yes |
| MU-MIMO Support | Yes |
| TWT Support | Yes |
| BeamFlex Technology | Yes |
| ChannelFly Technology | Yes |
| IoT Support | Yes |
| Antenna Gain | Up to 2 dBi |
| Dimensions (H x W x D) | 8.7 x 8.7 x 2.2 inches |
| Weight | 1.2 lbs |
