Detailed Specifications

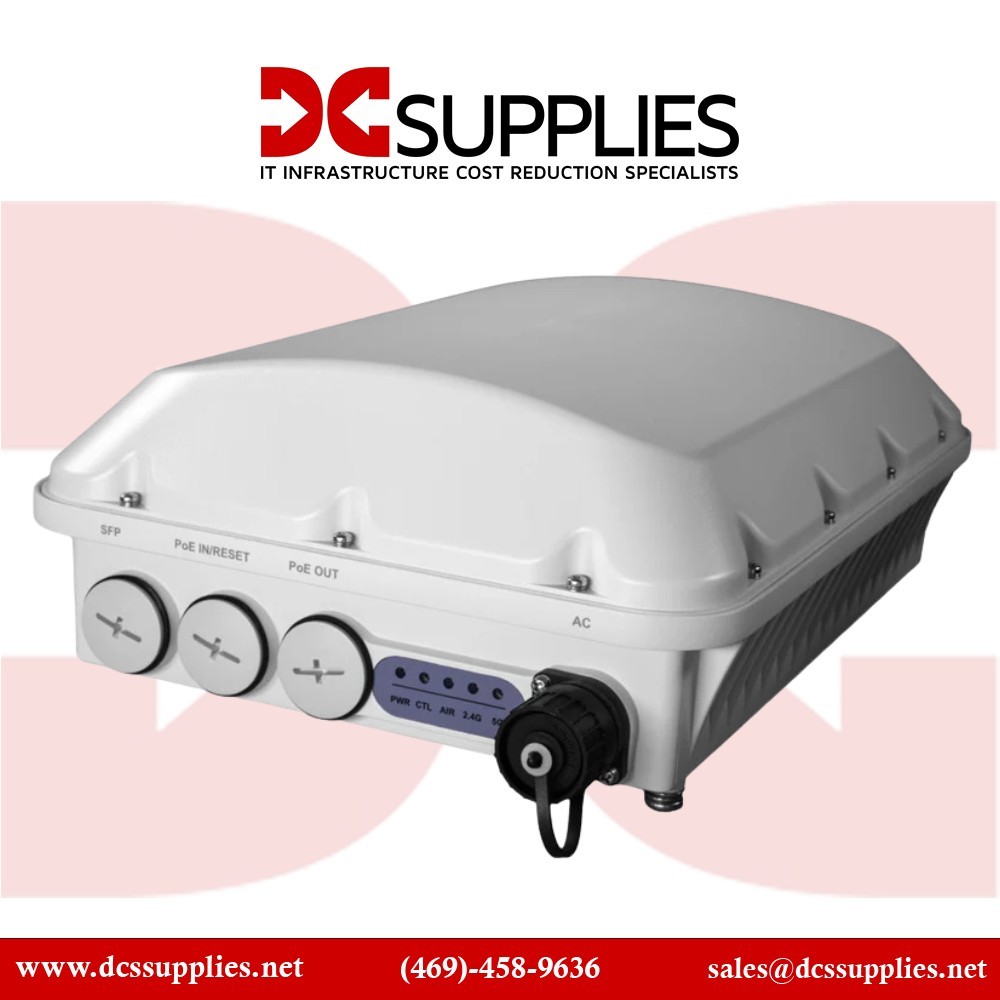

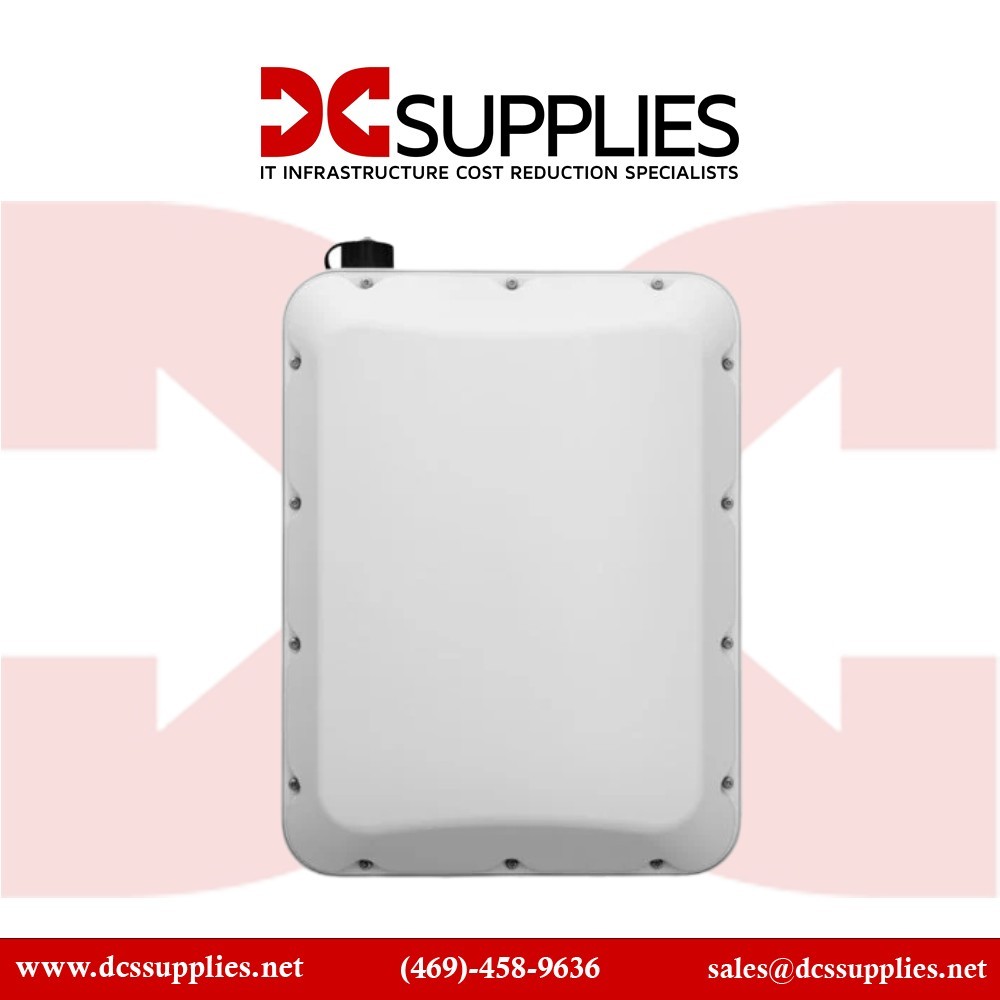

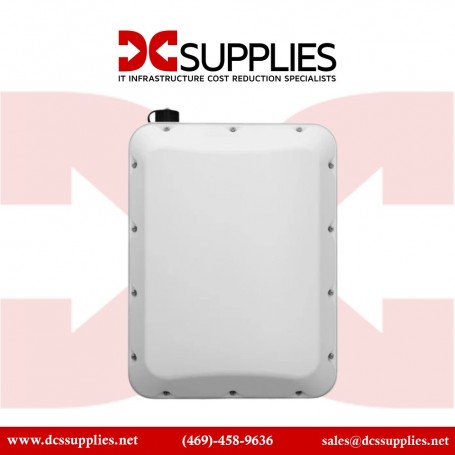

Ruckus 901-T350-US40 – Wi-Fi 6 Outdoor wireless Access Point
Overview
The Ruckus 901-T350-US40 is an entry-level Wi-Fi 6 (802.11ax) outdoor access point designed for high-density public environments such as airports, stadiums, plazas, and smart city deployments. It features a 2x2:2 MIMO configuration with BeamFlex+ adaptive antenna technology, providing up to 1.77 Gbps combined throughput. The access point is housed in a rugged IP-67 rated enclosure, ensuring reliable performance in harsh outdoor conditions, with an operating temperature range of -40°C to 65°CThe Ruckus 901-T350-US40 is an entry-level Wi-Fi 6 (802.11ax) outdoor access point designed for high-density public environments such as airports, stadiums, plazas, and smart city deployments. It features a 2x2:2 MIMO configuration with BeamFlex+ adaptive antenna technology, providing up to 1.77 Gbps combined throughput. The access point is housed in a rugged IP-67 rated enclosure, ensuring reliable performance in harsh outdoor conditions, with an operating temperature range of -40°C to 65°C
Key Features
Wi-Fi 6 (802.11ax) Technology: Delivers high-speed connectivity with up to 1.77 Gbps combined throughput.
2x2:2 MIMO & BeamFlex+: Ensures optimal signal quality and coverage in challenging outdoor environments.
Omni-Directional Antenna: Provides uniform coverage, ideal for open spaces and public venues.
Rugged IP67 Enclosure: Withstands harsh weather conditions, operating in temperatures from -40°C to 65°C.
Flexible Power Options: Supports Power over Ethernet (PoE), DC input, and USB, simplifying deployment in various settings.
IoT Ready: Equipped with onboard IoT support for future-proofing smart applications.
Technical Specifications
| Specification | Details |
|---|
| Model | 901-T350-US40 |
| Form Factor | Outdoor, wall or pole mountable |
| Radio Configuration | Dual-band (2.4GHz and 5GHz) |
| MIMO Configuration | 2x2:2 |
| Maximum Data Rate | 1.77 Gbps |
| Antenna Type | Internal omni-directional |
| BeamFlex+ | Yes |
| Ethernet Ports | 1 x 1GbE PoE In (802.3at Class 4) |
| USB Port | Yes (USB 2.0 Type A) |
| DC Power Input | Yes (7V–20V terminal block) |
| Operating Temperature | -40°C to 65°C |
| Enclosure Rating | IP67 |
| Dimensions (L x W x H) | 213.7 mm x 162.3 mm x 80.9 mm |
| Weight | Approximately 1.5 kg |
| Mounting Options | Wall or pole mountable |
| Power Supply | PoE, DC input, USB |
| Warranty | Limited Lifetime Warranty |
