Ruckus 9U1-R550-US00 Unleashed wireless access point Bluetooth, ZigBee, Wi-Fi 6

New

In Stock

Mid-Range Wi-Fi 6 AP with IoT Integration

×




$589.00

  • New

Detailed Specifications

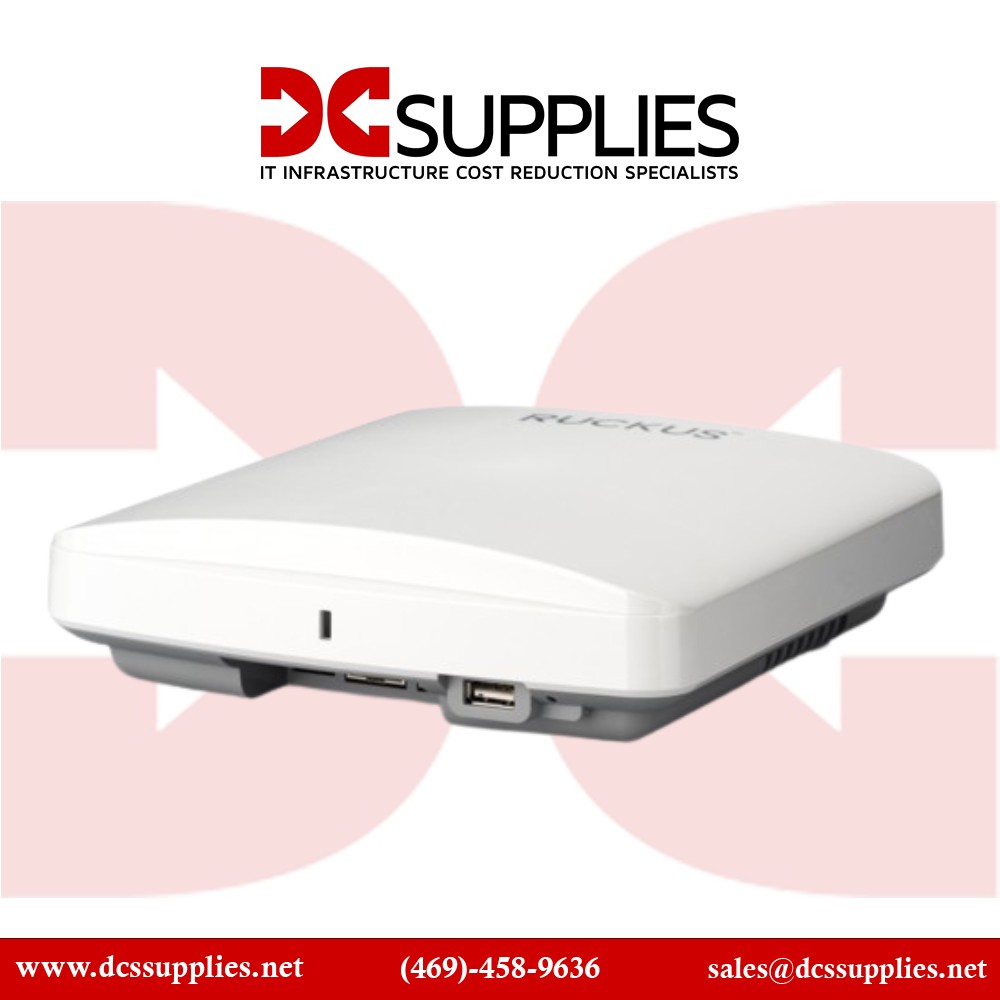

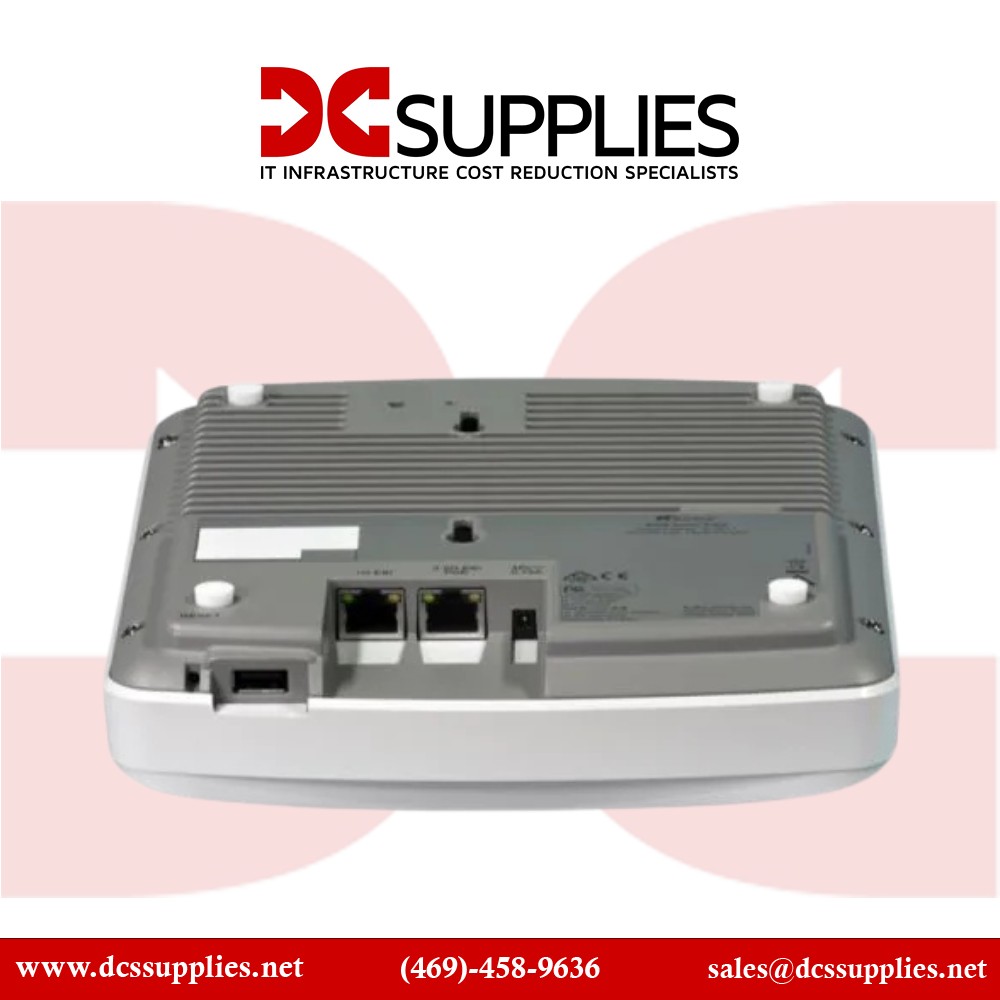

Ruckus 9U1-R550-US00

Unleashed Wireless Access Point – Wi-Fi 6 with Bluetooth & ZigBee

The Ruckus 9U1-R550-US00 Unleashed Wireless Access Point delivers Wi-Fi 6 high-performance networking combined with integrated IoT support. Featuring built-in Bluetooth and ZigBee radios, it is ideal for mid-size enterprises, schools, and hospitality environments needing both high-speed wireless access and seamless IoT device connectivity without separate IoT gateways.

Overview :

Equipped with dual-band 802.11ax (Wi-Fi 6) and 2x2:2 MIMO, the R550 Unleashed achieves speeds of up to 1.77 Gbps across its 2.4GHz and 5GHz radios. Built for high-efficiency networking, it incorporates Wi-Fi 6 enhancements like OFDMA, MU-MIMO, and Target Wake Time (TWT), making it highly effective in crowded environments with dense device populations. This ensures smoother performance for modern applications such as unified communication tools, streaming, and video conferencing.

Advanced Options :

The Unleashed architecture enables controller-free management, reducing deployment costs and simplifying network administration. Administrators can manage multiple APs through a user-friendly interface, making it perfect for organizations with limited IT resources. Integrated IoT radios (Bluetooth and ZigBee) extend connectivity to IoT-enabled devices such as smart locks, beacons, and sensors—removing the need for separate IoT hubs and reducing infrastructure complexity.

Product Key Features

  • Dual-band Wi-Fi 6 (802.11ax) with 2x2:2 MIMO architecture
  • Delivers up to 1.77 Gbps combined data rate
  • Integrated Bluetooth and ZigBee radios for seamless IoT integration
  • Supports up to 512 concurrent wireless clients
  • Ruckus Unleashed controller-free management for simplified deployment
  • BeamFlex+ adaptive antenna technology for optimized coverage
  • Advanced Wi-Fi 6 features including OFDMA, MU-MIMO, and TWT
  • Enterprise-grade security with WPA3, ACLs, and RADIUS support

Reliability & Performance :

The Ruckus R550 Unleashed is built for reliable, long-term performance in enterprise environments. BeamFlex+ adaptive antennas improve signal strength and reduce interference, while advanced traffic management and QoS optimize latency-sensitive applications. WPA3 encryption and enterprise security integrations ensure network integrity. With PoE+ deployment capability and compact form factor, the R550 offers secure, high-performance Wi-Fi that scales with evolving connectivity demands.

Key Features :

  • Wi-Fi 6 dual-band wireless access point with 2x2:2 MIMO
  • Up to 1.77 Gbps combined throughput
  • Supports up to 512 concurrent client connections
  • BeamFlex+ antenna system for stronger, more reliable coverage
  • Unleashed controller-free architecture
  • Integrated Bluetooth and ZigBee radios enable IoT device support
  • WPA3 and enterprise-class security features
  • Powered with PoE+ (802.3at) for simplified installation

Specifications :

SpecificationDetails
Model Number 9U1-R550-US00
Type Wireless Access Point (Unleashed, Wi-Fi 6)
Wireless Standard 802.11ax (Wi-Fi 6), backward compatible
Radios Dual-band 2.4GHz & 5GHz
MIMO Streams 2x2:2
Maximum Data Rate Up to 1.77 Gbps (574 Mbps @2.4GHz, 1,200 Mbps @5GHz)
Concurrent Clients Up to 512
IoT Support Integrated Bluetooth & ZigBee radios
Antenna Technology BeamFlex+ adaptive antennas
Advanced Features OFDMA, MU-MIMO, TWT, DFS compliance
Power Options PoE+ (802.3at), optional DC adapter
Security WPA2, WPA3, 802.1X, RADIUS, ACLs
Management Unleashed (controller-free)
Dimensions (HxWxD) 200 x 200 x 48 mm (7.9 x 7.9 x 1.9 in)
Weight ~0.7 kg (1.5 lbs)
