Detailed Specifications

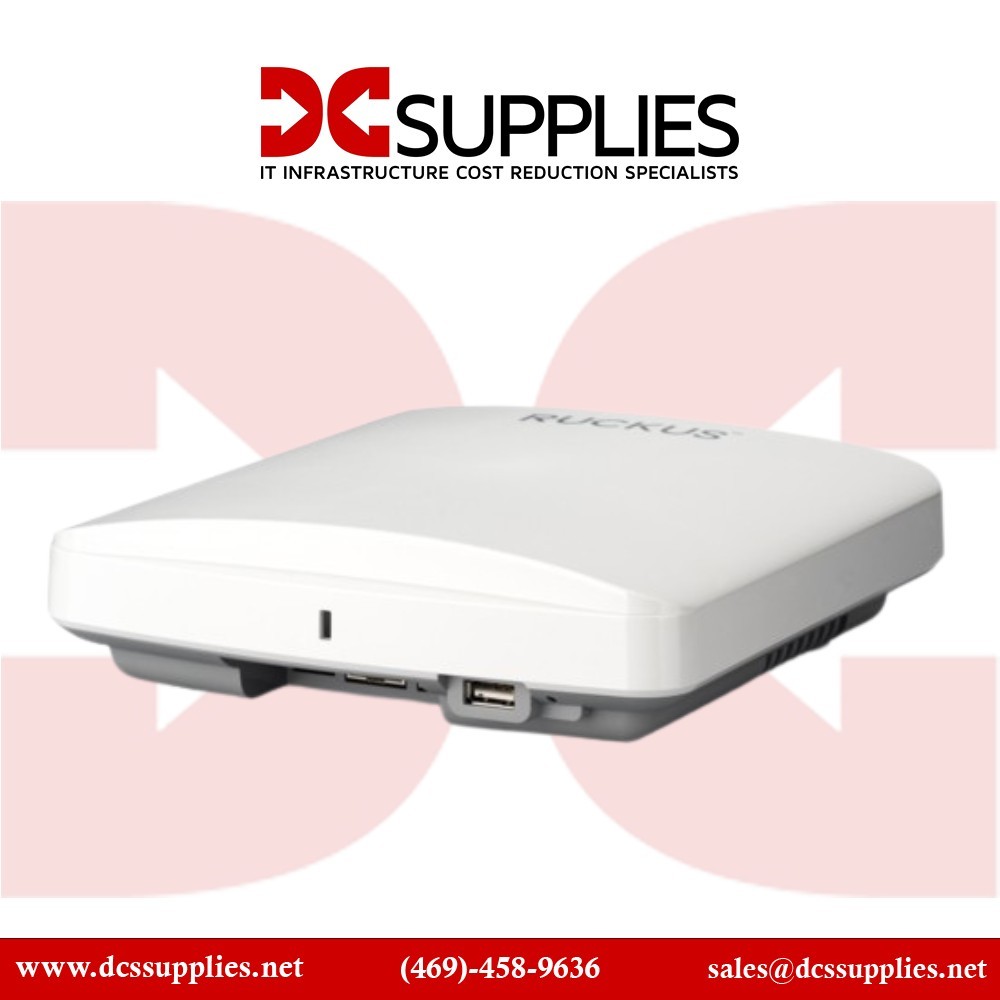

RUCKUS 9U1-R550-US00 – Wi-Fi 6 Indoor Access Point / Dual-Band 2×2:2
Overview :
The RUCKUS 9U1-R550-US00 is an indoor access point designed for enterprises, campuses and dense-venue networks requiring consolidated Wi-Fi 6 connectivity. It delivers concurrent dual-band operation (2.4 GHz and 5 GHz) with 2×2:2 spatial streams, supporting peak PHY data rates up to 1.77 Gbps and managing up to 512 client devices. Integration of onboard Bluetooth Low Energy and Zigbee radios enables IoT, location and sensor-based deployments without separate gateways. Two 1 GbE ports with PoE support simplify wiring, and advanced antenna and channel-optimization technologies help maintain coverage and throughput in cluttered RF environments. Mounting options for wall, ceiling or desk make it suitable for offices, classrooms, multi-dwelling units or hospitality venues. Management is supported via cloud, controller or unmanaged “Unleashed” mode for flexible deployment.
Key Features :
Supports 802.11ax Wi-Fi 6 dual-band 2×2:2 with 1.77 Gbps peak throughput
Embedded BLE and Zigbee radios for IoT and sensor-based applications
Two 1 GbE ports with PoE (802.3af/at) simplify deployment
BeamFlex+ adaptive antennas and ChannelFly optimization for dense environments
Compatible with RUCKUS Cloud, controller-based or standalone Unleashed operation
Specifications :
| Specification | Detail |
|---|
| Brand | RUCKUS |
| Part Number | 9U1-R550-US00 |
| Product Type | Indoor Wi-Fi 6 Access Point |
| Wireless Standards | IEEE 802.11a/b/g/n/ac/ax dual-band |
| Spatial Streams | 2×2:2 (2.4 GHz + 5 GHz) |
| Maximum PHY Rate | Up to 1,774 Mbps combined |
| Client Capacity | Up to 512 clients |

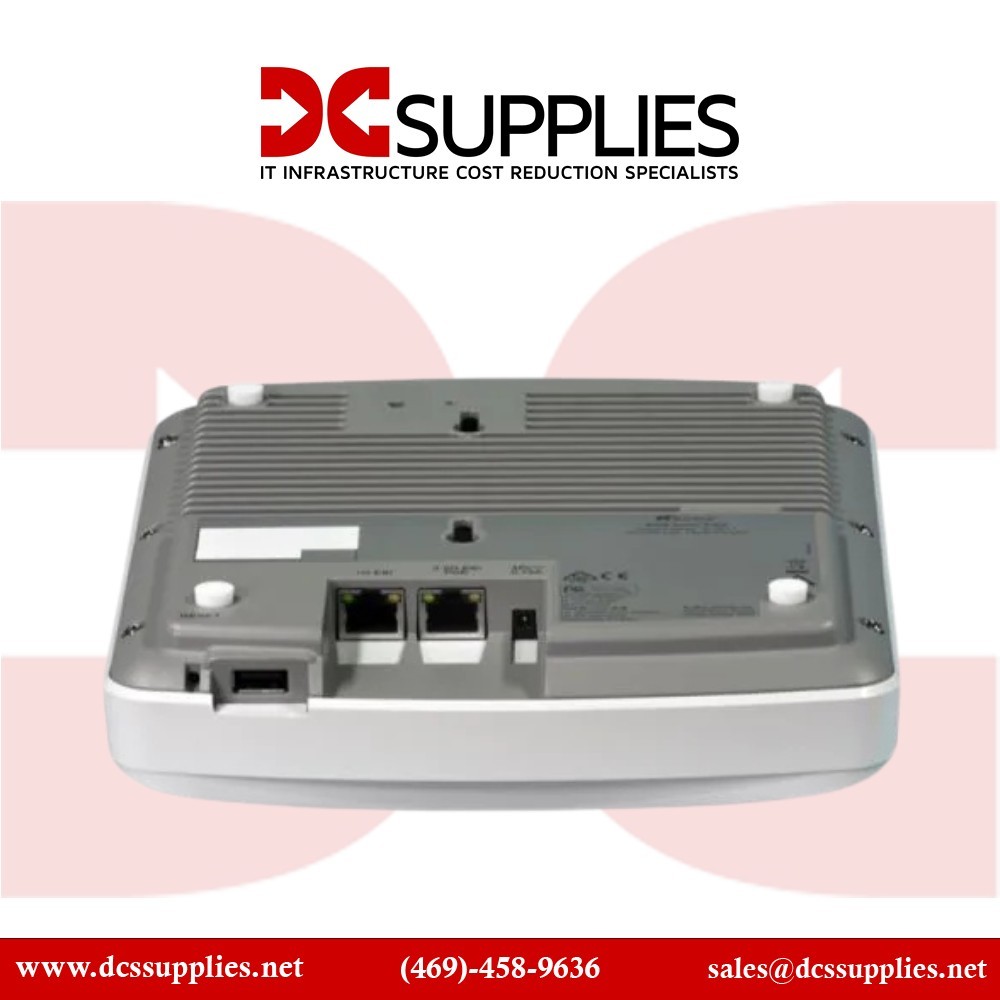

| Ethernet Ports | 2 × 1 GbE RJ-45 |
| PoE Support | 802.3af/at |
| IoT Radios | Embedded BLE and Zigbee |
| Mounting Options | Wall, ceiling (T-bar), desk |
| Dimensions (L×W×H) | 6.93 in × 7.49 in × 1.88 in |
| Weight | 1.24 lbs |
| Operating Temperature | 32 °F to 122 °F (0 °C to 50 °C) |
| Certifications | Wi-Fi CERTIFIED 6, WPA3, UL2043 |
