Detailed Specifications

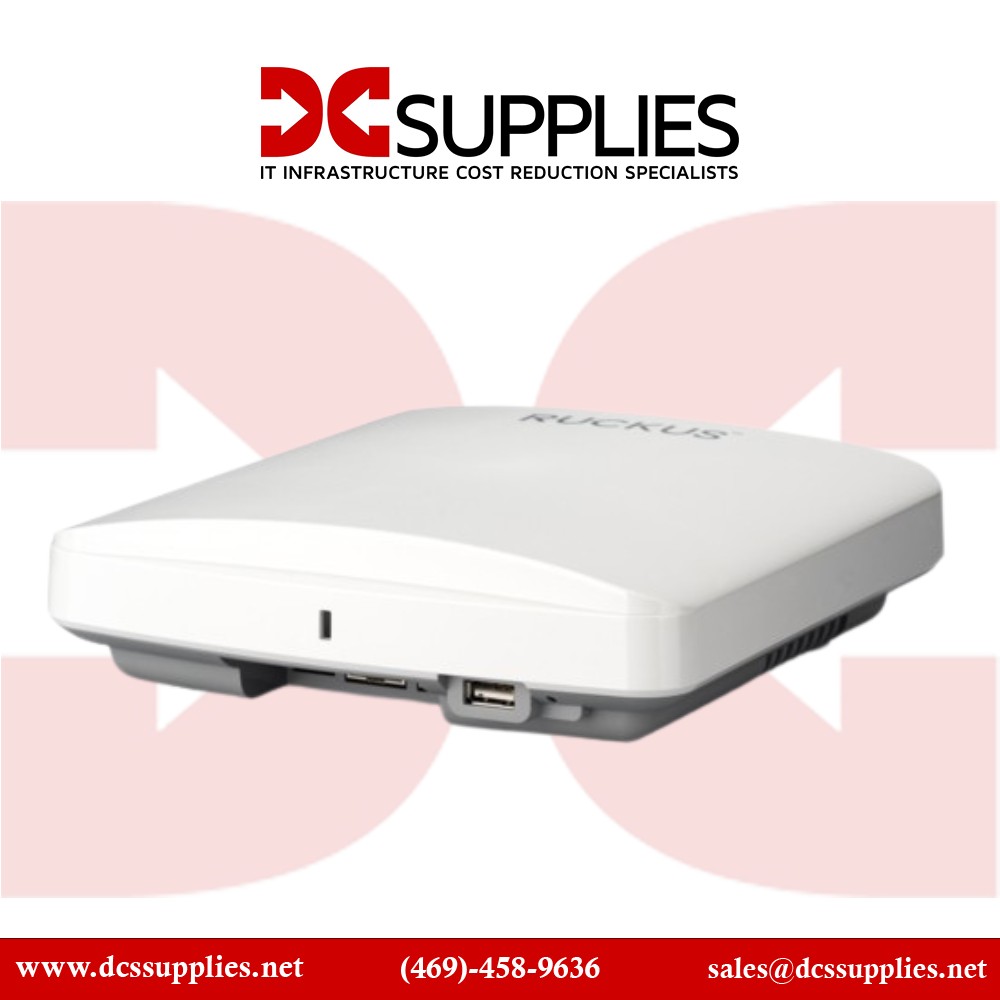

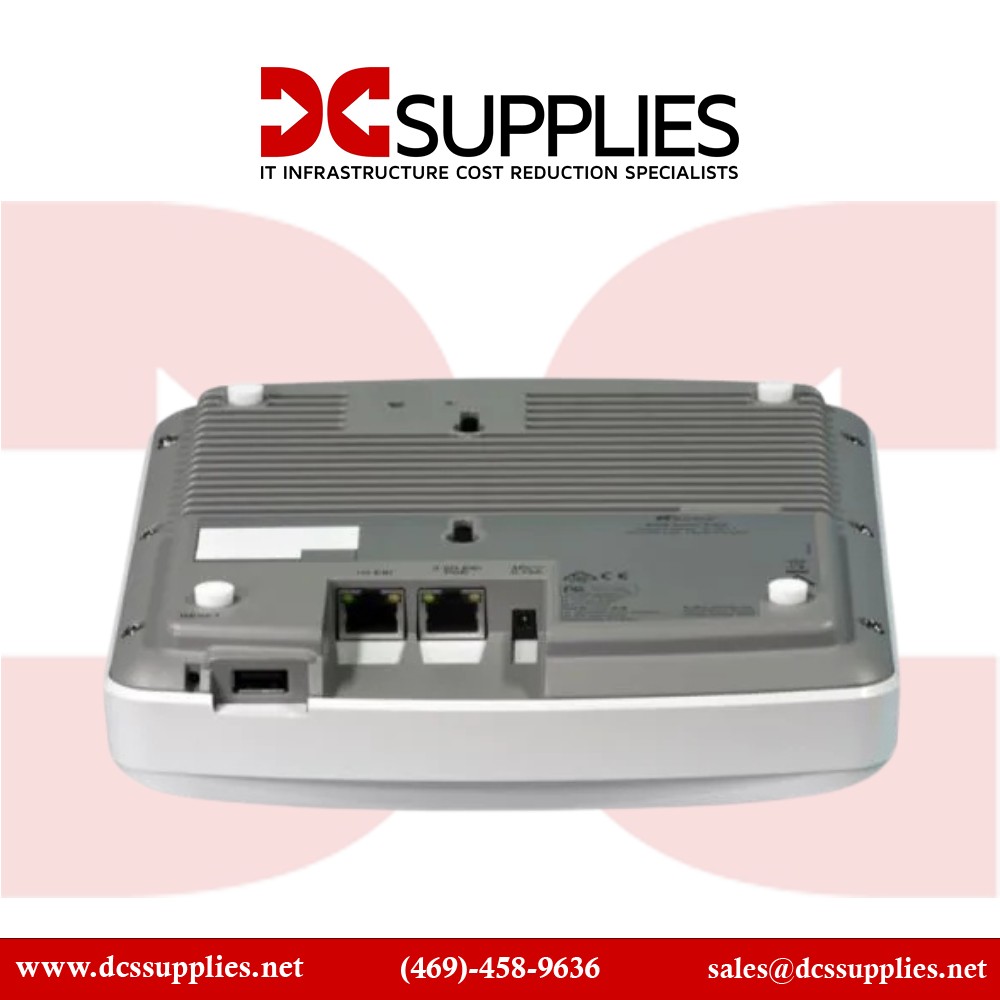

Ruckus 901-R650-US00 R650 Indoor Wi-Fi 6 Wireless Access Point
Overview
The Ruckus 901-R650-US00 is a high-performance indoor Wi-Fi 6 (802.11ax) access point designed to meet the growing demands of high-density environments such as office buildings, classrooms, and retail venues. It features a dual-radio, dual-concurrent design with 6 spatial streams (4x4:4 in 5GHz and 2x2:2 in 2.4GHz), delivering a peak data rate of up to 2,974 Mbps. The R650 is equipped with 2.5GbE Ethernet for high-speed wired backhaul and includes integrated Bluetooth Low Energy (BLE) and Zigbee radios for IoT applications. Its BeamFlex+ adaptive antenna technology and ChannelFly dynamic channel management ensure optimal performance and coverage.
Key Features
Wi-Fi 6 (802.11ax) Technology: Supports advanced features like OFDMA, MU-MIMO, and TWT for improved efficiency and capacity.
Dual-Radio, Dual-Concurrent Design: Operates simultaneously on 2.4GHz and 5GHz bands with 6 spatial streams.
High Data Throughput: Achieves peak data rates of up to 2,974 Mbps.
2.5GbE Ethernet Port: Provides high-speed wired backhaul to support demanding applications.
Integrated IoT Radios: Includes BLE and Zigbee radios for seamless integration of IoT devices.
Adaptive Antenna Technology: Utilizes BeamFlex+ to optimize signal coverage and reduce interference.
Dynamic Channel Management: Employs ChannelFly to automatically select the least congested channels.
High Client Density Support: Capable of handling up to 512 client connections.
Multiple Management Options: Supports Ruckus Cloud, SmartZone, ZoneDirector, and Unleashed for flexible management.
Easy Installation: Comes with an adjustable acoustic drop ceiling bracket for straightforward deployment.
Specifications
| Specification | Details |
|---|
| Brand | Ruckus |
| Part Number | 901-R650-US00 |
| Product Type | Indoor Wi-Fi 6 Access Point |
| Wi-Fi Standard | IEEE 802.11a/b/g/n/ac/ax |
| Radio Configuration | Dual-Radio, Dual-Concurrent |
| Spatial Streams | 4x4:4 (5GHz), 2x2:2 (2.4GHz) |
| Peak Data Rate | Up to 2,974 Mbps |
| Ethernet Ports | 1 x 2.5GbE, 1 x 1GbE |
| IoT Radios | Bluetooth Low Energy (BLE), Zigbee |
| Antenna Technology | BeamFlex+ Adaptive Antennas |
| Channel Management | ChannelFly Dynamic Channel Selection |
| Client Capacity | Up to 512 |
| Mounting Options | Wall, Ceiling (T-bar), Desktop |
| Power over Ethernet (PoE) | IEEE 802.3af/at |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Dimensions (H x W x D) | 2.2 in x 8.5 in x 8.5 in |
| Weight | 1.1 lbs |
