Detailed Specifications

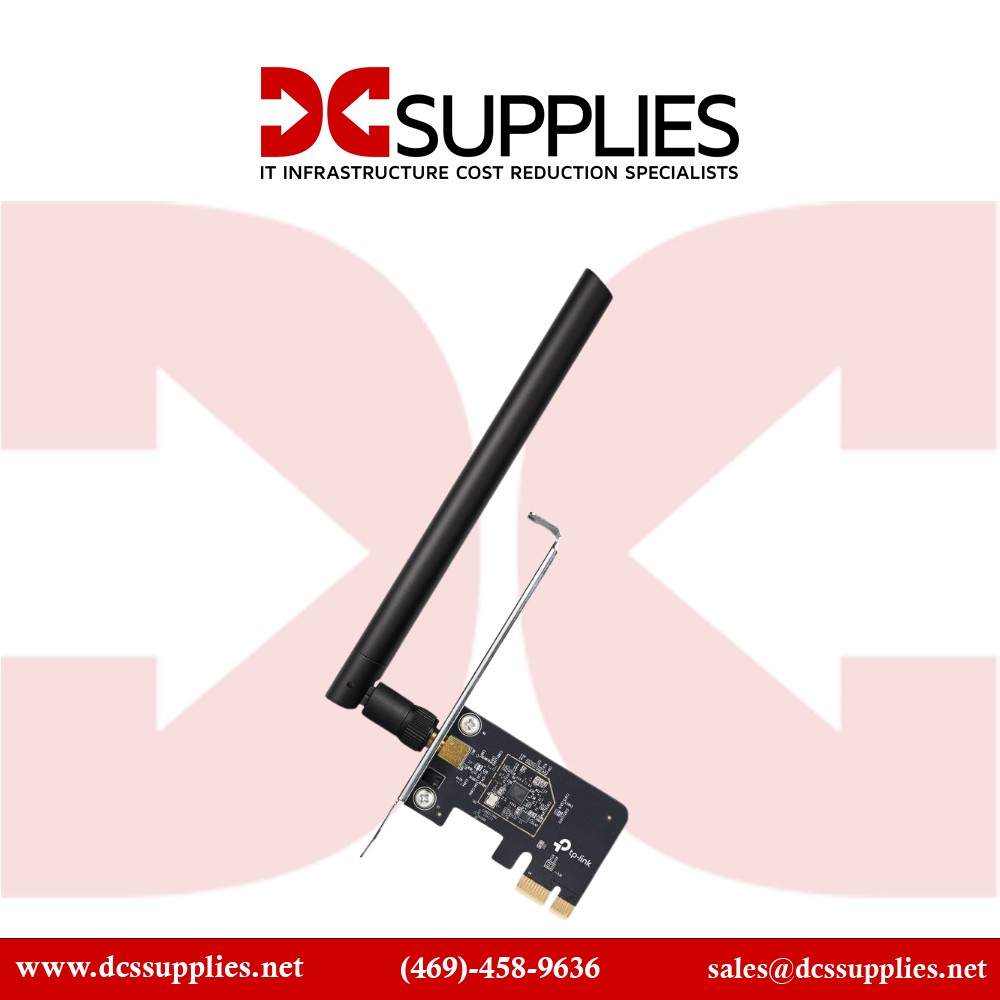

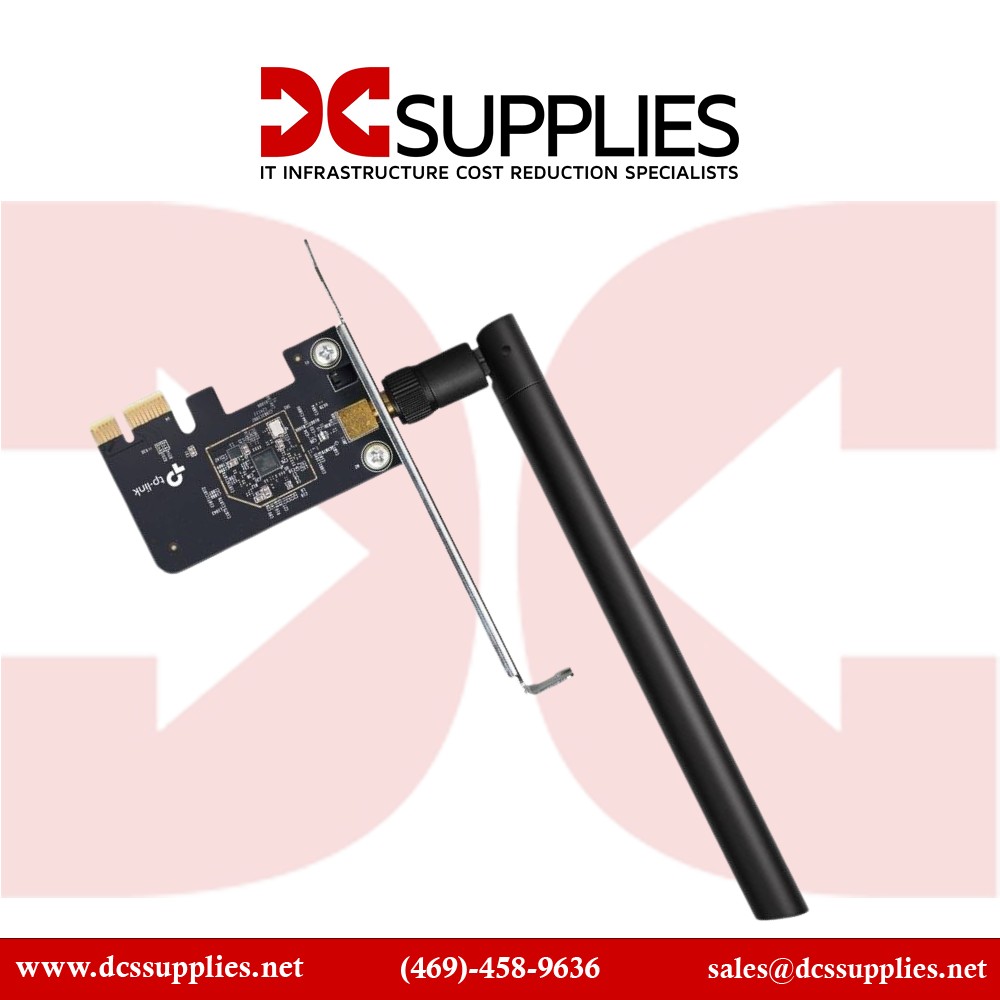

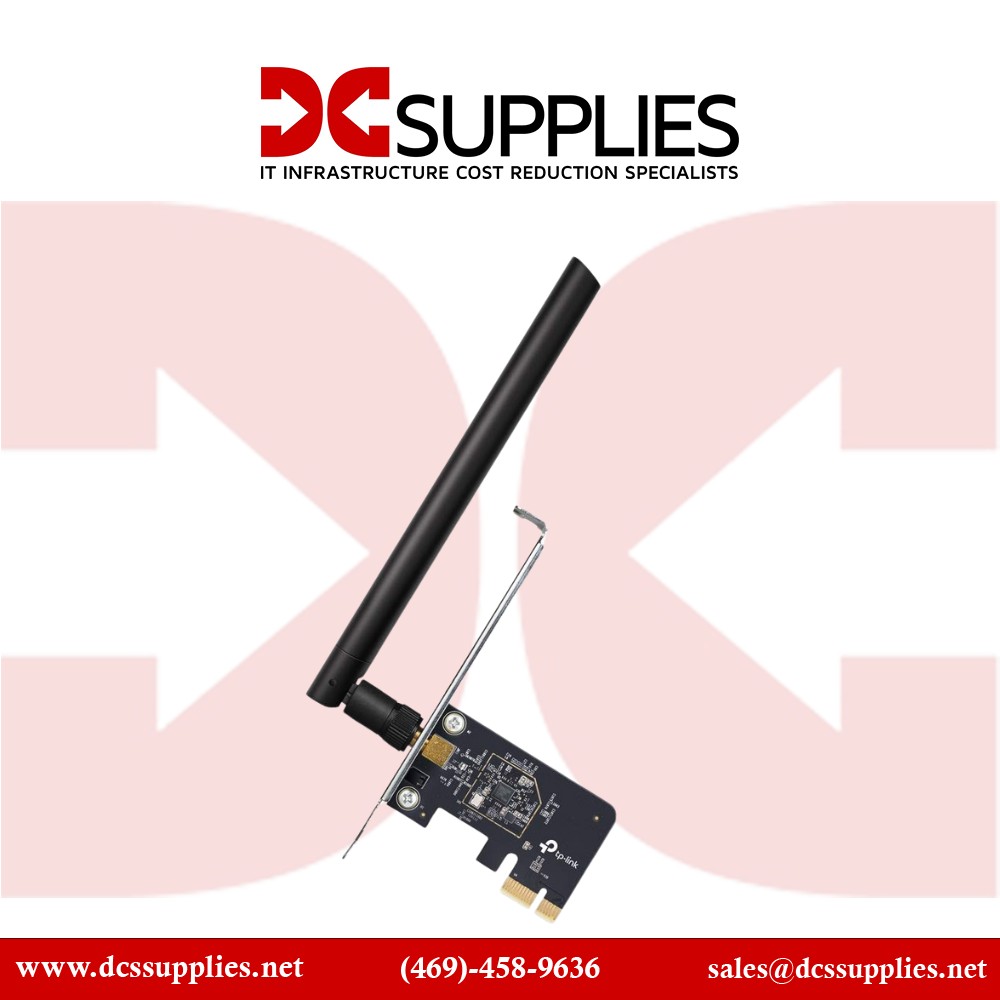

TP-Link ARCHER T2E PCIe WiFi Card AC600 for Desktop PC, Dual Band Wireless Internal Network Card
Overview :
Enjoy smooth and reliable wireless connectivity by installing the TP-Link Archer T2E AC600 Wireless Dual-Band PCIe Adapter into an available PCIe slot in your desktop computer. Designed to deliver up to 633 Mb/s using the 802.11ax Wi-Fi standard, you can reserve the 5 GHz frequency for high-bandwidth tasks, such as streaming 4K video and playing games, while browsing social media on the 2.4 GHz frequency. The fully adjustable antenna allows you to optimize your wireless signal. Or you can detach and replace it with a separately purchased higher gain antenna of your choice. Your wireless network is protected with WPA3 encryption, and a low-profile bracket is included for easy installation into small form factor computers. The Archer T2E is designed to work with Windows 10.
Specifications :
Interface |
PCI Express |
Dimensions |
4.76 × 3.09 × 0.85 in (120.8 × 78.5 × 21.5 mm) |
Antenna |
1 Detachable External Antenna |
WIRELESS FEATURES |
Wireless Standards |
IEEE 802.11b/g/n 2.4 GHz, IEEE 802.11a/n/ac 5 GHz |
Signal Rate |
5 GHz: 11ac: Up to 433 Mbps(dynamic) 11n: Up to 200 Mbps(dynamic) 11a: Up to 54 Mbps(dynamic) 2.4 GHz: 11n: Up to 200 Mbps(dynamic) 11g: Up to 54 Mbps(dynamic) 11b: Up to 11 Mbps(dynamic) |
Reception Sensitivity |
5GHz: 11ac HT80:-59.0dBm 11n HT40:-68.0dBm 11a 54Mbps:-73.0dBm 11a 6Mbps:-90.0dBm 2.4GHz: 11n HT40:-70dBm 11g 54Mbps:-75dBm 11b 11Mbps:-87dBm |
Transmit Power |
5GHz:18dBm(FCC)/23dBm(CE)(EIRP) 2.4GHz:18dBm(FCC)/20dBm(CE)(EIRP) |
Wireless Modes |
Infrastructure mode |
Wireless Security |
WEP, WPA/WPA2/WPA3, WPA-PSK/WPA2-PSK/WPA3-SAE |
Modulation Technology |
DBPSK, DQPSK, CCK, OFDM, 16-QAM, 64-QAM, 256-QAM |
