Detailed Specifications

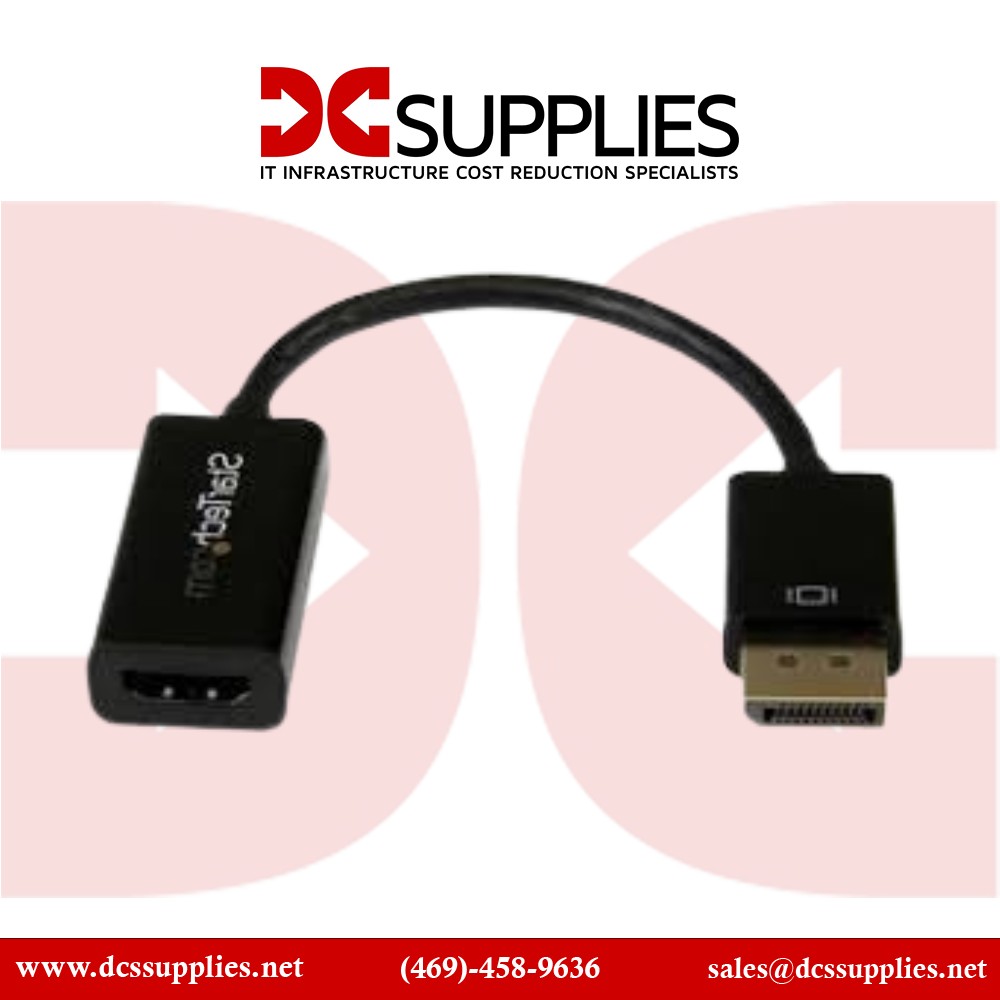

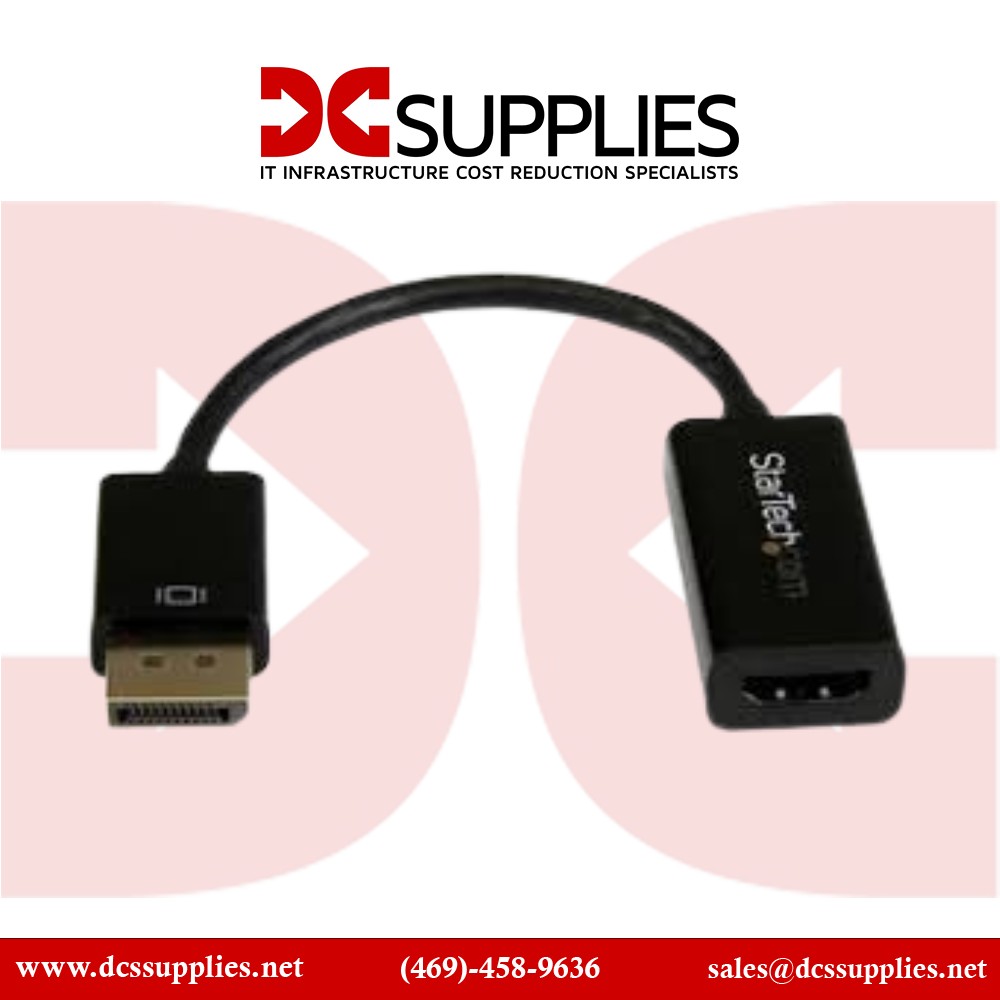

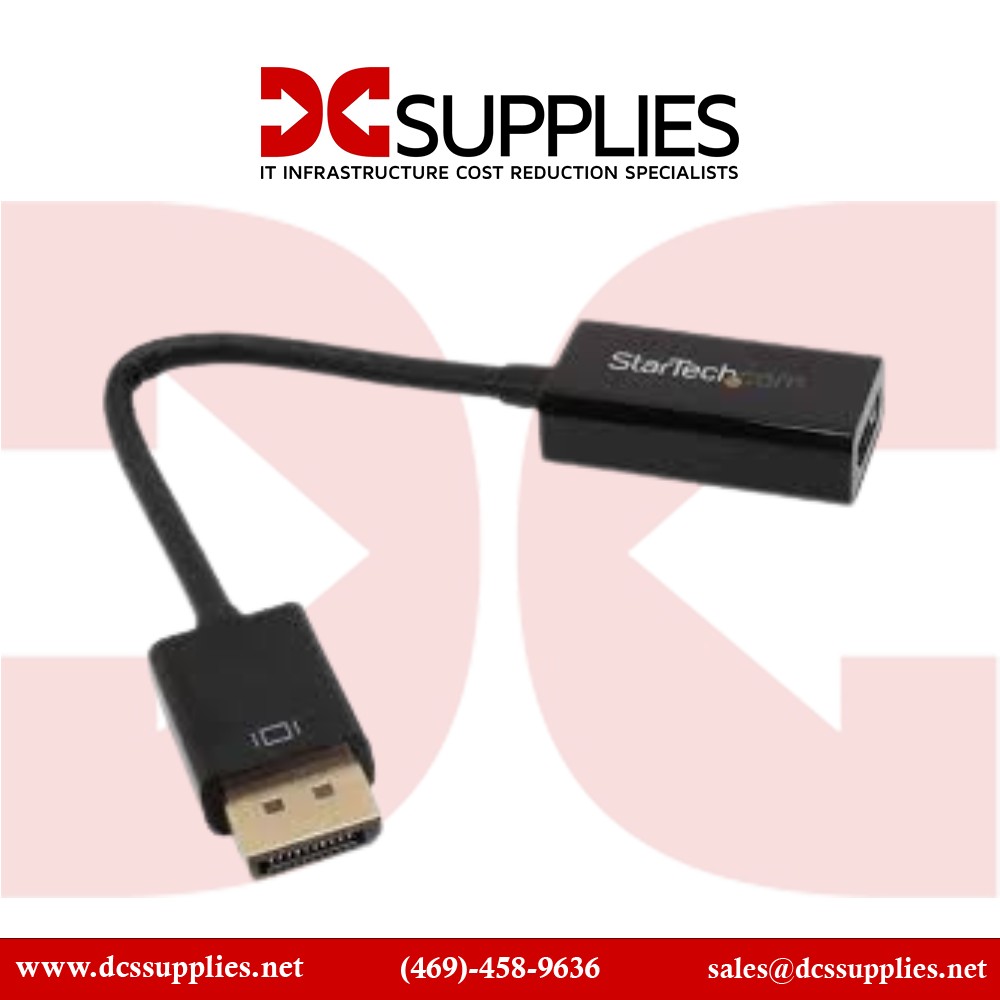

StarTech.com DP2HD4KS 4K DisplayPort to HDMI Adapter Converter DP 1.2 4K30Hz
Overview:
The DP2HD4KSDisplayPort to HDMI adapter enables you to connect a DisplayPort- equipped desktop or laptop computer, such as the HP EliteBook 8570p / 8470p, to an HDMI display DP2HD4KS. This adapter is compatible with DisplayPort 1.2 & HDMI 4K @ 30 Hz and as a result can support video resolutions up to Ultra HD (4K) as well as the accompanying digitalaudio up to 7.1 channel surround sound.
With support for resolutions up to Ultra HD (4K) the DP to HDMI adapter ensures you can convert DisplayPort to HDMI while maintaining an astonishing picture quality fourtimes the resolution of high- definition1080p.The adapter is also backwardcompatible with previousDisplayPort revisions 1.0/1.1 with support forresolutions up to1080p.
For a hassle-free setup the DisplayPort to HDMI adapter allows forplug-and-play installation without any additional software or drivers. Plus, with a small footprint and lightweight design, the adapter maximizes portability.
To ensure compatibility with any DisplayPort output the DP adapter offers an active conversion.Active video conversion is required tomaintain4K resolutions when convertingDisplayPor tto HDMI. An active DP adapteris also ideal for outputting 1080p video resolutions by ensuring compatibilitywith graphics cards that are not capable of outputting multi-mode DP++ signals (e.g. ATI Eyefinity).
About this item:
- PERFORMANCE: DisplayPort 1.2 to HDMI 1.4 adapter directly connects your DP host to a HDMI display | Supports Ultra HD (UHD) 4K 30Hz (3840x2160) & 1920x1200 (1080p) video, 7.1ch Audio, HDCP 1.4, DPCP | 5.9" (15cm) attached cable
- HOST COMPATIBILITY: Active DisplayPort to HDMI adapter supports DP/DP++ source connector & DP sources without DP++ compatibility incl workstations, desktops (AMD Radeon Pro/Nvidia RTX/Quadro), laptops, small form factor computers & docking stations
- CONNECT TO A PRIMARY OR SECONDARY DISPLAY: Connect an HDMI monitor, TV or projector, or add a second display to your workstation; Compact, small form factor design makes it easy to carry around between home office and office
- STABLE CONNECTION: DP to HDMI adapter dongle features a non-latching DP connector that is easy to disconnect from a hard to reach source | Tested with HDMI cables at extended lengths up to 35ft
- EASY TO USE: With no software or drivers required, the DisplayPort to HDMI video adapter works with any OS including macOS, Windows & Ubuntu; DP Male to HDMI Female
Specifications:
| Product Name |
4K DisplayPort to HDMI Adapter Converter DP 1.2 4K30Hz |
| Manufacturer Part Number |
DP2HD4KS |
| Product Type |
Video Adapter |
| Connector Type on First End |
DisplayPort 1.2 Digital Audio/Video - Male |
| Connector Type on Second End |
HDMI 1.4 Digital Audio/Video - Female |
| Product Color |
Black |
| Packaged Quantity |
1 |
| Environmentally Friendly |
Yes |
| Connector on First End Details |
1 x 20-pin DisplayPort 1.2 Digital Audio/Video - Male |
| Connector on Second End Details |
1 x 19-pin HDMI 1.4 Digital Audio/Video - Female |
| Country of Origin |
Vietnam |
| Connector Gender on First End |
Male |
| Connector Gender on Second End |
Female |
| Cable Length |
5.90" |
