Detailed Specifications

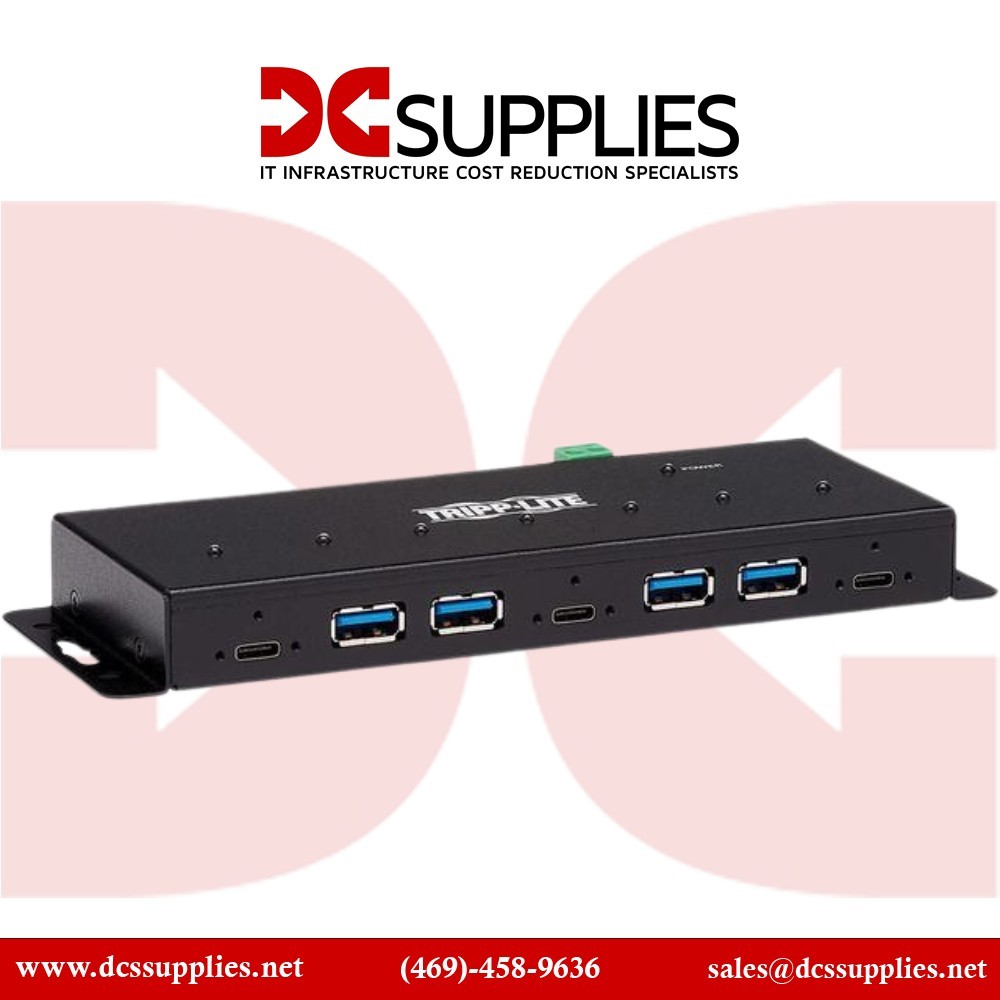

7-Port Industrial USB Hub with 3 USB-C Ports
Intro Overview:
The Tripp LiteU460-4A3C-IND is an **Industrial-Grade 7-Port USB hub3.1 Gen 2 USB hub designed for harsh environments like factories and construction sites. It provides a mix of **4 USB hub-A ports** and **3 USB hub-C ports** (one for the host and two for peripherals) and delivers super-fast data transfer speeds up to **10 Gbps**. Its rugged metal housing and advanced protection features ensure dependable performance where standard hubs would fail.
Expanded Overview:
This heavy-duty USB hub is built to connect up to seven USB hub devices×such as barcode scanners, serial devices, and sensors×to a host computer. It supports the powerful USB hub3.1 Gen 2 specification, making it twice as fast as USB hub 3.0 (5 Gbps). Key industrial features include extreme protection against **Electrostatic Discharge (ESD)** up to ±15 kV and **overcurrent** protection. Furthermore, the USB hub-C ports, including the host port, support cables with locking screws to prevent accidental disconnection caused by equipment vibration, a critical feature in industrial settings. It is plug-and-play and offers versatile mounting options (wall or DIN rail).
Features :
The Tripp Lite U460-4A3C-IND is engineered for resilience and high data throughput in rugged applications.
Product Key Features
- 7 Total Ports: 4 x USB hub-A and 3 x USB hub-C (2 device ports + 1 host port)
- Industrial Grade: Rugged metal housing for harsh environments
- Ultra-Fast Data: Supports **USB hub3.1 Gen 2** speeds up to **10 Gbps**
- Advanced Protection: ESD protection up to **±15 kV** and overcurrent protection to **±2.5 kV**
- Secure Connections:USB hub-C ports support **locking screw cables** (cable included)
Reliability & Performance :
The U460-4A3C-IND excels in reliability due to its all-metal chassis, which effectively dissipates heat and protects against physical impact. The hub's ability to resist high levels of static electricity (**ESD protection**) and power spikes (**overcurrent protection**) ensures stable **performance** and device safety in electrically noisy industrial areas. With support for **Battery Charging (BC) 1.2 compliance**, the ports can deliver up to **1.5 amps** of charging power to connected mobile devices, adding practicality to its high-speed data capabilities.
Key Features :
- Supports both data and **BC 1.2 charging** (up to 1.5A per port)
- Plug-and-Play operation×no software or drivers needed

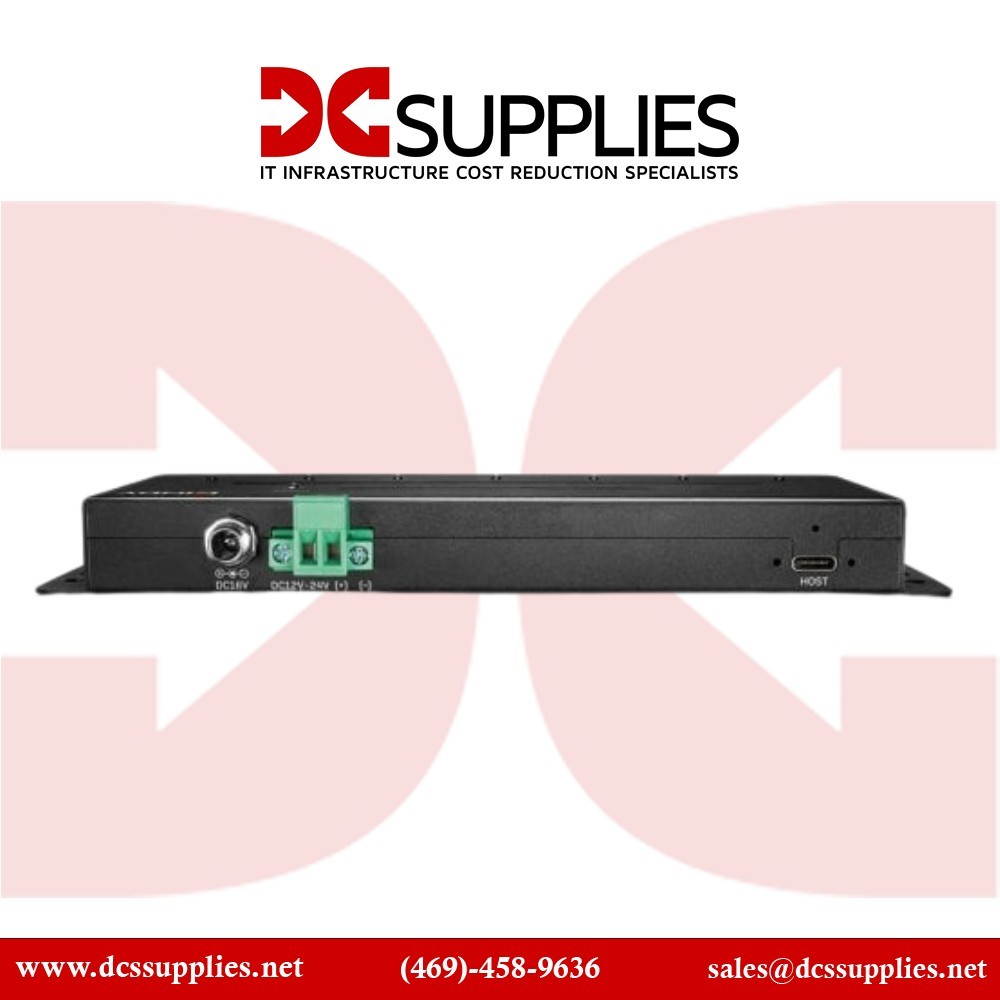

- Flexible powering options via terminal block or user-supplied AC adapter
- Built-in brackets for **wall or DIN rail mounting**
Specifications :
| Specification | Details |
|---|
| Model Number | U460-4A3C-IND |
| Brand | Tripp Lite |
| Product Type | Industrial USB Hub |
| USB Specification | USB 3.1 Gen 2 (backward compatible) |
| Data Transfer Rate | Up to 10 Gbps |
| Total Ports | 7 |
| Port Configuration | 4 x USB-A (Female) / 3 x USB-C (Female) |
| Host Connector | USB-C (Female, with locking screw support) |
| ESD Protection | ±15 kV |
| Housing Material | Steel/Metal |
| Mounting Options | Wall or DIN Rail |
