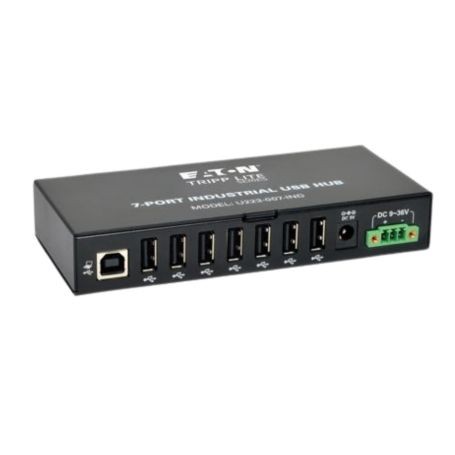

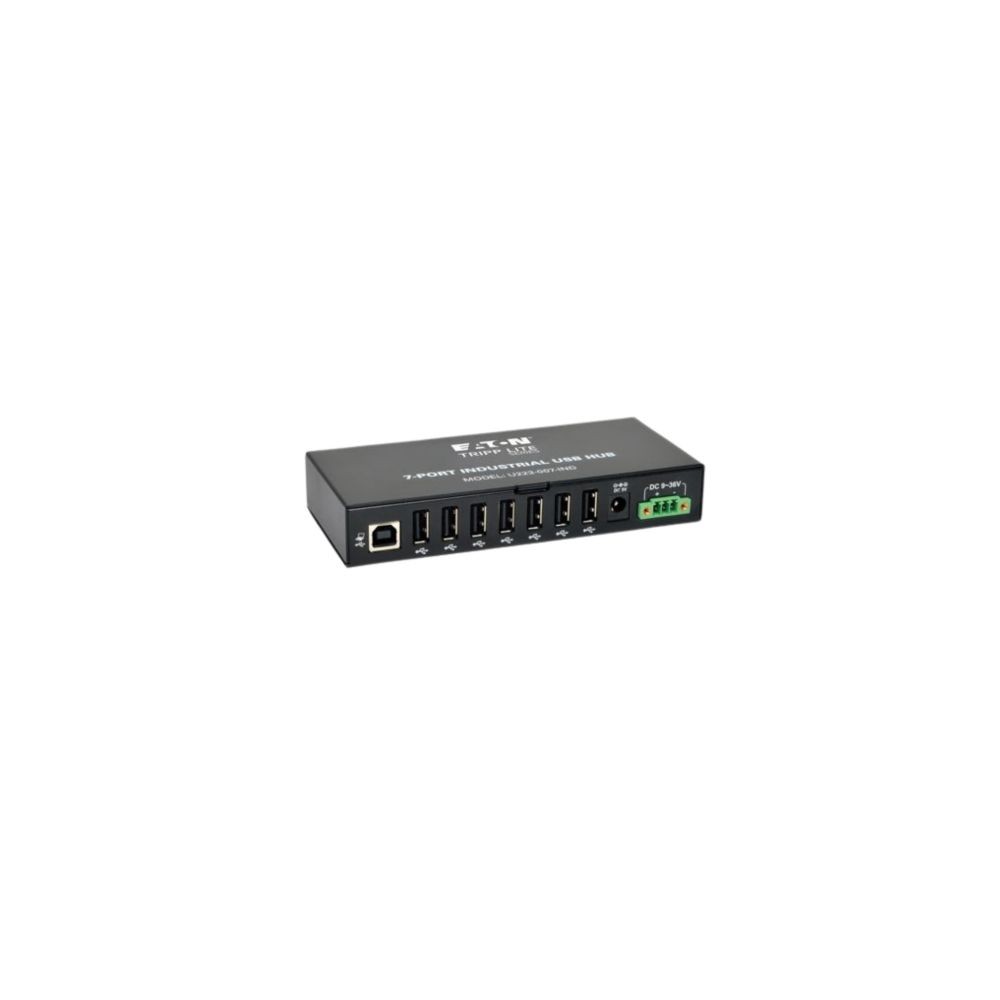

Eaton U223-007-IND 7-Port Industrial USB 2.0 Hub
The Eaton U223-007-IND Tripp Lite 7-port industrial-grade USB 2.0 hub expands one USB connection into seven USB-A ports for connecting peripherals in industrial, commercial, and workstation environments. It features a rugged metal housing, ±15 kV ESD immunity, over-current protection, and mounting hardware for wall or DIN rail installation.
Seven-Port USB Expansion
The U223-007-IND provides seven USB-A 2.0 ports from a single host USB connection. It supports USB 2.0 High-Speed data transfer rates up to 480 Mbps and is backward compatible with USB 1.1 devices.
The hub supports plug-and-play operation without requiring additional software or drivers, making it suitable for connecting USB peripherals such as barcode scanners, serial devices, sensors, and other equipment to a host computer.
Industrial-Grade Construction
The U223-007-IND uses a rugged metal housing designed for use in industrial and commercial environments. The enclosure is suited to applications where the hub may need to be installed in a factory, warehouse, supply room, construction environment, or other equipment area.
Wall and DIN Rail Mounting
Included mounting hardware allows the hub to be installed on a wall or DIN rail. This provides an alternative to placing the hub loose on a desk or equipment surface and can help position USB connections closer to connected industrial devices.
ESD and Over-Current Protection
The U223-007-IND provides ±15 kV ESD immunity and includes over-current protection. These features are designed to help protect the hub and connected USB peripherals against electrostatic discharge and excessive current conditions.
Power Options
The hub can operate as a bus-powered USB device. A 3-pin power terminal block is also provided for an optional external DC power connection when additional power is required for the connected USB devices.
Key Features
- Seven USB-A 2.0 downstream ports with data transfer rates up to 480 Mbps
- Rugged metal housing for industrial and commercial installations
- ±15 kV ESD immunity and over-current protection
- Wall and DIN rail mounting hardware included
- Bus-powered operation with optional 3-pin DC terminal block
DC Supplies Product Note
The U223-007-IND is useful when USB connectivity needs to be integrated into an equipment installation rather than simply placed on a desktop. Its included wall and DIN rail mounting hardware allows the seven-port hub to be positioned where the connected industrial USB devices are located.
Applications
- Manufacturing and production environments
- Warehouses and logistics facilities
- Industrial workstations
- Connecting barcode scanners and sensors
- USB serial devices and industrial peripherals
- Supply rooms and equipment areas
- Digital signage and other fixed installations
Technical Specifications
| Specification | Details |
|---|
| Brand | Eaton / Tripp Lite |
| Part Number / MPN | U223-007-IND |
| Product Type | Industrial USB Hub |
| USB Specification | USB 2.0 High Speed |
| Maximum Data Transfer Rate | 480 Mbps |
| Number of USB Hub Ports | 7 |
| Downstream Connectors | 7 × USB-A Female |
| Host Connector | USB-A Male |
| Power Source | USB bus powered or optional DC terminal block |
| Power Connector | 3-pin terminal block |
| ESD Protection | ±15 kV ESD Immunity |
| Over-Current Protection | Yes |
| Mounting | Wall or DIN rail |
| Housing Material | Steel |
| Color | Black |
| Connector Plating | Nickel |
| Operating Humidity | 5% to 95% RH, non-condensing |
| Storage Temperature | 14°F to 176°F (-10°C to 80°C) |
| Power Consumption | 3 W |
| Product Dimensions | 2.5 in L × 5.5 in W × 1.0 in H |
| Product Weight | 0.7 lb |
| Compliance | CE, FCC, RoHS, REACH |
| Warranty | 2-year limited |
| UPC | 037332181428 |
Package Contents
- U223-007-IND 7-Port Industrial-Grade USB 2.0 Hub
- USB 2.0 cable, 6 ft
- 3-pin power terminal block
- Wall-mounting hardware
- DIN rail-mounting hardware
- Owner's manual
Frequently Asked Questions
How many USB devices can the U223-007-IND connect?
The hub provides seven USB-A downstream ports for connecting USB peripherals to one host computer.
What USB version does the U223-007-IND support?
The hub supports USB 2.0 High-Speed operation with data transfer rates up to 480 Mbps and is compatible with USB 1.1 devices.
Can the U223-007-IND be mounted to a DIN rail?
Yes. DIN rail and wall-mounting hardware are included with the hub.
Does the hub require external power?
The U223-007-IND supports bus-powered operation and also includes a 3-pin power terminal block for an optional external DC power connection when additional power is required.
What protection does the U223-007-IND provide?
The hub provides ±15 kV ESD immunity and over-current protection for the USB hub and connected peripherals.
What is included with the U223-007-IND?
The package includes the seven-port hub, 6 ft USB 2.0 cable, 3-pin power terminal block, wall-mounting hardware, DIN rail-mounting hardware, and owner's manual.
