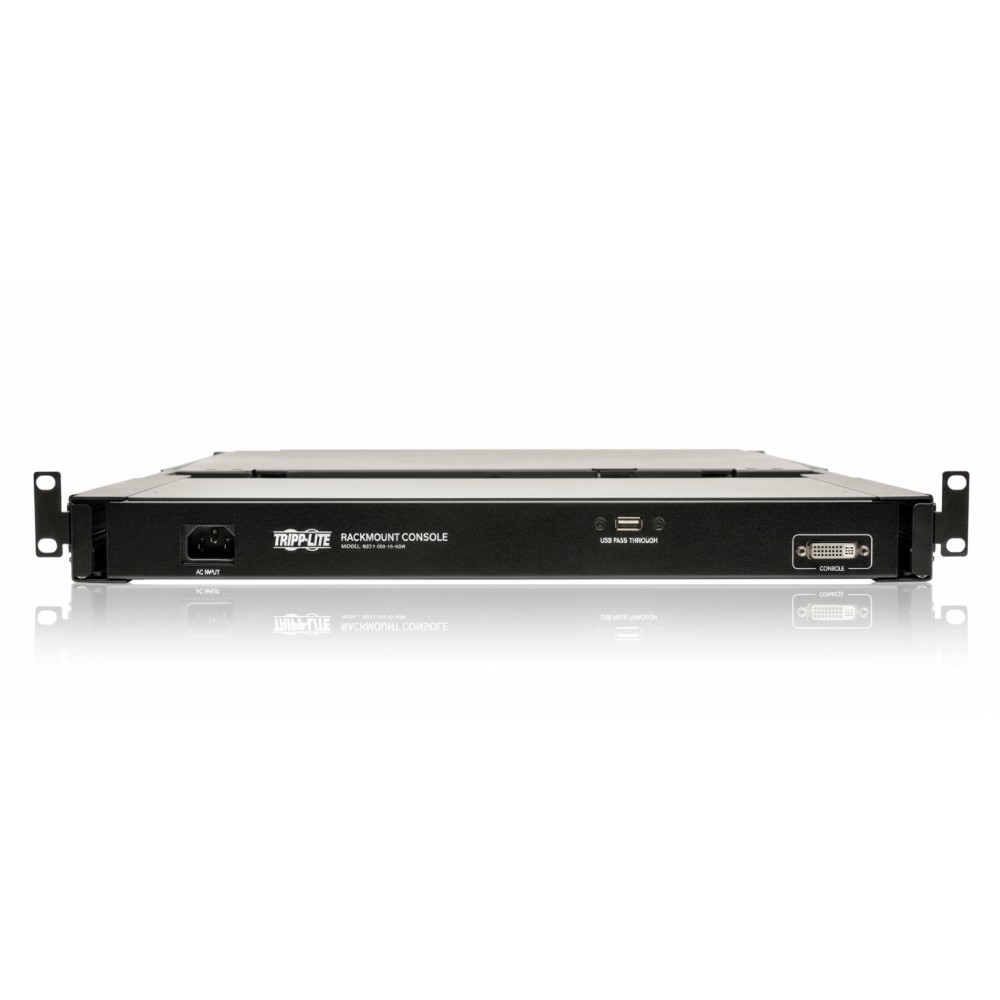

Eaton B021-000-19-HD2 - 1U Rack-Mount Console LCD
Overview
The Eaton B021-000-19-HD2 is a 1U rack-mount console combining a 19-inch LCD, keyboard, numeric keypad, and touchpad into a single slide-out unit. It is deployed by data center and IT infrastructure teams where direct local access to servers or KVM switches is required without separate peripherals cluttering physical space.
This console supports video input via DVI-I (digital and analog) and VGA (with included adapter), and displays up to 1920 × 1080 (1080p) resolution. USB 2.0 pass-through ports on front and rear allow connection of USB devices to the attached host or management system, facilitating local control and peripherals such as CAC readers.
The unit mounts into a standard EIA-310 19-inch rack occupying a single RU, featuring a slide-out drawer and flip-up screen that stows flush when not in use to minimize footprint. Its design conserves rack space in IDF/MDF closets, server rooms, and distributed edge environments where occasional direct access is required.
It integrates with structured rack ecosystems alongside UPS units, PDUs, switches, and servers. The included detachable AC power cord (NEMA 5-15P to C13) supports 100-240 V AC mains, enabling global use with appropriate local power leads.
In a practical deployment, the console is used for rack-side configuration changes and troubleshooting on network devices or servers without the need for separate workstation peripherals, reducing deployment overhead in NOC and remote sites.
This console should not be used as a primary local workstation for extended sessions; it is intended for administrative access and maintenance. It is also not a network-based console server; remote access requires external KVM/IP solutions.
Key Features
- 19″ LCD with 1920 × 1080 (1080p) display resolution
- Slide-out 1U rack-mount with built-in keyboard/touchpad
- DVI-I (digital/analog) with VGA adapter included
- USB 2.0 pass-through for peripherals
- Detachable power cord for global mains support
Specifications
| Specification | Details |
|---|
| Brand | Eaton |
| Part Number | B021-000-19-HD2 |
| Product Type | Rack-Mount Console |
| Display Size | 19 in LCD |
| Maximum Resolution | 1920 × 1080 (1080p) |
| Video Inputs | DVI-I (digital/analog), VGA (via adapter) |
| USB Ports | USB 2.0 pass-through |
| Keyboard | Integrated full-size with numeric keypad |
| Pointing Device | Integrated touchpad |
| Rack Height | 1U |
| Mounting | 19″ EIA-310 rack mount |
| Power Input | 100-240 V AC |
| Power Consumption | ~30 W (active), ~5 W (standby) |
| Power Connector | Detachable NEMA 5-15P to C13 |
| Operating Temp | 0 °C to 40 °C |
| Storage Temp | -25 °C to 60 °C |
| Humidity | 20-90% non-condensing |
| Weight | ~12.6 kg |
| Included | DVI to VGA adapter, power cord, mounting kit |
| Compliance | FCC Class A, RoHS, UL 60950-1, CE |
