Detailed Specifications

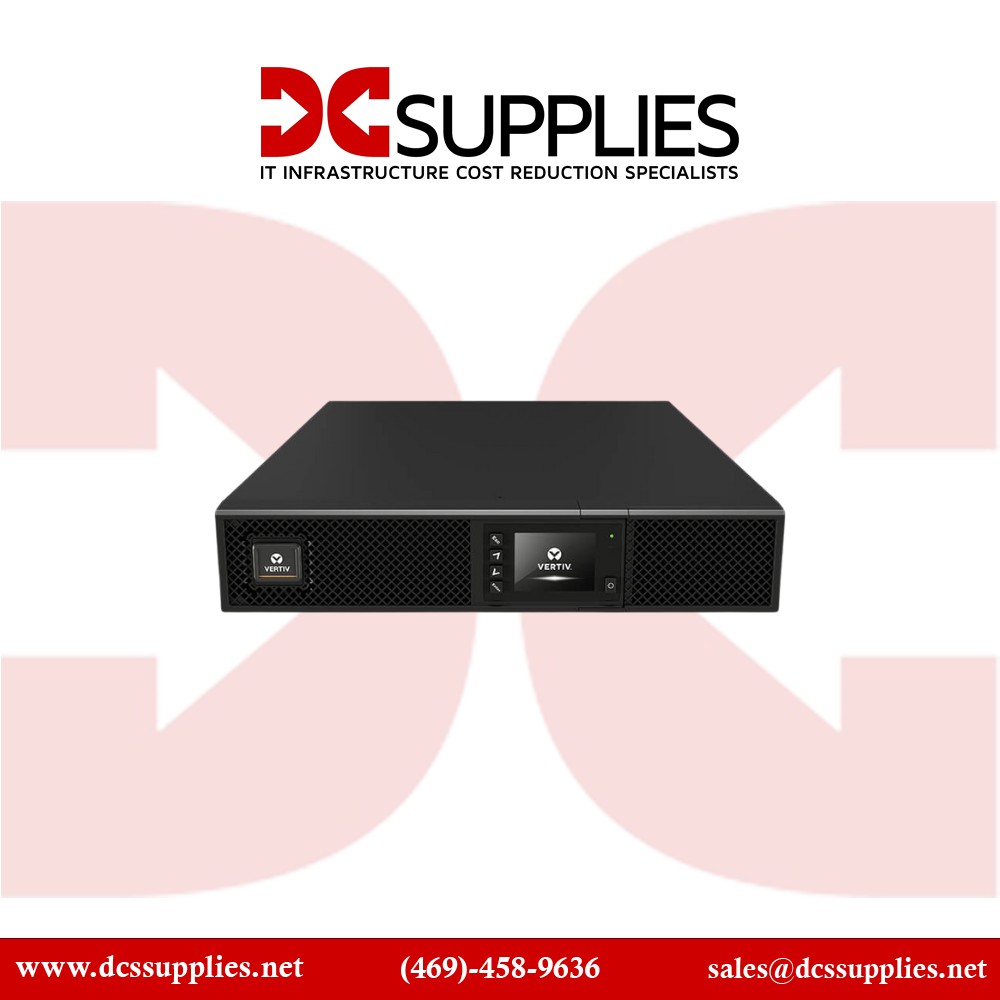

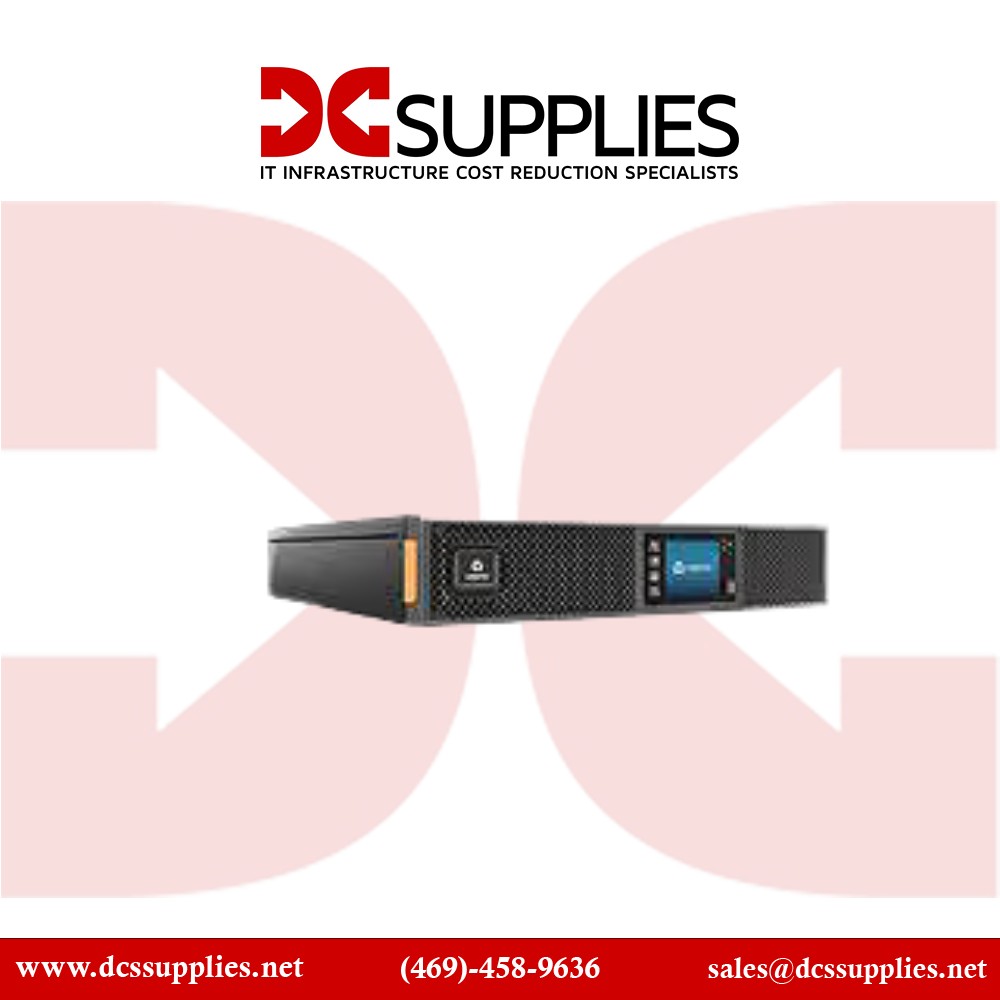

Vertiv GXT5-2000IRT2UXL UPS 2000VA 2000W 230V C20 In 8XC13
Overview :
The Vertiv Liebert GXT5 UPS 2000VA/2000W, is a 2U UPS solution for ensuring the health and availability of IT infrastructure. With online, double conversion technology, the UPS protects critical equipment against outages and every type of power disturbance without drawing on battery power, extending battery life and minimizing replacements. This can support a wide range of power environment including 200/208/220/230/ 240V user configurable AC power and has scalable runtime options with matching external battery cabinets to offer extra time during an outage to support critical equipment and activity. It includes hot-swappable batteries and all hardware for installing it as a tower or in an equipment rack. This single-phase UPS is ENERGY STAR® 2.0 certified and offers leading normal mode power efficiency and Eco-mode for ultimate efficiency levels. It has a three-year factory warranty. It offers premium power protection for critical infrastructure in centralized and edge applications.
- Available in 750VA/1/1.5/2/3kVA
- Top-level on-line double conversion UPS for mission-critical application
- Unity output power factor
- LCD multi-language color display (gravity sensing)
- On-line (VFI) mode efficiency up to 94% at full load
- Active ECO mode efficiency up to 98%
- Energy Star 2.0 certified
- Controllable and programmable output sockets
- Integrated solution with batteries and electronics
- External battery cabinets auto-detection
Specifications :
| Product Name |
2000VA 2000W 230V C20 In 8XC13 |
| Product Type |
Double Conversion Online UPS |
| Phase |
Single Phase |
| Receptacle Type |
IEC 60320 C13 |
| Network (RJ-45) |
Yes |
| Product Family |
GXT |
| Backup / Run Time (Half Load) |
10.70 Minute |
| Backup / Run Time (Full Load) |
3.20 Minute |
| Load Capacity (VA) |
2000 VA |
| Load Capacity (Watt) |
2000 W |
| Replaceable Battery |
Yes |
| TAA Compliant |
No |
| Energy Star |
Yes |
| Product Color |
Black |
| Receptacle Detail |
8 x IEC 60320 C13 |
| Environmental Compliance |
Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
Restriction of Hazardous Substances (RoHS)
|
| Cord Length |
10 ft |
| Rack Height |
2U |
| Plug / Connector Type |
IEC 60320 C20 |
| Input Voltage Range |
115 V AC - 288 V AC |
| Form Factor |
Rack/Tower |
| Waveform Type |
Pure Sine Wave |
| Hot Swappable |
Yes |
| Input Voltage |
230 V AC |
| Battery Life |
5 Year |
| Battery Chemistry |
Lead Acid |
| Input Frequency |
70 Hz |
| Battery Size |
12V |
| Environmentally Friendly |
Yes |
| Battery Capacity |
9000 mAh |
| Product Condition |
New |
| Maximum Operating Temperature |
104°F (40°C) |
| Serial Port |
Yes |
| Number of Batteries |
3 |
| Battery Characteristics |
Valve-regulated, Non-spillable |
| DC System Voltage |
48 V DC |
| USB (HID Compliant) Port |
Yes |
| Storage Temperature |
5°F (-15°C) - 104°F (40°C) |
| Transfer Time |
0 ns |
| Typical Battery Recharge Time |
4 Hour |
| Environmental Sensors |
Temperature Sensor
Humidity Sensor
Leak Detection Sensor
|
| Country of Origin |
China |
| Height |
3.3" |
| Width |
16.9" |
| Depth |
18.5" |
| Product Series |
GXT |
| Circuit Breaker |
Yes |
| Status Indicators |
Color LCD |
| Product Model |
GXT5-2000IRT2UXL |
| Sound Emission |
48 dB |
| Limited Warranty |
3 Year |
| Software Included |
Free Download - Power Insight 2.2 |
| Output Voltage |
200 V AC
208 V AC
220 V AC
230 V AC
240 V AC
|
| Hot Pluggable |
Yes |
| VGA |
No |
| Modem (RJ-11) |
No |
| Color Family |
Black |
