Detailed Specifications

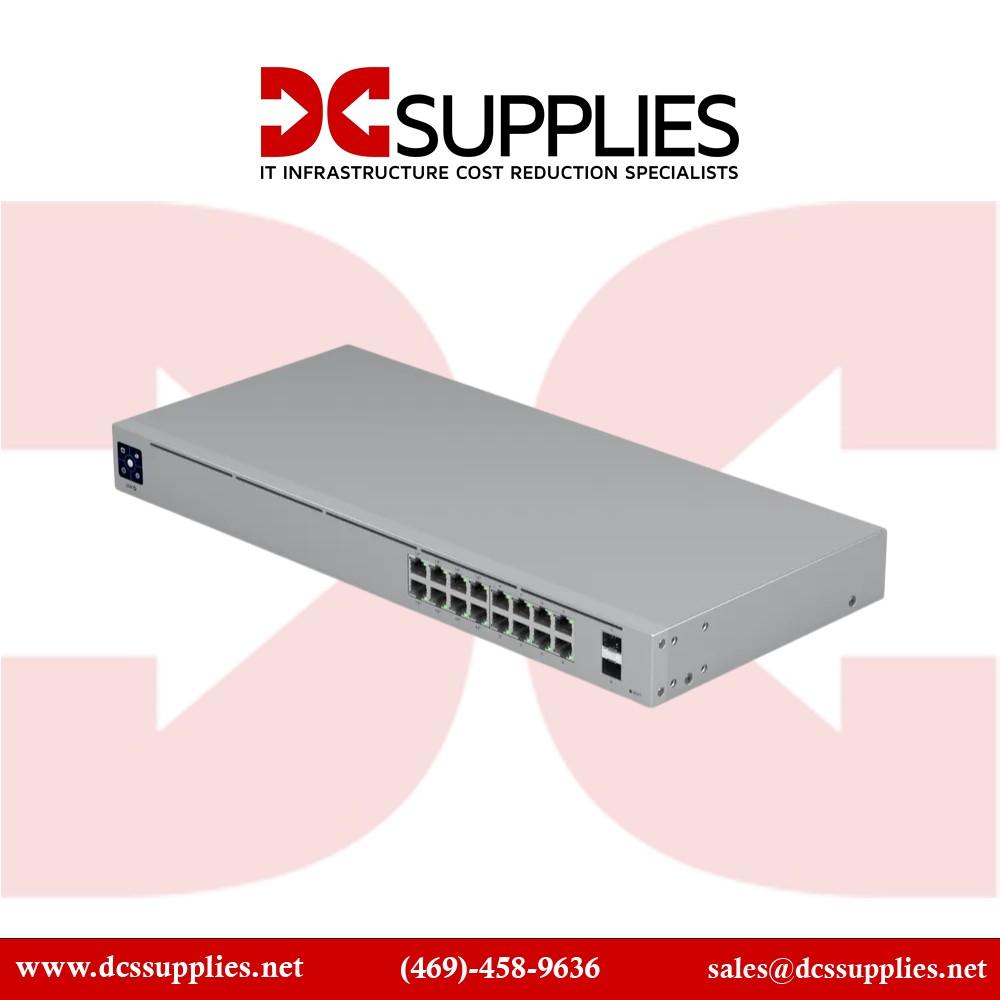

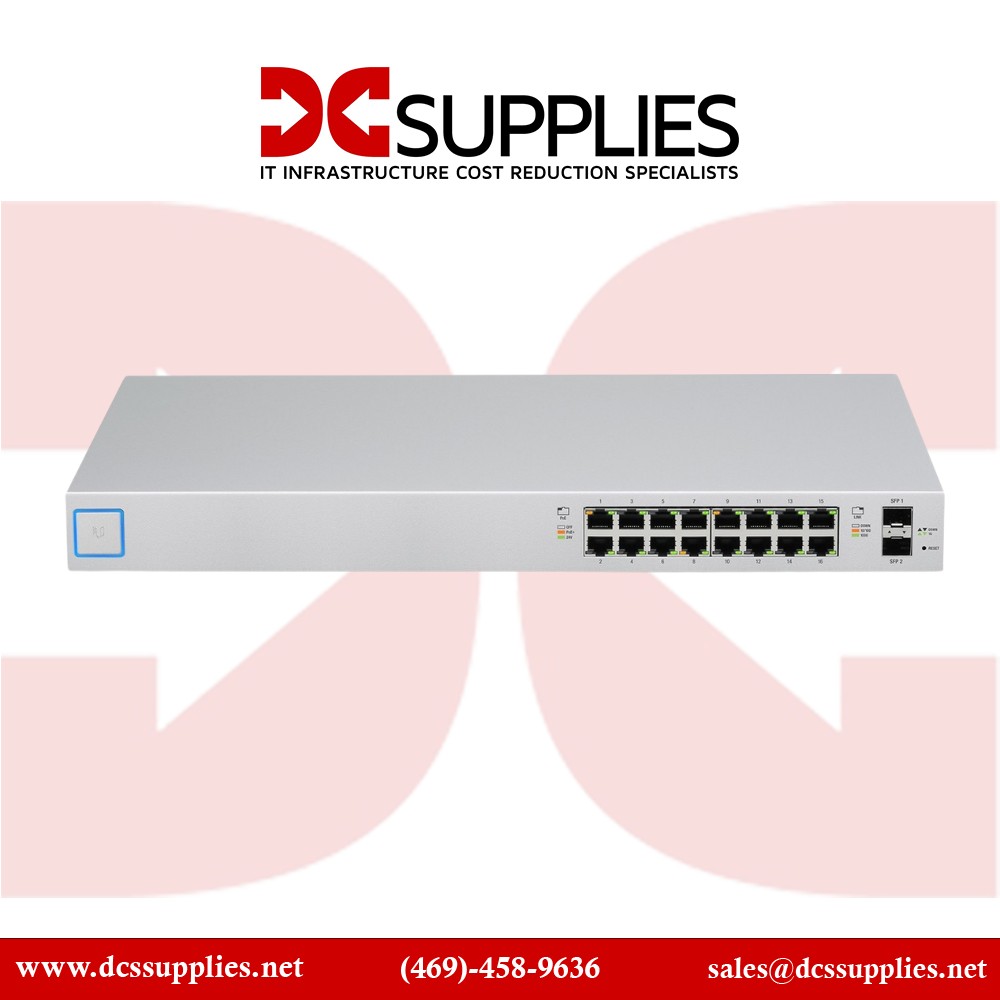

USW-16-POE Networks UniFi POE Gigabit Ethernet switch
The UbiquitiUniFi Switch USW-16-POE is a fully managed Layer 2 Ethernet switch with 16 RJ45 ports, including 8 auto-sensing PoE+ ports. Designed for seamless integration into UniFi networks, this compact switch delivers reliable Gigabit performance, intelligent PoE power management, and centralized control via UniFi Network Controller software.
Features
The USW-16-POE combines enterprise-grade switching with Power over Ethernet (PoE+) capability, making it ideal for powering UniFi access points, cameras, and VoIP phones. It offers 8 Gigabit PoE+ ports (802.3af/at) with a total PoE budget of 42W, plus 2 SFP ports for fiber uplinks to aggregation or distribution switches.
Advanced Options
Easily managed through the UniFi Controller or UniFi Network mobile app, administrators can configure VLANs, monitor traffic, and manage PoE power allocation from a single dashboard. Its silent fanless design makes it perfect for office, retail, and classroom environments, while its rackmountable form factor ensures flexible deployment in structured networks.
Product Key Features
16 Gigabit RJ45 ports with 8 auto-sensing PoE+ ports
Total PoE budget of 42W for UniFi devices
2 SFP ports for fiber uplinks
Fully managed Layer 2 switch with VLAN and QoS support
Centralized control via UniFi Network Controller
Silent fanless cooling for noise-sensitive environments
Rackmountable or desktop deployment flexibility
Ideal for powering APs, cameras, and VoIP systems
Reliability & Performance
With Gigabit throughput on all ports, the USW-16-POE ensures stable performance for modern business networks. Its PoE+ power delivery simplifies deployments by reducing the need for additional adapters, while its fanless cooling design provides reliable and silent operation. Combined with UniFi's intuitive management software, it delivers both performance and simplicity for enterprise-grade networks.
Key Features
16 Gigabit Ethernet RJ45 ports
8 PoE+ ports (802.3af/at) with 42W total budget
2 SFP uplink ports
Fanless cooling for silent operation
Layer 2 switching with VLAN and QoS support
Centralized UniFi Controller management
Desktop or rackmountable design
Specifications :
| Specification | Details |
|---|
| Model Number | USW-16-POE |
| Product Name | UniFi Managed Gigabit Ethernet switch |
| Ethernet Ports | 16 x Gigabit RJ45 |
| PoE Ports | 8 x PoE+ (802.3af/at) |
| PoE Budget | 42W total |
| Uplink Ports | 2 x SFP |
| Switching Capacity | 36 Gbps |
| Forwarding Rate | 26.78 Mpps |
| Cooling | Fanless, silent |
| Management | UniFi Controller / UniFi Network app |
| Features | VLAN, QoS, Layer 2 switching |
| Mounting Options | Rackmount or Desktop |
| Dimensions (H x W x D) | 1.72 x 7.85 x 8.24 in (43.7 x 199.8 x 209.6 mm) |
| Weight | 3.77 lbs (1.71 kg) |
| Warranty | Manufacturer Warranty |
