Detailed Specifications
US-XG-6POE Networks Unifi swtch 6 XG PoE

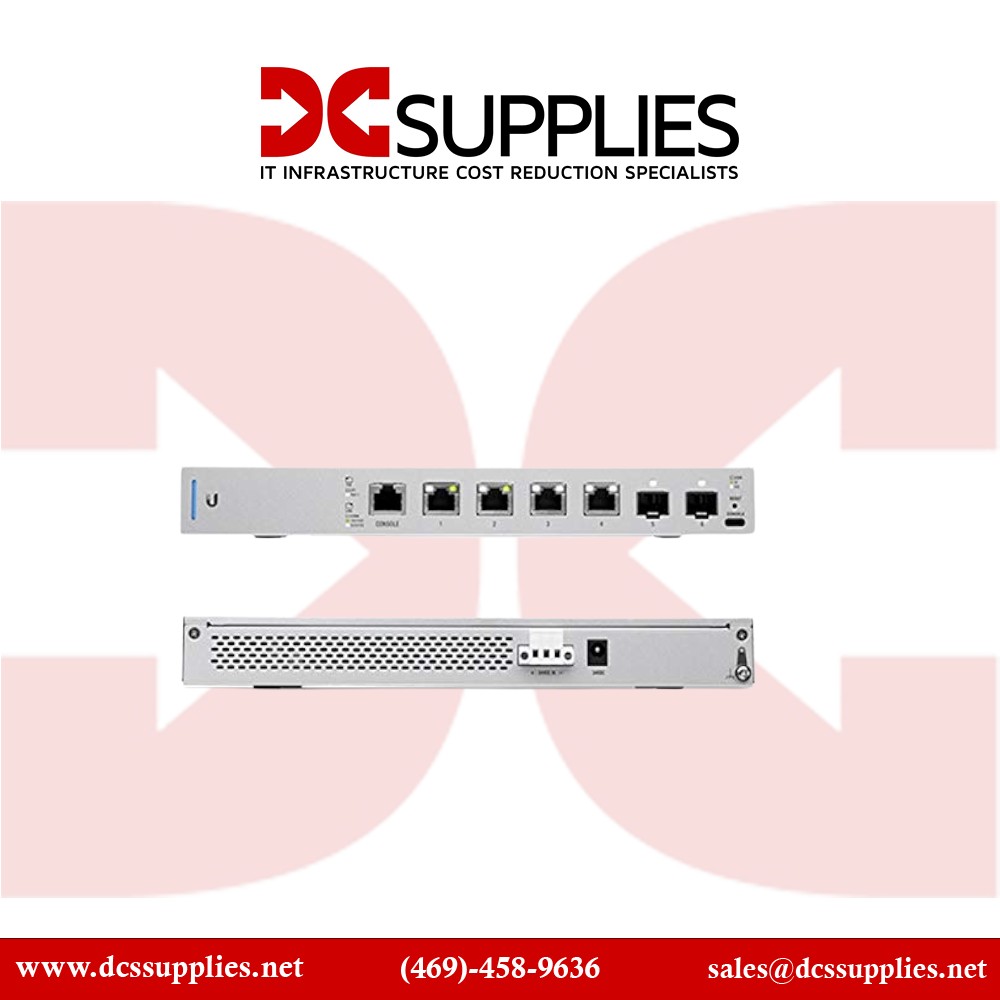

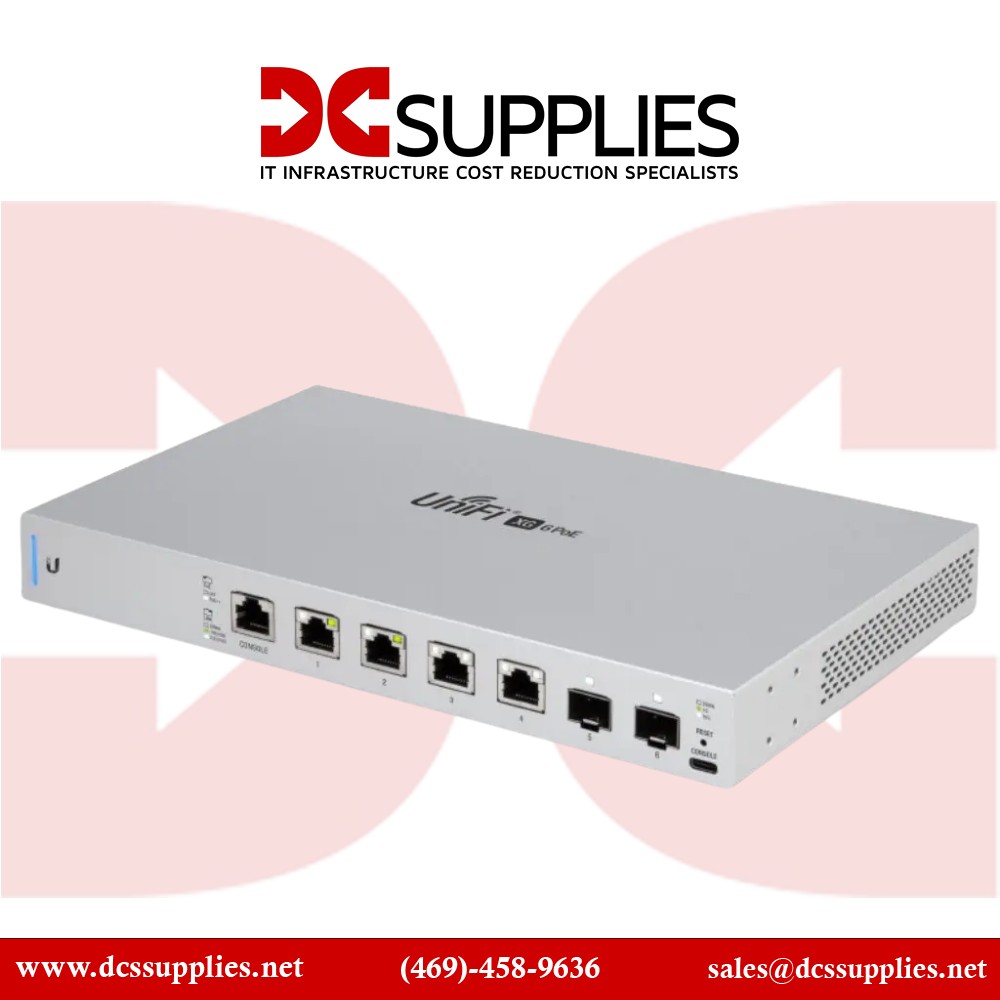

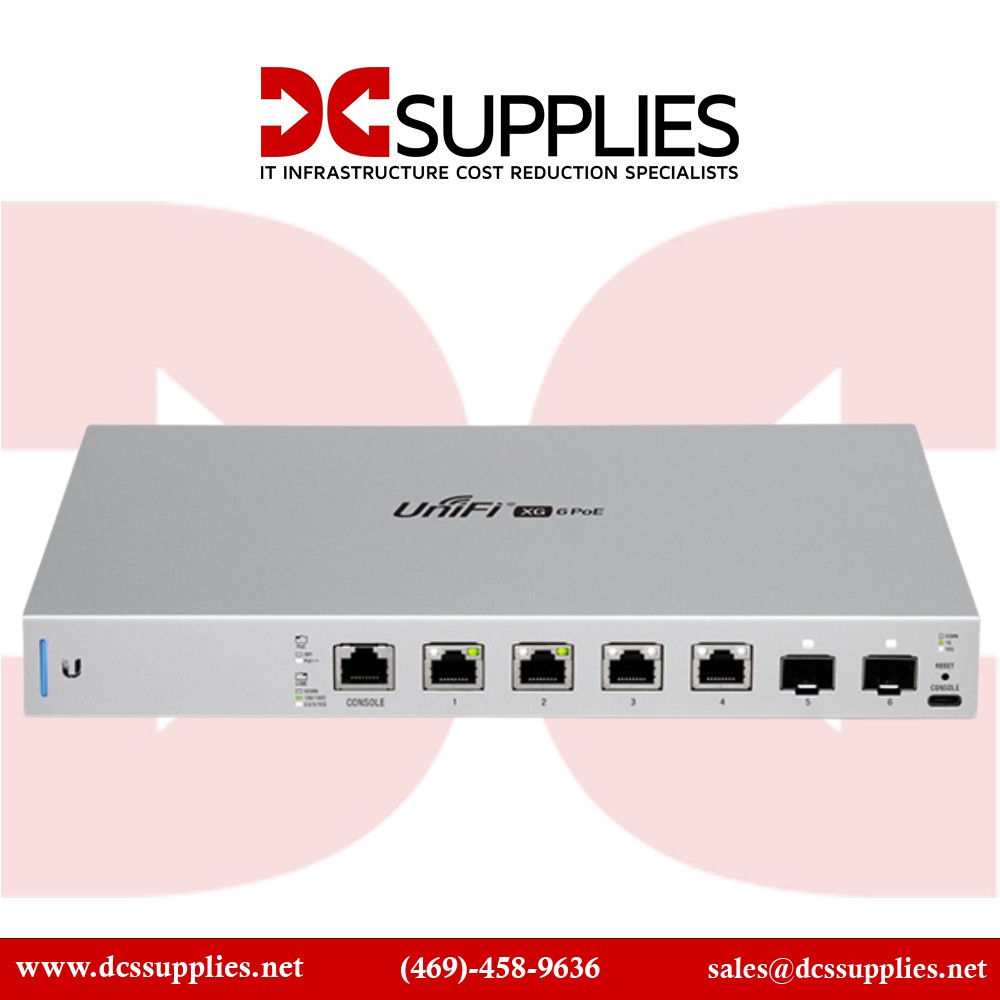

The UbiquitiUnifi swtch XG 6 PoE (US-XG-6POE) is a 6-port, 10 Gigabit aggregation switch designed for high-performance enterprise networks. With five 10G RJ45 ports and one 10G SFP+ port, this compact switch supports 802.3bt PoE++ to power UniFi devices while providing ultra-fast uplinks, advanced switching features, and centralized UniFi Controller management.
Features
The US-XG-6POE offers 10 Gigabit aggregation in a compact form factor, making it ideal for high-bandwidth applications such as connecting multiple UniFi APs, cameras, and aggregation uplinks. Its PoE++ support delivers up to 60W per port for demanding devices, eliminating the need for additional power injectors or adapters.
Advanced Options
Powered by UniFi's intuitive Controller software, administrators can configure VLANs, monitor traffic with Deep Packet Inspection (DPI), and manage multiple UniFi devices from a single interface. With fanless cooling for silent operation and robust throughput of 120 Gbps switching capacity, the US-XG-6POE is engineered to deliver performance, reliability, and simplicity in one switch.
Product Key Features
6-port 10G aggregation switch (5 x 10G RJ45, 1 x 10G SFP+)
Supports 802.3bt PoE++ with up to 60W per port
120 Gbps switching capacity with 89.28 Mpps forwarding rate
Silent, fanless cooling design
Seamless integration with UniFi Controller for centralized management
VLAN, QoS, and advanced Layer 2 features
Compact form factor, ideal for high-performance edge aggregation
Enterprise-grade build for mission-critical deployments
Reliability & Performance
The US-XG-6POE ensures ultra-fast throughput and reliable connectivity for modern enterprise environments. Its PoE++ capability simplifies deployments by powering access points, IP cameras, and other devices directly from the switch. With 120 Gbps switching capacity and low latency forwarding, it delivers the performance required for 10G networking workloads while maintaining silent, energy-efficient operation.
Key Features
6-port 10G aggregation switch
5 x 10G RJ45 + 1 x 10G SFP+
PoE++ (802.3bt) up to 60W per port
120 Gbps switching capacity
89.28 Mpps forwarding rate
Silent fanless cooling design
Centralized UniFi Controller integration
Advanced VLAN, QoS, Layer 2 support
Specifications :
| Specification | Details |
|---|
| Model Number | US-XG-6POE |
| Product Name | Unifi swtch XG 6 PoE |
| Ports | 5 x 10G RJ45, 1 x 10G SFP+ |
| Switching Capacity | 120 Gbps |
| Forwarding Rate | 89.28 Mpps |
| PoE Standard | 802.3bt PoE++ |
| PoE Budget | Up to 60W per port |
| Cooling | Fanless (silent operation) |
| Management | UniFi Controller (web/remote) |
| Features | VLAN, QoS, L2 switching, DPI |
| Dimensions (H x W x D) | 1.73 x 7.92 x 8.62 in (44 x 201.5 x 219 mm) |
| Weight | 4.41 lbs (2 kg) |
| Form Factor | Compact Desktop/Rackmount (with adapters) |
| Warranty | Manufacturer Warranty |
