Detailed Specifications

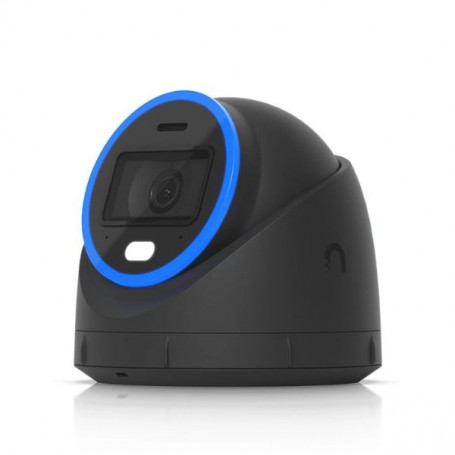

Ubiquiti UVC-AI-TURRET-B AI Surveillance Turret Camera
Overview
The Ubiquiti UVC-AI-TURRET-B is an AI-enabled turret-style IP camera designed for commercial and enterprise video surveillance with advanced detection analytics. It employs dual-LED IR illumination for low-light operation and onboard AI processing for person, vehicle, and object classification with configurable detection zones. The camera supports PoE power and connects via Gigabit Ethernet for video streaming, recording, and analytics integration with UniFi Protect. Its compact turret form factor and IP66 weather rating make it suitable for indoor and outdoor perimeter, parking, and campus monitoring installations.
Key Features
• AI-based object classification
• Dual-LED IR for low-light view
• Gigabit Ethernet PoE
• IP66 weather rated turret
Technical Specifications
| Specification | Details |
|---|
| Brand | Ubiquiti |
| Part Number | UVC-AI-TURRET-B |
| Product Type | AI Surveillance Turret Camera |
| Image Sensor | 1/2.8″ CMOS |
| Resolution | 4 MP (2688 × 1520) |
| Lens | 3.6 mm fixed |
| Field of View | H: 95°, V: 55° |
| Illumination | Dual-LED IR, up to 30 m |
| Network Interface | (1) 10/100/1000 RJ45 |
| Power Method | PoE (802.3af/at), 48 V DC |
| Video Compression | H.265/H.264 |
| ONVIF Profile | S/G |
| AI Analytics | Person/vehicle/object classification |
| Weather Rating | IP66 |
| Operating Temp | −20 °C to 50 °C |
| Dimensions | 100 × 95 × 75 mm |
| Weight | 380 g |
