Overview

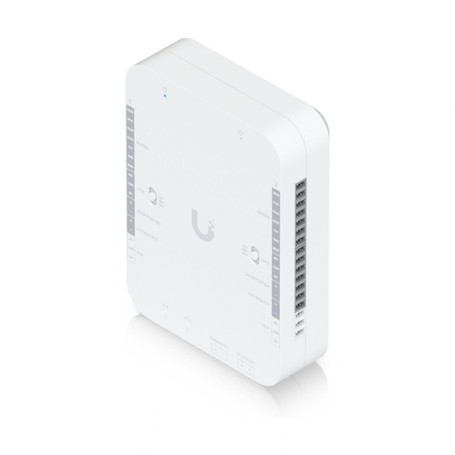

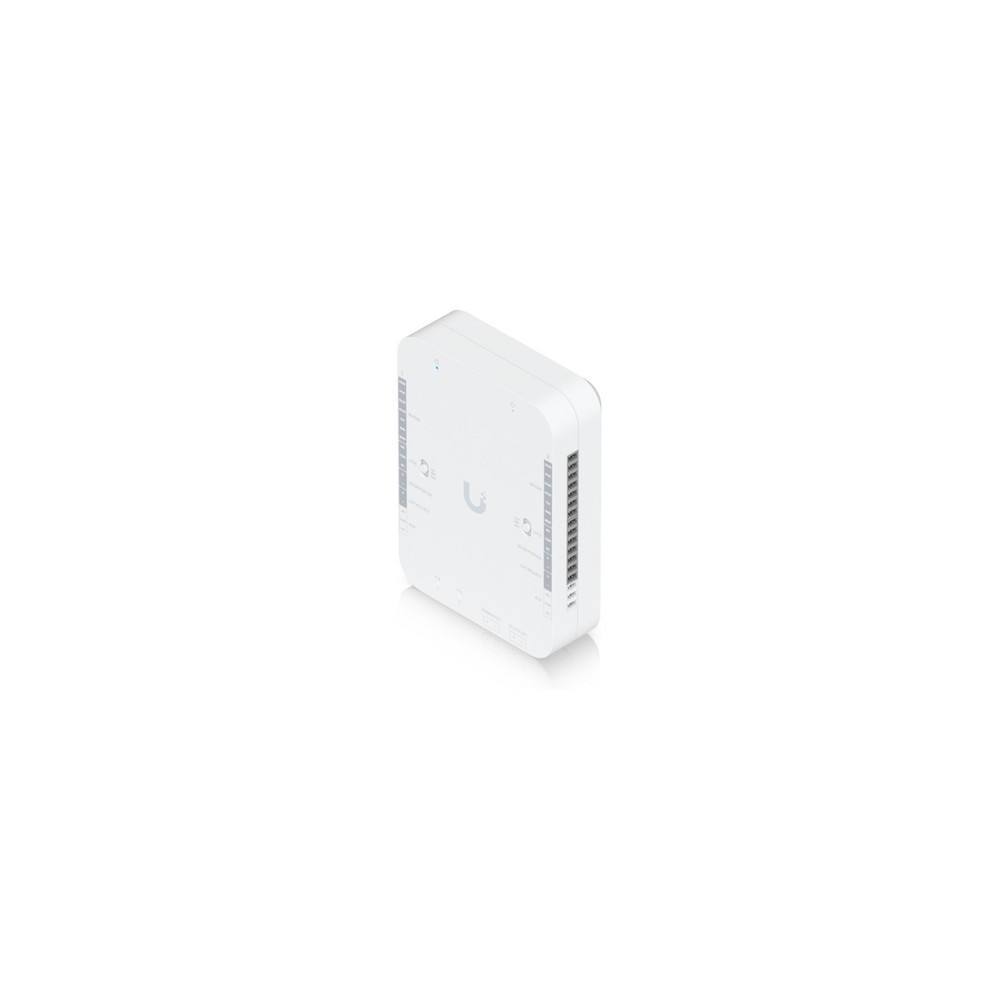

The Ubiquiti UA-Retrofit-Hub-2 is a DC-powered UniFi Access control hub designed to modernize existing door access installations without requiring replacement of existing wiring. It supports up to two doors and two readers, including third-party Wiegand readers and UniFi Retrofit Readers. The hub provides door entry and exit control, door-position monitoring, request-to-exit inputs, emergency input, and configurable lock control through the UniFi Access platform.
Two-Door Access Control
The Retrofit Hub supports up to two doors and two connected readers. Each door can use a third-party Wiegand reader or a UniFi Retrofit Reader, allowing existing access-control installations to be integrated with UniFi Access.
Reader and Door Inputs
The hub provides inputs for two Wiegand or UniFi Retrofit Readers, two door exit-request devices, two door-position sensors, and one emergency input. These connections provide the input control needed for entry and exit management across two doors.
Flexible Lock Control
Each door supports powered and dry relay outputs. The powered lock output can provide 12V DC at up to 1A or 24V DC at up to 0.5A, while the dry lock relay is rated for up to 30V DC and 1A. Auxiliary dry outputs are also provided and support up to 30V DC at 1A.
DC Power and Ethernet
The UA-Retrofit-Hub-2 operates from 12V or 24V DC and has a maximum power consumption of 50W. Two 10/100 MbE RJ45 ports provide network connectivity for UniFi Access management.
Existing Wiring Retrofit
The Retrofit Hub is designed for installations where existing access-control wiring can be reused. This makes it suitable for upgrading compatible legacy access-control systems while retaining the existing reader and door wiring infrastructure where supported.
Installation and Enclosure
The hub uses a polycarbonate enclosure with an SGCC steel mounting bracket. DIN-rail mounting is included. The unit is intended for indoor use and operates from -10°C to 40°C with 5–90% non-condensing humidity.
Key Features
- Supports access control for up to two doors
- Compatible with third-party Wiegand and UniFi Retrofit Readers
- 12V and 24V powered lock outputs plus dry relay control
- Two 10/100 MbE Ethernet ports for UniFi Access connectivity
- DIN-rail mounting included for indoor installations
DC Supplies Product Note
The UA-Retrofit-Hub-2 requires a separate 12V or 24V DC power source and can consume up to 50W. When planning the power system, the required lock output voltage and current should be considered alongside the hub's own power requirements, particularly where powered locks are connected directly to the hub.
Specifications
| Brand | Ubiquiti |
|---|
| Part Number / MPN | UA-Retrofit-Hub-2 |
|---|
| Product Type | Two-Door Access Control Hub |
|---|
| Product Line | UniFi Access |
|---|
| Supported Doors | 2 |
|---|
| Maximum User Count | 10,000 |
|---|
| Reader Inputs | 2 x Third-party Wiegand Reader / UniFi Retrofit Reader |
|---|
| Door Exit Request Inputs | 2 |
|---|
| Door Position Inputs | 2 |
|---|
| Emergency Input | 1 |
|---|
| Power Method | 12/24V DC |
|---|
| Maximum Power Consumption | 50W |
|---|
| Networking Interface | 2 x 10/100 MbE RJ45 |
|---|
| Reader Power Output | 12V DC, up to 0.5A |
|---|
| Powered Lock Relay | 12V DC up to 1A; 24V DC up to 0.5A |
|---|
| Dry Lock Relay | 30V DC, up to 1A |
|---|
| Auxiliary Dry Relay | 30V DC, up to 1A |
|---|
| Dimensions | 140 x 120 x 45 mm |
|---|
| Weight | 420 g |
|---|
| Enclosure Material | Polycarbonate |
|---|
| Mount Material | SGCC steel |
|---|
| Mounting | DIN-rail, included |
|---|
| Indoor/Outdoor Use | Indoor only |
|---|
| Operating Temperature | -10°C to 40°C |
|---|
| Operating Humidity | 5–90% non-condensing |
|---|
| NDAA Compliant | Yes |
|---|
| Certifications | CE, FCC, IC, UL 294, CAN/ULC-60839-11-1 |
|---|
FAQs
How many doors can the UA-Retrofit-Hub-2 control?
The hub supports access control for up to two doors and two connected readers.
Which readers are compatible with the Retrofit Hub?
It supports third-party Wiegand readers as well as the UniFi Retrofit Reader.
What power supply does the UA-Retrofit-Hub-2 require?
The hub operates from a 12V or 24V DC power source and has a maximum power consumption of 50W.
Can the hub power door locks directly?
Yes. Its powered lock outputs support 12V DC up to 1A or 24V DC up to 0.5A. It also provides dry relay outputs rated up to 30V DC and 1A.
