Detailed Specifications

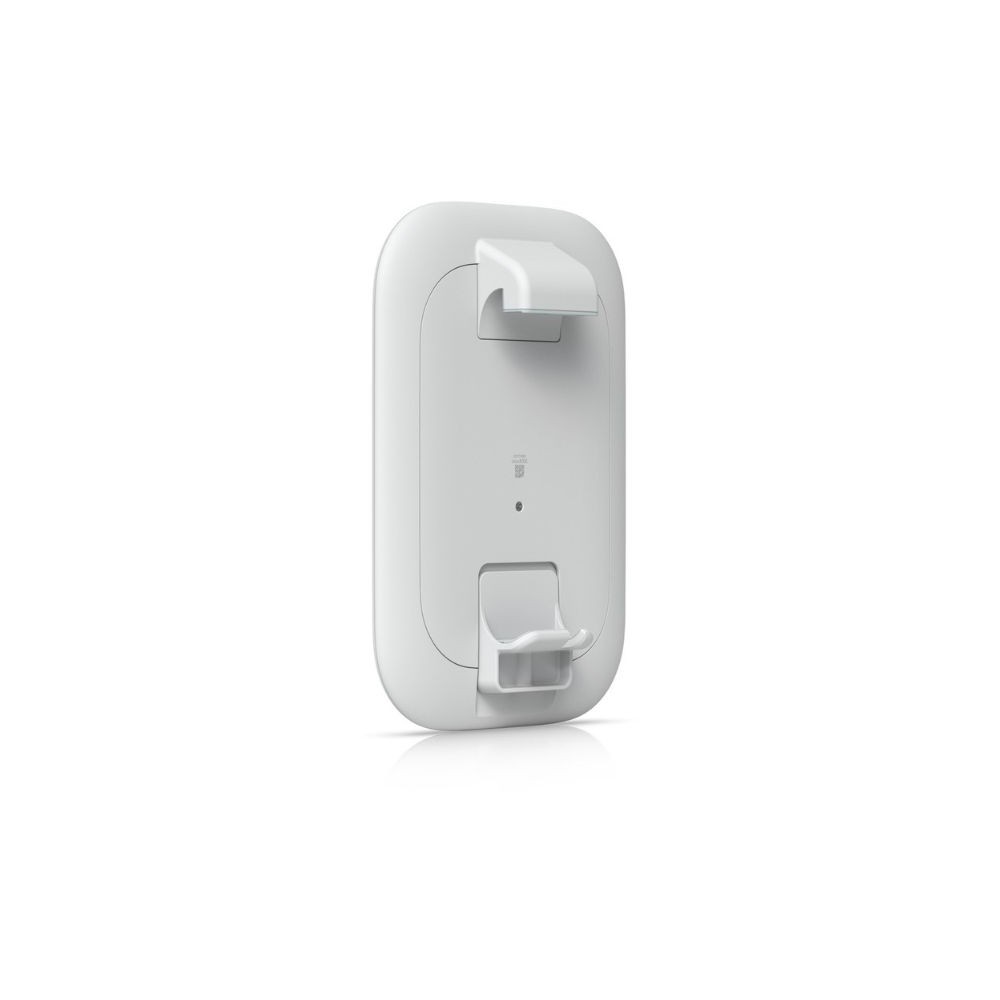

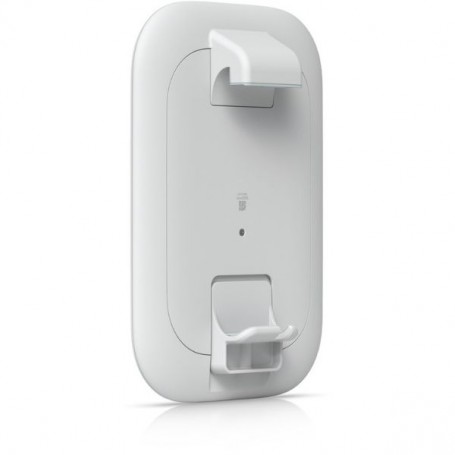

Ubiquiti UACC-UK-ULTRA-PANEL-ANTEN Dual Band Panel Antenna
Overview
The Ubiquiti UACC-UK-ULTRA-PANEL-ANTEN is an external directional panel antenna designed for use with the Ubiquiti UniFi UK-Ultra access point to extend outdoor wireless coverage. It operates on the 2.4 GHz and 5 GHz bands with higher gain than the integrated antennas, focusing RF energy into a 90° azimuth for sector coverage. The panel's weather-resistant design and IPX6 rating support outdoor deployments where targeted wireless coverage is required. It mounts to standard mast hardware and integrates mechanically with the UK-Ultra form factor.
Key Features
• Dual-band 2.4 GHz & 5 GHz panel design
• 10 dBi (2.4 GHz) and 15 dBi (5 GHz) gain
• 90° horizontal radiation pattern
• IPX6 weatherproof outdoor housing
Technical Specifications
| Specification | Value |
|---|
| Brand | Ubiquiti |
| Part Number | UACC-UK-ULTRA-PANEL-ANTEN |
| Product Type | Outdoor dual-band panel antenna |
| Frequency Bands | 2.4 GHz & 5 GHz |
| Antenna Gain | 10 dBi @ 2.4 GHz, 15 dBi @ 5 GHz |
| Beamwidth (Azimuth) | 90° |
| Connector Type | (2) RP-SMA male |
| Mounting | 1-2″ pipe mounting |
| Dimensions (W×H×D) | 138 × 207 × 43 mm |
| Weight | 450 g |
| Materials | UV-stabilized polycarbonate, aluminum |
| Weatherproof Rating | IPX6 |
| Wind Survivability | 75 N @ 200 km/h |
| Compatible With | UniFi UK-Ultra access point |
