Detailed Specifications

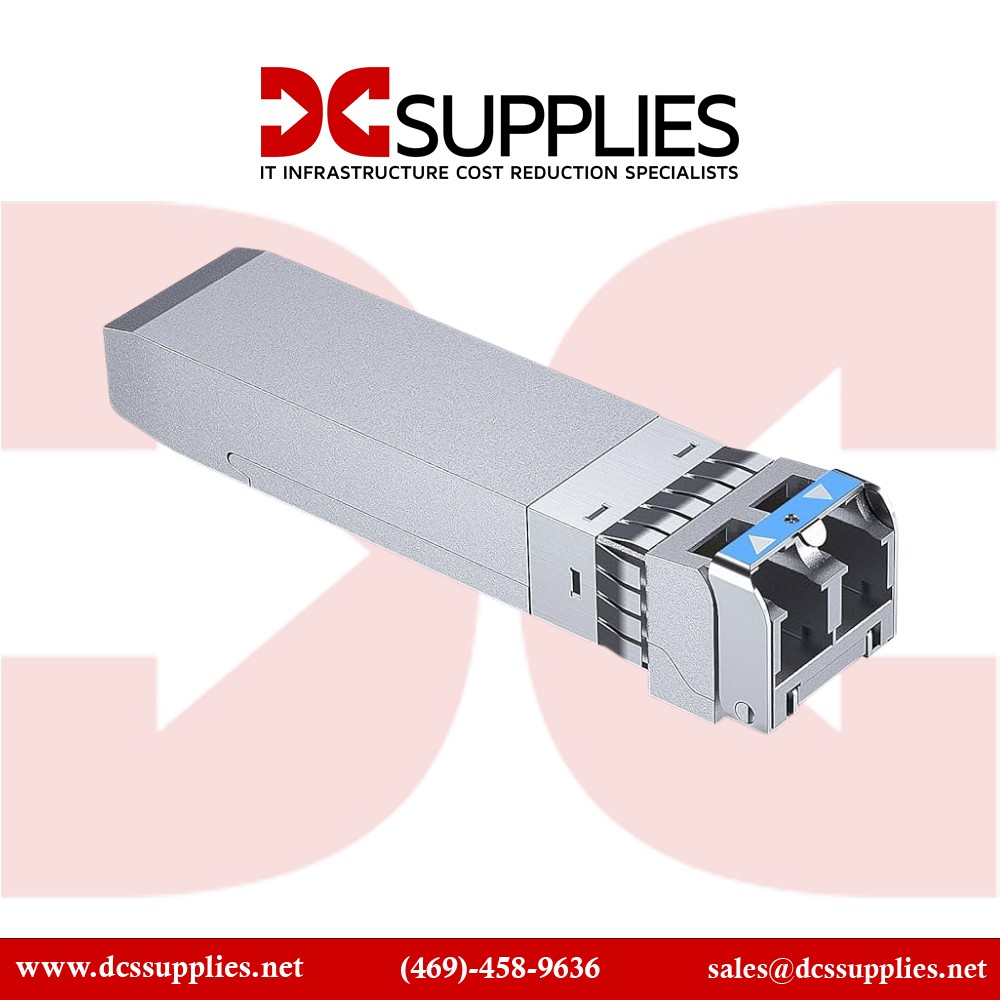

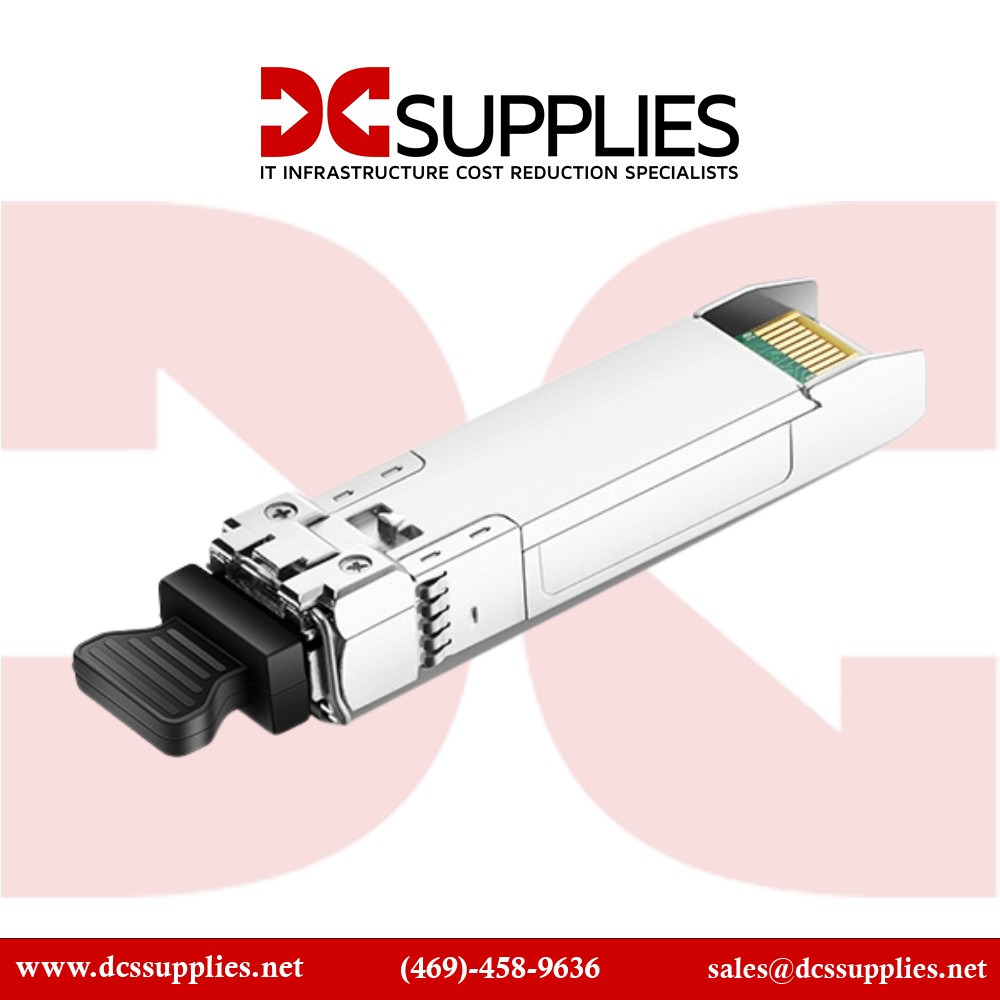

25G SFP28 LC LR 10 km SMF Transceiver
The HPE Aruba JL486A is a long-reach 25 GbE transceiver ideal for single-mode fiber deployments in data centers, campus backbones,and inter-building links. Hitting standards compliance and vendor certification, it ensures high-performance optical connections up to 10 km without sacrificing interoperability.
Features
Built for performance and compatibility, the JL486A uses a 1310 nm DFB laser in a standard SFP28 package to deliver 25.78 Gbps Ethernet over duplex LC single-mode fiber. It supports full plug-and-play installation and DDM monitoring,
Advanced Options
simplifying deployments and maintenance Optimized for systems like Aruba CX 6300 and 8325/8360, it's well-suited for enterprise and service-provider environments .
Product Key Features
Supports 25 Gbps Ethernet (25GBASE-LR) over long-reach single-mode fiber
Duplex LC connector with up to 10 km reach on OS1/OS2 SMF
Compact, hot-swappable SFP28 form factor, IEEE/MSA compliant
Uses 1310 nm DFB laser with moderate power consumption (<3.3 W)
Real-time Digital Diagnostics Monitoring (DDM) via I²C
Fully certified for Aruba/HPE switches (CX 6300/6100/8325/8360 series)
Reliability & Performance
With up to 10 km reach, the JL486A balances long-distance performance with efficiency. The DFB transmitter and PIN receiver deliver a robust optical budget (~8.3 dB) HPE's legacy manufacturing processes ensure longevity, backed by a limited lifetime warranty and zero downtime during swaps.
Key Features :
25GBASE-LR Ethernet at 25.78 Gbps
LC duplex connector, 10 km reach on SMF (OS1/OS2)
SFP28 hot-swappable and MSA/IEEE compliant
1310 nm DFB laser, power <3.3 W
DDM via I²C (SFF-8472)
Aruba/HPE certified for CX/6100/8325/8360 series
| Specification | Details |
|---|
| Model Number | JL486A |
| Product Type | 25G SFP28 LR Transceiver |
| Data Rate | 25.78 Gbps |
| Fiber Type | Single-Mode Fiber (OS1/OS2) |
| Connector | Duplex LC |
| Max Distance | 10 km (6.21 miles) |
| Wavelength | 1310 nm DFB |
| Power Consumption | <3.3 W |
| DDM Support | Yes (I²C/SFF-8472) |
| Form Factor | SFP28 hot-swappable |
| Operating Temp Range | 0 °C to 70 °C |
| Optical Budget | ~8.3 dB |
| Compatibility | Aruba CX, 6100, 6300, 8325, 8360 series |
