Detailed Specifications

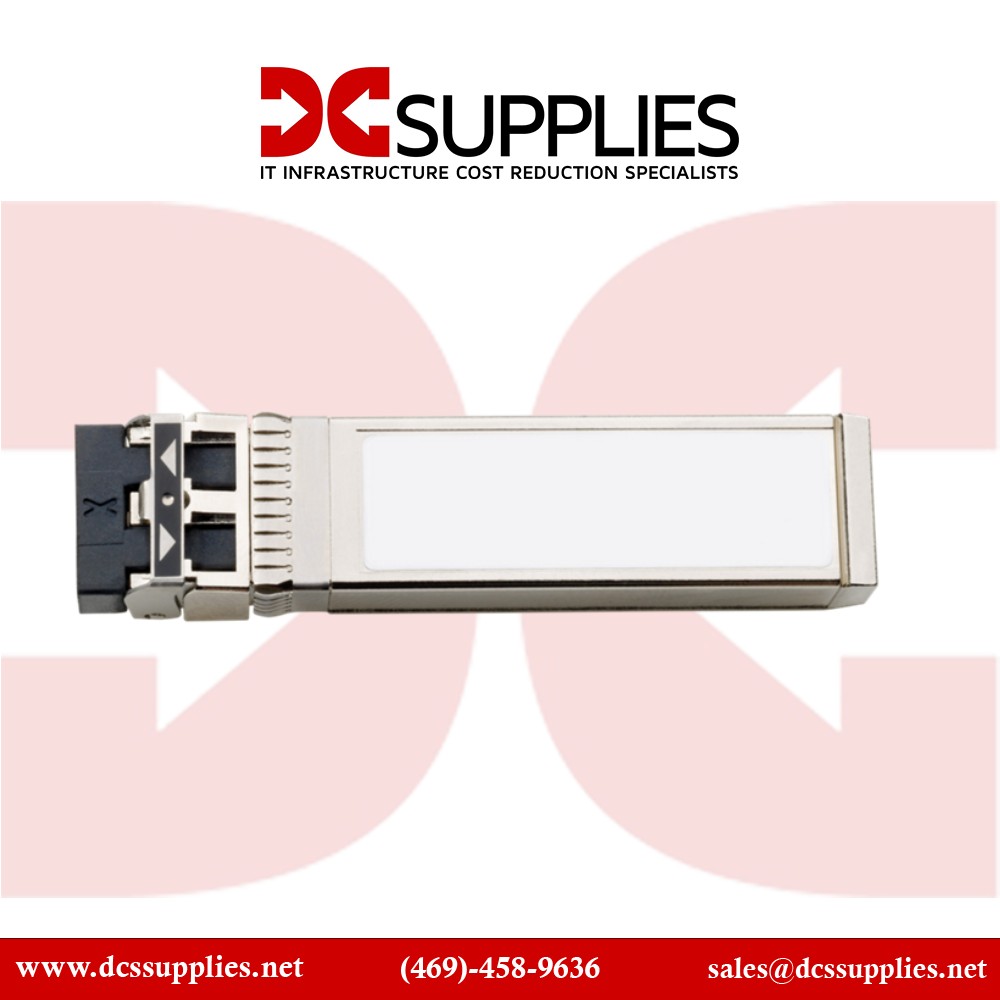

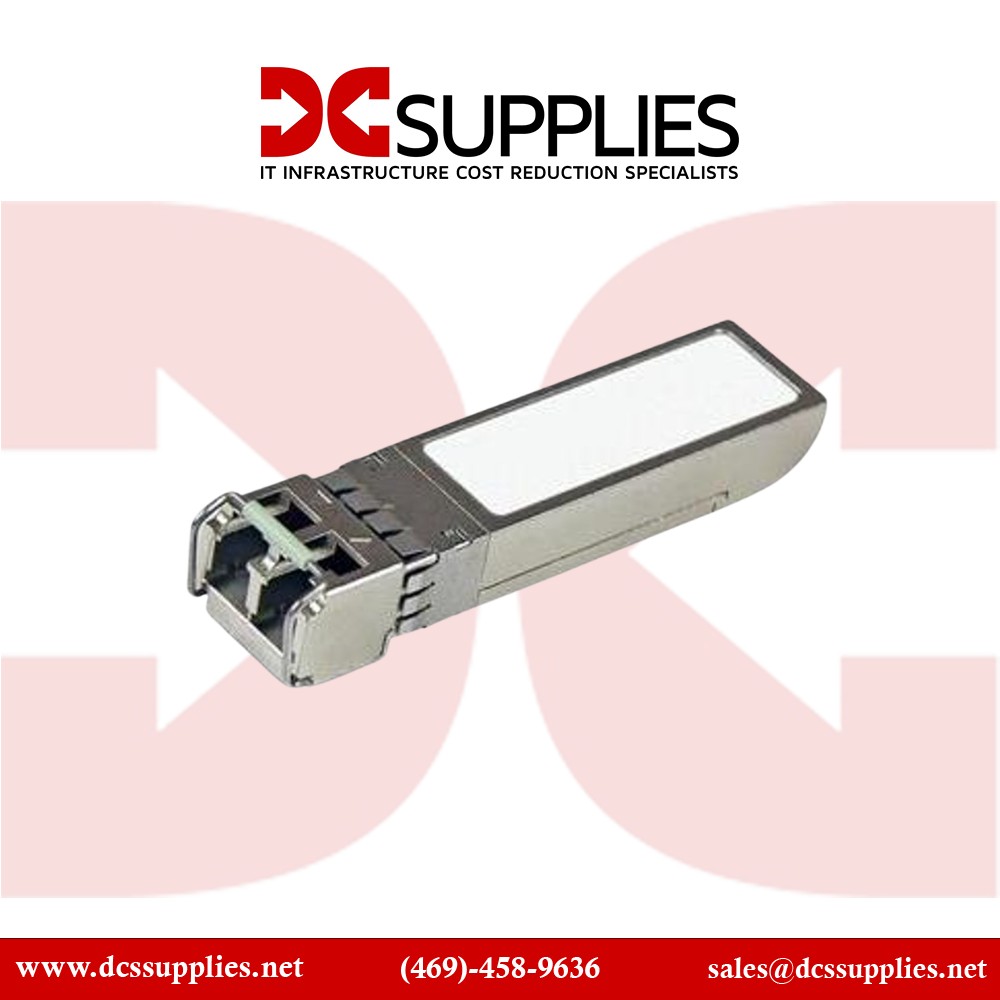

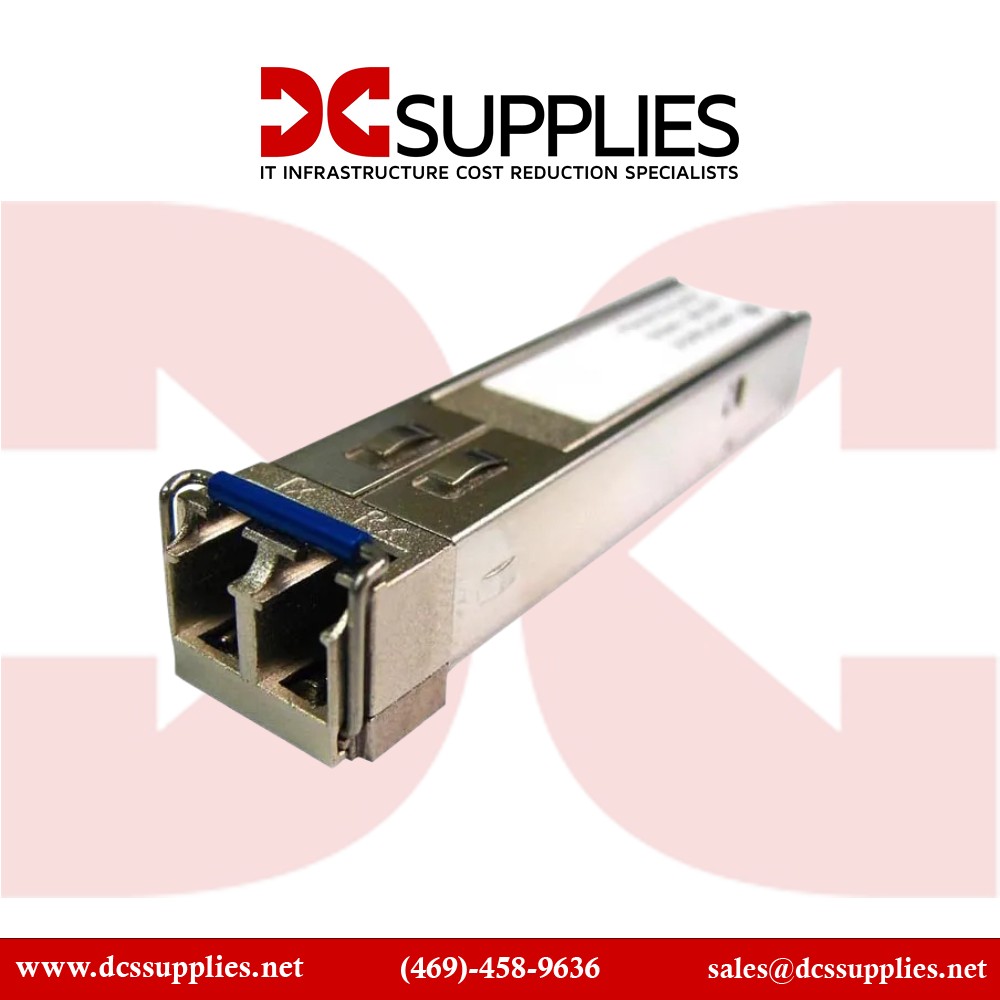

AddOn Networks E1MG-CWDM80-1530-AO network transceiver module Fiber optic 1000 Mbit s SFP 1530 nm
Overview :
The AddOn E1MG-CWDM80-1530-AO is a 1G CWDM SFP transceiver designed to offer high-speed, long-distance data transmission over single-mode fiber. Operating at 1530nm, this transceiver provides reliable and cost-effective connectivity for networking applications.
Key Features :
- Type: 1G CWDM SFP Transceiver
- Wavelength: 1530nm
- Form Factor: SFP
- Compatibility: Plug-and-play, compatible with a wide range of switches and routers
- Data Rate: 1Gbps
- Connection: Single-mode fiber
- Distance: Supports up to 80 km
- Power Consumption: Low power requirements for efficient operation
- Fiber Type: Single-mode fiber (SMF)
- Temperature Range: Industrial-grade, suitable for various environments
- Compliance: MSA compliant
- Warranty: Lifetime warranty from AddOn
Technical Specifications :
| Specification | Details |
|---|
| Part Number | E1MG-CWDM80-1530-AO |
| Brand | AddOn |
| Product Type | transceiver |
| Data Rate | 1 Gbps |
| Wavelength | 1530 nm |
| Distance | Up to 80 km |
| Connector Type | LC/SC (depending on variant) |
| Fiber Type | Single-mode Fiber (SMF) |
| Form Factor | SFP (Small Form-factor Pluggable) |
| Power Consumption | < 1W |
| Operating Temp | 0°C to 70°C (Standard) |
| Storage Temp | -40°C to 85°C |
| Dimensions | 56.5 x 13.4 x 8.5 mm |
| Hot Pluggable | Yes |
| Connector | LC/SC |
| Compliant Standards | MSA, RoHS, CE, UL |
