Detailed Specifications

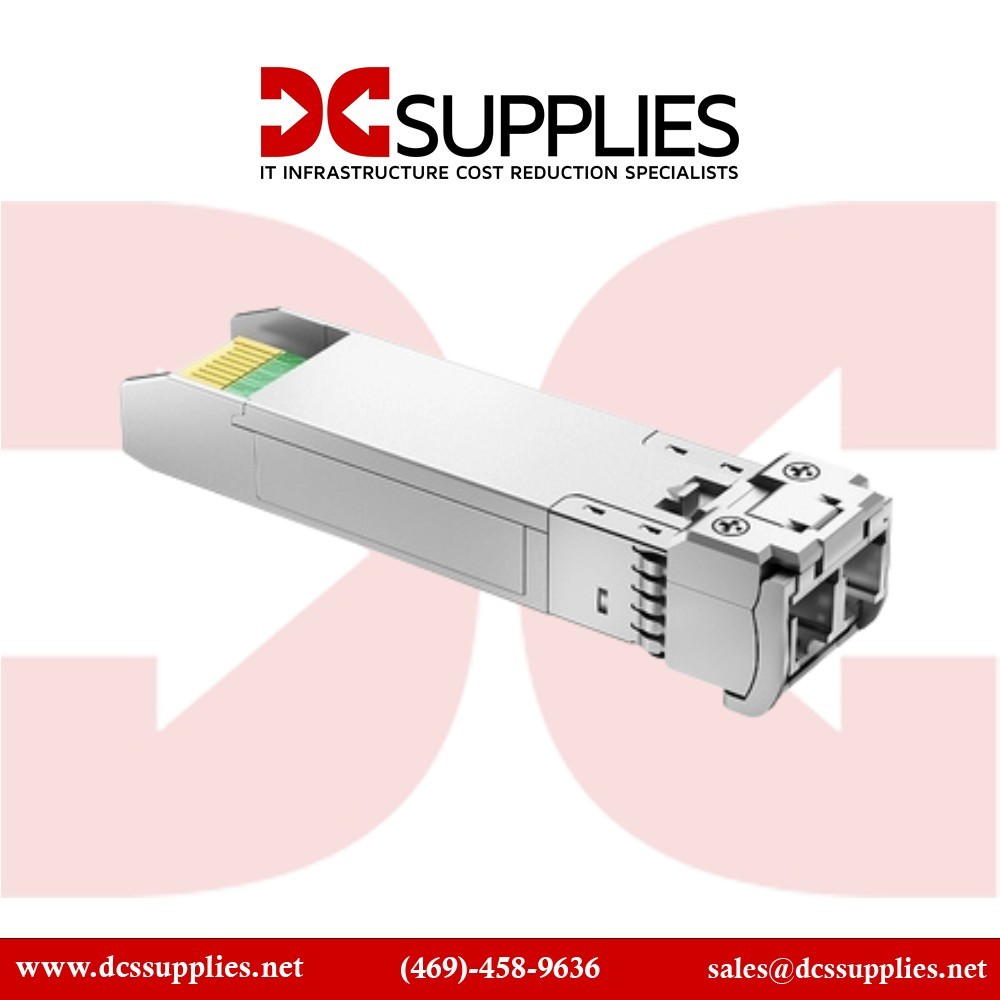

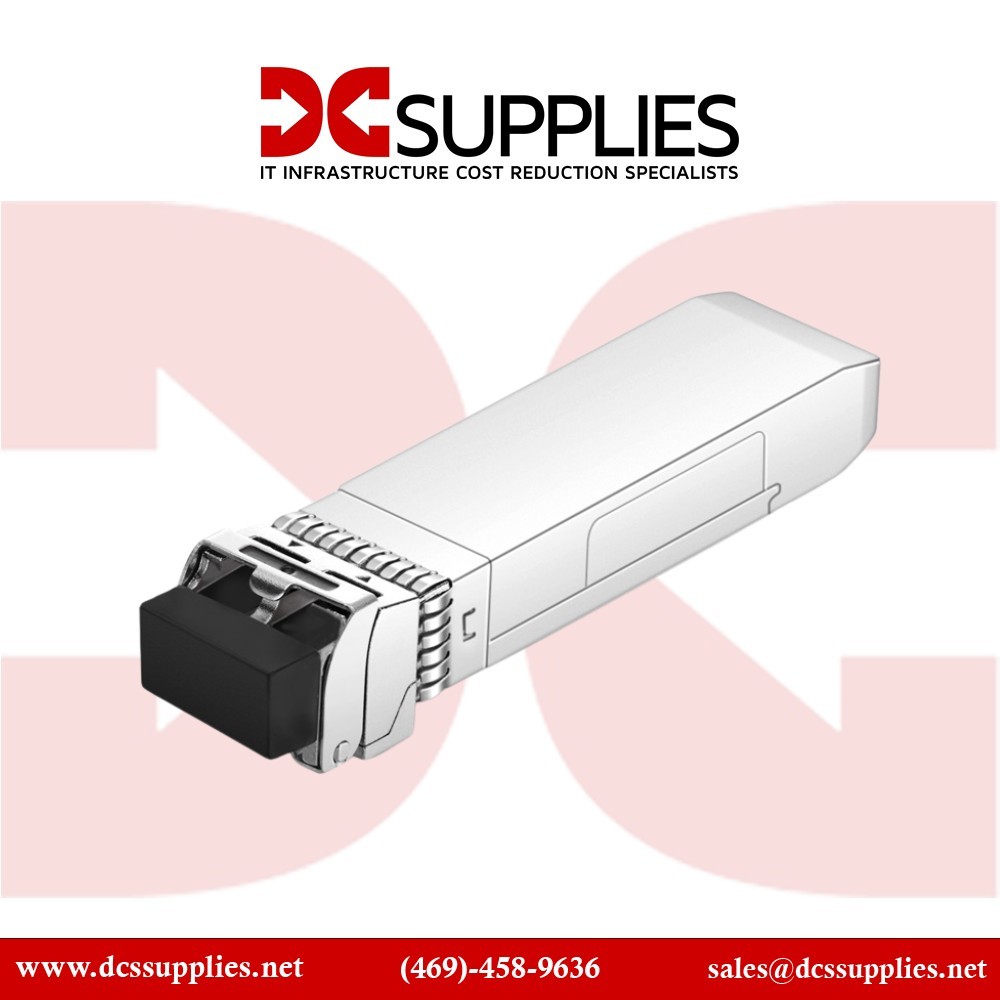

Ruckus 10G-SFPP-SR – 10GBASE-SR SFP+ Transceiver Module
Overview :
The Ruckus 10G-SFPP-SR is a Small Form-Factor Pluggable Plus (SFP+) transceiver module designed for high-speed 10 Gigabit Ethernet (10GbE) connectivity over multimode fiber (MMF). Operating at an 850nm wavelength, it supports data rates up to 10.3 Gbps and is compatible with Ruckus and Brocade networking equipment. The module utilizes a duplex LC connector and is hot-pluggable, facilitating easy installation and replacement without powering down the system. It is compliant with Multi-Source Agreement (MSA) standards, ensuring interoperability across different manufacturers. The 10G-SFPP-SR is ideal for data center and enterprise network environments requiring high-bandwidth connections over short to medium distances. Its digital optical monitoring (DOM) capability allows for real-time monitoring of optical parameters, aiding in proactive network management and troubleshooting. The module operates within a standard temperature range of 0°C to +70°C, making it suitable for most indoor deployments.
Key Features :
High-Speed Data Transfer: Supports up to 10.3 Gbps data rate.
850nm Wavelength: Optimized for short-range multimode fiber connections.
Hot-Pluggable: Allows for easy installation and replacement without system downtime.
Digital Optical Monitoring (DOM): Enables real-time monitoring of optical parameters.
Standard Temperature Range: Operates between 0°C to +70°C for indoor environments.
Specifications :
| Specification | Details |
|---|
| Brand | Ruckus |
| Part Number | 10G-SFPP-SR |
| Product Type | SFP+ Transceiver Module |
| Data Rate | Up to 10.3 Gbps |
| Wavelength | 850nm |
| Cable Type | Multimode Fiber (MMF) |
| Connector Type | Duplex LC |
| Maximum Reach | 300 meters (OM3 fiber) |
| Digital Optical Monitoring | Yes |
| Hot-Pluggable | Yes |
| Operating Temperature | 0°C to +70°C |
| Power Supply | 3.3V |
| Compliance | MSA Compliant |
| RoHS Compliant | Yes |
| Form Factor | SFP+ |
| Dimensions (L x W x H) | 2.5 x 0.5 x 0.3 inches |
| Weight | 0.05 lbs |
