Detailed Specifications

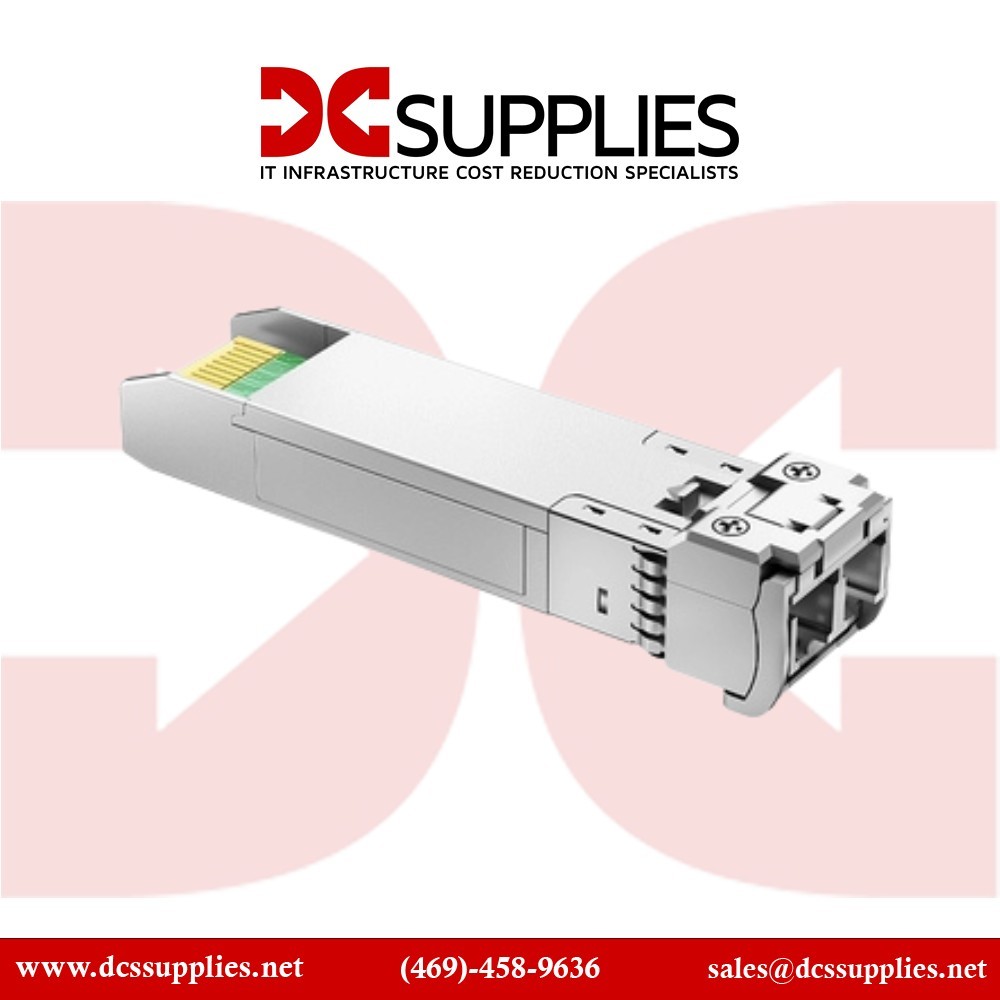

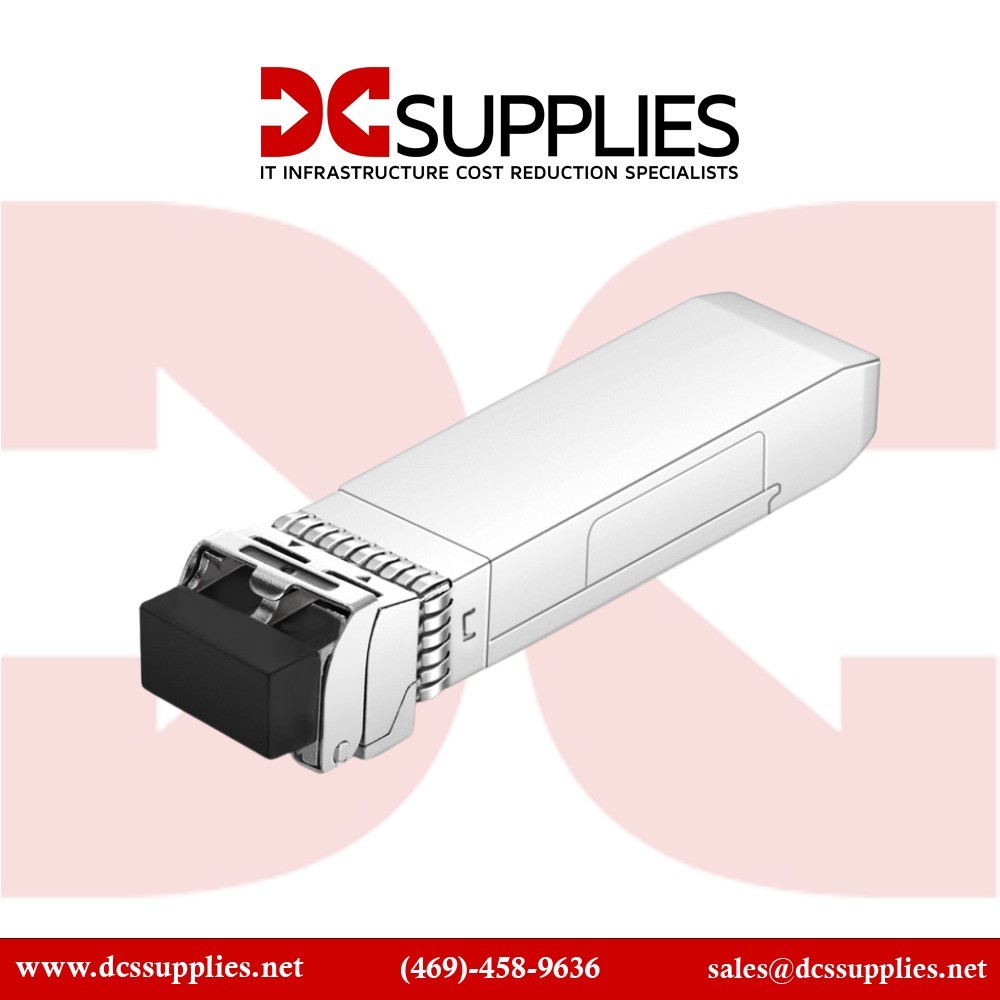

Ruckus 10G-SFPP-LR – 10GBASE-LR SFP+ Transceiver
Overview :
The Ruckus 10G-SFPP-LR is a 10 Gigabit SFP+ transceiver module designed for long-range single-mode fiber (SMF) connections. Operating at a wavelength of 1310 nm, it supports data rates up to 10.31 Gbps and is compliant with IEEE 802.3ae 10GBASE-LR standards. This transceiver is suitable for applications requiring high-speed data transmission over extended distances, such as enterprise networks, data centers, and service provider infrastructures. It features a hot-pluggable SFP+ form factor with an LC duplex connector, ensuring easy integration into compatible Ruckus switches and routers. The module is designed to operate within a standard temperature range of 0°C to 70°C, making it suitable for various environmental conditions. Additionally, it supports Digital Optical Monitoring (DOM) for real-time monitoring of parameters like temperature, voltage, and optical power, facilitating proactive network management and maintenance.
Key Features :
High-Speed Data Transfer: Supports up to 10.31 Gbps data rates.
Extended Reach: Operates over distances up to 10 km on single-mode fiber.
Standard Compliance: Compliant with IEEE 802.3ae 10GBASE-LR standards.
Digital Optical Monitoring (DOM): Enables real-time monitoring of transceiver parameters.
Wide Operating Temperature: Functions within a temperature range of 0°C to 70°C.
Specifications :
| Specification | Details |
|---|
| Brand | Ruckus |
| Part Number | 10G-SFPP-LR |
| Product Type | SFP+ Transceiver |
| Form Factor | SFP+ |
| Data Rate | Up to 10.31 Gbps |
| Wavelength | 1310 nm |
| Media Type | Single-Mode Fiber (SMF) |
| Connector Type | LC Duplex |
| Maximum Distance | 10 km |
| Digital Optical Monitoring (DOM) | Yes |
| Operating Temperature | 0°C to 70°C |
| Power Supply | 3.3V |
| Hot Pluggable | Yes |
| Compliance | IEEE 802.3ae 10GBASE-LR |
