Detailed Specifications

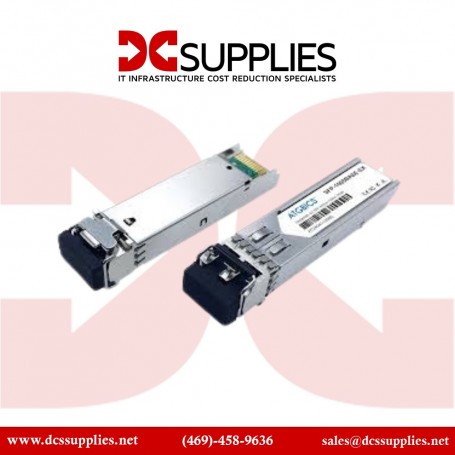

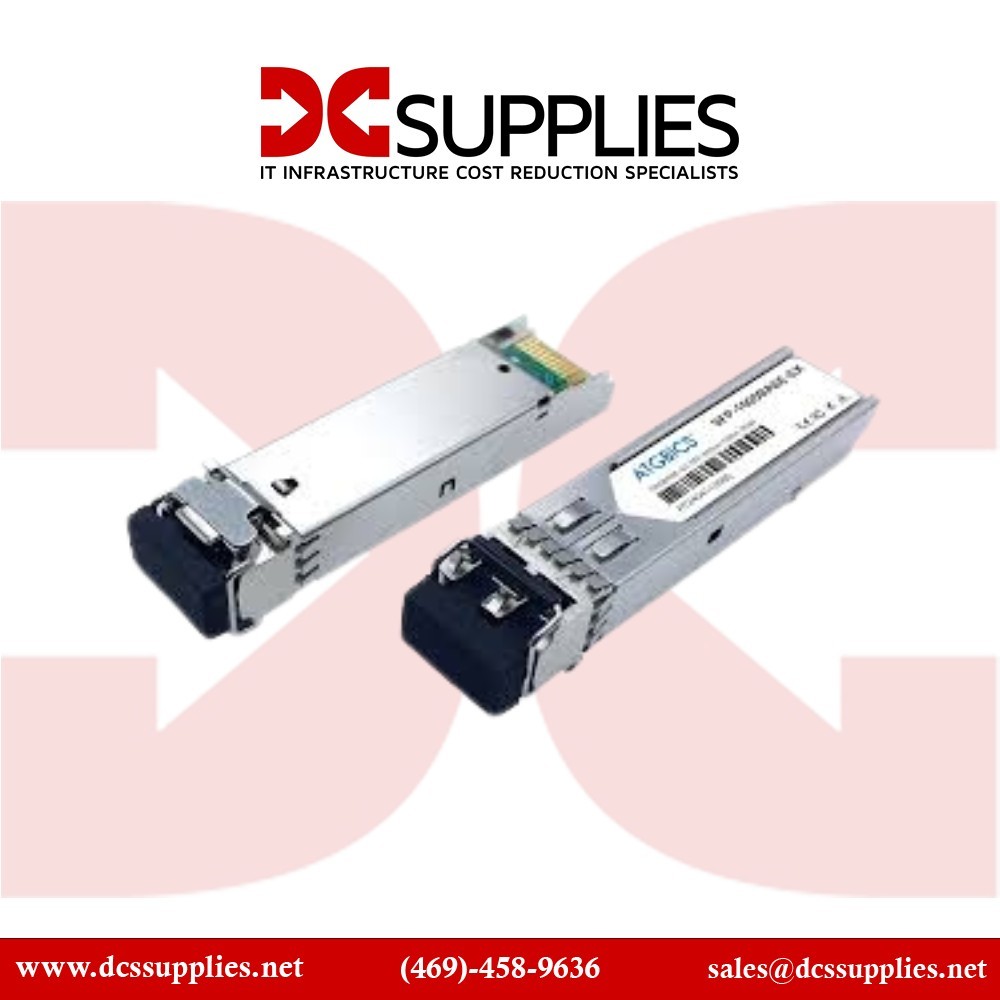

Ruckus E1MG-LX-A8 – 1000BASE-LX SFP Transceiver (8-Pack)
Overview :
The Ruckus E1MG-LX-A8 is a high-performance 1000BASE-LX SFP transceiver module designed for single-mode fiber (SMF) networks. Operating at a wavelength of 1310nm, it supports data transmission speeds of up to 1 Gbps over distances up to 10 kilometers, making it ideal for enterprise, campus, cloud, and data center applications. This module features a duplex LC connector and is compliant with IEEE 802.3z standards. It also supports Digital Optical Monitoring (DOM) for real-time monitoring of optical parameters, ensuring optimal performance and reliability. The E1MG-LX-A8 is TAA-compliant and operates within an industrial temperature range of -40°C to 85°C, ensuring durability in various environmental conditions. This 8-pack bundle offers cost-effective scalability for network deployments requiring multiple transceivers.
Key Features :
Supports 1000BASE-LX standard for SMF
Up to 10 km reach with 1310nm wavelength
Digital Optical Monitoring (DOM) capability
Industrial operating temperature range (-40°C to 85°C)
TAA-compliant for federal procurements
Specifications :
| Specification | Details |
|---|
| Brand | Ruckus |
| Part Number | E1MG-LX-A8 |
| Product Type | 1000BASE-LX SFP Transceiver |
| Form Factor | SFP |
| Data Rate | 1 Gbps |
| Wavelength | 1310nm |
| Connector Type | Duplex LC |
| Fiber Type | Single-Mode Fiber (SMF) |
| Maximum Distance | 10 km |
| Digital Optical Monitoring | Yes |
| Compliance Standards | IEEE 802.3z, TAA |
| Operating Temperature | -40°C to 85°C |
| Operating Voltage | 3.3V |
| Dimensions (L x W x H) | 2.2 x 0.5 x 0.3 inches |
| Weight | 0.1 lbs |
