Detailed Specifications

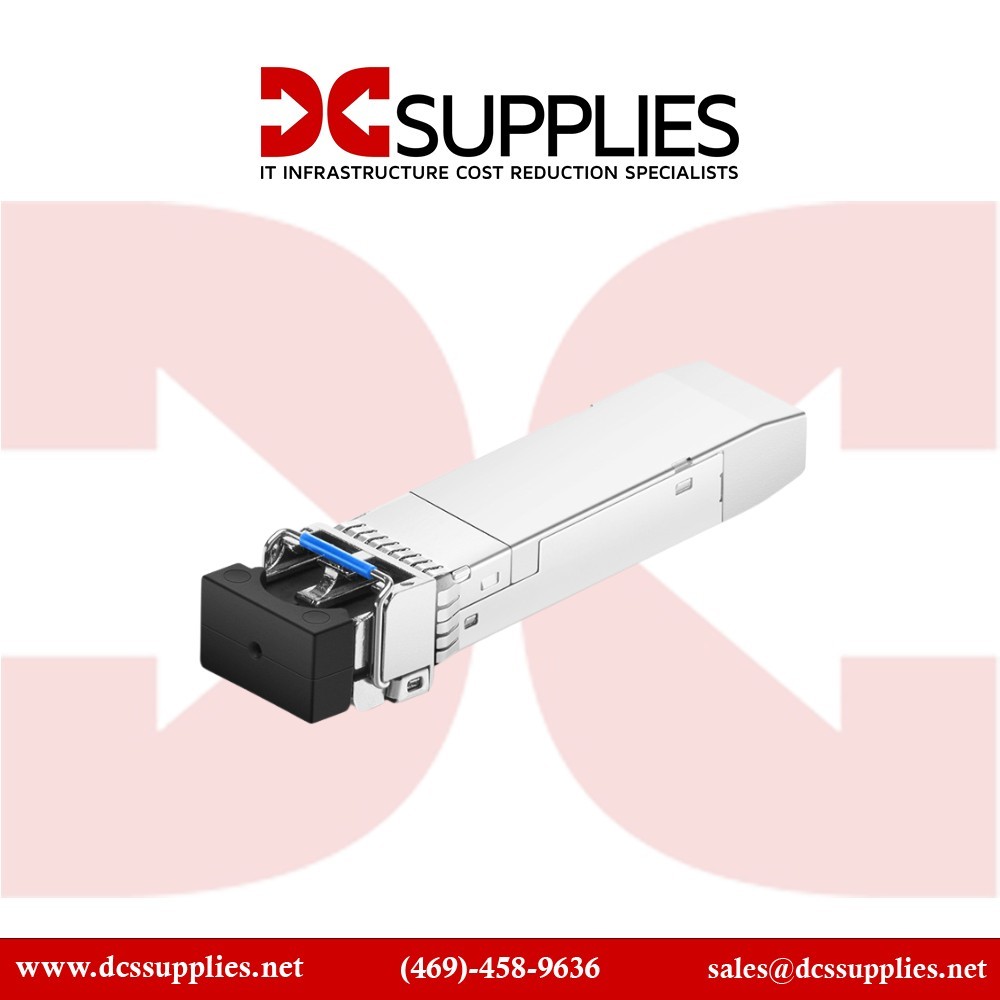

Ruckus E1MG-100FX-OM – 100BASE-FX SFP Transceiver Module
Overview :
The Ruckus E1MG-100FX-OM is a 100BASE-FX Small Form-factor Pluggable (SFP) transceiver module designed for Fast Ethernet applications over multimode fiber (MMF). Operating at a wavelength of 1310nm, it supports data rates up to 125Mbps and distances up to 2 kilometers (1.2 miles) using an LC duplex connector. This transceiver is suitable for network environments requiring reliable and cost-effective fiber connectivity, such as enterprise networks, data centers, and campus networks. It features Digital Diagnostic Monitoring (DDM), allowing real-time monitoring of parameters like temperature, voltage, and optical power levels, ensuring optimal performance and proactive maintenance. The E1MG-100FX-OM operates within a commercial temperature range of 0°C to 70°C, making it suitable for standard operating conditions. Its compact form factor and ease of installation make it a versatile choice for upgrading or expanding fiber optic networks without the need for specialized tools or technical expertise.
Key Features :
Data Rate: Supports up to 125Mbps data transmission.
Distance: Operates over multimode fiber up to 2 km.
Wavelength: Utilizes a 1310nm wavelength for signal transmission.
Connector: Equipped with an LC duplex connector for fiber connections.
Monitoring: Features Digital Diagnostic Monitoring (DDM) for real-time performance tracking.
Specifications :
| Specification | Details |
|---|
| Brand | Ruckus |
| Part Number | E1MG-100FX-OM |
| Product Type | 100BASE-FX SFP Transceiver |
| Data Rate | 125Mbps |
| Distance | 2 km (1.2 miles) |
| Wavelength | 1310nm |
| Connector | LC Duplex |
| Media Type | Multimode Fiber (MMF) |
| DDM Support | Yes |
| Transmitter Power | -15 to -8 dBm |
| Receiver Sensitivity | < -32 dBm |
| Power Budget | 17 dB |
| Power Consumption | 0.6W |
| Temperature Range | 0°C to 70°C |
| Form Factor | SFP |
| Weight | 0.1 lbs |
