Detailed Specifications

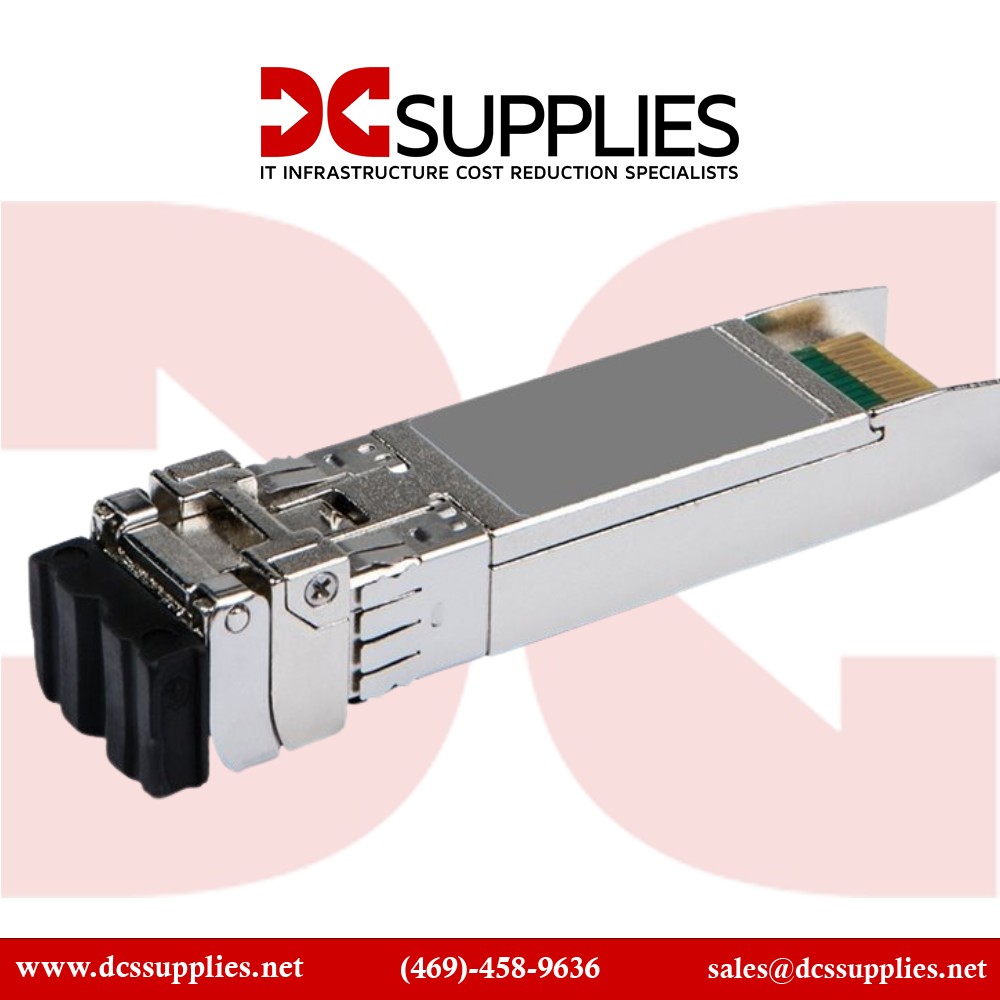

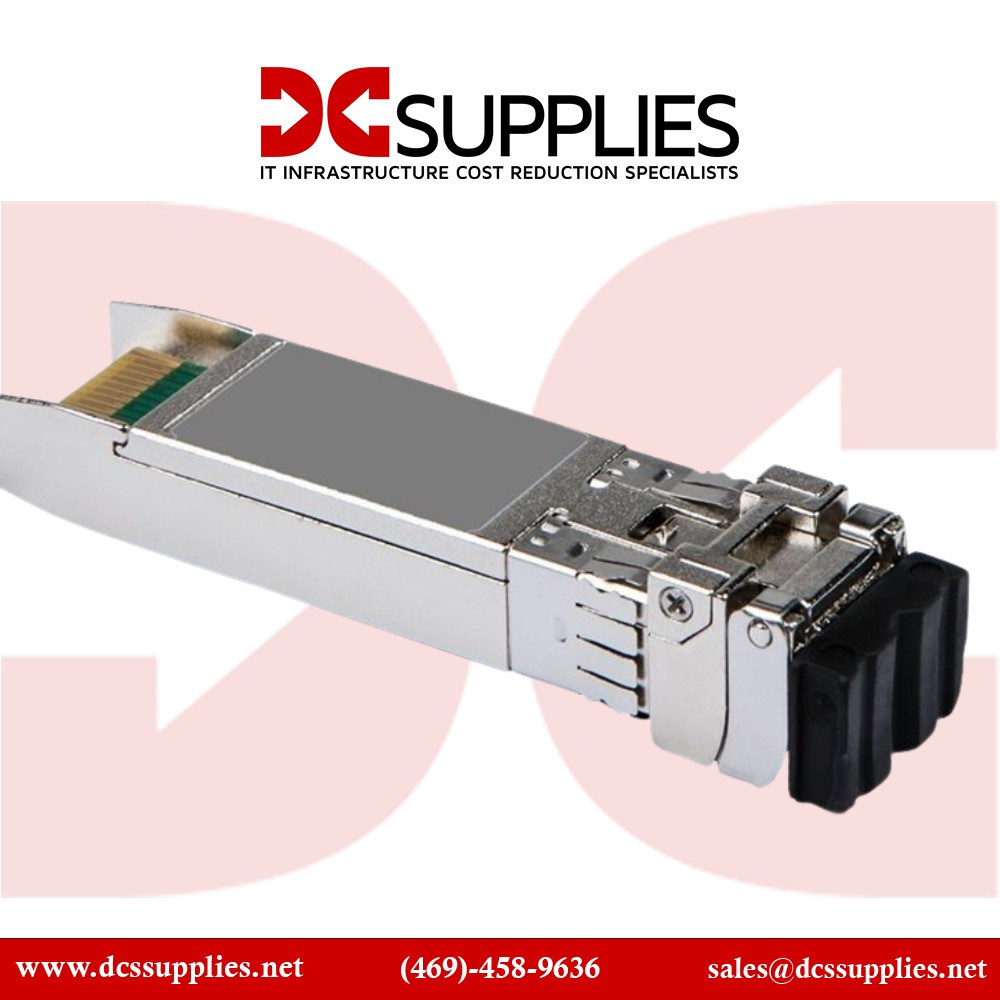

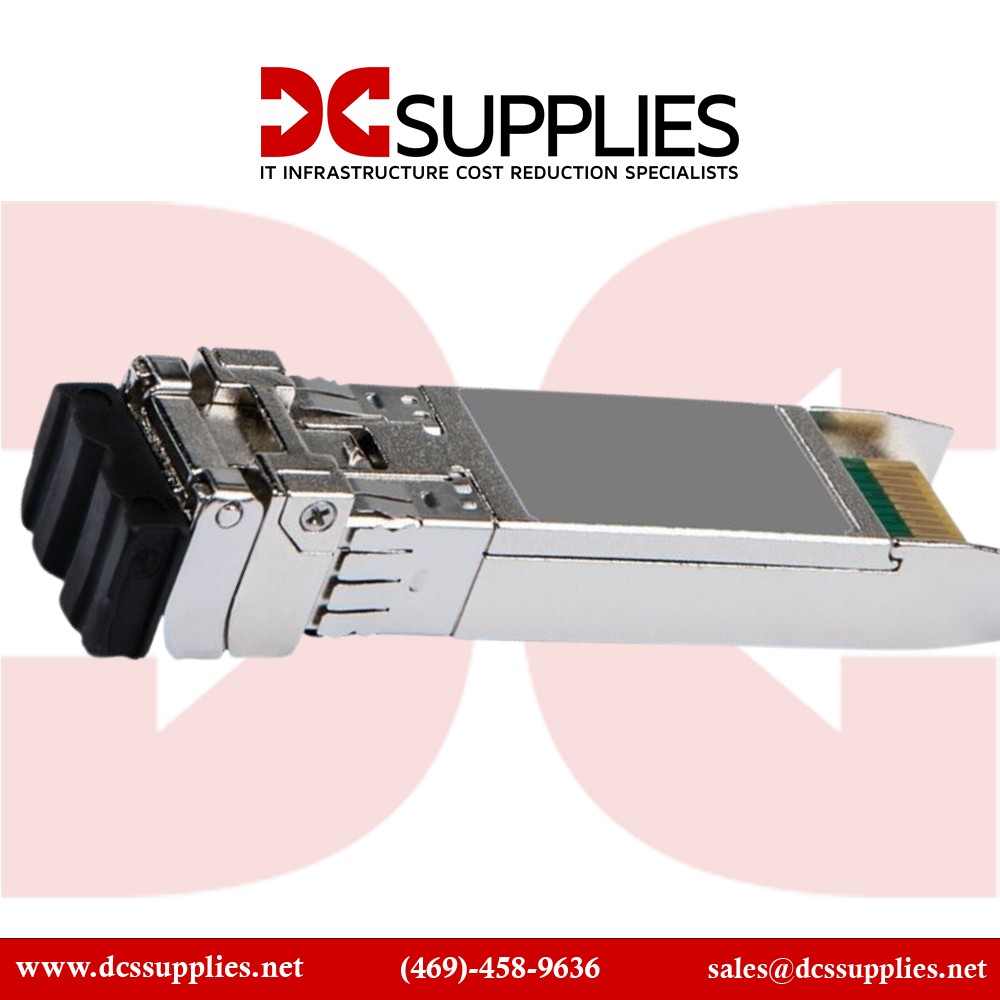

Ruckus E25G-SFP28-SR – 25GBase-SR SFP28 Transceiver Module
Overview :
The Ruckus E25G-SFP28-SR is a 25 Gigabit Ethernet SFP28 short-range optical transceiver module designed for high-speed data transmission over multimode fiber. Operating at a wavelength of 850nm, it supports data rates up to 25.78 Gbps. This module is compatible with Ruckus ICX series switches and other devices supporting SFP28 interfaces. It offers a reach of up to 100 meters over OM4 multimode fiber and up to 70 meters over OM3 fiber, making it suitable for data center, enterprise, and campus network environments. The transceiver features a duplex LC connector interface and supports Digital Optical Monitoring (DOM) for real-time monitoring of optical parameters. With a power dissipation of less than 1.0W and a commercial operating temperature range of 0°C to +70°C, it ensures efficient performance and reliability. Its hot-pluggable design allows for easy installation and replacement without disrupting network operations.
Key Features :
Supports 25.78 Gbps data rate over multimode fiber
850nm VCSEL transmitter for short-range applications
Reach up to 100m over OM4 and 70m over OM3 fiber
Duplex LC connector interface with DOM support
Low power consumption (<1.0W) and commercial temperature range
Specifications
| Specification | Details |
|---|
| Brand | Ruckus |
| Part Number | E25G-SFP28-SR |
| Product Type | 25GBase-SR SFP28 Transceiver Module |
| Data Rate | 25.78 Gbps |
| Wavelength | 850nm |
| Fiber Type | Multimode (OM3/OM4) |
| Reach (OM3) | Up to 70 meters |
| Reach (OM4) | Up to 100 meters |
| Connector | Duplex LC |
| Digital Optical Monitoring (DOM) | Yes |
| Power Supply | 3.3V Single Supply |
| Power Consumption | <1.0W |
| Operating Temperature | 0°C to +70°C (Commercial) |
| Hot-Pluggable | Yes |
| Compliance | SFF-8431, RoHS |
