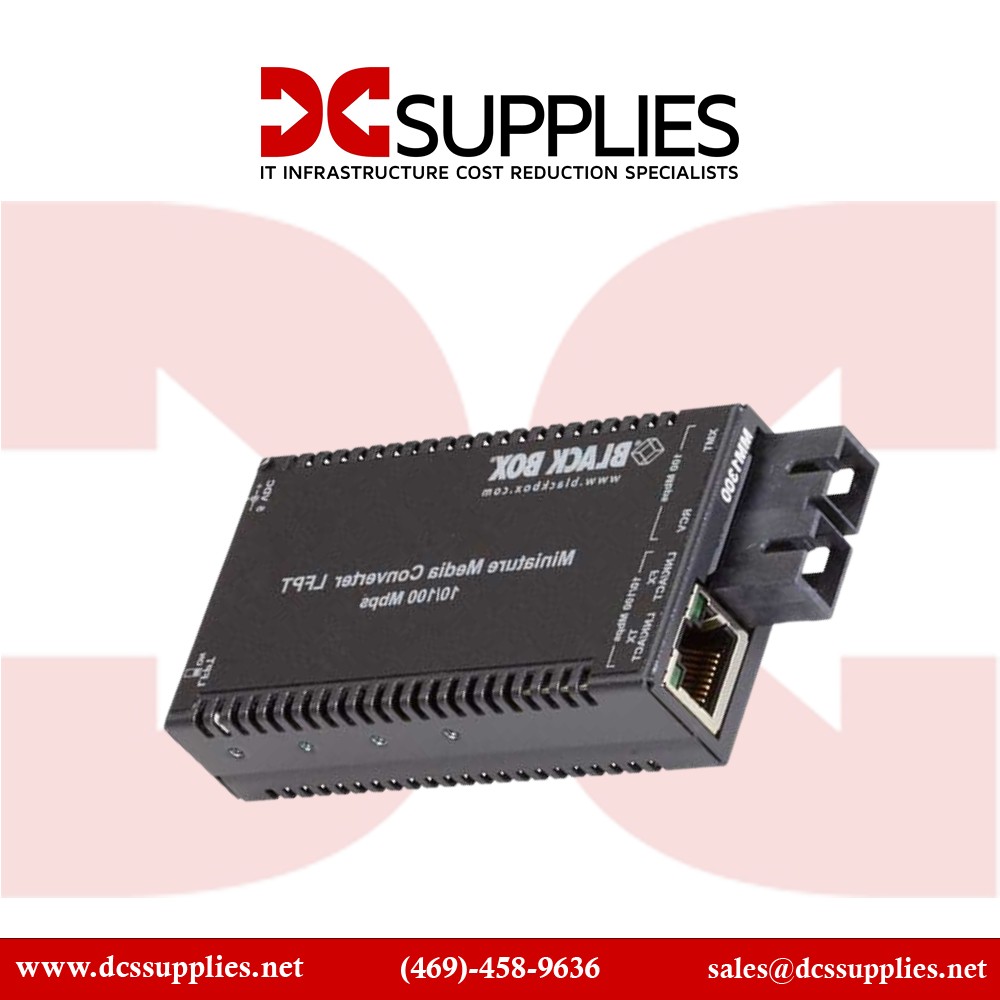

Black Box LHC014A-R4 MultiPower Miniature Transceiver/Media Converter View larger

Black Box LHC014A-R4 MultiPower Miniature Transceiver/Media Converter

New

In Stock

Black Box LHC014A-R4: Multipower miniature transceiver/media converter for flexible network connections.
×




$167.90

  • New

Detailed Specifications

Black Box LHC014A-R4

MultiPower Miniature Transceiver / Media Converter

The Black Box LHC014A-R4 is a compact multipower miniature media converter designed to extend Fast Ethernet connections over fiber. It converts 100BASE-TX copper Ethernet signals to 100BASE-FX fiber, enabling long-distance networking across single-mode or multimode fiber. With its small footprint and rugged build, it's well-suited for enterprise, telecom, and industrial deployments.

As part of the trusted Black Box MultiPower line, the LHC014A-R4 offers flexible deployment — operate it as a standalone converter with an AC adapter, or power it directly from a chassis system for large-scale rollouts.

Features :

This Media Converter enables seamless copper-to-fiber integration in LANs. With Auto-Negotiation and Link Fault Pass-Through (LFPT) support, it ensures easy troubleshooting and reliable performance across extended distances.

Advanced Options :

The LHC014A-R4 supports up to 100 Mbps Fast Ethernet data rates, is IEEE 802.3u compliant, and provides diagnostic LEDs for at-a-glance link and activity status. With fiber optic connectivity, it protects data from EMI/RFI interference, ensuring clear transmission over kilometers of fiber cable.

Product Key Features

  • Compact multipower media converter
  • Converts copper 100BASE-TX to fiber 100BASE-FX
  • Operates on AC adapter or chassis system (multipower)
  • Extends Fast Ethernet over single- or multi-mode fiber
  • Supports Auto-Negotiation and Link Fault Pass-Through
  • Diagnostic LEDs for Power, Link, and TX/RX activity
  • Backed by Black Box reliability

Reliability & Performance :

The Black Box LHC014A-R4 ensures stable fiber links over long distances, protecting data transmissions from electrical interference. Rugged and compact, it’s ideal for mission-critical business, campus, or industrial networks requiring reliable copper-to-fiber extensions.

Key Features :

  • Miniature transceiver-style media converter
  • Flexible power options (standalone/chassis)
  • Fast Ethernet (100 Mbps) support
  • Low power consumption & fanless design
  • Trusted by Black Box enterprise customers

Specifications :

SpecificationDetails
Part Number LHC014A-R4
Brand Black Box
Product Type Multipower Miniature Media Converter
Data Rate 100 Mbps (Fast Ethernet)
Standards IEEE 802.3u 100BASE-TX/FX

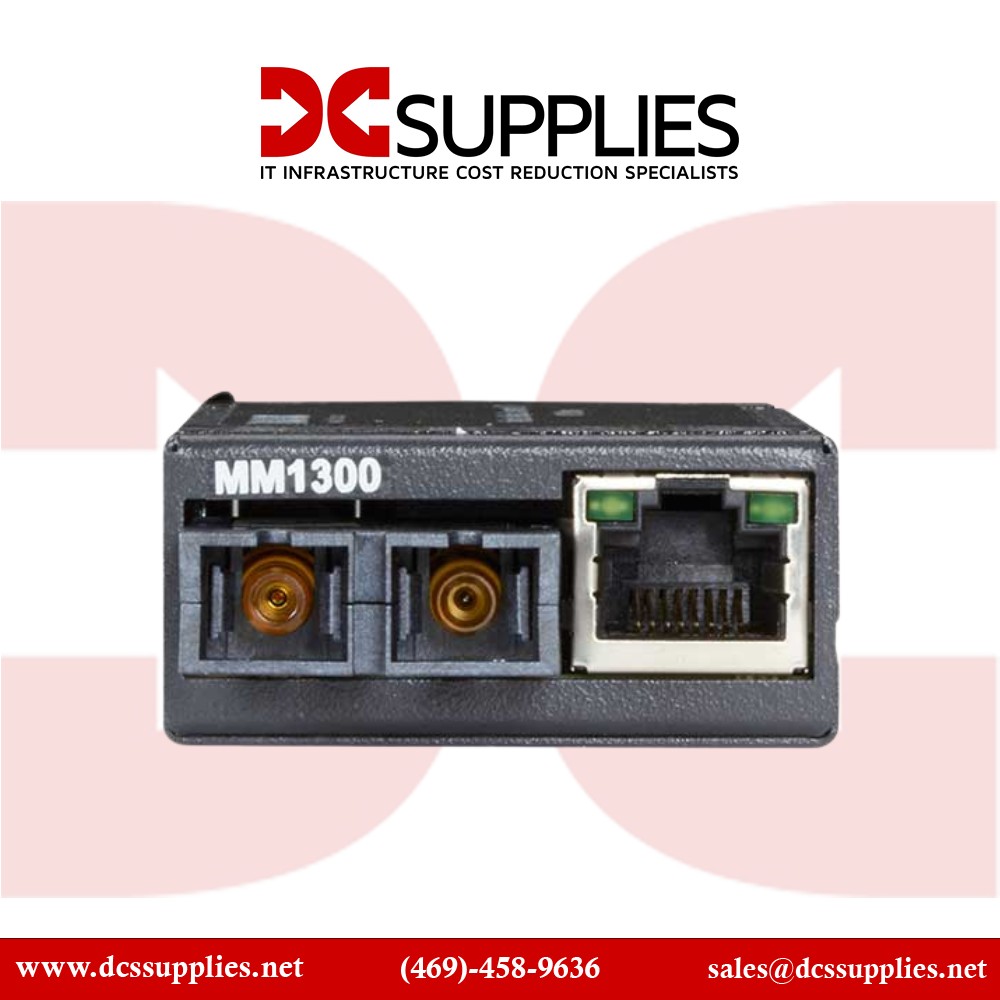

Copper Port 1 × RJ-45 (100BASE-TX)
Fiber Port 1 × Fiber SC/ST (model dependent)
Fiber Type Single-mode or Multimode supported
Max Distance Up to 2 km MM / 20 km SM (varies by type)
Wavelength 1310 nm
Duplex Full/Half-duplex
Diagnostics LEDs for Power, Link/Activity
Special Functions Link Fault Pass-Through (LFPT)
Power Options Standalone AC adapter or chassis slot
Input Voltage 5V DC (typical)
Power Consumption < 3W
Operating Temp 0°C to 50°C
Storage Temp -20°C to 70°C
Form Factor Miniature metal housing
Compliance RoHS, CE, FCC Class A
Warranty Backed by Black Box lifetime warranty
